Bently Nevada 3500/50 (133388-02) Speed Monitor

Description

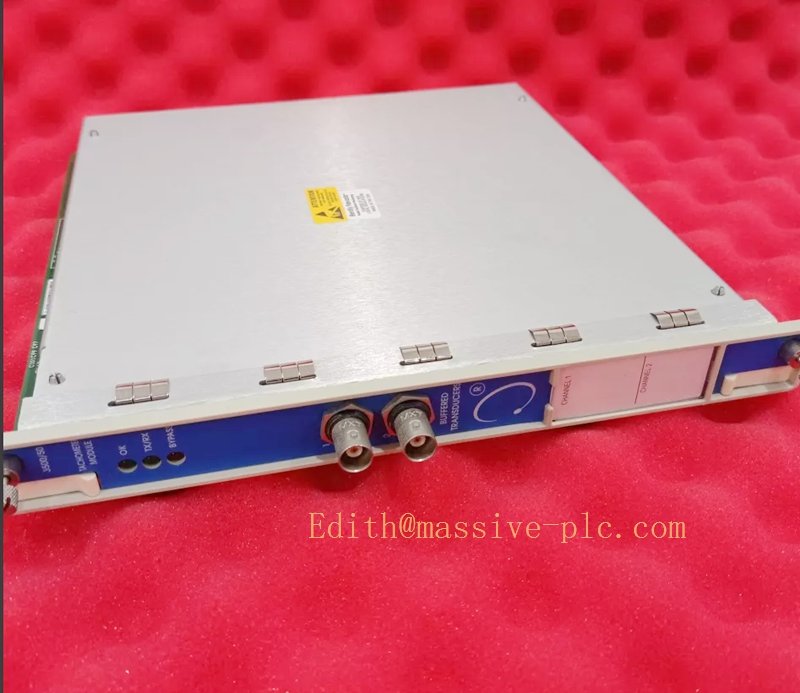

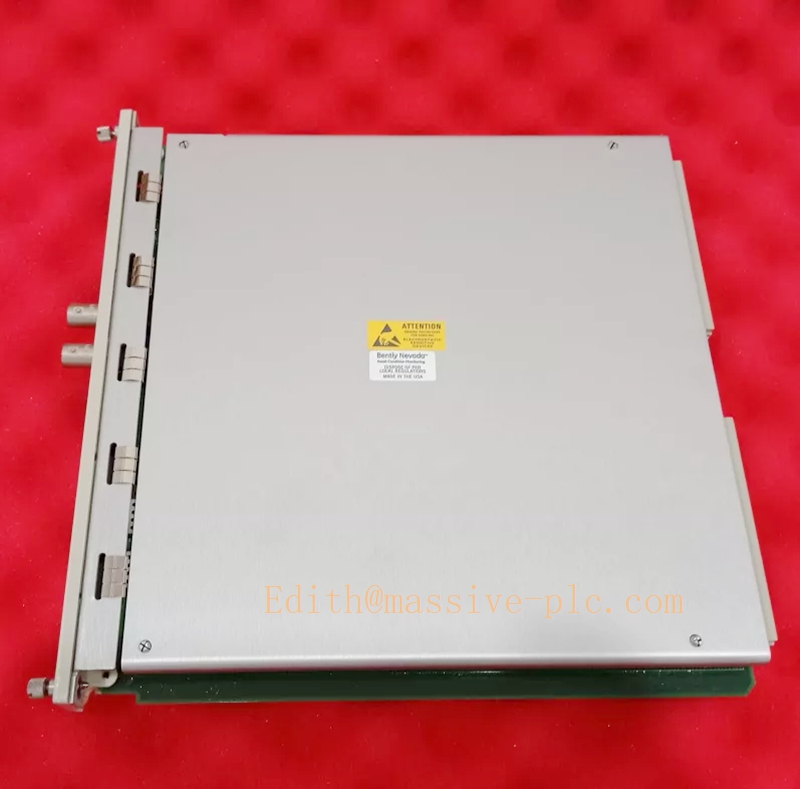

Bently Nevada 3500/50 (133388-02) Speed Monitor Module

Product Overview

The Bently Nevada 3500/50 Speed Monitor Module (133388-02) is a high-precision, industry-standard rotor speed and zero-speed monitoring module designed for the Bently Nevada 3500 machinery protection system. As a core dedicated speed monitoring unit for rotating equipment, it is widely deployed on industrial turbomachinery to continuously monitor shaft rotational speed, overspeed condition, standstill status and rotor acceleration changes. The part number133388-02 represents the official standard hardware revision of the 3500/50 module, featuring optimized circuit stability, enhanced anti-interference performance and standardized rack compatibility.

This module supports signal acquisition from magnetic pickup sensors and proximity probes, converting pulse frequency signals into accurate real-time speed values. It provides configurable overspeed alarm, trip protection and zero-speed interlock logic for critical rotating equipment. Compliant with industrial machinery safety standards and API 670 specifications, the 3500/50 (133388-02) supports full self-diagnosis, online configuration and stable long-term operation. It serves as an essential safety monitoring component for turbine, compressor, fan and pump equipment in petrochemical, power generation and process industries.

350050 133388-02

Core Technical Parameters

Main Product Features

3.1 High-Precision Speed Measurement Performance

The 3500/50 (133388-02) module adopts high-resolution pulse acquisition and frequency conversion algorithm, achieving accurate real-time measurement of rotating shaft speed with ultra-low measurement error. It supports wide-range RPM monitoring from static zero-speed status to high-speed rotating state, ensuring stable and consistent data output under variable speed working conditions. The optimized hardware circuit of the 133388-02 revision effectively reduces signal jitter and improves long-term measurement stability.

3.2 Dual-Channel Independent Monitoring Design

Equipped with two completely independent speed monitoring channels, the module supports simultaneous monitoring of two sets of equipment speed signals or redundant speed signal acquisition for a single unit. Each channel can independently configure alarm thresholds, trip logic and signal parameters, realizing redundant protection and dual verification of equipment speed status, which greatly improves the reliability of machinery overspeed protection.

3.3 Comprehensive Equipment Safety Protection Logic

This module integrates multiple core protection functions including overspeed high alarm, overspeed trip, zero-speed detection and rotor acceleration monitoring. It can accurately capture abnormal speed changes such as equipment runaway, sudden speed drop and static standstill. It outputs reliable alarm and trip signals to interlock equipment shutdown, effectively avoiding mechanical collision, blade damage and bearing failure caused by abnormal speed of rotating machinery.

3.4 Full-Link Fault Self-Diagnosis Capability

The 3500/50 (133388-02) supports real-time self-diagnosis of sensor disconnection, signal attenuation, pulse abnormality and internal circuit failure. It can actively identify potential faults in the speed monitoring loop, generate accurate fault codes and upload diagnostic information to the upper monitoring system. It eliminates monitoring blind spots and ensures the normal operation of the machinery protection loop.

3.5 Strong On-Site Adaptability & Anti-Interference

Adopting industrial-grade EMC anti-interference design, the module can resist electromagnetic interference, vibration impact and power fluctuation in complex industrial environments. It stably acquires pulse signals of rotating equipment in high-temperature, high-noise and strong-vibration workshop environments, ensuring no distortion or loss of monitoring signals in long-term industrial operation.

3.6 Flexible Software Configuration & Easy Maintenance

All monitoring parameters, alarm thresholds and protection logic can be remotely configured and modified through the 3500 system supporting software. It supports real-time data viewing, historical trend recording and fault log query. The plug-and-play rack installation design simplifies on-site debugging, replacement and daily maintenance work, reducing equipment operation and maintenance costs.

Specific Application Scenarios

The Bently Nevada 3500/50 (133388-02) speed monitor module is dedicated to safety monitoring and overspeed protection of industrial core rotating machinery, widely used in high-risk process industries such as thermal power, petrochemical, natural gas and coal chemical.

Typical Industrial Application Scenarios:

• Steam Turbine & Gas Turbine Monitoring: Real-time speed tracking and overspeed trip protection for power generation unit turbines to prevent equipment runaway and mechanical failure.

• Centrifugal Compressor Protection: Speed monitoring and zero-speed interlock for petrochemical and natural gas transmission compressors, providing safety basis for start-stop logic and interlock control.

• Large Fan & Pump Equipment Monitoring: Abnormal speed alarm and fault judgment for industrial large-scale rotating auxiliary equipment to avoid equipment damage caused by overload and overspeed.

• Mechanical Standstill Interlock Control: Zero-speed detection for equipment maintenance and switching working conditions to ensure safe locking and maintenance of rotating equipment.

• Old System Renovation & Safety Upgrade: Standard replacement and performance upgrade of old 3500 system speed monitoring loops to meet latest API 670 machinery safety specifications.

350050 133388-02

Supporting Components

The 3500/50 (133388-02) module needs to be matched with standard Bently Nevada 3500 system accessories to form a complete monitoring system:

• 3500 System Rack: Standard 3500/05 rack frame, providing unified power supply and backplane communication bus.

• 3500/15 Power Supply Module: System redundant power supply unit to ensure stable power operation of the speed monitoring module.

• 3500/22 Transient Data Interface Module: Used for data transmission, configuration uploading and remote monitoring docking.

• Magnetic Pickup Speed Sensor: Matching speed pulse acquisition probe for field shaft signal collection.

• Proximity Probe Assembly: Optional high-precision proximity sensor for high-stability speed signal acquisition.

• System Terminal Board & Signal Cable: Special shielding cable and terminal accessories for anti-interference signal transmission.

Related Series Models

The 3500/50 belongs to the Bently Nevada 3500 Machinery Protection System series, with clear functional matching and iterative models:

• 3500/40 Proximity Monitor Module: Used for shaft vibration and displacement monitoring, matched with 3500/50 to form complete rotating machinery protection.

• 3500/42 Vibration Monitor Module: Bearing vibration and casing vibration monitoring unit, cooperating with speed data to analyze equipment operating status.

• 3500/53 Zero Speed Monitor Module: Professional zero-speed monitoring enhanced model for ultra-strict static interlock scenarios.

• 3500/60 Temperature Monitor Module: Equipment temperature monitoring module, realizing multi-dimensional equipment condition monitoring with speed parameters.

• 133388-01 / 133388-03: Different hardware revisions of 3500/50 module; 133388-02 is the most widely used stable standard version.
