Bently Nevada 3500/46M 169459‑01 Multimode Prox/Velom I/O Assembly

Description

Bently Nevada 3500/46M 169459‑01 Multimode Prox/Velom I/O Assembly

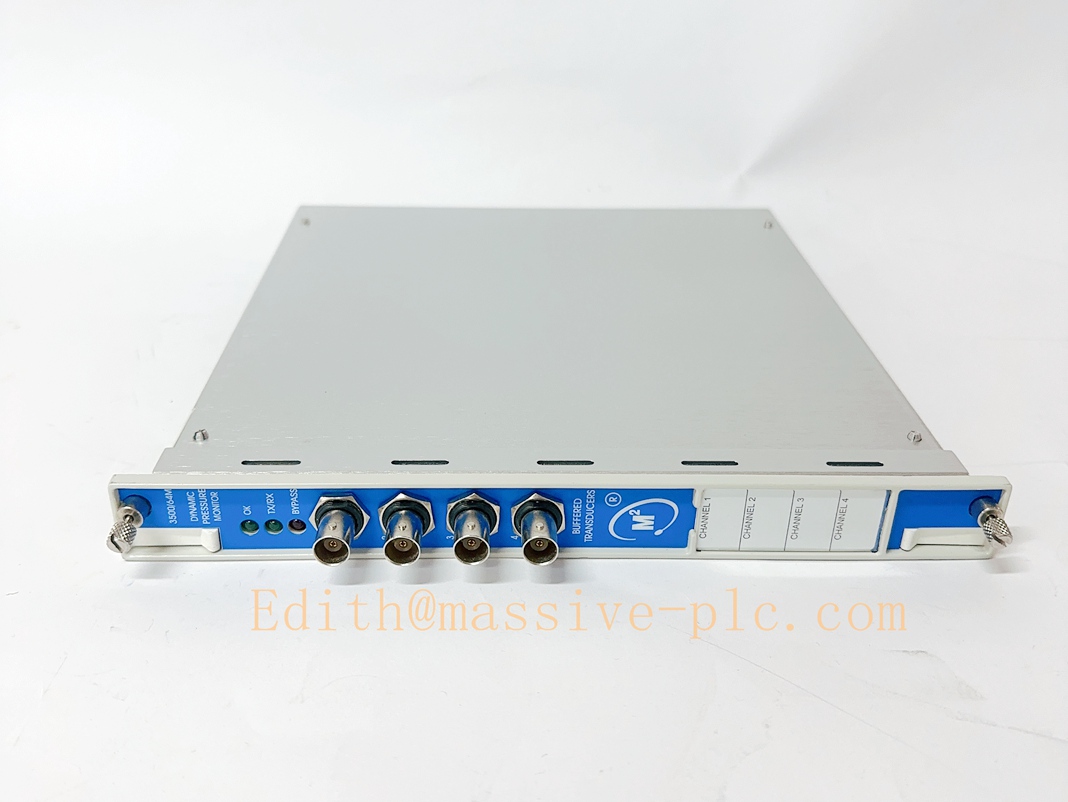

3500/46 140734-06

Product Introduction

169459‑01 is a rear‑rack multimode Prox/Velom I/O assembly designed for the Bently Nevada 3500 machinery protection system, mainly matched with 3500/46M Hydro Turbine Monitor mainboard. It adopts internal screw‑type field termination without on‑board intrinsic safety barriers. This I/O module provides transducer signal interfaces and dry‑contact multimode selection inputs, supporting multi‑group alarm threshold switching for hydro‑turbine variable operating conditions. It can also be compatible with 3500/42M and 3500/44M monitor mainboards. It cannot work independently and must mechanically lock and electrically mate with the front‑plug monitor mainboard. Compliant with API‑670 and SIL‑2 capable, widely used in hydropower plants, thermal power and oil‑gas rotating machinery protection systems.

Note: Multimode function is valid only when paired with 3500/46M mainboard. When cooperating with 3500/44M, proximity probe channels are disabled, only Velomitor and accelerometer sensors are available.

Typical Applications ‑ Signal termination for 3500/46M hydro‑turbine monitor: shaft radial vibration, stator air‑gap, casing vibration measurement ‑ Multimode threshold switching via dry‑contact input: up to 8 sets of alarm parameters for turbine start‑up, loading and shutdown conditions ‑ Interface proximity probes, air‑gap sensors, Velomitor velocity transducers and accelerometers ‑ Direct rear‑of‑rack screw termination for field cables, suitable for cabinet layouts without remote terminal blocks ‑ For non‑hazardous‑area installation; external certified IS barriers shall be equipped for hazardous‑zone field sensors ‑ Transmit transducer signals to front‑plug 3500/46M mainboard; data uploaded to DCS/PLC through rack backplane bus

Technical Specifications

Important Remark: Multimode switching function requires both 169459‑01 I/O assembly and 3500/46M mainboard. Hazardous‑area applications require external intrinsic safety barriers.

Key Features

1. Multimode dry‑contact input: realizes switching of 8 groups of alarm thresholds to adapt to different working conditions of hydro‑turbine units.
2. Multi‑sensor universal interface: supports proximity probes, air‑gap sensors, Velomitor and accelerometers; effective sensor types are determined by front‑mainboard firmware.
3. Internal screw‑termination design: field cables connect directly to rear‑rack terminals, simple cabinet wiring layout, no additional ribbon cables or remote terminal blocks required.
4. Mechanical interlock structure: ensures reliable electrical contact after locking with front‑plug monitor mainboard.
5. Full‑range signal‑path diagnostics: detects transducer open‑circuit and short‑circuit faults; time‑stamped fault events stored in system non‑volatile memory.
6. High‑EMI‑immunity industrial hardware, adapts to harsh high‑interference hydropower‑plant environment.
7. Multi‑mainboard compatibility: applicable for hydro‑turbine, general‑purpose vibration and aeroderivative gas‑turbine monitoring scenarios.

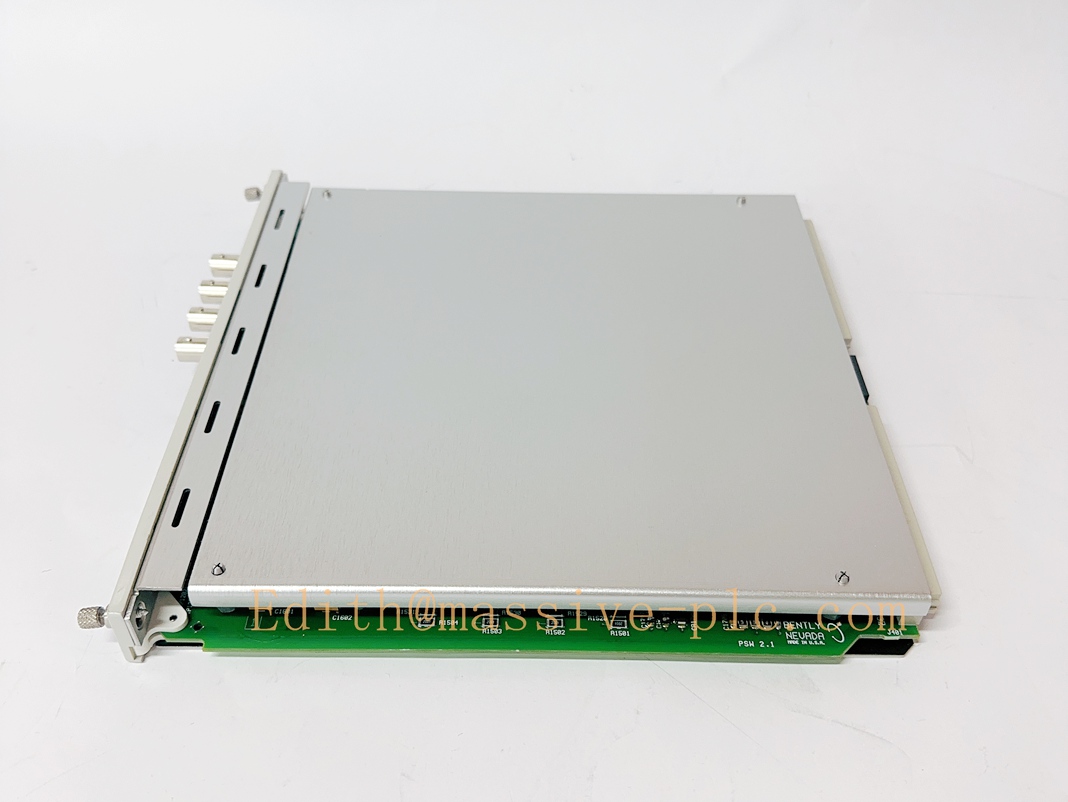

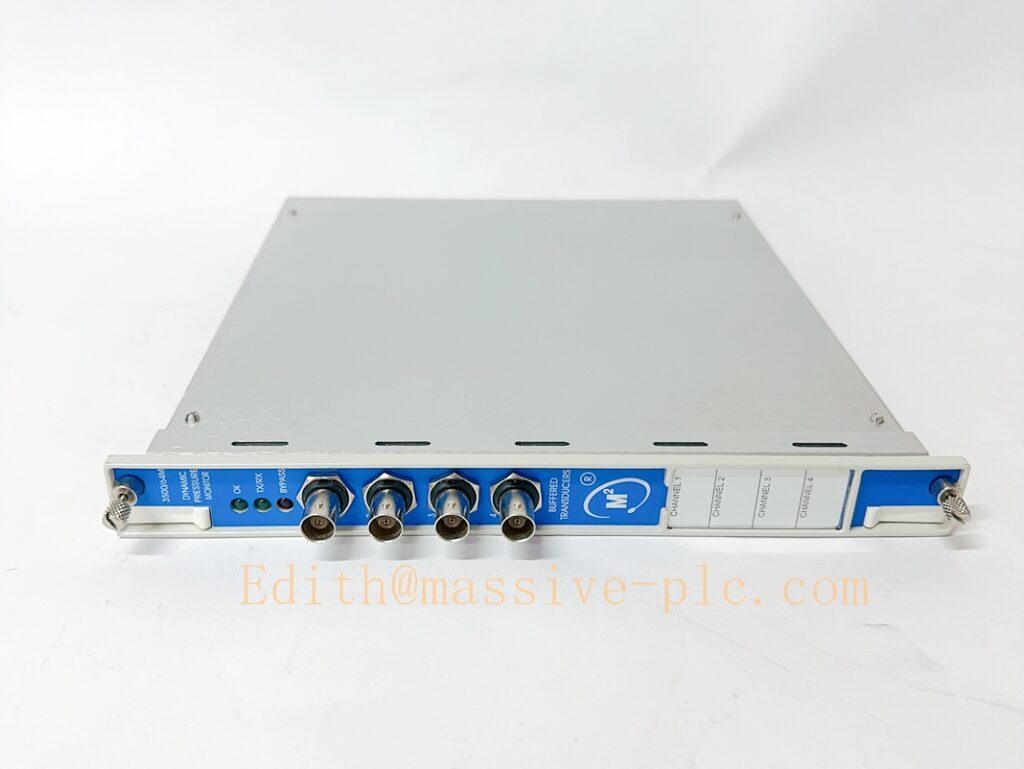

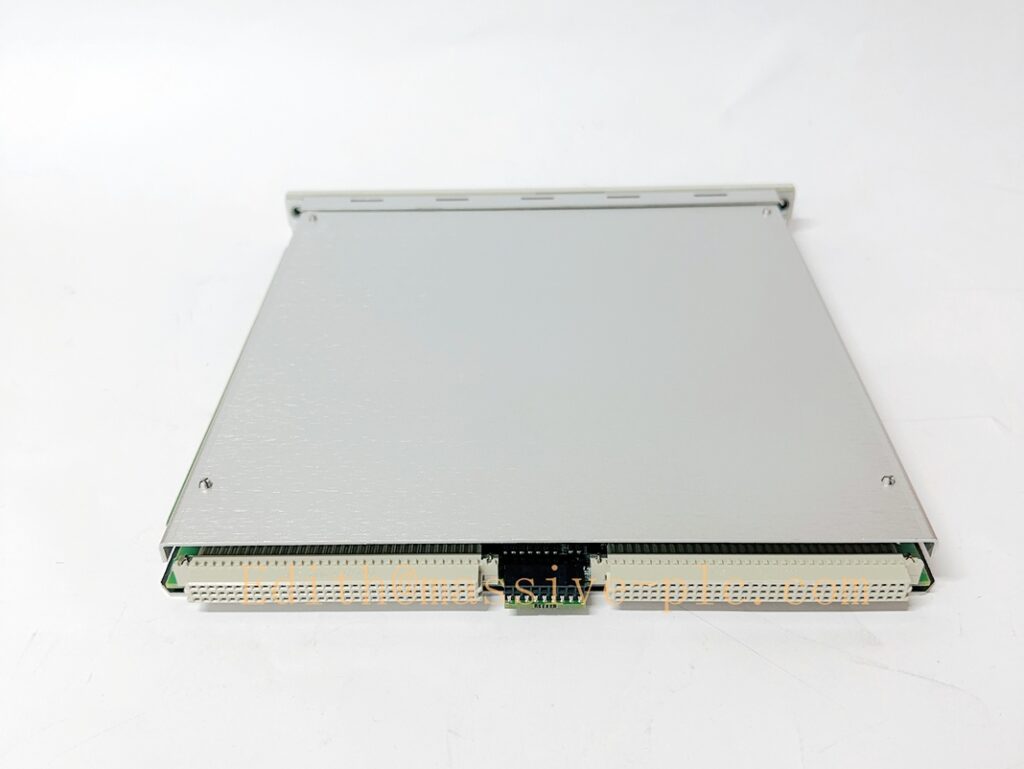

3500/46 140734-06

Adaptive Quality Assurance and Test Protocol (AQAT)

4.1 Factory‑Side Adaptive QA Test

‑ Mechanical mating test: mate with qualified 3500/46M mainboard, verify locking status and back‑contact reliability. ‑ Power‑on self‑diagnosis: check internal circuit self‑check and rack backplane bus communication. ‑ Channel signal injection test: simulate proximity, air‑gap, velocity and acceleration signals to verify signal transmission, gain and linearity. ‑ Multimode logic test: trigger dry‑contact mode‑select signals to confirm normal switching of threshold groups. ‑ Transducer fault simulation: simulate open‑circuit / short‑circuit to verify fault‑alarm reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life failure risk. ‑ Issue formal factory test report before shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): confirm complete locking between I/O assembly and front‑mainboard; inspect terminal torque, multimode dry‑contact wiring, cabinet grounding and cable separation. Verify external IS‑barrier configuration for hazardous‑area projects. ‑ Operational Qualification (OQ): inject test signals at rear screw terminals; cross‑check measurement readings, multimode threshold switching, alarm trigger and DCS data consistency. ‑ Performance Qualification (PQ): observe real‑unit operating data; compare readings with portable vibration‑test instrument. ‑ Adaptive retest: perform full‑channel verification after module replacement, cable modification or configuration download; archive test records for audit traceability.

All test documentation shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Install 169459‑01 into corresponding rear slot of 3500 rack; push front‑plug 3500/46M mainboard and fasten latches to achieve full mechanical locking. ‑ Connect transducer cables and multimode dry‑contact control signals directly to rear‑rack screw terminals, strictly follow official pin‑out drawings. ‑ Separate analog sensor cables from high‑voltage power cables, comply with maximum transducer cable‑length requirements. ‑ For hazardous‑area sensors: install certified external intrinsic‑safety barriers, comply with local explosion‑proof wiring specifications. ‑ Implement site grounding rules: isolate analog‑signal grounding from high‑power grounding to reduce noise coupling.

5.2 Commissioning

‑ Complete mechanical installation and all field wiring. ‑ Open 3500 Rack Configuration Software, select module type 3500/46M, configure sensor type, measuring range, Alert / Danger setpoints and delay parameters. ‑ Configure multimode 8‑group threshold parameters and mode‑select logic. ‑ Download configuration to mainboard and reset module to activate parameters. ‑ Test multimode dry‑contact switching function, confirm threshold‑group switching matches unit operating‑mode signals. ‑ Verify raw measurement values; execute alarm forcing test, confirm relay output and HMI/DCS display consistency.

5.3 Typical Field Troubleshooting

‑ Transducer fault alarm: Check field‑cable open‑circuit / short‑circuit, terminal screw tightness and transducer health status. ‑ Multimode switching anomaly: Inspect dry‑contact wiring, mode‑select signal logic and multimode‑group software configuration. ‑ Abnormal measured values: Confirm sensor type and sensitivity setting match physical device; check grounding and EMI interference. ‑ Communication loss: Confirm mainboard latches are fully locked; inspect rack backplane and system‑controller status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full protection function before hydro‑turbine unit returns to normal operation.

5.4 Maintenance

‑ Monitor front‑panel LED status indicators of 3500/46M mainboard during regular inspection. ‑ No user‑serviceable internal components; do not disassemble I/O assembly housing. ‑ Keep complete configuration backup file for rapid hardware replacement.
