Bently Nevada 3500/46M (140734‑06) Hydro Turbine Monitor Mainboard

Description

Bently Nevada 3500/46M (140734‑06) Hydro Turbine Monitor Mainboard

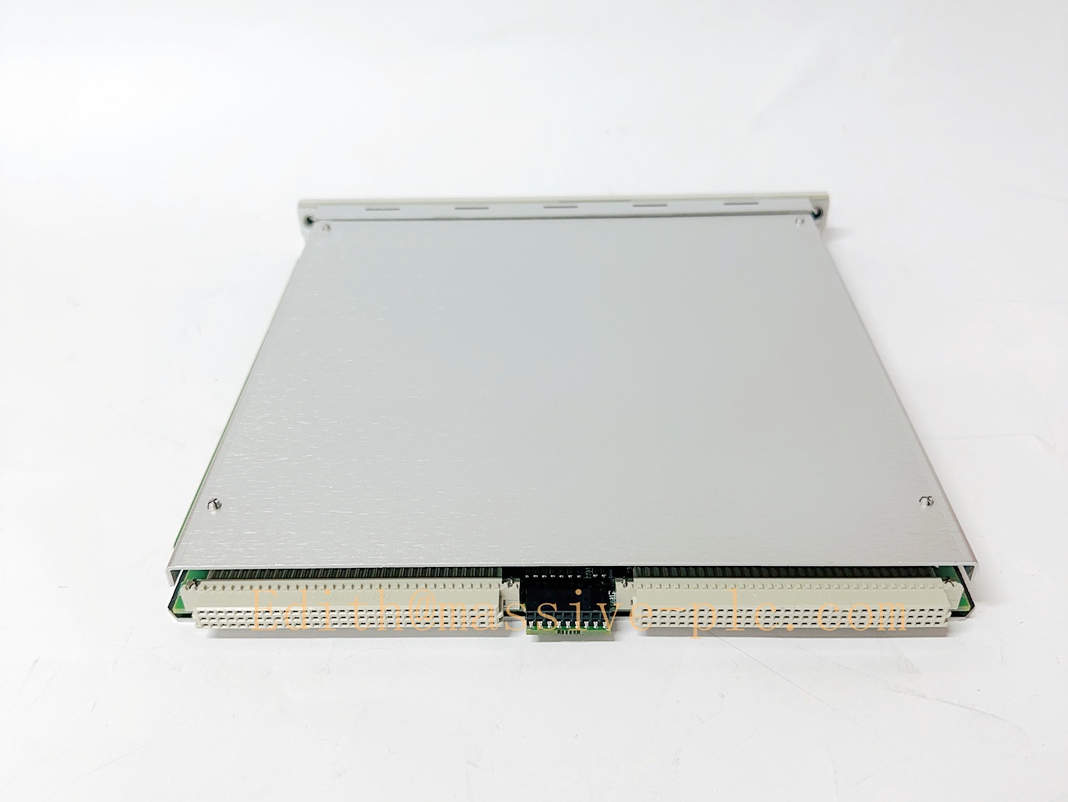

3500/46 140734-06

Product Introduction

140734‑06 is the front‑plug main processing board for Bently Nevada 3500/46M Hydro Turbine Monitor, a core TSI protection module specially designed for hydro‑generator and hydro‑turbine units. It works cooperatively with multimode I/O assemblies (169459‑01 / 169459‑02) or standard Prox/Velom I/O assemblies to acquire signals from proximity probes, air‑gap sensors, Velomitor velocity transducers and accelerometers. This module realizes radial vibration, air‑gap measurement, casing vibration and multimode threshold switching for different operating conditions. Compliant with API‑670 and SIL‑2 capable, it delivers machinery protection and condition monitoring for hydropower plants. It cannot run standalone and must mate with matched rear I/O assembly and 3500 series rack power supply.

Note: 3500/46M supports multimode function when paired with 169459‑01 /169459‑02 multimode I/O assemblies, enabling up to 8 groups of alarm threshold sets switched by dry‑contact signals for turbine start‑up, normal load and shutdown conditions.

Typical Applications ‑ Radial shaft vibration monitoring and protection for hydro‑turbine & hydro‑generator rotors ‑ Stator air‑gap measurement between rotor and stator for large hydro‑generators ‑ Casing vibration monitoring via Velomitor or accelerometer sensors ‑ Multimode alarm threshold switching under different unit operating states ‑ Over‑vibration alarm and relay protection interlock for hydropower rotating equipment ‑ Transmit monitoring data to DCS, PLC or 3500 System Display via rack backplane bus

Technical Specifications

Important Remark: Multimode threshold‑switching feature is only available when using 169459‑01 /169459‑02 multimode I/O assemblies. Standard I/O assemblies (140471‑01 /140482‑01) support measurement but disable multimode logic. No on‑board intrinsic safety barriers; hazardous‑area sensors require external IS barriers.

3500/46 140734-06

Key Features

1. Hydro‑turbine dedicated monitoring algorithm: integrates shaft vibration and stator air‑gap measurement for large hydro‑generator units.
2. Multimode threshold switching: cooperate with multimode I/O to switch among 8 sets of alarm parameters adapting to start‑up, loading and shutdown operating modes.
3. Multi‑sensor compatibility: supports proximity probes, air‑gap sensors, Velomitor and accelerometers; sensor type configurable by software.
4. Hot‑swap capability: module replacement without powering down the entire 3500 rack.
5. Dual‑level alarm output: Alert and Danger thresholds with configurable time delay for protection interlock relay logic.
6. Comprehensive built‑in diagnostics: transducer open‑circuit / short‑circuit detection, hardware self‑test, time‑stamped event log stored in non‑volatile memory.
7. Front‑panel BNC buffered recorder outputs for portable vibration analyzer onsite debugging.
8. High‑EMI‑immunity industrial design, adapted to harsh high‑interference hydropower plant environment.

Adaptive Quality Assurance and Test Protocol (AQAT)

The Adaptive Quality Assurance and Test Protocol defines factory and site acceptance test procedures for 3500/46M 140734‑06 mainboard, verifying measurement accuracy, multimode logic, alarm action and backplane communication performance.

4.1 Factory‑Side Adaptive QA Test

‑ Power‑on self‑diagnostic verification: check hardware self‑test status and backplane bus communication. ‑ Channel‑wise signal injection test: simulate proximity, air‑gap, velocity and acceleration input signals, validate reading accuracy against tolerance range. ‑ Multimode function test (with multimode I/O assembly): trigger dry‑contact mode‑select signals, verify threshold group switching. ‑ Alarm threshold test: simulate over‑limit input to validate Alert / Danger alarm trigger and relay action. ‑ Transducer fault simulation: open‑circuit / short‑circuit simulation to confirm fault reporting. ‑ Powered temperature cycling burn‑in screening to eliminate early‑life failure risk. ‑ Generate formal factory test report before delivery.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): confirm mechanical locking between mainboard and matched rear I/O assembly; inspect rack grounding, multimode dry‑contact wiring, cable separation requirements. For hazardous‑area applications, verify external IS‑barrier configuration. ‑ Operational Qualification (OQ): inject simulation signals at field terminals; cross‑check measurement readings, multimode switching performance, alarm trigger and DCS data consistency. ‑ Performance Qualification (PQ): monitor under real hydro‑unit operating conditions; compare module readings with portable vibration test instrument data. ‑ Adaptive retest: execute full‑channel verification after module replacement, cable modification or configuration download; archive test records for audit traceability.

All test documentation shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Insert 3500/46M (140734‑06) mainboard into vacant slot of 3500 rack, fasten front panel latches to achieve full mechanical locking with rear I/O assembly. ‑ Select correct rear I/O assembly: choose 169459‑01 / 169459‑02 for multimode function; select 140471‑01 /140482‑01 for standard measurement only. ‑ Route transducer cables separate from high‑voltage power cables; follow maximum allowable transducer cable length specifications. ‑ If multimode function is required: connect dry‑contact mode‑select control signals to corresponding terminals of multimode I/O assembly. ‑ For hazardous‑area field sensors: install certified external intrinsic‑safety barriers, comply with local explosion‑proof wiring specifications. ‑ Strictly follow site grounding specification: separate analog signal grounding from high‑power equipment grounding to reduce noise coupling.

5.2 Commissioning

‑ Complete mechanical installation of mainboard, rear I/O assembly and all field sensor / control wiring. ‑ Launch 3500 Rack Configuration Software, select module type 3500/46M, configure each channel’s transducer type, measurement range, Alert / Danger alarm setpoints and delay time. ‑ If multimode function is used: configure 8 groups of threshold parameters and mode‑select logic. ‑ Download configuration to mainboard and perform module reset to activate parameters. ‑ Verify multimode switching response if applicable. ‑ Check raw measured values; perform alarm forcing test, confirm relay output and DCS / HMI display consistency.

5.3 Typical Field Troubleshooting

‑ Transducer fault alarm: Inspect field cable open‑circuit / short‑circuit, terminal torque, transducer health condition. ‑ Incorrect air‑gap / vibration readings: Confirm software transducer‑type and sensitivity setting matches physical sensor; check grounding and EMI interference; inspect cable integrity. ‑ Multimode switching failure: Check dry‑contact wiring, mode‑select signal logic and software multimode parameter configuration. ‑ Communication loss: Verify mainboard latches are fully locked, inspect rack backplane health and system controller status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full protection function before hydro‑turbine unit returns to normal operation.

5.4 Maintenance

‑ Observe front‑panel LED status indicators during regular site inspection. ‑ No user‑serviceable internal components; do not disassemble module housing. ‑ Keep complete configuration backup file for fast replacement during future failure events.
