Bently Nevada 3500/44M (140471‑01) Prox/Velom Internal Termination I/O Assembly

Description

Bently Nevada 3500/44M (140471‑01) Prox/Velom Internal Termination I/O Assembly

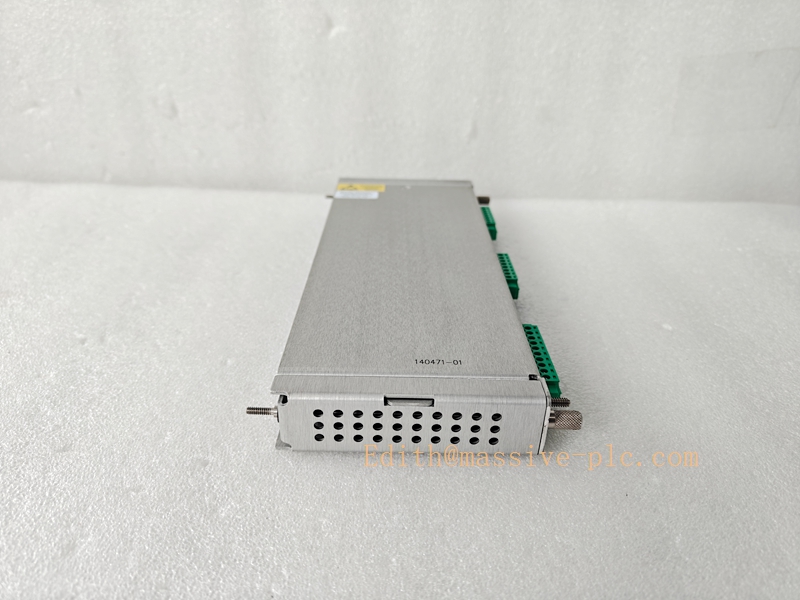

350044M 140471-01

Product Introduction

140471‑01 is a rear‑mount Prox/Velom I/O assembly with internal screw‑type terminations for Bently Nevada 3500 series monitor modules. Besides matching 3500/42M Proximitor/Seismic monitor, it is also an alternative I/O hardware option for 3500/44M Aeroderivative Gas Turbine Vibration Monitor. It provides field‑wiring termination and signal routing for accelerometers and Velomitor velocity transducers. This I/O assembly cannot operate independently; it must mechanically lock and electrically mate with 3500/44M mainboard (140734‑03 /176449‑03). It has no built‑in intrinsic safety barriers. Compliant with API‑670 and SIL‑2 capable, it is applied in power generation and oil‑gas industries for aeroderivative gas turbine vibration monitoring and general rotating machinery protection.

Note: 140471‑01 is general‑purpose Prox/Velom I/O, different from dedicated Aero‑GT I/O assembly 126599‑01. 140471‑01 does not support proximity probe inputs when paired with 3500/44M; only accelerometer and Velomitor sensors are valid for 3500/44M working mode.

Typical Applications ‑ Vibration signal termination for aeroderivative gas turbine monitoring system, matched with 3500/44M mainboard ‑ Interface accelerometers and Velomitor transducers for 1X amplitude‑phase tracking, band‑pass filtered vibration measurement ‑ Casing acceleration / velocity vibration monitoring for high‑speed gas‑turbine packages ‑ Signal transmission path for turbine start‑up, shutdown and variable‑load transient‑condition monitoring ‑ For non‑hazardous‑area cabinet installation; external certified IS barriers shall be added for hazardous‑zone field sensors ‑ Deliver vibration signals to 3500/44M mainboard; measurement data transmitted to DCS / PLC over rack backplane bus

Technical Specifications

Important Remark: When paired with 3500/44M mainboard, proximity probe channels are disabled. Only seismic‑type sensors (accelerometer / Velomitor) can be used. For hazardous‑area deployment, external intrinsic‑safety barriers must be installed between field transducers and rear terminals.

Key Features

1. General‑purpose Prox/Velom I/O hardware: dual‑use for 3500/42M and 3500/44M monitor mainboards; channel function depends on front‑plug mainboard configuration.
2. Internal screw‑type termination: field cables terminate directly on rear rack terminals, convenient for cabinet wiring and routine maintenance.
3. 4‑channel signal routing: supports two independent channel‑pairs for 3500/44M, each pair can be assigned separate Keyphasor reference source.
4. Strict mechanical‑electrical interlock: physical locking structure ensures stable contact with front‑side monitor mainboard.
5. Full‑path diagnostic support: sensor open‑circuit, short‑circuit fault detection; fault events time‑stamped and logged in 3500 system non‑volatile memory.
6. High‑EMI‑immunity industrial hardware, adapted to high‑noise gas‑turbine package and compressor‑house environments.
7. Compatible with full 3500/44M measurement functions: signal integration, 1X amplitude‑phase tracking, configurable band‑pass filter vibration monitoring.

350044M 140471-01

Adaptive Quality Assurance and Test Protocol (AQAT)

The Adaptive Quality Assurance and Test Protocol covers factory and site acceptance tests for 140471‑01 I/O assembly, verifying mechanical mating, signal‑path integrity and channel‑sensor compatibility.

4.1 Factory‑Side Adaptive QA Test

‑ Mechanical fit test: mate with qualified 3500/44M mainboard, verify locking mechanism and back‑contact integrity. ‑ Power‑on self‑diagnostic cycle: validate internal circuit self‑check and system backplane bus communication. ‑ Channel‑wise signal injection: apply simulated acceleration and velocity vibration signals; verify signal transmission, gain and linearity against datasheet tolerances. ‑ Tracking‑filter associated signal‑path test: cooperate with 3500/44M mainboard to verify signal transmission for 1X‑tracking measurement. ‑ Transducer‑fault simulation: simulate open‑circuit / short‑circuit conditions to validate sensor‑fault alarm reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life component‑failure risk. ‑ Generate formal factory test report before product shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): confirm secure mechanical locking between 140471‑01 and 3500/44M mainboard; inspect terminal torque, grounding scheme, cable separation. For hazardous‑area projects, verify external IS‑barrier parameter matching. ‑ Operational Qualification (OQ): inject test vibration signals at rear field terminals; cross‑validate measured readings, 1X‑tracking output, alarm‑trigger performance and host‑system data consistency. ‑ Performance Qualification (PQ): long‑run observation under real gas‑turbine operating conditions; cross‑compare module readings with portable vibration‑analyser data. ‑ Adaptive retest: perform full‑channel verification after I/O‑assembly replacement, sensor swap or configuration modification; archive all test records for audit traceability.

All test documentation shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Mount 140471‑01 I/O assembly at rear side of 3500 rack, fully lock together with front‑side 3500/44M mainboard, confirm latches are fully engaged. ‑ Only connect accelerometers or Velomitor velocity sensors to rear screw terminals when working with 3500/44M; proximity probes shall NOT be wired. Strictly follow drawing pin‑out definition. ‑ For hazardous‑area deployment: install certified external intrinsic‑safety barriers between field sensors and I/O terminals, comply with local hazardous‑area wiring codes. ‑ Separate analog sensor cables from high‑voltage power cables; observe maximum transducer‑cable‑length limits. ‑ Follow plant‑site grounding specification: separate analog‑signal grounding from heavy‑power grounding to minimize noise‑coupling effects. ‑ Confirm valid Keyphasor signal source supplied from 3500/50 module for 3500/44M tracking‑filter function.

5.2 Commissioning

‑ Complete mechanical assembly of 3500/44M mainboard plus 140471‑01 I/O assembly and field‑sensor wiring. ‑ Launch 3500 Rack Configuration Software, select module type 3500/44M, configure channel‑pair measurement modes, set transducer sensitivity, filter parameters, Alert and Danger alarm thresholds, assign Keyphasor reference source for each channel‑pair. ‑ Download configuration parameters to mainboard and reset module to activate parameters. ‑ Verify Keyphasor speed and phase signal quality before enabling 1X tracking‑filter functions. ‑ Validate raw vibration readings; force‑test each channel to confirm relay‑output action and DCS / HMI indication consistency.

5.3 Typical Field Troubleshooting

‑ Sensor‑fault alarm: Inspect field‑cable open‑circuit / short‑circuit faults, terminal screw tightness and transducer physical damage. ‑ Abnormal vibration readings / poor 1X‑tracking: Confirm no proximity probe wired to channels; check wiring pin‑assignment, grounding and EMI interference; verify software sensitivity matches physical‑transducer specification; inspect Keyphasor signal integrity. ‑ Communication loss: Check mechanical locking condition between I/O assembly and 3500/44M mainboard, rack‑backplane health and system‑controller operating status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full‑protection functions before aeroderivative gas turbine returns to normal‑operation status.

5.4 Maintenance

‑ Observe front‑panel LED‑status indicators of 3500/44M mainboard during routine site rounds. ‑ No user‑serviceable components inside I/O‑assembly housing; do not disassemble. ‑ Keep complete configuration‑backup file for rapid hardware replacement upon failure.
