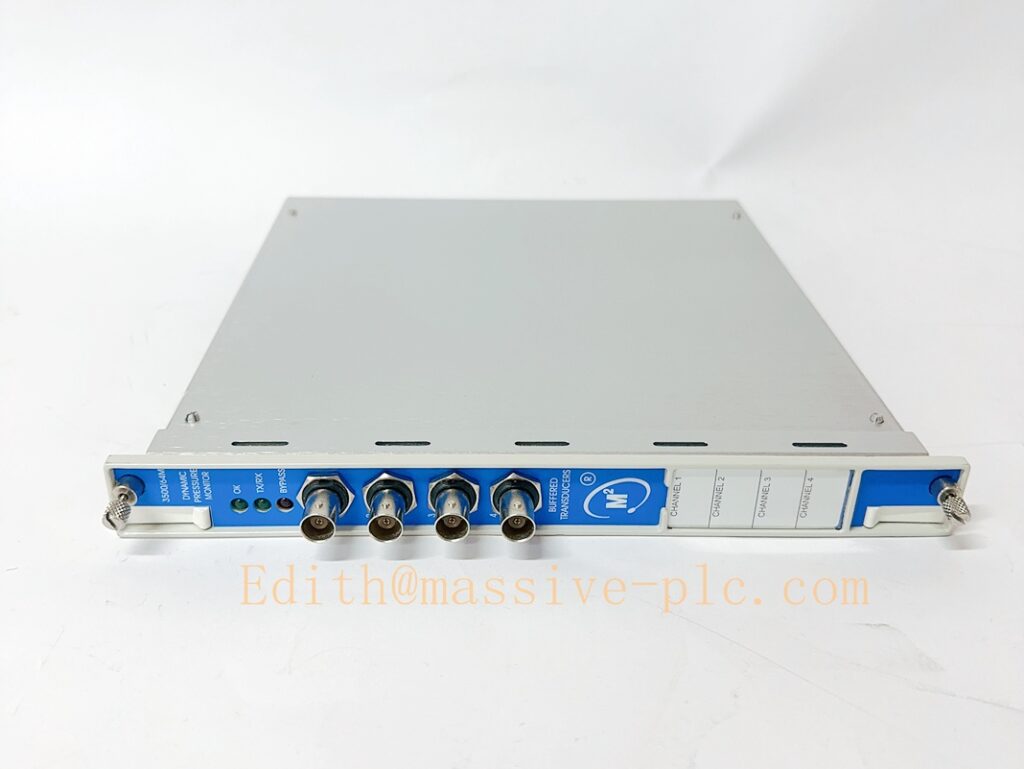

Bently Nevada 3500/42M (140734‑99) Proximitor / Seismic Monitor Mainboard

Description

Bently Nevada 3500/42M (140734‑99) Proximitor / Seismic Monitor Mainboard

Product Introduction

The 3500/42M (140734‑99) is a 4‑channel monitor mainboard for the Bently Nevada 3500 Machinery Protection System. It is a functional‑equivalent spare‑revision variant of the widely‑deployed 140734‑02 mainboard, performing signal conditioning, real‑time measurement computation, alarm comparison and protection‑logic execution for proximity and seismic transducer inputsBaker Hugh…. This monitor supports both machinery protection and condition‑monitoring functions complying with API‑670 and SIL‑2 system requirements. It is widely used in power generation, oil & gas, petrochemical and heavy‑industry rotating‑asset protection for turbines, centrifugal compressors, generators and large process pumps.

Note: 140734‑99 represents a later spare‑part revision of the 3500/42M main processing board; core hardware functions remain identical to 140734‑02. It must mate with a valid matched rear I/O assembly to complete field‑sensor wiring. It cannot operate standalone.

Typical Applications ‑ Steam / gas turbine radial vibration, thrust position, differential expansion, eccentricity monitoring ‑ Centrifugal compressor and generator shaft‑displacement and casing‑vibration protection ‑ Seismic measurement: acceleration, velocity, shaft absolute vibration, REBAM and circular acceptance region monitoring ‑ SIL‑2 capable safety protection loops within 3500 rack systems ‑ Transmit measured data to DCS, PLC and host monitoring software over the 3500 rack backplane bus

Technical Specifications

Important remark: Revision suffix‑99 denotes spare‑part configuration; electrical performance and software compatibility are consistent with 140734‑02. Always cross‑verify mechanical‑electrical compatibility with mating rear I/O assembly.

Key Features

1. Dual‑transducer compatible hardware: single mainboard supports both proximity‑displacement and seismic‑vibration inputs, optimizes spare‑part inventory.
2. Pair‑wise channel programming: each channel pair can run independent measurement functions, supporting mixed‑sensor field layouts.
3. Dual‑level alarm mechanism: user‑programmable Alert and Danger setpoints; static & dynamic parameter alarming, relay‑output drive for trip‑interlock logic.
4. Buffered transducer output for portable on‑site data acquisition and troubleshooting.
5. Hot‑swap capability: module replacement without rack power interruption.
6. Comprehensive onboard diagnostics: sensor open‑circuit / short‑circuit detection, power‑supply abnormality, internal hardware self‑test, timestamped event logging.
7. Configuration parameters stored in on‑module non‑volatile memory, programmed via 3500 Rack Configuration Software.
8. Rugged industrial hardware with high EMI immunity for harsh plant‑floor environments.

Adaptive Quality Assurance and Test Protocol (AQAT)

The Adaptive Quality Assurance and Test Protocol defines factory and site acceptance‑test workflows for 3500/42M 140734‑99 mainboard, validating signal‑path integrity, alarm‑logic accuracy and long‑term operational stability.

4.1 Factory‑Side Adaptive QA Test

‑ Power‑on self‑diagnostic cycle: verify hardware registers, backplane communication and watchdog circuit operation. ‑ Channel‑by‑channel signal injection: apply calibrated simulated proximity and seismic signals; validate gain, offset, linearity and frequency‑response versus datasheet tolerances. ‑ Alarm‑threshold verification: step input signal across Alert / Danger setpoints; confirm alarm‑trigger accuracy, relay‑action response and timestamped‑event logging. ‑ Transducer‑fault simulation: simulate open‑circuit / short‑circuit conditions to validate sensor‑fault reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life component‑failure risk. ‑ Generate formal factory test report and configuration backup prior to shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): verify rack‑slot seating, backplane contact integrity, grounding scheme, cable routing and correct mating with rear I/O assembly. ‑ Operational Qualification (OQ): perform on‑site signal‑injection testing; cross‑validate measurement readings, alarm‑trigger performance and host‑system data consistency. ‑ Performance Qualification (PQ): long‑run observation under real‑process operating conditions; cross‑compare module readings with portable vibration‑analyser measurements. ‑ Adaptive retest: re‑execute full‑channel verification after mainboard replacement, sensor swap or configuration modification; retain complete test records for audit traceability.

All test documentation shall be archived for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Insert 3500/42M (140734‑99) mainboard into vacant slot of 3500‑series rack. Hot‑swap operation is permitted while rack remains powered. Fasten module latches to guarantee reliable backplane contact. ‑ Select and install correct matched rear I/O assembly; strictly distinguish internal‑termination IS‑barrier types and external‑termination non‑IS variants. Mismatched I/O hardware will result in signal‑path failure or measurement error. ‑ Follow plant‑site grounding specifications: separate analog‑signal grounding from heavy‑power grounding to minimize noise‑coupling effects. ‑ Route transducer cables away from high‑voltage power cables; comply with maximum allowable transducer‑cable‑length limits.

5.2 Commissioning

‑ Launch 3500 Rack Configuration Software, select module type 3500/42M, assign channel‑pair measurement modes, set transducer sensitivity, measuring‑range parameters, Alert and Danger alarm thresholds. ‑ Download configuration to module memory; perform module reset to activate loaded parameters. ‑ Complete gap‑voltage check for proximity‑probe channels; validate raw‑signal readings before enabling protection alarms. ‑ Force‑test each alarm channel to confirm relay‑output status and HMI / DCS‑indication consistency.

5.3 Typical Field Troubleshooting

‑ Sensor‑fault alarm: inspect field‑cable open‑circuit / short‑circuit conditions, probe physical damage and terminal‑screw tightness. ‑ Measurement drift: check grounding integrity, EMI interference sources and transducer‑cable aging. ‑ Communication loss: inspect rack‑backplane health, slot‑contact condition and system‑controller operational status. ‑ Incorrect‑alarm trigger‑point: re‑confirm software‑configured sensitivity matches physical‑transducer datasheet specifications.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full‑protection functions before returning rotating equipment to normal‑operation status.

5.4 Maintenance

‑ Observe front‑panel LED‑status indicators during routine site rounds. ‑ Do not open module housing; there are no user‑serviceable internal components. ‑ Preserve complete configuration‑backup file for rapid replacement upon mainboard failure.
