Bently Nevada 3500/42M (140734‑02) Proximitor / Seismic Monitor

Description

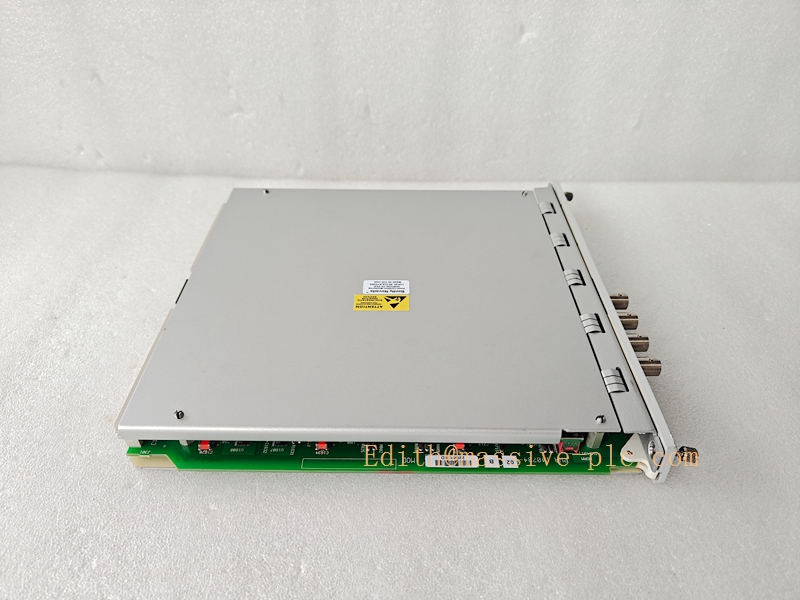

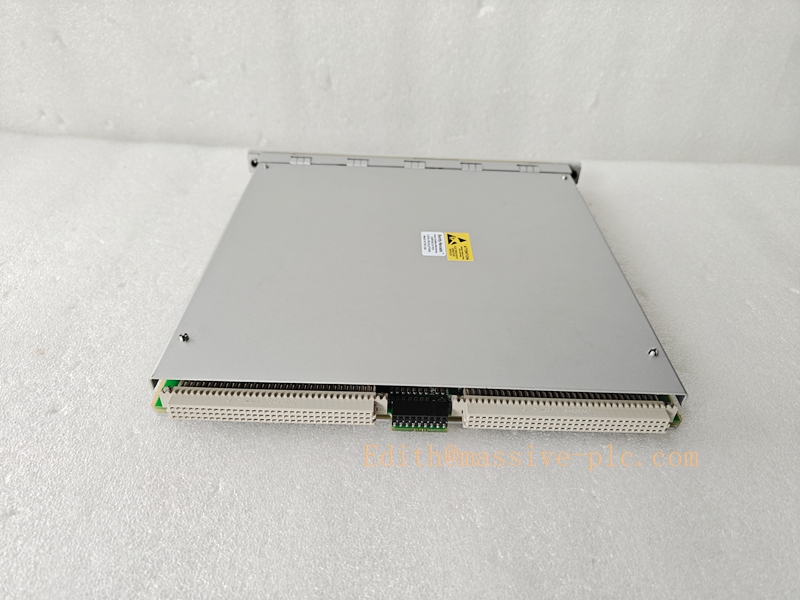

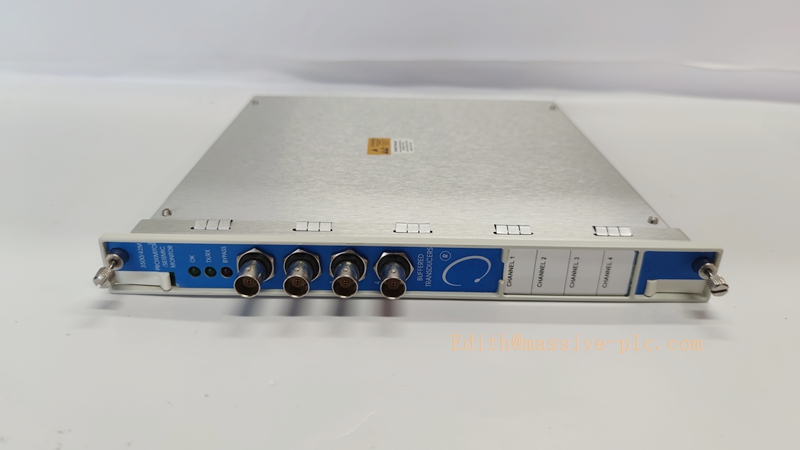

Bently Nevada 3500/42M (140734‑02) Proximitor / Seismic Monitor

350042M 140734-02

Product Introduction

The 3500/42M (140734‑02) is a 4‑channel configurable monitor mainboard for the Bently Nevada 3500 Machinery Protection System, designed to interface with eddy‑current proximity probes and seismic transducers (accelerometers, velocity sensors). It performs signal conditioning, real‑time measurement calculation, alarm comparison and protection interlock for critical rotating assets. Compliant with API‑670 standard, this module delivers both machinery protection and condition monitoring functions, widely deployed in power generation, oil & gas, petrochemical and heavy‑duty rotating equipment applications.

Typical Applications ‑ Steam / gas turbine radial vibration, thrust position, differential expansion, eccentricity monitoring ‑ Centrifugal compressor, generator, large‑size pump vibration and position protection ‑ Seismic measurement: acceleration, velocity, shaft absolute vibration, REBAM, circular acceptance region monitoring ‑ SIL‑2 capable safety protection loops for 3500 rack system ‑ Transmit measurement data to DCS, PLC and monitoring host through system backplane bus

Technical Specifications

Note: 140734‑02 refers to monitor main board; it must pair with matched I/O assembly hardware for field wiring termination.

Key Features

1. Dual‑sensor compatible hardware: single module supports both proximity displacement and seismic vibration inputs, optimizes spare‑parts inventory.
2. Pair‑wise channel programming: each channel pair runs independent measurement functions, supports mixed‑sensor field layout.
3. Dual‑level alarm mechanism: programmable Alert and Danger setpoints; static & dynamic parameter alarming, relay output for trip interlock logic.
4. Buffered transducer output port for portable on‑site data acquisition.
5. Hot‑swap capability: module replacement without rack power interruption.
6. Comprehensive onboard diagnostics: sensor open‑circuit / short‑circuit detection, power abnormality, internal hardware self‑test, timestamped event logging.
7. Configuration stored inside module memory via 3500 Rack Configuration Software.
8. Rugged industrial hardware with strong EMI suppression, suitable for wide‑temperature plant‑floor environment.

Adaptive Quality Assurance and Test Protocol (AQAT)

The Adaptive Quality Assurance and Test Protocol defines factory acceptance and site acceptance test workflows for 3500/42M 140734‑02 mainboard, validating signal path, alarm performance and long‑term stability.

4.1 Factory‑Side Adaptive QA Test

‑ Power‑on self‑diagnostic cycle: verify hardware registers, backplane communication and watchdog circuit. ‑ Channel‑by‑channel signal injection: apply calibrated proximity and seismic simulated signals, validate gain, offset, linearity and frequency‑response performance against datasheet tolerances. ‑ Alarm threshold verification: step input signal across Alert / Danger setpoints, confirm alarm trigger accuracy, relay action and event timestamp logging. ‑ Transducer fault simulation: simulate open‑circuit / short‑circuit to validate sensor‑fault reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life component failure risk. ‑ Final configuration backup and formal test report generation before shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): verify rack slot seating, backplane contact, grounding condition, cable routing and I/O assembly mating status. ‑ Operational Qualification (OQ): on‑site signal injection test, cross‑validate measurement reading, alarm response and host system data consistency. ‑ Performance Qualification (PQ): long‑run observation under real process operating conditions; compare module readings with portable analyzer data. ‑ Adaptive retest: re‑execute channel test after sensor replacement, module swap or configuration modification, maintain full test records for audit traceability.

All test documents shall be preserved for asset management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Insert 3500/42M (140734‑02) mainboard into vacant slot of 3500‑series rack; hot‑swap operation is permitted while rack remains powered. Fasten module latches to guarantee reliable backplane contact. ‑ Match correct mating I/O assembly part number; strictly distinguish internal‑termination and external‑termination I/O variants, mismatched hardware causes communication or signal failurev6-file.gl…. ‑ Follow plant‑site grounding specification: separate analog‑signal grounding from heavy‑power power grounding to minimize noise coupling. ‑ Route transducer cables away from high‑voltage power cables; comply with maximum cable‑length limits for proximity probes and seismic sensors.

5.2 Commissioning

‑ Launch 3500 Rack Configuration Software, select module type 3500/42M, assign channel‑pair measurement modes, set transducer sensitivity, measuring range, Alert / Danger alarm thresholds. ‑ Download configuration to module memory; perform module reset to activate parameters. ‑ Complete proximity probe gap‑check; validate raw signal reading before enabling protection alarms. ‑ Force‑test each alarm channel, confirm relay output status and HMI indication consistency.

5.3 Typical Field Troubleshooting

‑ Sensor fault alarm: inspect field cable open / short circuit, probe physical damage, terminal screw looseness. ‑ Measurement drift: check grounding integrity, electromagnetic interference and transducer cable aging. ‑ Communication loss: inspect rack backplane health, slot contact and system controller operating status. ‑ Incorrect alarm trigger point: re‑confirm software sensitivity setting matches physical transducer datasheet specification.

Warning: Bypass protection alarms only for short‑time maintenance work; restore full protection function before returning equipment to normal operation.

5.4 Maintenance

‑ Observe module front‑panel LED status indicators during routine site rounds. ‑ Module housing shall not be opened; no user‑serviceable internal components. ‑ Keep complete configuration backup file for fast replacement after module failure.
