Bently Nevada 3500/42M (126632‑01) Proximitor / Seismic Monitor

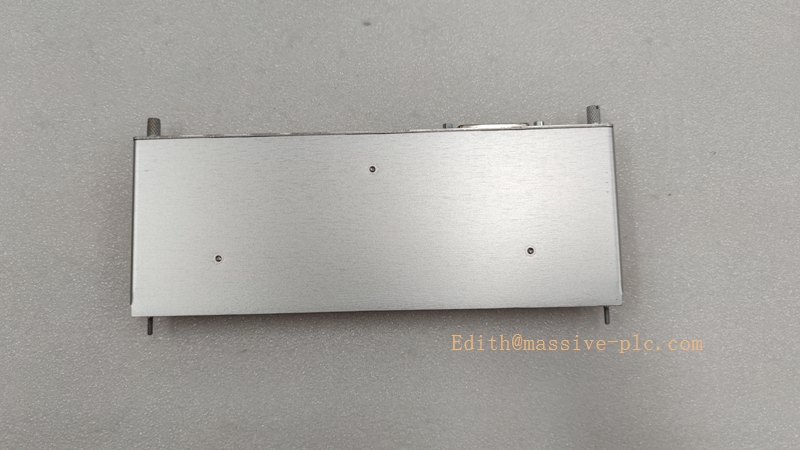

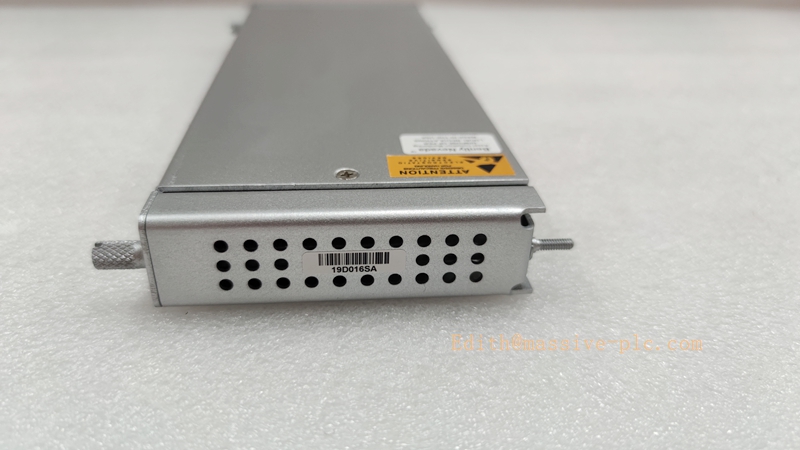

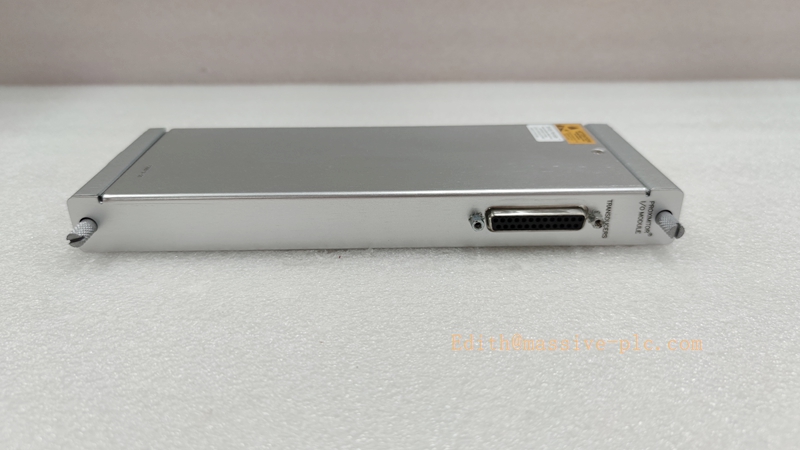

126615-01
Product Introduction
The 3500/42M (126632‑01) is a 4‑channel configurable monitor module within the Bently Nevada 3500 Machinery Protection System. It accepts inputs from eddy‑current proximity probes and seismic transducers (accelerometers, velocity sensors), performs signal conditioning, real‑time measurement calculation, alarm comparison and protection logic execution for critical rotating assetsBaker Hugh…. This module delivers both machinery protection and condition‑based monitoring functions complying with API‑670 industry standard, widely deployed across power generation, oil & gas, petrochemical and heavy‑industry rotating equipment.
Typical Applications
- Steam / gas turbine radial vibration, thrust position, differential expansion, eccentricity monitoring
- Centrifugal compressor, generator, large pump vibration & position protection
- Seismic measurement: acceleration, velocity, shaft absolute vibration, REBAM and circular acceptance region monitoring
- Safety‑related protection loops for SIL‑2 certified 3500 rack systems
- Data forwarding to DCS, PLC and monitoring host via system backplane bus
Technical Specifications
| Item | Specification |
|---|---|
| Part Number | 3500/42M, 126632‑01 |
| Channel Quantity | 4 channels, configured in channel‑pair groups |
| Supported Transducers | 3300XL proximity probes, Velomitor, accelerometer seismic sensors |
| Measurable Variables | Radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute, REBAM, circular acceptance region |
| ADC Resolution | 24‑bit high‑resolution sampling |
| Frequency Response | 0.5 Hz ~ 15 000 Hz |
| Measurement Accuracy | ±1 % full‑scale |
| Power Supply | Powered by 3500 rack backplane, 24 VDC nominal |
| Power Consumption | Max 7.7 W |
| Operating Temperature | ‑40 °C ~ +85 °C |
| Communication | 3500 system internal bus; supports Modbus RTU over RS‑485 |
| Safety Certification | SIL‑2 capable, API‑670 compliant, CE / RoHS |
| Module Weight | Approx 0.7 kg |
| Installation Form | Hot‑swap plug‑in for 3500 series rack slots |
Key Features
- Dual‑type sensor support: one module handles both proximity displacement and seismic vibration inputs, reducing spare‑part inventory.
- Pair‑wise channel programming: each channel pair can run independent measurement functions, flexible for mixed‑sensor field layout.
- Dual‑level alarm logic: programmable Alert and Danger setpoints; static and dynamic parameter alarming, relay output for protection trip interlock.
- Buffered transducer output for local portable data acquisition.
- Hot‑swap capability: module replacement without rack power interruption.
- Comprehensive built‑in diagnostics: sensor fault, open‑circuit, short‑circuit, power supply abnormality, internal hardware self‑test, event logging.
- Configuration via 3500 Rack Configuration Software; stores configuration parameters onboard module memory.
- Ruggedized industrial hardware against EMI, vibration and wide temperature range for plant‑floor environment.
Adaptive Quality Assurance and Test Protocol (AQAT)
The Adaptive Quality Assurance and Test Protocol defines factory and site acceptance test workflows for 3500/42M 126632‑01, covering hardware validation, signal‑path verification, alarm logic confirmation and long‑term stability check:
- Factory Adaptive QA Test
- Power‑on self‑diagnostic cycle: verify internal hardware registers, backplane communication, watchdog function.
- Channel‑wise signal injection: apply calibrated simulated proximity and seismic signals to each channel, validate gain, offset, linearity and frequency‑response performance against datasheet tolerances.
- Alarm threshold verification: step input signal across Alert / Danger setpoints, confirm alarm trigger‑point accuracy, relay action and event timestamp logging.
- Transducer fault simulation: simulate open‑circuit / short‑circuit to confirm sensor‑fault reporting mechanism.
- Burn‑in screening: temperature‑cycling test under powered status to expose early‑life component failure risk.
- Final configuration backup and test‑report generation before shipment.
- Site‑Side Adaptive QA Procedure
- Installation Qualification (IQ): verify rack slot seating, backplane contact, grounding, cable routing and sensor wiring integrity.
- Operational Qualification (OQ): on‑site signal injection test to validate measurement reading, alarm response and host system data consistency.
- Performance Qualification (PQ): long‑run observation under real process conditions; cross‑compare module readings with portable analyzer data to confirm system health.
- Adaptive adjustment: retest high‑risk channels after sensor replacement, module swap or configuration modification; update test records for traceability.
All test results shall be retained for asset‑management and audit purposes.
Field Engineer Technical Instructions
5.1 Installation Guidance
- Insert module into an available slot of 3500‑series rack; hot‑swap is permitted while rack remains powered. Ensure module latches are fully locked for reliable backplane contact.
- Match mating I/O assembly part number (126632‑01) for external field termination; distinguish internal‑termination vs external‑termination I/O variants.
- Follow plant grounding specification: separate analog‑signal grounding from heavy‑power grounding to minimize noise coupling.
- Route transducer cables away from high‑voltage power cables; observe maximum cable length limits for proximity probes and seismic sensors.
5.2 Commissioning
- Launch 3500 Rack Configuration Software, select module type 3500/42M, assign channel‑pair measurement modes, set transducer sensitivity, measuring range, Alert / Danger alarm thresholds.
- Download configuration to module; execute module reset to activate parameters.
- Perform transducer gap‑check for proximity probes; validate raw signal reading before enabling protection alarms.
- Force‑test each alarm channel to confirm relay output and host HMI indication.
5.3 Troubleshooting Common Field Issues
- Sensor fault alarm: inspect field cable for open / short circuit, probe physical damage, wiring terminal looseness.
- Measurement drift: check grounding integrity, electromagnetic interference, transducer cable degradation.
- Communication loss: verify rack backplane health, slot contact, system controller status.
- Incorrect alarm trigger point: re‑confirm software sensitivity setting matches physical transducer specification.
Warning: Bypass protection alarms only during short‑term maintenance; restore full protection function before returning equipment to normal operation.
5.4 Maintenance
- Visually inspect module status LED indicators during routine rounds.
- Do not open module housing; no user‑serviceable internal components.
- Keep complete configuration backup file for rapid replacement after module failure.
Related / Similar Series Models
| Model | Brief Description |
|---|---|
| 3500/42M‑126632‑01 | 4‑ch Proximitor / Seismic Monitor, target part number with matched I/O assembly |
| 3500/42M‑140482‑02 | 3500/42M monitor with external‑termination I/O module |
| 3500/42M‑140471‑01 | 3500/42M monitor with internal‑termination I/O assembly |
| 3500/44M | 4‑ch Differential Expansion / Speed monitor, for large‑turbine shell expansion & shaft speed measurement |
| 3500/45M | Position monitor for valve position and auxiliary displacement measurement |
| 3500/50 | Keyphasor module for shaft phase reference and rotational‑speed acquisition |
