Product Overview
The Bently Nevada 3500/32M 125720-02 is a full-height 4-channel relay output module purpose-built for the 3500 Machinery Protection System, a global leading platform for rotating machinery monitoring with over 85,000 installed units worldwide. It delivers independent relay outputs for critical alarm and control functions in industrial machinery and process automation workflows, and is widely deployed as a drop-in replacement for faulty relay modules to maintain uninterrupted machinery protection performance.

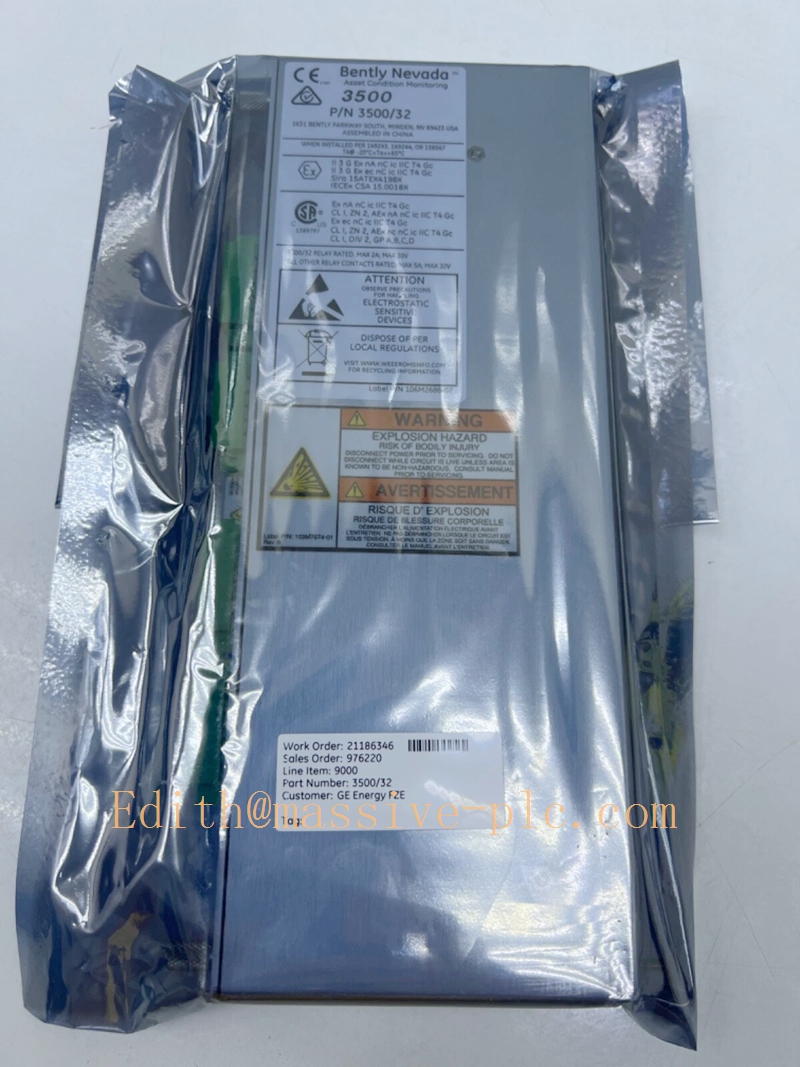

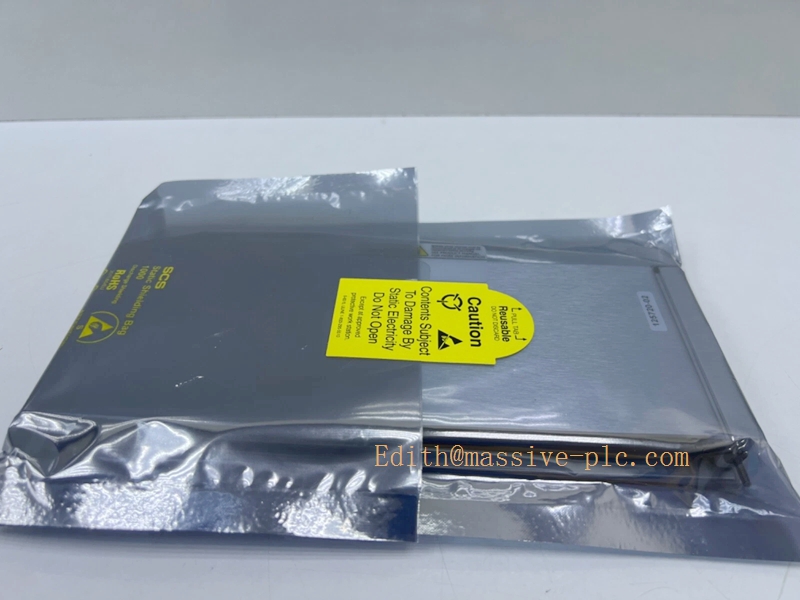

3500/32 125720-02
Key Technical Specifications
- Manufacturer: Bently Nevada (General Electric)
- Product Type: 4-Channel Electromechanical Relay Output Module
- Number of Output Channels: 4
- Relay Type: SPDT (Single-Pole Double-Throw)
- Relay Contact Rating: 5 A at 250 VAC
- Supported Output Voltage: 24 VDC or 240 VAC
- Per-Channel Current Rating: 5 A
- Rated Contact Life: 100,000 cycles at 5 A, 24 VDC or 240 VAC
- Net Weight: 200 g
- Warranty Period: 12 months
- Installation Rule: Can only be mounted in slots to the right of the Transient Data Interface Module on the 3500 rack, with no limit on the total number of deployed modules.

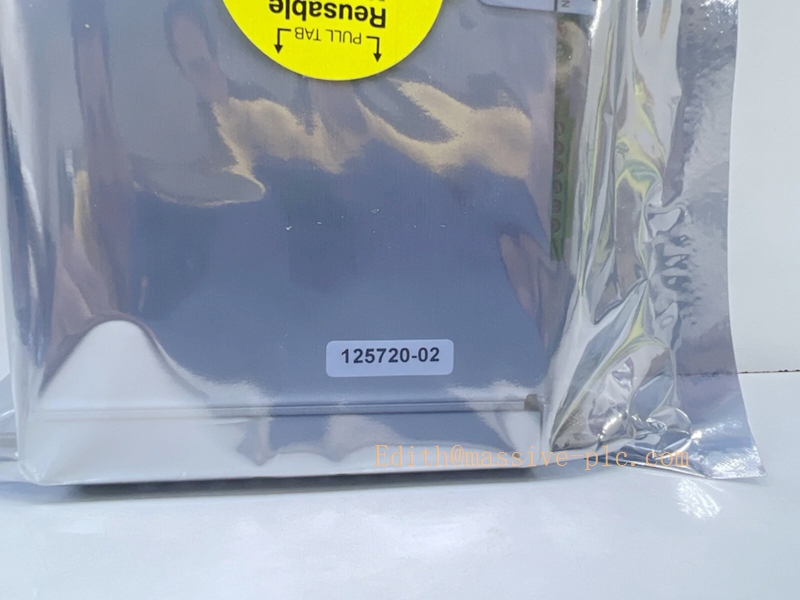

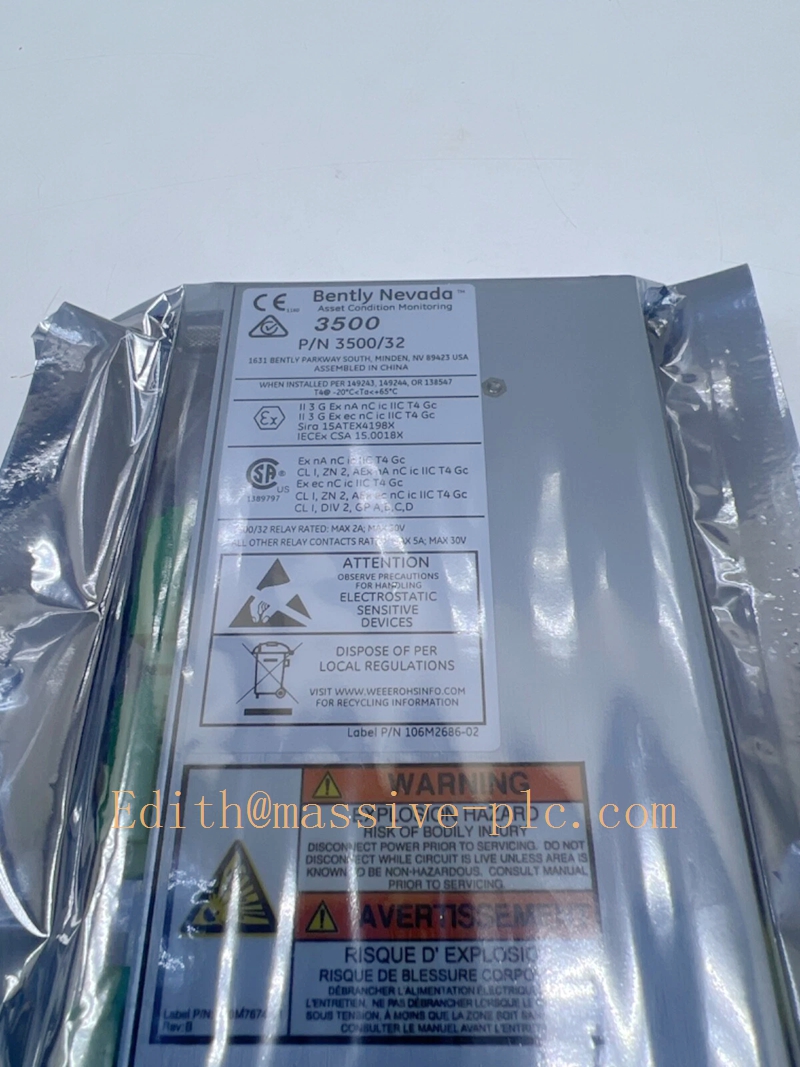

3500/32 125720-02
Typical Application Scenarios
- Independent Voting Logic Configuration: Each of the 4 relay outputs supports standalone programming to execute custom voting logic for machinery protection.
- Customizable Alarm Drive Logic: Built-in AND/OR logic programming supports mapping Alert/Danger statuses, Not-OK signals, or any combination of PPLs from all monitor channels in the rack to meet site-specific alarm requirements.
- Redundant Machinery Protection: Works in tandem with other 3500 system modules to prevent both missed-trips and false-trips for critical rotating equipment.
- Seamless System Integration: Delivers formatted machinery status data to external DCS, PLC or SCADA systems for unified process control.
Critical Technical Pitfalls to Avoid
- Incorrect Slot Placement: Never install this module in slots to the left of the Transient Data Interface Module, as this will break the backplane communication of the entire 3500 rack.
- Overloaded Relay Contacts: Do not exceed the 5 A per-channel current rating, as this will drastically reduce contact lifespan and cause unreliable alarm triggering.
- Unverified Logic Programming: Failing to validate the Alarm Drive Logic configuration via the official 3500 Rack Configuration Software before commissioning may lead to unexpected protection trips or missing alarm actions.
- Mismatched Spare Part Selection: Confusing this 125720-02 backplane variant with other 3500/32 series modules (such as 125712-01 or 125720-01) will result in incompatible rack wiring and communication failures.
Related Product Recommendations
- 3500/15 AC/DC Power Supply Module: Provides redundant, self-monitored power input for the 3500 rack to eliminate unplanned power interruptions for the relay module.
- 3500/20 Rack Interface Module: Acts as the core communication bridge to connect the 3500 rack with host configuration software and external control systems.
- Orbit 60 Series Condition Monitoring Module: Offers high-resolution, secure data transmission to external networks without compromising protection functions, for users planning system upgrades.
