Bently‑Nevada 3500/15 Power Supply Assembly (127610‑01 + 125840‑01)
Product Description
The 3500/15 (127610‑01 + 125840‑01) is legacy high‑voltage AC power supply half‑height module for Bently‑Nevada 3500 machinery‑protection rack system本特利. The assembly consists of front power conversion main board 127610‑01 and rear high‑voltage‑AC Power Input Module (PIM) 125840‑01 termination board本特利.
This power unit converts 175‑264 Vac mains input into multiple regulated DC rails to feed all monitor, relay, gateway and TDI modules across the 3500 rack. It occupies dedicated half‑height slots on the left‑hand side of chassis. Dual‑redundant 1+1 hot‑standby deployment is supported: lower‑slot unit works as primary, upper‑slot as backup. Each single unit is capable of powering a fully‑loaded rack independently. Hot‑swap is permitted without rack shutdown when redundant partner remains functional.
Critical compatibility note: This is legacy high‑voltage AC power assembly. It cannot electrically interoperate with later‑generation universal‑AC power boards (106M1081‑01 series). Front board and rear PIM must always be matched pair to prevent hardware damage or abnormal operationBaker Hugh…. OEM production discontinued; only supplied as aftermarket replacement spare for legacy turbomachinery TSI racks.
Part Number Breakdown‑ Front power supply board：127610‑01‑ Rear High‑Voltage‑AC PIM input module：125840‑01‑ No third‑party safety agency certification
127610‑01
Technical Specifications
| Item | Specification |
|---|---|
| Complete Assembly PN | 3500/15 (127610‑01 +125840‑01) |
| Front Main Board | 127610‑01, legacy high‑voltage AC power converter board |
| Rear PIM Module | 125840‑01, high‑voltage AC power input termination board with built‑in fuse protection |
| Form Factor | Half‑height module, installs in dedicated left‑side rack power slot |
| AC Input Range | 175‑264 Vac RMS, 47‑63 Hz, peak 247‑373 Vac |
| Max Input Current | 2.3 A typical@full load |
| DC Output Rails | Multiple regulated DC outputs for rack backplane bus, sufficient for full‑rack loading |
| Redundancy Mode | 1+1 hot‑standby parallel redundant; single unit supports full‑rack operation |
| Protection Mechanism | Input fuse, over‑voltage, under‑voltage, over‑current, short‑circuit, over‑temperature protection |
| Front‑panel Indicator | SUPPLY‑OK LED for local power‑health visual indication |
| Diagnostic | Power‑supply fault events time‑stamped & logged to rack system event‑log via backplane bus |
| Hot‑swap Rule | Rear PIM supports hot‑swap under rack powered‑on; front main‑board replacement requires slot power‑off |
| Operating Temperature | ‑30 °C ~ +65 °C (‑22 °F ~ +149 °F) |
| Storage Temperature | ‑40 °C ~ +85 °C (‑40 °F ~ +185 °F) |
| Relative Humidity | 5‑95 % RH, non‑condensing |
| Dimension(H×W×D) | 241.3 mm ×12.2 mm ×241.8 mm (9.50 in ×0.48 in ×9.52 in) |
| Product Status | Discontinued OEM production, aftermarket spare‑part only |

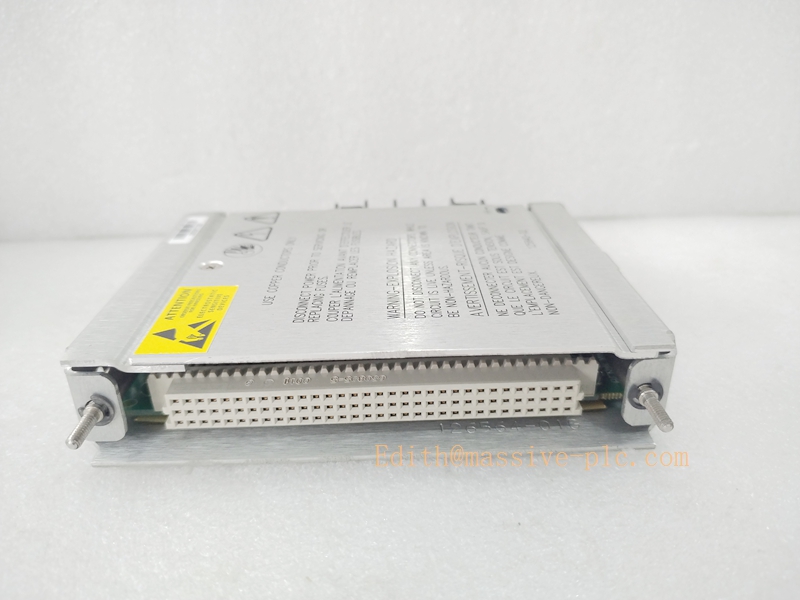

Variant note‑125840‑01：High‑Voltage‑AC PIM (175‑264 Vac, this assembly)‑125840‑02：Low‑Voltage‑AC PIM (85‑132 Vac)‑106M1081‑01：Universal‑AC new‑generation PIM, non‑interchangeable with legacy boards本特利
Key Features & Benefits
- Legacy high‑voltage AC input: Optimized for 220/240Vac industrial power grid, widely deployed on early‑generation 3500 TSI installations for turbomachinery assets.
- 1+1 hot‑standby redundant architecture: Dual‑power parallel operation. Seamless automatic switch‑over occurs upon primary‑unit failure without interrupting machinery‑protection and monitoring functions, maximising system uptime for critical rotating equipment.
- Online hot‑swap maintainability: When redundant backup power is healthy, either power unit can be inserted / removed while rack remains online; no full‑system shutdown required for power‑supply maintenance.
- Multi‑layer hardware protection: Built‑in fuse and comprehensive protection against over‑voltage, under‑voltage, over‑current, short‑circuit and over‑temperature conditions to safeguard entire rack backplane and monitor modules.
- System‑wide diagnostic reporting: SUPPLY‑OK local LED indication; all power‑supply‑related faults are time‑stamped and stored in rack event‑log, available for download via TDI module for remote troubleshooting.
- Backward‑compatible maintainable architecture: Fully compatible with legacy 3500‑series monitor modules, works together with 3500/22‑TDI, 3500/33 relay‑output and all monitor modules. Legacy high‑voltage‑AC components must not be mixed with universal‑AC power hardware to avoid hardware damageBaker Hugh….
Application Fields
‑ Power‑generation, petrochemical and natural‑gas facilities: primary redundant power source for legacy 3500 machinery‑protection racks for steam‑turbine, gas‑turbine, centrifugal‑compressor and reciprocating‑compressor monitoring systems complying with API‑670 standard.‑ Industrial rotating‑machinery sites fed from 220‑240Vac mains requiring high‑reliability redundant rack power supply.‑ Spare‑part replacement and system retrofit for existing legacy 3500 racks originally equipped with 3500/15 (127610‑01+125840‑01) high‑voltage‑AC power‑supply assembly.
Related Recommended Products
‑ 3500/05 series: 3500‑system rack chassis; power‑supply units must install into designated left‑hand half‑height slots.‑ 3500/22 / 3500/22M TDI: Rack transient‑data‑interface gateway for reading power‑supply diagnostic status and downloading event‑log records.‑ 3500 monitor family: 3500/40M, 3500/42M, 3500/50, 3500/60, 3500/62, 3500/92, 3500/33 etc., load modules powered by 3500/15 power‑supply.
Installation and Maintenance
Installation
- Assemble front power‑supply main‑board 127610‑01 and matched rear‑PIM module 125840‑01 as one complete unit; insert assembly into dedicated half‑height power slot on left‑hand side of 3500 rack. For redundant configuration, install second matched assembly in upper adjacent power slot; lower slot = primary, upper slot = backup.
- Connect 175‑264 Vac field AC power wiring onto rear‑PIM screw terminals, strictly comply with local electrical safety specifications.
- Apply AC input power; verify SUPPLY‑OK LED keeps illuminated on each power unit. Inspect rack event‑log for power‑supply‑related diagnostic alarms, confirm all rack monitor modules boot normally.
Important Note: Hot‑swap operation is valid only when redundant partner power‑supply remains healthy. Never hot‑swap the last working power‑supply unit; this will cause full‑rack power‑loss and machinery‑protection‑system shutdown. Legacy high‑voltage‑AC power assemblies must not be mixed with universal‑AC power components.
Maintenance
- Periodically inspect rear‑PIM AC‑input terminals for dust accumulation, corrosion and loose wiring connections during site routine inspection.
- Regularly download rack event‑log to review power‑supply fault, under‑voltage or fuse‑blow diagnostic alarms.
- When rear‑PIM circuit fault occurs, perform hot‑swap for rear PIM board under rack powered‑on condition (redundant unit must be healthy), verify power‑supply output function after replacement.
- When front power‑conversion‑board hardware fault occurs, cut off corresponding slot power before replacing 127610‑01 board; reassemble with matched rear‑PIM module, validate full‑function recovery.
- Avoid mechanical shock and conductive contamination during module‑handling. Refer to Bently‑Nevada official document Doc‑141530 (3500/15 Power‑Supply Datasheet & Operation Manual) for complete installation constraints and detailed troubleshooting guidance.
