Product Description

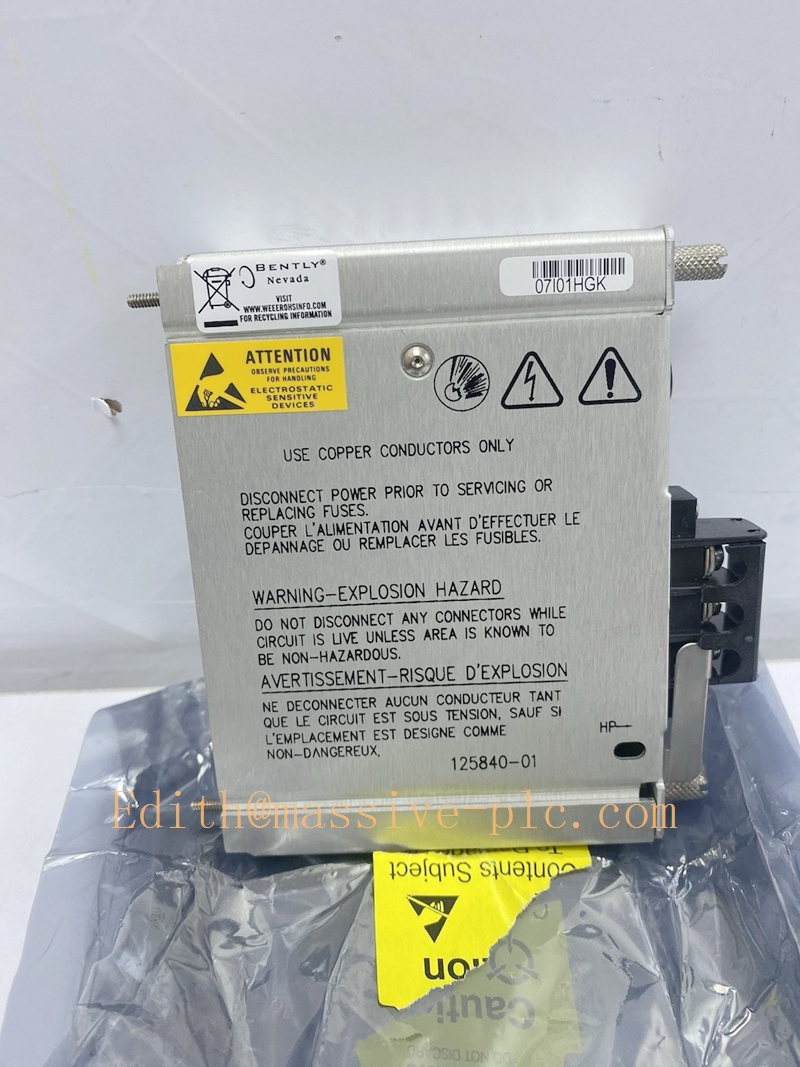

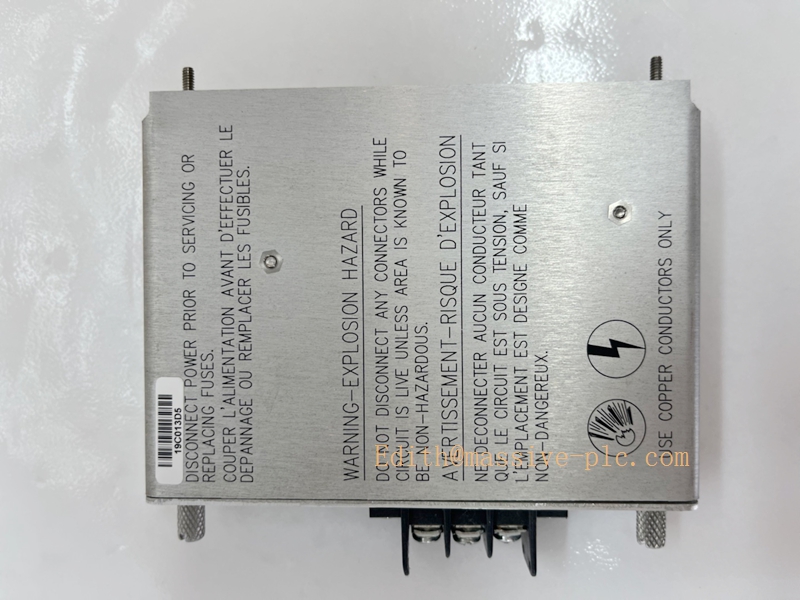

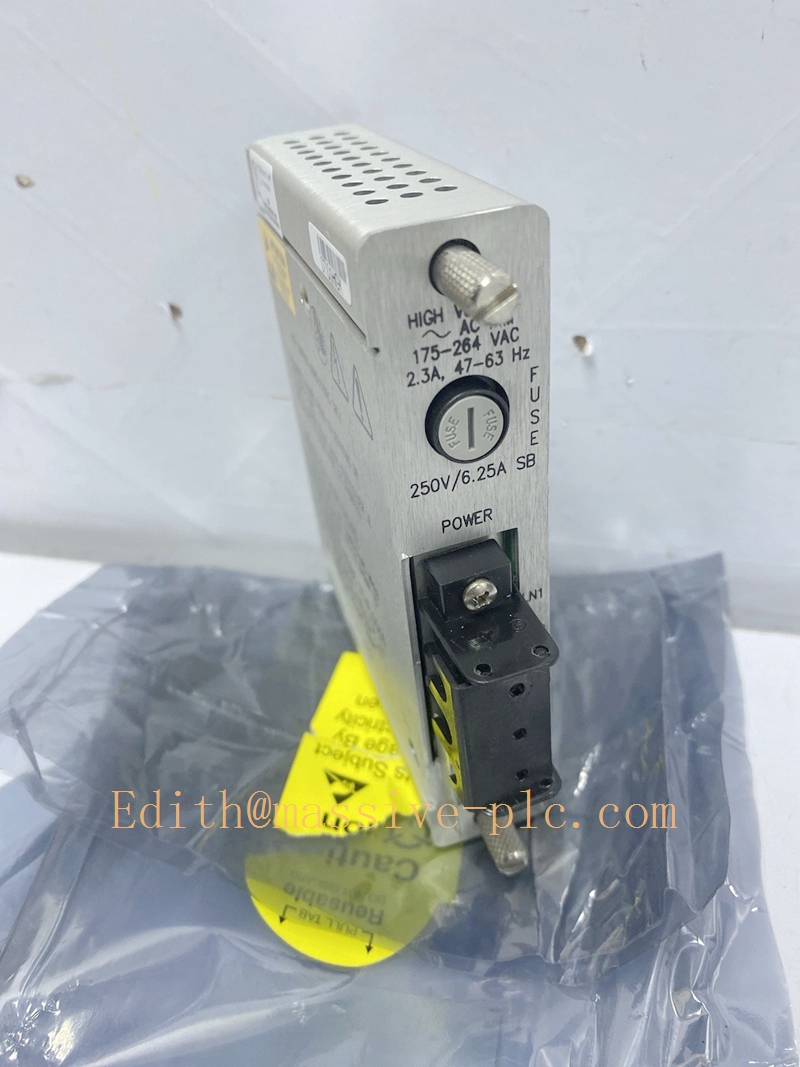

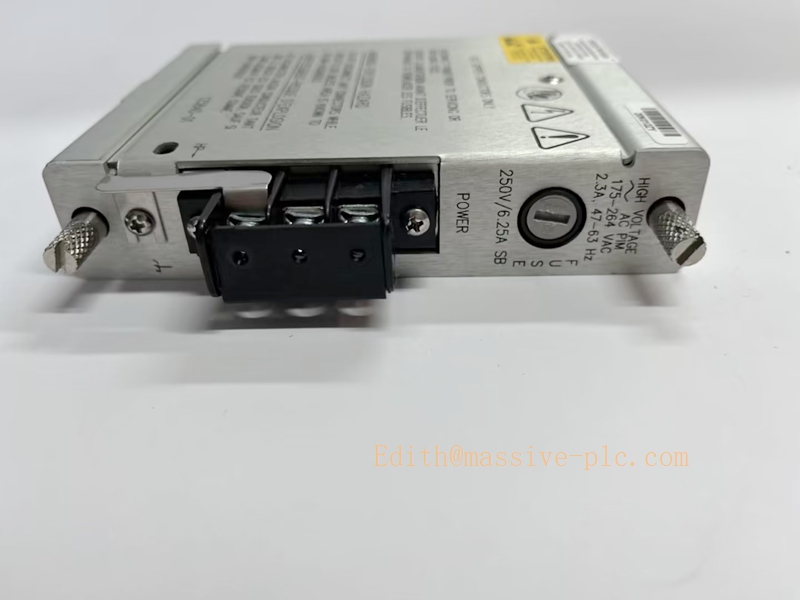

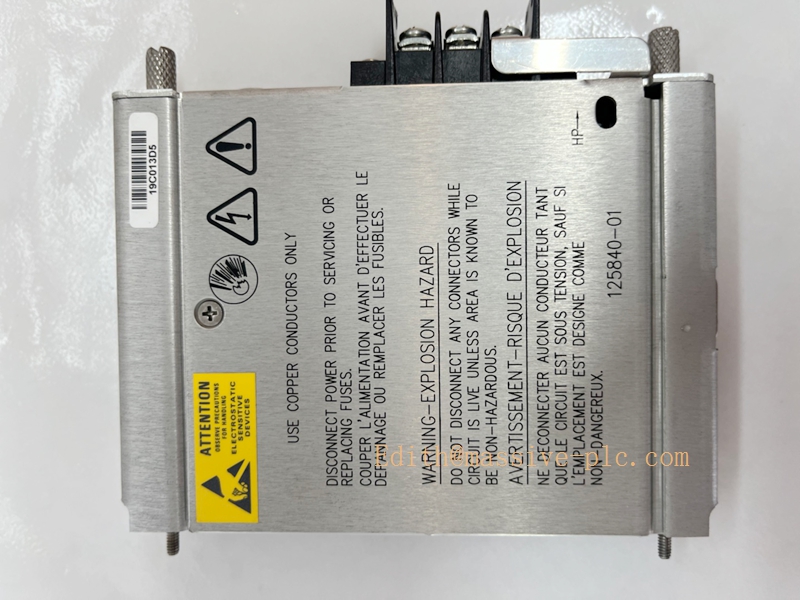

The Bently Nevada 3500/15 125840-01 is a dedicated High Voltage AC Power Input Module (PIM) engineered exclusively for the Bently Nevada 3500 Series Machinery Protection System. As a core power supply unit, it converts wide-range industrial AC mains power into regulated, reliable 24 VDC output to power all monitoring, interface and relay modules in the 3500 rack. It is designed to support redundant power configurations, ensuring uninterrupted power delivery to critical rotating machinery protection loops even during primary power source fluctuations or failures. Manufactured in the U.S. with original packaging, it comes with a standard 12-month factory warranty for new installations.
350015 125840-01
Technical Specifications
| Parameter | Official Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 125840-01 |
| Product Type | High Voltage AC Power Input Module |
| Input Voltage Range | 175 to 264 VAC RMS (220 VAC nominal) |
| Input Frequency | 47 to 63 Hz |
| Maximum Input Current | Up to 2.3 A RMS |
| Regulated Output | 24 VDC, system-wide backplane power supply |
| Form Factor | Half-height, left-side slot mounting |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Protection Features | Built-in over-current and over-voltage protection |
| Net Weight | 0.4 kg |
| Compliance | API 670 Machinery Protection Standard |
Key Features and Advantages
- Wide Input Voltage Adaptability: Supports 175-264 VAC wide-range industrial power input, eliminating the need for extra external voltage regulators in most global industrial sites.
- Redundant Power Configuration Support: Natively allows dual-module redundant power deployment, enabling seamless automatic switchover to the backup unit without causing system downtime or protection function loss.
- Half-Height Space-Saving Design: Occupies only one half-height slot on the left side of the 3500 rack, maximizing the remaining rack space for monitoring and I/O modules.
- Robust Built-In Protection Circuits: Integrated over-current and over-voltage protection prevents damage to downstream system modules caused by power surges or short-circuit faults.
- Hot-Swap Capability: Supports in-service module replacement without powering down the entire rack, avoiding unplanned production downtime during power supply maintenance.
- High Efficiency Conversion: Delivers stable 24 VDC output with low power loss, ensuring long-term continuous operation even under full system load conditions.
350015 125840-01
Application Fields
- Core power supply unit for 3500 machinery protection racks deployed on steam turbines, centrifugal compressors and industrial gas turbines in oil & gas refineries and power generation plants
- Redundant power source for critical condition monitoring systems in metallurgy, mining and chemical production facilities
- Standard power input solution for 3500 racks installed in remote outdoor industrial sites with unstable AC mains power quality
- Power supply upgrade replacement for legacy 3500 racks that require higher input voltage tolerance and redundant power support
Related Product Recommendations
- 3500/20 125768-01 Rack Interface Module: The core communication hub you previously reviewed, which relies on the 125840-01 for stable 24 VDC power input to maintain continuous data transmission.
- 3500/42M 138708-01 4-Channel Vibration I/O Module: The vibration monitoring module that draws regulated 24 VDC power from the 125840-01 via the rack backplane.
- 3500/92 Communication Gateway: The external protocol conversion device that operates reliably on the stable power output provided by the 125840-01 module.
Installation and Maintenance Guidelines
- Installation Procedure: Mount the module in the designated half-height left-side slot of the 3500 rack, ensure the backplane connector is fully seated, then tighten the front panel screws to 0.6-0.9 Nm torque. Connect the AC power input cable to the module’s power terminal, confirm the input voltage matches the 175-264 VAC specification before powering on.
- Wiring Requirements: Use 14 AWG or thicker power cables for AC input connections, keep power cables separated from low-voltage signal cables to avoid electromagnetic interference, and connect the module protective ground to the plant’s designated safety grounding point.
- Routine Maintenance: Perform a power output voltage check every 6 months, verify the 24 VDC output stays within the 23-25 V normal range, and clean the module ventilation slots with dry compressed air annually to prevent dust accumulation and overheating.
- Troubleshooting Tips: If the module “Power OK” indicator is off, first check the AC input power source and circuit breaker status, then inspect the module for overheating damage. For redundant power configurations, verify the primary and backup units can automatically switch over during a simulated power loss test every 12 months.
