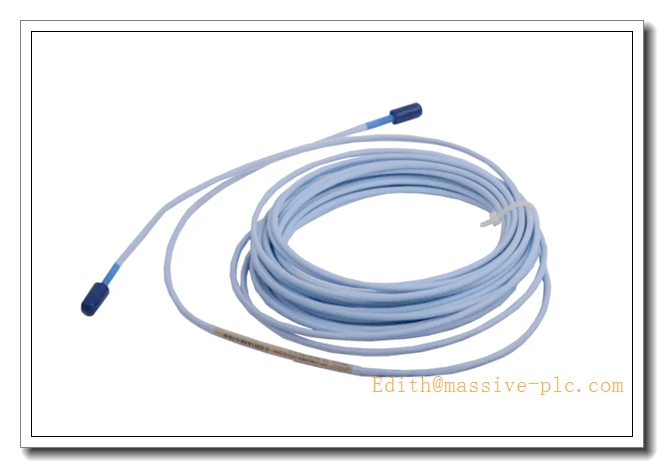

Bently Nevada 330907‑05‑30‑10‑02‑RU — 3300‑XL 8 mm Proximity Probe (Russian Customs Variant)

Description

Bently Nevada 330907‑05‑30‑10‑02‑RU — 3300‑XL 8 mm Proximity Probe (Russian Customs Variant)

Product Overview

The 330907‑05‑30‑10‑02‑RU is a special‑order 8 mm eddy‑current proximity probe belonging to Bently Nevada 3300‑XL transducer platform. The suffix ‑RU denotes Russian market customs documentation variant, designed for EAC certification compliance for installation within Russian‑regulated industrial sites. It converts physical gap displacement between probe tip and metallic rotating target into impedance signals for paired proximitor module. Compliant with API 670, this probe undertakes radial vibration, axial thrust‑position and Keyphasor reference measurements for turbomachinery protection and predictive condition‑monitoring systems.

Critical Compatibility Warning

• Compatible exclusively with 3300‑XL 8 mm proximitor modules (330180‑xx‑00) and matching 330130 series ClickLoc extension cables.
• Not compatible with 11 mm transducer series or NSv probe families.
• Total system cable length = probe integral pigtail length + extension cable length, must strictly match the proximitor rated total cable length. Improper total length results in scale‑factor shift and erroneous displacement readings.
• Interfaces with 3500/42M, 3300/12, 3300/15 monitor racks for alarm, trip and trending functions.
• The ‑RU suffix only indicates regional documentation / EAC compliance, no change to core electrical‑mechanical performance.

Part Number Decoding

• 330907：3300‑XL 8 mm proximity probe, special regional configuration
• ‑05：Mounting thread specification
• ‑30：Overall probe body length = 3.0 inch
• ‑10：Integral pigtail cable length =1.0 m
• ‑02：ClickLoc miniature coaxial connector
• ‑RU：Regional variant for Russian Federation, supplied with EAC customs / conformity documentation

330907-05-30-10-02-RU

Key Specifications

Main Features

• API‑670 compliant 8 mm proximity probe, Russian EAC‑ready variant: Identical core mechanical & electrical performance versus standard global‑market models; delivered with documentation satisfying Russian customs and industrial conformity requirements.
• 3.0‑inch probe body length: Adaptable for medium‑depth counter‑bore mounting holes, offers sufficient adjustment range for on‑site gap setting.
• 1.0 m integral pigtail cable: Short pre‑fitted cable, flexible to achieve required overall system length by adding ClickLoc extension cables.
• Standard 2.0 mm linear measurement range: Optimized for shaft radial vibration and axial thrust‑position monitoring of turbines, compressors and rotating machinery.
• Broad operating temperature range ‑35 °C ~ +175 °C: Tolerates oil‑mist and high‑temperature cabinet and casing environments.
• ClickLoc quick‑lock coaxial connector: Stable low‑noise interconnection with 330130 series extension cables, reduces intermittent connection risk.
• EAC compliance documentation included: Simplifies customs clearance and equipment acceptance for projects located in Russian Federation.
• Interoperable within 3300‑XL 8 mm transducer family, no special component‑pairing required.

Typical Application Scenarios

• Steam / gas turbine vibration and thrust‑protection projects located in Russian Federation territory requiring EAC conformity paperwork
• Centrifugal compressor condition‑monitoring loops for refinery & petrochemical plants within Russian‑regulated industrial sites
• Critical large pumps, blowers and heavy‑duty gearbox monitoring systems for local Russian capital‑construction projects
• Keyphasor phase‑reference and shaft‑speed measurement loops for rotating‑machinery protection systems
• Retrofit and spare‑part replacement for existing 3300‑XL transducer installations in Russian‑based facilities
• Industrial projects where customs clearance requires official EAC supporting documentation for imported automation components

Related & Recommended Alternative Models

Compatible Components & Accessories

1. Extension cables: 330130 series ClickLoc extension cables. Total system length = probe 1.0 m + extension cable = proximitor rated total length.
2. Matched proximitor: 330180‑xx‑00 DIN‑rail 8 mm proximitor module.
3. Monitor hardware: Bently 3500/42M, 3300/12, 3300/15 monitor racks.
4. Mounting accessories: Matching lock‑nut for probe thread fixation, cable clamps and cable glands.
5. Calibration hardware: 8 mm static gap calibration rig for pre‑commissioning system validation.
6. Torque tool: Special torque wrench for correct ClickLoc connector tightening.

Installation and Configuration Guide

Warning: Installation must be performed by qualified instrumentation technicians. Always refer to original Bently Nevada 3300‑XL official manual as primary reference document. Confirm intrinsic‑safety marking before deployment within hazardous explosive zones.

1. Mechanical Probe Mounting
   • Thread the probe into machine casing counter‑bore; adjust insertion depth to achieve target operating gap, then secure lock‑nut firmly.
   • Keep probe tip perpendicular to metallic shaft target surface; angular misalignment will degrade linear‑range performance and measurement accuracy.
   • Guarantee adequate rotor‑to‑probe clearance; avoid rotor‑probe collision under shaft thermal growth and full‑amplitude vibration excursion.
2. Connector Mating & Torque Control
   • Align ClickLoc pin layout before insertion; never force connector engagement.
   • Tighten ClickLoc connector to manufacturer‑specified torque value. Over‑torque damages internal pins; under‑torque produces intermittent signal faults.
   • Do not connect or disconnect transducer cables while proximitor power supply remains energized.
3. System Total‑Length Validation
   • Compute total transducer cable length = probe integral pigtail length + sum of extension‑cable lengths.
   • Verify computed total matches the cable‑length rating of installed proximitor. Mismatch yields incorrect scale‑factor output.
4. System Commissioning Test
   • Complete full transducer‑loop wiring, power‑up proximitor unit.
   • Execute static gap calibration test with calibration fixture; validate output voltage and scale‑factor performance.
   • Confirm Not‑OK fault status clears after correct wiring and gap adjustment.
5. Maintenance & Troubleshooting
   • Inspect ClickLoc connectors for contamination, corrosion and loose contact during machinery turnaround outages.
   • Inspect cable jacket for abrasion, oil degradation and mechanical crushing damage.
   • Signal drift or sporadic Not‑OK alarms may indicate defective probe assembly or poor connector contact. Replace full probe assembly; field splicing or repair of probe cable is not permitted.
6. Regional Documentation Note
   • Model suffix ‑RU delivers EAC‑compliant documentation package for Russian customs clearance and plant acceptance; it does not modify hardware electrical‑mechanical parameters. Local site safety rules shall still be followed for hazardous‑area installation.

Supplementary Remark

330907‑05‑30‑10‑02‑RU is a 3300‑XL 8 mm proximity probe with 3.0‑inch body length, 1.0 m integral pigtail cable and ClickLoc connector. The ‑RU suffix stands for Russian‑market regional variant supplied with EAC conformity documentation for customs and site acceptance. Hardware performance is consistent with equivalent standard‑order part numbers. It shall be paired exclusively with 3300‑XL 8 mm‑series proximitor and ClickLoc extension‑cable assemblies. Prior to commissioning, cross‑check part‑number configuration, thread specification, pigtail length, connector style, intrinsic‑safety marking and total‑system cable length against project BOM and mechanical drawings.
