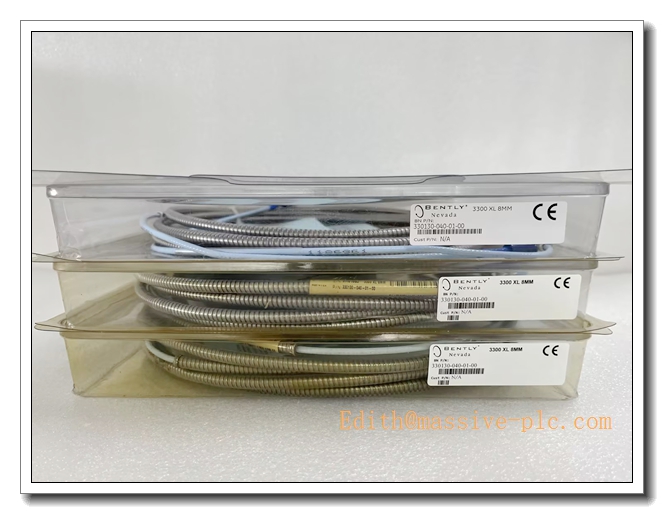

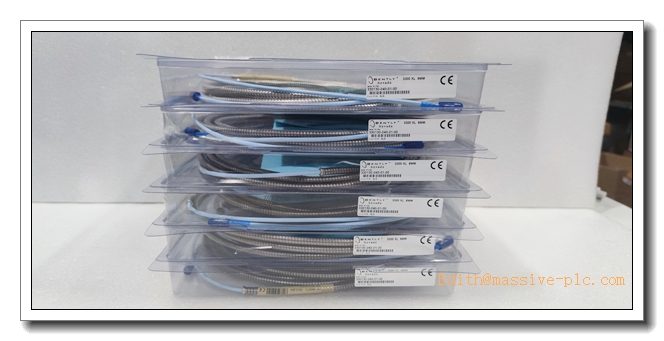

The Bently Nevada 330130-040-01-00 is a brand new sealed original 3300 XL 8 mm proximity sensor system, purpose-built for non-contact continuous measurement of shaft vibration, shaft position and dynamic displacement on critical rotating machinery. As a fully API 670 compliant core component of Bently Nevada’s industry-standard machinery health monitoring ecosystem, it delivers exceptional measurement accuracy and long-term operational stability even in harsh industrial environments, and natively integrates with the Bently Nevada 3500 series monitoring modules you previously researched, forming a complete end-to-end certified machinery protection solution for oil and gas facilities, power plants and petrochemical production lines.

330130-040-01-00

Full Technical Specifications

Key Product Features

• ‌Industry-leading Measurement Stability‌: Maintains consistent 7.87 V/mm sensitivity across the full 0-2.0 mm range, with maximum drift less than ±2% even after 10 years of continuous operation.
• ‌Wide Temperature Adaptability‌: Supports continuous operation from -35°C to +177°C, covering almost all general measurement points on steam turbines, gas turbines and centrifugal compressors.
• ‌Native System Compatibility‌: No extra signal conversion hardware required, directly interoperable with all Bently Nevada 3500 series monitoring modules including 3500/42M, 3500/32M and 3500/25 you previously referenced.
• ‌Hazardous Area Certified‌: Full set of global explosion-proof certifications, safe for deployment in Zone 1 and Zone 2 explosive hazardous locations in refineries and offshore oil platforms.
• ‌Robust Mechanical Design‌: 316 stainless steel housing and FEP insulated triaxial cable deliver excellent corrosion resistance and mechanical durability for harsh industrial field conditions.

Professional Quality Control Test Standard Operating Procedure

1. ‌Pre-Power Visual Inspection‌: Verify no physical damage to probe tip, stainless steel housing, cable jacket and connector pins; confirm no cuts, abrasions or loose components along the entire 4-meter cable length.
2. ‌Coil Impedance Validation Test‌: Measure the internal probe coil impedance with a precision LCR meter at 1 kHz, confirm the reading falls strictly within Bently Nevada’s factory-specified tolerance range.
3. ‌Full-Range Calibration Test‌: Mount the probe on a Bently Nevada TK-3 calibration kit, adjust the target gap from 0 mm to 2.0 mm in 0.25 mm increments, validate output voltage maintains 7.87 V/mm linearity within ±5% across the full measurement range.
4. ‌Temperature Cycling Screening Test‌: Place the probe in a temperature-controlled chamber, run 10 cycles of -35°C to +177°C with 1-hour dwell time at each extreme, confirm no sensitivity drift exceeds ±2% after test completion.
5. ‌Cable Mechanical Durability Test‌: Apply specified tensile load on the cable for 10 minutes, then perform 500 cycles of 90-degree bending test, confirm no open circuit or signal discontinuity occurs during and after the test.
6. ‌72-Hour Continuous Burn-In Test‌: Power the transducer under rated -24 V DC supply, operate it at the mid-point of the linear gap range for 72 consecutive hours, record all output logs, and only release units with zero fault records for shipment.

New Module Installation Guidelines

1. Confirm the target rotating machinery is in full locked-out/tagged-out shutdown status before installation, select a mounting position perpendicular to the clean, uncoated shaft surface to avoid measurement distortion.
2. Thread the probe into the pre-drilled mounting hole, adjust the initial mechanical gap to set the gap voltage to ‌-10 V DC ± 1 V‌ as specified in Bently Nevada’s official installation manual, then tighten the lock nut securely to fix the probe position.
3. Route the probe and extension cable separately from high-voltage power cables, avoid sharp bends with radius less than 25 mm, connect all extension cable and Proximitor sensor connectors tightly with proper locking mechanism.
4. Power on the Bently Nevada 3500 monitoring rack, verify the gap voltage reading on the corresponding monitoring module is stable and within the normal working range, then perform a full gap calibration validation before putting the system into formal operation.

Application Scenarios

This sensor is widely deployed on critical rotating equipment including steam turbines, centrifugal compressors, gas turbines, large industrial pumps and induced draft fans in power plants, oil refineries, offshore oil platforms and petrochemical facilities. It is the standard recommended proximity sensor for Bently Nevada 3500 series machinery protection systems, fully meeting API 670 industrial machinery protection standard requirements.

Frequently Asked Questions

1. ‌Q: What is the difference between 330130-040-01-00 and 330130-040-00-CN?‌
   A: The 330130-040-01-00 variant is the global standard export version, while 330130-040-00-CN is the China regional distribution version, their core technical parameters and performance are fully identical.
2. ‌Q: What is the recommended initial gap voltage for this sensor?‌
   A: For standard -24 V DC powered Bently Nevada systems, the initial gap voltage should be precisely adjusted to ‌-10 V DC ± 1 V‌ to occupy the optimal mid-point of the linear working range.
3. ‌Q: Can this sensor be directly connected to Bently Nevada 3500 series monitors?‌
   A: Yes, it is natively designed for full compatibility with all 3500 series monitoring modules, no extra signal conversion hardware is required.
4. ‌Q: What is the typical delivery lead time for this product?‌
   A: Standard in-stock units can be delivered within 2-3 working days after order confirmation.
