Bently Nevada 288055‑01 (3500/22M Transient Data Interface Front‑Plane Module)

Description

Bently Nevada 288055‑01 (3500/22M Transient Data Interface Front‑Plane Module)

Product Description

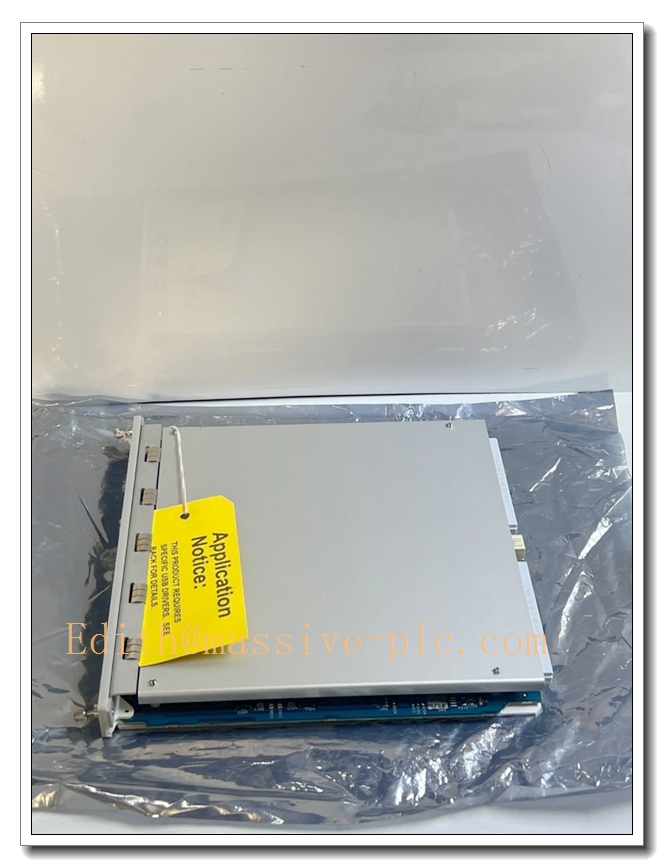

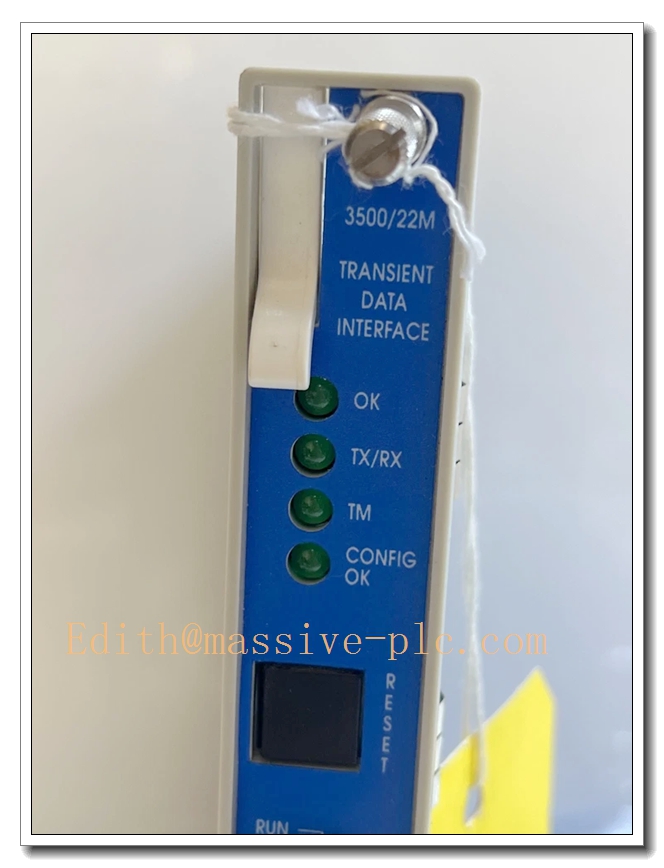

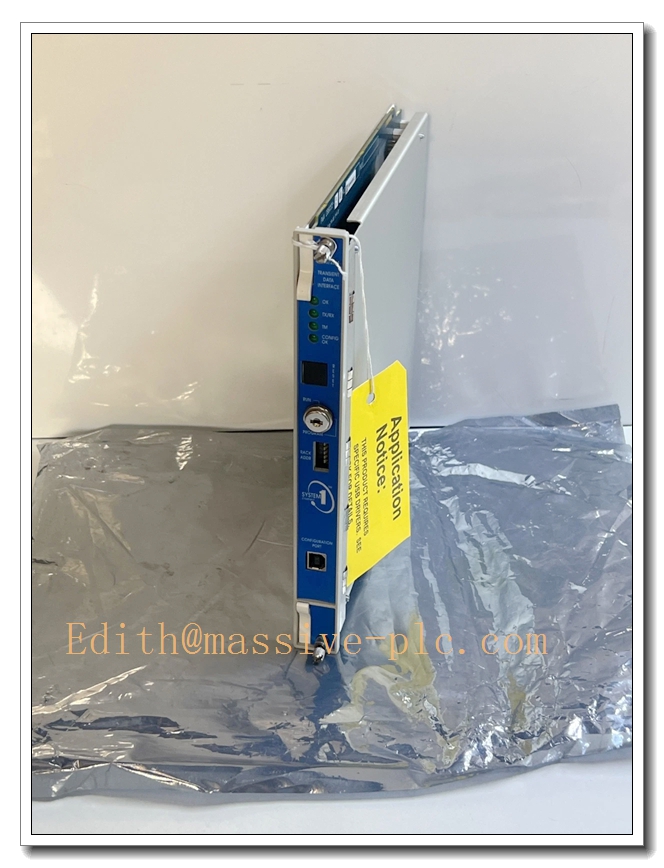

288055‑01 is the front‑plane main board of the Bently Nevada 3500/22M Transient Data Interface (TDI). It must pair with rear I/O assembly 146031‑01 (RJ45 Ethernet) to form a complete TDI unit for the 3500 machinery‑protection rack system. This module integrates legacy Rack Interface Module (RIM) and TDXnet communication processor functions. It serves as the central backplane coordinator for the entire rack, collects steady‑state measurements, alarm events, and high‑resolution transient waveform data from all M‑series monitor modules. It communicates externally via Ethernet and local USB configuration port, supporting System 1 predictive diagnostic software, 3500 Rack Configuration Software, and Modbus‑TCP host systems. The communication path is isolated from protection trip logic; network failure will not affect machinery safety alarm and relay‑trip functions. One TDI module is mandatory for each 3500 rack and must be installed in Slot 1 (RIM slot) adjacent to power‑supply modules.

288055-01

Technical Specifications

Main Features and Advantages

Key Features

1. Combined RIM + TDXnet function: acts as rack backplane manager and high‑speed data gateway, saving valuable rack slot resources.
2. Dual‑data acquisition: collects steady‑state values and alarm events; licensed channel‑enable unlocks high‑speed transient waveform, orbit, startup‑shutdown data from M‑series monitors (3500/42M, 3500/61, 3500/62 etc.).
3. Multiple trigger modes for transient capture: time‑based, alarm‑event, threshold crossing for post‑fault root‑cause analysis.
4. Dual communication paths: USB‑B local port for direct rack configuration; rear‑mounted Ethernet for remote host connection and Modbus‑TCP export to DCS/SCADA.
5. Hot‑swap supported for complete front‑rear assembly; no rack power‑down needed during replacement.
6. Complete isolation between communication channel and safety‑protection trip path: network/TDI fault cannot disable machinery protection functions.
7. Front‑panel LED status indicators offer quick visual diagnosis of module health and data‑traffic status.

Core Advantages

• Single‑slot solution replaces two separate legacy modules (3500/20 RIM + TDXnet), reducing cabinet footprint and spare‑part stock.
• Delivers both safety‑oriented hard‑wired relay protection and high‑fidelity diagnostic waveform data for predictive‑maintenance workflows.
• Native Modbus‑TCP support enables seamless integration with mainstream plant control systems without extra gateway hardware.
• On‑board transient memory captures pre‑ and post‑alarm waveform snapshots for failure investigation.
• Hot‑swap maintainability minimizes system downtime during communication‑module servicing.
• Fully compatible with all modern M‑series monitor modules within the 3500 platform.

Application Fields

• Oil & Gas: centrifugal compressors, gas turbines, steam turbines; collecting vibration, thrust, temperature and process‑variable data for System 1 rotor‑dynamic fault diagnosis.
• Power Generation: thermal‑power and combined‑cycle plants; turbine‑generator condition‑data trending, event logging and trip‑post‑mortem waveform recording.
• Petrochemical: refineries, ethylene plants; turbo‑expanders, large pumps and blowers continuous machinery‑health monitoring.
• Heavy Industry: steel, cement and mining facilities; critical rotating‑equipment predictive‑maintenance and failure root‑cause analysis.
• General rotating‑machinery protection: central communication hub for complete 3500 TSI machinery‑protection rack.

Related Product Recommendations

1. 146031‑01: Matching rear 10/100Base‑TX RJ45 Ethernet I/O assembly, mandatory mating part for 288055‑01.
2. 146032‑01: Alternative 100Base‑FX fiber‑optic rear I/O module for long‑distance or heavy‑EMI industrial network environments.
3. Dynamic Channel‑Enable License: license key to activate transient waveform capture function.
4. 3500 rack accessories: 3500/05 rack chassis, 3500/15 redundant power‑supply modules.
5. Companion monitor modules: 3500/42M vibration monitor, 3500/61 temperature monitor, 3500/62 process‑variable monitor, 3500/33 relay‑output module.
6. Host software: Bently Nevada System 1 diagnostic software, 3500 Rack Configuration Software.

Installation and Maintenance

Installation

1. Mate 288055‑01 front‑plane module with matched rear I/O assembly (146031‑01); insert the combined unit into Slot 1 (RIM slot) next to power‑supply slots of 3500 rack; tighten front‑panel locking screws.
2. Connect shielded Cat5e/Cat6 Ethernet cable to rear RJ45 port; apply single‑point‑grounding practice and separate signal wiring from high‑power cables to reduce EMI. Local configuration can be completed via front‑panel USB‑B port.
3. Use 3500 Rack Configuration Software to set rack IP address, network parameters, and install dynamic‑channel‑enable license if transient waveform capture is required. Download configuration to rack backplane.
4. Verify front‑panel LED indicators: solid OK light indicates normal module operation. Establish connection with host software and validate steady‑state data, alarm‑event reporting and (if licensed) transient‑waveform transmission before commissioning.

Maintenance

1. Hot‑swap replacement supported: no rack power‑off required. Set relevant monitor channels to bypass status, extract the complete front‑rear paired assembly, install new matched 288055‑01 +146031‑01 unit, reload network‑configuration and license parameters as needed.
2. Periodically inspect USB‑B port, Ethernet cable, connectors and shielding for damage, looseness or corrosion.
3. Routinely observe front‑panel LED status; investigate fault or communication‑abnormal indications promptly.
4. Keep rack ventilation unobstructed; ensure operating temperature and humidity stay within rated specifications.
5. Conduct periodic communication function test: verify steady‑state data, alarm‑event reporting and transient‑data capturing performance.
6. For defective hardware, return complete front‑rear assembly to authorized‑service channels; do not disassemble internal circuit boards on‑site.
