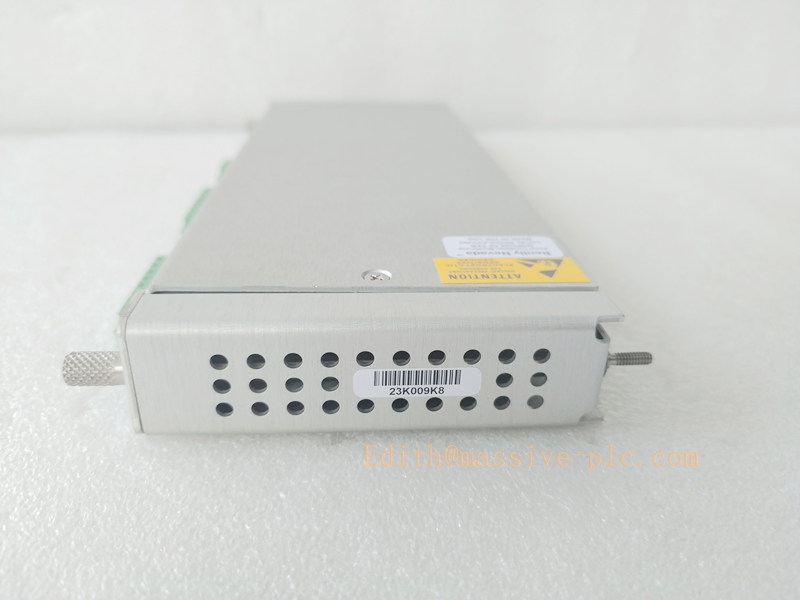

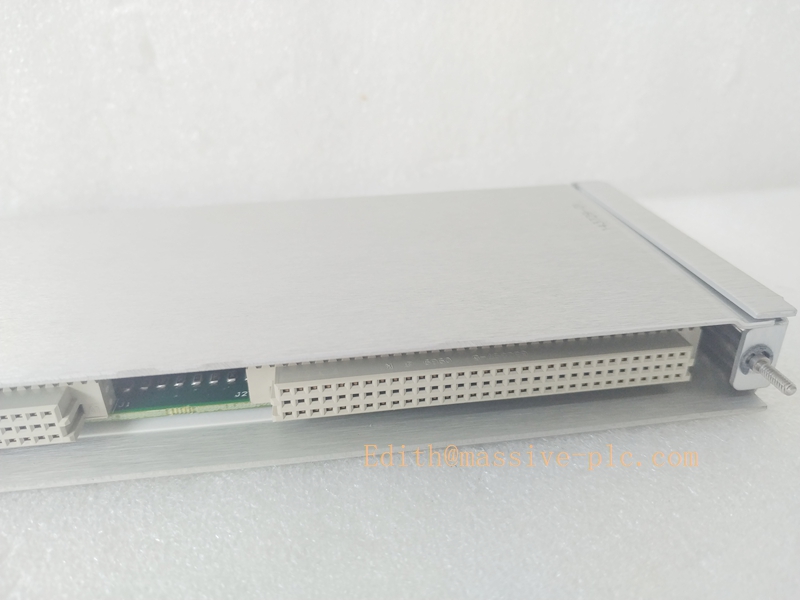

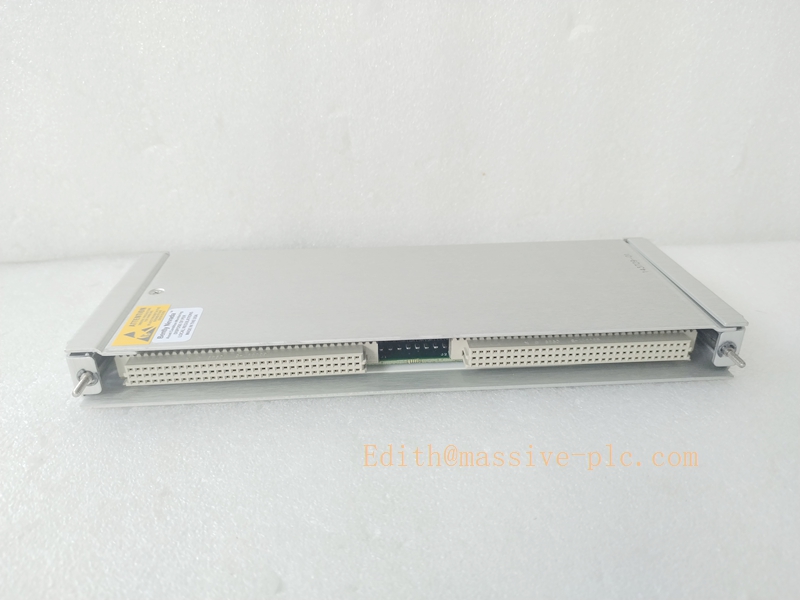

Bently Nevada 143729‑01 Cylinder Pressure I/O Module (Internal Termination)
143729-01
Product Overview
143729‑01 is the internal‑termination I/O assembly exclusively for the 3500/77M Reciprocating Cylinder Pressure Monitor of Bently Nevada 3500 machinery protection system. It provides direct field‑wiring terminals for cylinder pressure transducers, conditions analog pressure signals and transmits conditioned signals to the 3500/77M main monitor board via rack backplane bus. This hardware is dedicated for reciprocating compressor cylinder dynamic pressure acquisition, supporting pressure‑volume (P‑V) curve calculation, rod reversal detection and reciprocating machinery fault diagnosis. It cannot operate independently and must be paired with 3500/77M main monitor board.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 143729‑01 |
| Matching Main Board | 3500/77M Reciprocating Cylinder Pressure Monitor |
| Termination Type | Internal Termination (field wiring connects directly to module rear screw terminals) |
| Channels | 4 independent analog pressure input channels |
| Input Signal Range | ±10 V analog from cylinder pressure transducers |
| Input Impedance | 10 MΩ per channel |
| Power Source | Powered from 3500 rack backplane |
| Typical Power Consumption | 7.8 W (including transducer excitation) |
| Operating Temperature | ‑30 ℃ ~ +65 ℃ (rack environment); Storage:‑40 ℃ ~ +85 ℃ |
| Form Factor | Single‑slot plug‑in for standard 3500 instrument rack |
| Weight | Approx. 0.2 kg |
| Compliance | API 618 for reciprocating compressors, API 670 machinery‑protection standard |
| Installation | Installed directly behind the 3500/77M main board within same rack slot |
Key Features

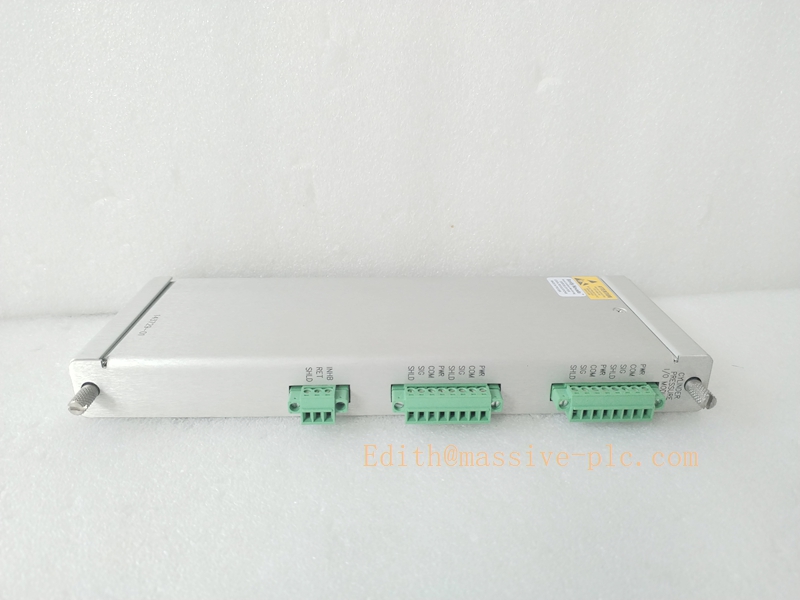

- Internal termination design: Field pressure transducer cables terminate directly to rear screw terminals, eliminates external termination blocks and intermediate jumper cables, simplifies cabinet wiring layout.
- Four‑channel high‑impedance analog input: 10 MΩ high‑input‑impedance circuit minimizes signal loading, preserves waveform integrity for high‑speed cylinder pressure cyclic measurement of reciprocating compressors.
- Transducer fault supervision: Supports cable open‑circuit, short‑circuit diagnostic functions implemented by paired 3500/77M monitor.
- P‑V diagram signal‑path support: Delivers raw cyclic pressure waveform data required for P‑V curve generation, valve fault diagnosis, rod‑reversal detection and performance trending for reciprocating compressors.
- Rack seamless integration: Communicates with 3500/77M main monitor via backplane; no separate configuration needed. All channel setup, alarm thresholds and sensor parameters are completed in 3500 Rack Configuration Software.
- Industrial rugged design: SMT circuit assembly, supports hot‑swap replacement following official maintenance procedure for continuous plant operation.
143729-01
Typical Applications & Application Scenarios
Main Applications
- Field signal interface for high‑speed cylinder pressure transducers on reciprocating compressors.
- Capture cyclic cylinder pressure waveforms, generate P‑V indicator diagrams.
- Detect compressor valve failure, ring leakage, rod reversal risk, process abnormality and mechanical faults.
- Provide pressure‑cycle data for machinery protection alarm, trip logic and predictive maintenance analysis.
Industry Scenarios
- Oil & gas: natural‑gas reciprocating compressors, refinery process reciprocating units, pipeline compressor stations.
- Petrochemical plants: hydrogen compressors, process gas reciprocating compressors compressing hydrocarbon media.
- Energy processing sites where API 618 reciprocating‑compressor standards are mandatory.
- Critical reciprocating machinery requiring online cylinder pressure health monitoring.
Supporting / Matching Components
- Mandatory paired main monitor: 3500/77M Reciprocating Cylinder Pressure Monitor (must be used together, standalone operation not permitted).
- Host rack: 3500/05 instrument rack.
- Rack power supply: 3500/15 series power supply modules.
- Field sensors: High‑frequency dynamic cylinder pressure transducers and shielded signal cables for reciprocating compressor service.
- Auxiliary system modules:
- 3500/32M / 3500/33 relay modules for hardware alarm & trip contact output
- 3500/92 / 3500/77M communication gateways for uploading pressure waveform & alarm status to DCS / SCADA / System 1 software
- Configuration software: Bently Nevada 3500 Rack Configuration Software.
143729-01
Related & Reference Part Numbers
- 143730‑01: External‑termination I/O counterpart for 3500/77M (ET version, requires external terminal blocks and interconnection cables)
- 3500/77M‑03‑00: Complete reciprocating cylinder pressure monitor assembly (main board + 143729‑01 internal‑termination I/O)
- 135487‑01: External termination block assembly for 143730‑01 external‑termination variant
Difference note:
- 143729‑01 : Internal Termination → field wires land on rear of rack‑mounted I/O module.
- 143730‑01 : External Termination → requires separate external terminal blocks and jumper cables for cabinet pre‑wiring and high‑EMI environments.
Installation & Maintenance Notes
- Install 143729‑01 behind 3500/77M main monitor inside the identical rack slot; cannot be mixed‑used with external‑termination I/O in one monitor set.
- Use shielded twisted‑pair cables for cylinder pressure transducers; separate analog signal wiring from high‑voltage power cables to avoid waveform distortion.
- After hardware installation, validate channel status, transducer supervision and P‑V waveform capture function in 3500 configuration software and System 1 platform.
- Hot‑swap is allowed; strictly follow Bently Nevada official service manual for powered‑on module replacement.
