Bently Nevada 136188‑01 Rear I/O Card for 3500/92

Description

Bently Nevada 136188‑01 Rear I/O Card for 3500/92

Model Introduction

Model: Rear I/O Card for 3500/92 Multi‑Protocol Gateway Part Number: 136188‑01 Device Type: Back‑plane rear‑mount communication termination I/O card Manufacturer: Bently Nevada (Baker Hughes) System Compatibility: Exclusively mates with front‑slot main module 3500/92 (136180‑01). Can be upgraded/replaced by revised variant 136188‑02. Incompatible with 3500/91, 3500/91M front modules; cannot run standalone. Application Scenarios: TSI turbine supervisory instrumentation, thermal‑power steam turbines, oil‑gas centrifugal compressors, heavy‑duty rotating‑machinery protection racks. Provides physical wiring termination for Ethernet and multi‑mode serial interfaces, bridges 3500 rack backplane bus to external DCS, PLC, SCADA and plant historian systems. Country of Origin: United States Lifecycle Status: Legacy spare‑part; phased‑out original revision, still supported as spare‑part, replaced by improved 136188‑02.

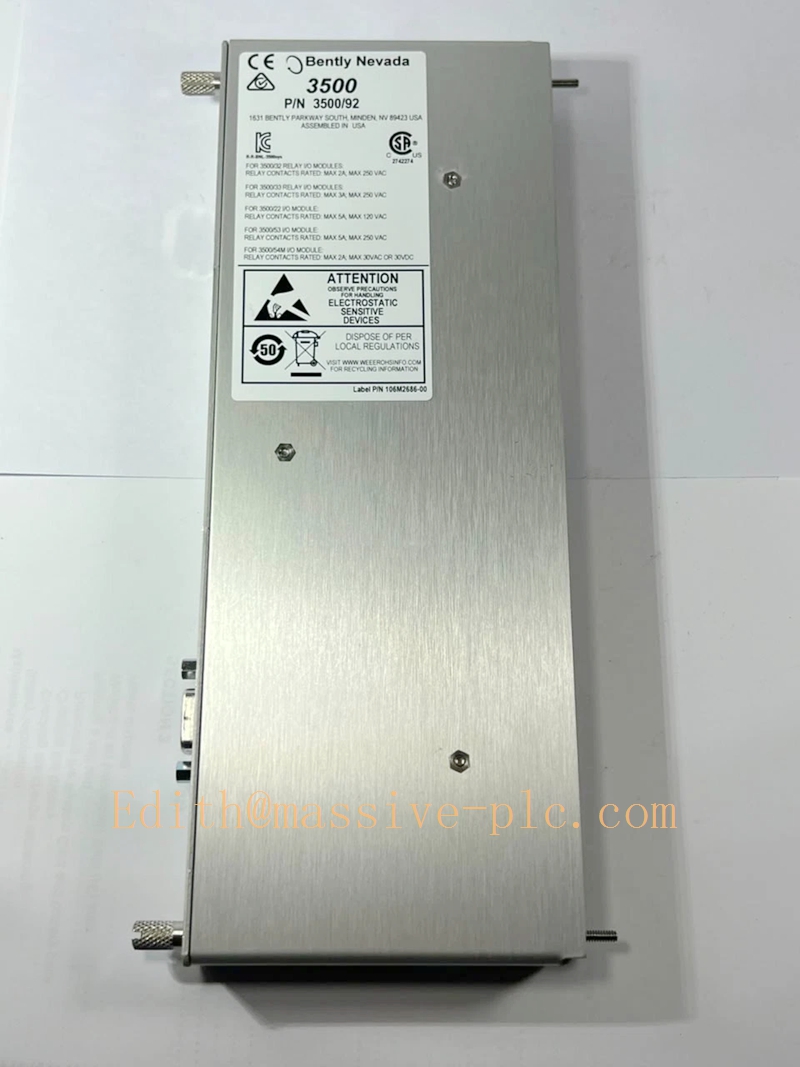

136188-01

Technical Introduction

Core Functions

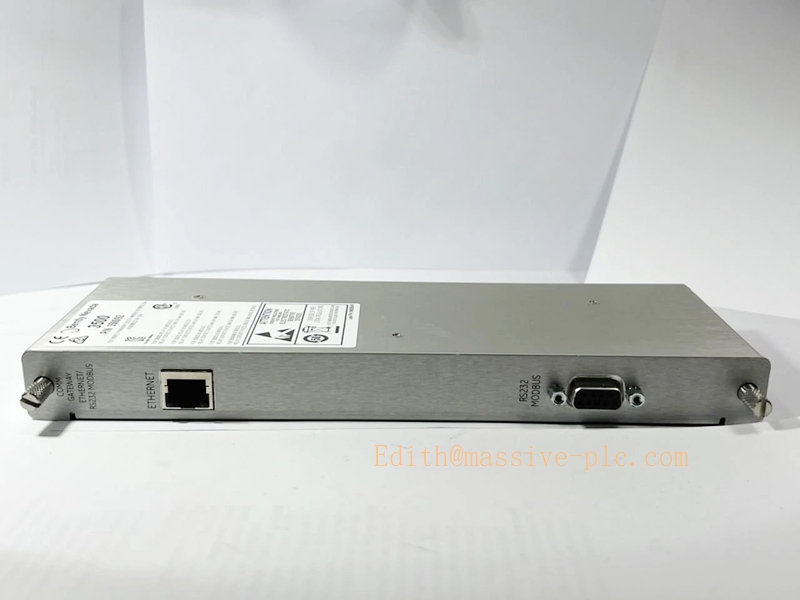

‑ Provides RJ45 physical termination for 10/100BASE‑TX Ethernet for Modbus‑TCP and Bently Nevada proprietary protocol. ‑ Provides Euro‑style plug‑in screw terminal block for multi‑mode serial communication: RS232 / RS422 / RS485 for Modbus‑RTU. ‑ Routes backplane bus signals from 3500/92 front gateway module out to field communication cables. ‑ Basic port isolation for Ethernet and serial channels for industrial noise suppression. ‑ All field‑side wiring terminates on this rear‑I/O card; front‑side 3500/92 (136180‑01) completes protocol processing and configurable Modbus register mapping.

Key Technical Specifications

Mechanical Feature

Rear‑side slot‑mount I/O card installed behind the 3500 rack backplane, mates one‑to‑one with front‑inserted 3500/92 main module. Hot‑swap supported under rack powered‑on condition; strictly follow official maintenance procedure during replacement. Field wiring is electrically separated from front‑module electronics.

136188-01

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Backplane continuity test: Verify pin‑to‑pin signal integrity between rear‑card connector and mating interface for 3500/92 front module; detect open‑circuit / short‑circuit defects.
2. Ethernet physical‑layer adaptive test: Validate 10 Mbps /100 Mbps full‑duplex / half‑duplex auto‑negotiation; repeated link‑up / link‑down stress cycling.
3. Serial‑port adaptive validation: RS232 / RS422 / RS485 mode‑switching test; multi‑baud‑rate stress test.
4. Protocol interoperability test: Pair with genuine 3500/92 (136180‑01) front module; execute Modbus‑TCP register read‑write, Modbus‑RTU master‑slave transaction, Bently proprietary protocol connection test under rack simulation environment.
5. EMC surge‑immunity screening: Basic surge test for communication ports (note: 136188‑01 uses original‑generation protection circuit; enhanced protection implemented on 136188‑02).
6. Mismatch‑detection validation: Confirm rack triggers hardware‑mismatch alarm when paired with non‑92‑series front gateway modules.
7. Visual & label inspection: Serial‑number traceability, part‑number marking verification; full functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check card physical condition, connector pin integrity, no oxidation or mechanical damage.
2. Rack mating test: Install 136188‑01 rear‑I/O card together with matched 3500/92 (136180‑01) front module; power‑on rack, connect with 3500 Rack Configuration Software, confirm no rear‑card mismatch alarms.
3. Ethernet link test: Connect industrial shielded Ethernet cable; verify link LED status; establish Modbus‑TCP connection and read measurement & alarm registers.
4. Serial‑port function test: Wire serial terminals, configure baud‑rate, parity and stop‑bit; validate Modbus‑RTU read‑write transactions.
5. Self‑diagnostic test: Trigger module self‑test from configuration software; confirm zero critical faults in rack system event‑log.
6. Communication‑recovery simulation: Simulate cable disconnection and reconnection for Ethernet and serial channels; verify automatic communication recovery without rack disturbance.
7. Test‑record filing: Log part‑number, hardware revision, firmware version, test‑result snapshot for site QA archive.

136188-01

Field Engineer Technical Notes

Installation Guidance

‑ Strict pairing rule: 136188‑01 rear‑I/O card must work with front‑side 3500/92 (136180‑01). It can be replaced by newer revised 136188‑02 without rack‑hardware modification. Mismatched front‑module will trigger fatal hardware‑mismatch alarm and complete communication failure. ‑ Mount on rack rear‑side; align backplane connector firmly; tighten retaining screws to avoid intermittent poor‑contact faults. ‑ Ethernet wiring: Use industrial shielded CAT5e / CAT6 cable; implement single‑end shield grounding per plant drawing, avoid multi‑point ground‑loops. ‑ Serial wiring: RS422 / RS485 adopt shielded twisted‑pair cable; terminate bus end‑resistor as required for multi‑drop bus topology. ‑ No external power connection to rear‑card; power is supplied entirely from rack backplane.

Field note: For sites with heavy‑surge, high‑noise industrial environment, it is recommended to upgrade to 136188‑02 revision for improved serial‑port surge immunity.

Commissioning Tips

‑ After hardware installation, download complete rack configuration; activate 3500/92 gateway in slot‑configuration table. ‑ Assign static IP address for Ethernet port; avoid IP conflict within plant LAN. ‑ Match serial‑port parameters (baud‑rate, parity, stop‑bit, slave ID) with upper‑level DCS / PLC settings. ‑ Use configurable Modbus register utility to define required measurement points and alarm bits before downloading configuration; cross‑check DCS readings versus rack local values.

Troubleshooting Common Issues

1. Module Mismatch Alarm: Confirm front‑module is genuine 3500/92 (136180‑01); cross‑check rear‑card part‑number.
2. Ethernet link down: Inspect RJ45 connector, cable integrity, switch‑port status and IP subnet matching.
3. Serial communication unstable / sporadic fault: For high‑noise plant environment, original 136188‑01 may be susceptible to surge interference; evaluate upgrade to 136188‑02. Check wiring polarity, bus terminal‑resistor setting; verify serial‑parameter consistency at both sides.
4. Intermittent data dropout: Check cable shielding and grounding; eliminate ground‑loop interference; adjust network‑switch storm‑control parameters.

Diagnostic reference: Read rack system event‑log inside 3500 configuration software for fault root‑cause analysis.

Maintenance & Spare‑part Recommendation

‑ No user‑serviceable components onboard; replace full rear‑card assembly upon hardware failure. ‑ Spare‑part suggestion: Maintain full matched set: 136180‑01 (front) + 136188‑01 / 136188‑02 (rear) for turnaround maintenance. ‑ Preventive inspection during shutdown: Check rear‑card mounting tightness, terminal‑screw torque, connector oxidation, cable aging and shielding integrity. ‑ Spare‑part procurement hint: 136188‑01 is phased‑out original revision; new‑procurement usually delivers 136188‑02 as direct replacement.

Related 3500‑Series Gateway Rear‑I/O Comparison Table
