Bently‑Nevada 127610‑01 Front Power Converter Board (3500/15 Legacy High‑Voltage AC Power Supply)
Product Description
The 127610‑01 is the front half‑height power conversion board for Bently‑Nevada 3500/15 legacy high‑voltage AC power supply unit本特利. It pairs with rear Power Input Module (PIM) 125840‑01 to form the complete 3500/15‑02‑02‑00 power‑supply assembly, delivering multi‑rail regulated DC power for the 3500 machinery‑protection rack backplane and all monitor, relay and gateway modules本特利.
This legacy AC power board accepts high‑voltage AC input transferred from rear PIM, converts it into stable +5VDC, ±15VDC, +24VDC system power rails. It supports 1+1 hot‑standby redundant deployment in dedicated left‑hand half‑height slots. Single unit can fully power a complete loaded rack. Critical compatibility note: this legacy board cannot electrically interoperate with later‑generation universal‑AC power hardware (106M series); front board and rear PIM must always be matched set to prevent hardware damageBaker Hugh…. OEM production discontinued; available only as aftermarket replacement spare for legacy turbomachinery TSI racks.
Part Number Breakdown‑127610‑01：Front legacy high‑voltage AC power converter board‑Matching rear PIM：125840‑01 (High‑Voltage AC Power Input Module)‑Full assembly model：3500/15‑02‑02‑00‑No third‑party safety agency certification

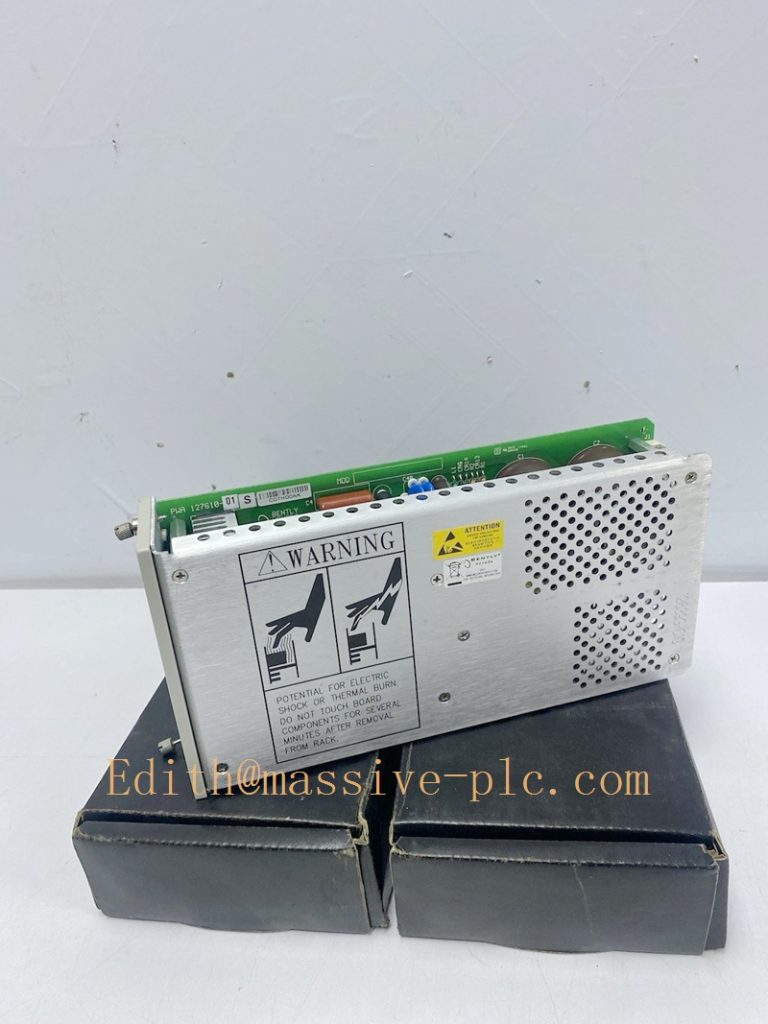

127610‑01
Technical Specifications
| Item | Specification |
|---|---|
| Part Number | 127610‑01 |
| Product Type | Front Power Converter Board, half‑height, for 3500/15 |
| Matching Rear PIM | 125840‑01 (175‑264Vac high‑voltage AC input)本特利 |
| AC Input Range (via PIM) | 175‑264 Vac RMS, 47‑63 Hz; peak 247‑373 Vac |
| DC Output Rails | +5VDC, ±15VDC, +24VDC regulated backplane power |
| Load Capacity | Sufficient for full‑loaded 3500 rack configuration |
| Redundancy Mode | 1+1 hot‑standby parallel redundant operation |
| Built‑in Protection | Over‑voltage, under‑voltage, over‑current, short‑circuit, over‑temperature protection |
| Front‑panel Indicator | SUPPLY‑OK green LED for power health status |
| Diagnostic | Power‑supply fault events time‑stamped and logged to rack event‑log over backplane bus |
| Hot‑swap Rule | Front 127610‑01 board requires slot power‑off before removal; rear PIM 125840‑01 supports hot‑swap with redundant power healthy |
| Form Factor | Half‑height module |
| Dimension(H×W×D) | 241.3 mm ×12.2 mm ×99.1 mm (9.50 in ×0.48 in ×3.90 in) |
| Operating Temperature | ‑30 °C ~ +65 °C (‑22 °F ~ +149 °F) |
| Storage Temperature | ‑40 °C ~ +85 °C (‑40 °F ~ +185 °F) |
| Relative Humidity | 5‑95 % RH, non‑condensing |
| Product Status | Discontinued OEM production, aftermarket spare‑part only |
Variant note for 3500/15 front power boards‑127610‑01：Legacy High‑Voltage AC front board (pair with 125840‑01)‑129486‑01：Legacy High‑Voltage DC front board‑106M1079‑01：New‑generation Universal‑AC front board, incompatible with legacy PIMs
Key Features & Benefits
- Legacy high‑voltage AC power conversion: Designed for 220/240Vac industrial mains, widely deployed on early‑generation 3500 TSI machinery‑protection racks for turbomachinery assets.
- 1+1 hot‑standby redundant capability: Two matched power assemblies work in parallel. Automatic seamless switch‑over occurs upon primary‑unit failure without interrupting rack monitoring and protection functions, maximises system uptime for critical rotating equipment.
- Multi‑layer hardware protection mechanism: Comprehensive over‑voltage, under‑voltage, over‑current, short‑circuit and over‑temperature protection safeguards rack backplane and all downstream monitor modules.
- System‑wide diagnostic reporting: Local SUPPLY‑OK LED visual indication; all power‑supply‑related faults are transmitted via backplane bus and stored into rack event‑log for remote troubleshooting via TDI module.
- Strict front‑rear matching requirement: Must mate with 125840‑01 high‑voltage‑AC PIM. Mismatched front‑rear combination or mixing with universal‑AC components will cause abnormal operation or permanent hardware damageBaker Hugh….
- Full backward compatibility with 3500 ecosystem: Works cooperatively with 3500/05 rack chassis, 3500/22‑TDI, 3500/33 relay‑output and all series monitor modules.
Application Fields
‑ Power‑generation, petrochemical and natural‑gas facilities: front power conversion component for 3500/15‑02‑02‑00 redundant power supply, supplies stable DC power to steam‑turbine, gas‑turbine, centrifugal‑compressor and reciprocating‑compressor TSI protection racks complying with API‑670 standard.‑ Sites with 220‑240Vac power grid adopting legacy 3500 rack hardware architecture.‑ Spare‑part replacement and retrofit for existing legacy 3500 racks originally equipped with 127610‑01 +125840‑01 power‑supply assembly.
Related Recommended Products
‑ 125840‑01: Matching rear high‑voltage‑AC Power Input Module(PIM)本特利‑ 3500/05 series: 3500‑system rack chassis; power units install in dedicated left‑hand half‑height slots‑ 3500/22 / 3500/22M TDI: Transient‑data‑interface gateway for reading power‑supply diagnostic status and downloading event‑log records‑ 3500 full series monitor & relay modules: Load devices powered by this power‑supply assembly
Installation and Maintenance
Installation
- Firmly mate front power‑conversion board 127610‑01 with matched rear‑PIM module 125840‑01 to complete full 3500/15‑02‑02‑00 assembly; insert into dedicated half‑height power slot on left‑hand side of 3500 rack. For redundant configuration, install second matched assembly in upper adjacent power slot (lower = primary, upper = backup).
- Wire 175‑264 Vac field power cable onto rear‑PIM screw terminals, strictly comply with local electrical safety specifications.
- Apply AC input power; verify SUPPLY‑OK LED keeps illuminated. Inspect rack event‑log for power‑supply‑related diagnostic alarms, confirm all rack modules boot normally.
Important Note: Only rear‑side 125840‑01 PIM supports hot‑swap under rack powered‑on condition (redundant power unit must remain healthy). Front‑side 127610‑01 board must be replaced with corresponding slot power cut‑off. Never hot‑swap the last working power‑supply unit, it will trigger full‑rack power loss and machinery‑protection shutdown. Do not mix legacy power components with universal‑AC power hardware.
Maintenance
- Routine inspection: check rear‑PIM AC‑input terminals for dust accumulation, corrosion and loose wiring connections; observe front‑panel SUPPLY‑OK LED state.
- Periodically download rack event‑log to review power‑supply fault, under‑voltage or fuse‑blow diagnostic records.
- When front‑board hardware fault occurs, cut off corresponding slot power before replacing 127610‑01; reassemble with matched rear‑PIM module and verify full power‑supply function recovery.
- Avoid mechanical shock and conductive contamination during module‑handling. Refer to Bently‑Nevada official document Doc‑141530 (3500/15 Power‑Supply Datasheet & Operation Manual) for full installation constraints and detailed troubleshooting guidance.
