Bently Nevada 127610‑01 (3500/15 AC Power Supply Module)
Product Description

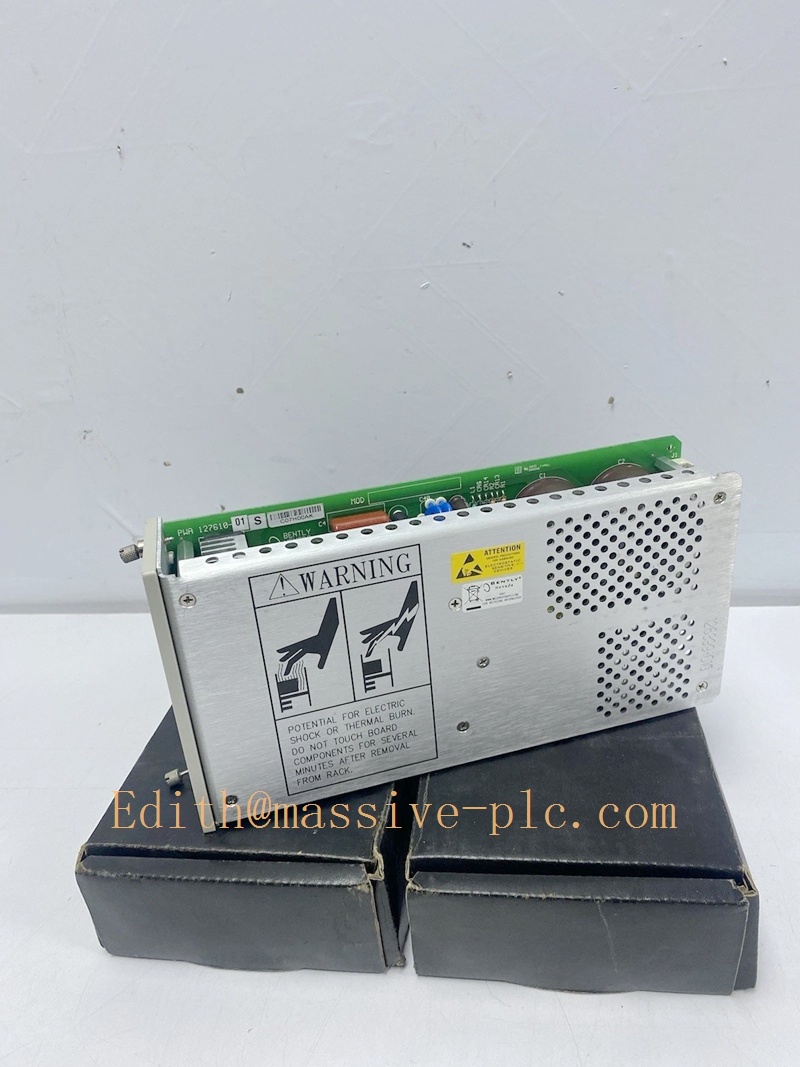

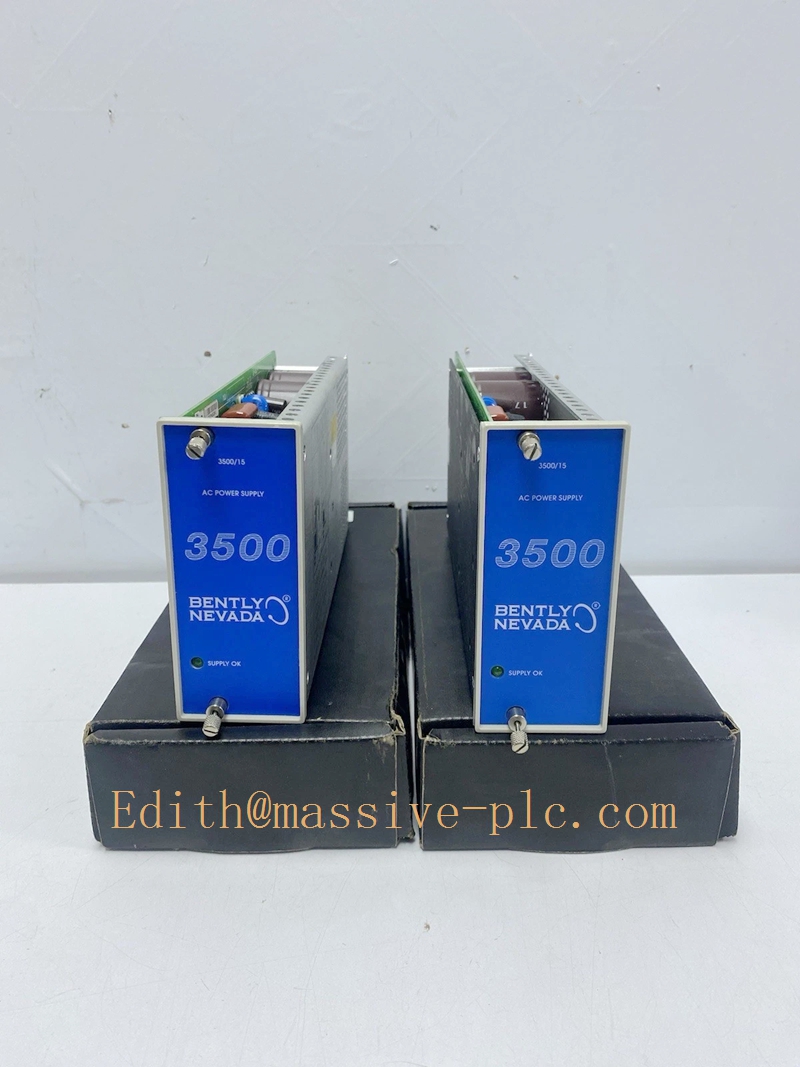

127610‑01 is the legacy AC power supply module for the Bently Nevada 3500 machinery‑protection rack system. It converts AC mains input into multiple regulated DC rails to feed all monitor, relay and communication modules inside the 3500 rack. This half‑height power supply installs in dedicated left‑side power slots of the 3500/05 rack chassis. It supports redundant power configuration (dual AC, or mixed AC‑DC redundancy) for high‑availability turbo‑machinery protection systems. It features built‑in self‑diagnostics and front‑panel “Supply OK” LED status indicator. This part is end‑of‑life; its modern replacement is 106M1079‑01 universal AC power supplyNEX Instru…. A matching rear power‑input module handles field AC wiring termination.
127610‑01
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 127610‑01 (3500/15 Low‑Voltage AC Power Supply) |
| Input Voltage | 85‑132 V AC RMS |
| Input Frequency | 47‑63 Hz |
| Max Input Current | 10 A |
| Output | Multiple regulated DC voltages for rack backplane |
| Max Output Power | 60 W |
| Form Factor | Half‑height module, occupies one dedicated power slot on rack left side |
| Hot‑Swap | Yes, valid under redundant power operation |
| Status Indicator | Front‑panel green “Supply OK” LED |
| Protection | Over‑voltage, over‑current, short‑circuit auto‑protection |
| Operating Ambient Temperature | 0 °C ~ +60 °C |
| Storage Temperature | ‑40 °C ~ +85 °C |
| Humidity | 5 %‑95 % RH, non‑condensing |
| Certifications | CE, UL, EMC compliant for industrial environments |
| Weight | Approx. 1.39 kg |
| Matching Rear Hardware | Power Input Module (PIM) for AC field wiring termination |
| End‑of‑Life Status | Obsolete; replacement: 106M1079‑01 |
Main Features and Advantages
Key Features
- Half‑height form factor, fits dedicated left‑hand power‑supply slots of the 3500 rack; two power‑supply slots support dual‑redundant deployment.
- Supports mixed redundancy: can run alongside DC power‑supply module (127630‑01) for cross‑type power backup.
- Full hot‑swap capability under redundant configuration; faulty unit can be pulled and replaced without rack shutdown.
- Integrated self‑monitoring circuitry, front‑panel Supply‑OK LED for quick health status inspection.
- Built‑in over‑voltage, over‑current and short‑circuit protection to safeguard downstream rack modules.
- Industrial‑grade line‑noise filtering, suppresses mains‑borne interference for stable TSI system operation.
- Works compatibly with all 3500 series monitor, relay and communication modules.
Core Advantages
- Redundant power architecture eliminates single‑point power‑failure risk for safety‑critical machinery‑protection loops.
- Hot‑swap maintainability reduces plant downtime during power‑supply fault events.
- Robust industrial design tolerates harsh power‑grid conditions in oil‑gas, petrochemical and power‑plant sites.
- Enables mixed‑AC‑and‑DC redundancy design for sites with separate AC and DC utility sources.
- Provides stable multi‑rail DC power to ensure measurement accuracy of vibration, temperature and process‑variable monitor modules.
Application Fields
- Oil & Gas: centrifugal compressors, gas turbines, steam turbines 3500‑rack power source for offshore and on‑shore compressor stations.
- Power Generation: thermal‑power, combined‑cycle plants; turbine‑generator TSI machinery‑protection rack power supply.
- Petrochemical: refineries, ethylene plants; turbo‑expanders, large pumps and blowers monitoring systems.
- Heavy‑industry: steel, cement, mining critical rotating‑machinery protection racks.
- General rotating‑asset safety monitoring: powers the complete 3500 machinery‑protection platform for predictive‑maintenance and ESD interlock.
Related Product Recommendations
- 106M1079‑01: Universal AC power‑supply module, direct modern replacement for obsolete 127610‑01NEX Instru….
- 127630‑01: 3500/15 DC power‑supply module, for mixed AC‑DC redundant power schemes.
- Power Input Module (PIM): rear‑side power‑wiring termination hardware for power‑supply modules.
- 3500 rack chassis: 3500/05 system rack.
- Companion monitor modules: 3500/42M vibration monitor, 3500/61 temperature monitor, 3500/62 process‑variable monitor, 3500/33 relay module.
Installation and Maintenance
Installation
- Insert the 127610‑01 half‑height power‑supply module into one of the two dedicated power‑supply slots located on the left side of the 3500/05 rack chassis. Tighten front‑panel locking screws.
- Install corresponding rear power‑input module (PIM); route field AC power wiring to PIM terminals, strictly follow local electrical safety codes.
- For redundant‑power configuration, populate both left‑side power slots with two power‑supply units (AC‑AC or AC‑DC mixed).
- Apply AC input power, verify front‑panel “Supply OK” LED illuminates solid green. Confirm all rack monitor modules power‑up normally.
- Complete rack configuration via 3500 Rack Configuration Software and perform full‑system power‑on commissioning test.
Maintenance
- Hot‑swap replacement is permitted only under redundant‑power running condition: pull out faulty 127610‑01 and insert new unit; no rack power‑off is required. If running on single power‑supply, rack must be powered down before module removal.
- Periodically inspect rear power‑input‑module terminals for looseness, corrosion or over‑heating signs.
- Routinely observe front‑panel Supply‑OK LED; investigate immediately if LED turns off or blinks.
- Maintain unobstructed rack ventilation; ensure ambient temperature stays within 0 °C ~ +60 °C operating range.
- Avoid operating beyond rated AC‑input voltage limits.
- For defective units, return to authorized‑service channels; do not disassemble internal power‑supply circuits on‑site.
