Product Description

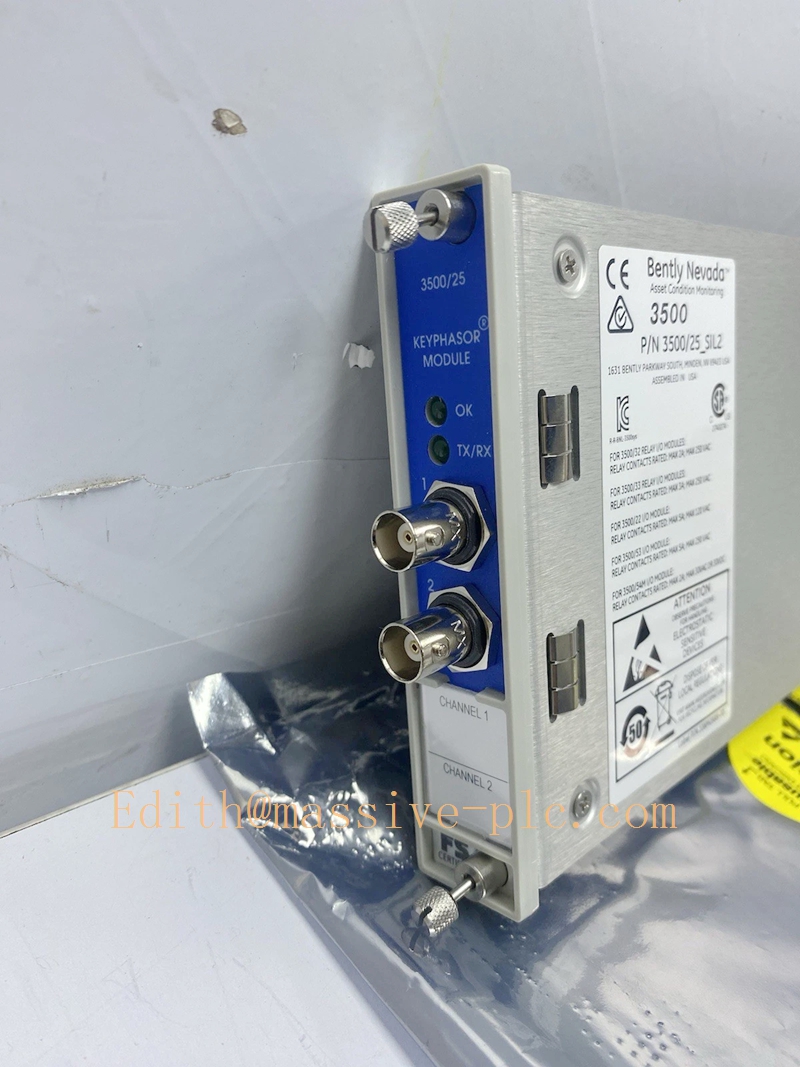

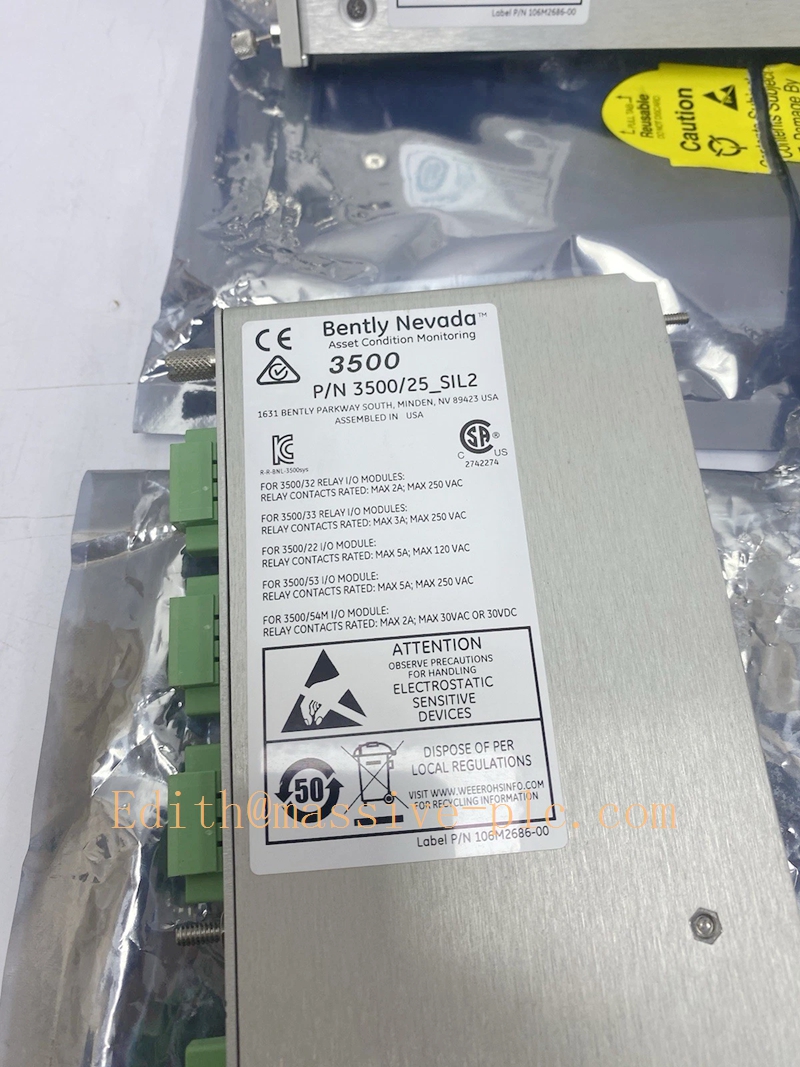

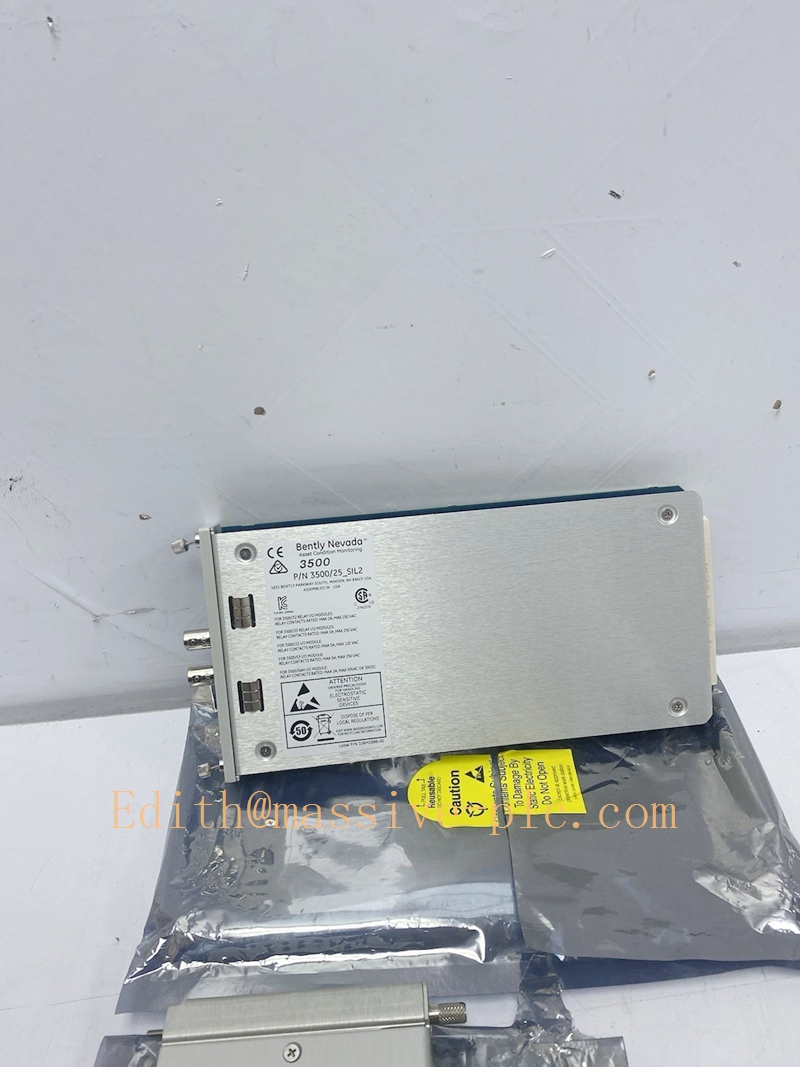

The Bently Nevada 125800-01 is the dedicated Keyphasor I/O variant for the 3500/25 Enhanced Keyphasor Module, engineered as a dual-channel signal processing unit for the 3500 Machinery Protection System. As a core component of Bently’s industry-leading rotating machinery monitoring ecosystem, it converts raw pulse signals from proximity probes or magnetic pickups into precise, reliable digital keyphasor triggers, serving as the critical rotational reference for phase measurement, speed calculation and dynamic vibration analysis. It is fully backward compatible with legacy 3500 racks, and optimized for Triple Modular Redundant (TMR) safety architectures to eliminate false trips and missed trips on critical production assets.
125800-01
Technical Specifications
| Parameter | Specification |
|---|---|
| System Compatibility | Bently Nevada 3500 series racks |
| Input Channels | 2 independent keyphasor signal channels |
| Supported Input Transducers | Proximity probes, magnetic pickups |
| Input Voltage Range | 12–32 VDC |
| Maximum Input Current | 10 mA |
| Output Signal | Standardized digital keyphasor triggers |
| Frequency Response | 1 Hz – 100 kHz |
| Power Supply | Powered via 3500 rack backplane |
| Operating Ambient Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | 95% non-condensing |
| Dimensions (H x W x D) | 24.2 cm x 11.2 cm x 2.5 cm |
| Net Weight | 0.38 kg |
| Compliance | API 670 Machinery Protection Standard |
Key Features and Advantages
- Dual-Channel Redundancy: Simultaneously processes two independent keyphasor signals, supporting dual-shaft monitoring or redundant signal validation to avoid single-point signal loss.
- Internal Termination Design: Eliminates the need for external terminal blocks, simplifies field wiring and reduces potential connection faults caused by loose terminals.
- TMR-Ready Architecture: Natively supports Triple Modular Redundant configurations, perfectly matching the safety requirements of high-risk industrial control loops.
- Wide Operating Temperature Adaptability: Maintains stable performance under extreme industrial ambient conditions, suitable for outdoor and high-heat plant areas.
- Hot-Swappable Capability: Supports in-service module replacement without powering down the 3500 rack, minimizing unplanned downtime during maintenance.
- Backward Compatibility: Seamlessly integrates with all existing 3500 system versions, no extra firmware upgrade is required for most legacy racks.
Application Fields
- Precision phase reference and rotational speed monitoring for large steam turbines, centrifugal compressors and industrial gas turbines in oil & gas refineries
- Dynamic balancing and vibration fault diagnosis for hydroelectric generators and wind turbine main shafts
- Keyphasor signal triggering for high-speed test rigs in aerospace and heavy machinery manufacturing
- Rotating machinery protection loops in power generation, metallurgy and mining facilities
- Synchronous sampling reference for System 1 condition monitoring software to capture full-spectrum vibration data
Related Product Recommendations
- 3500/42M 138708-01 4-Channel Vibration I/O Module: Works in tandem with 125800-01 to deliver accurate 1X/2X phase amplitude measurement for each vibration channel.
- 3500/20 125744-01 TMR Rack Interface Module: Acts as the system communication hub to transmit keyphasor data to host configuration software and external control platforms.
- 3500/92 Communication Gateway: Supports Modbus RTU/TCP protocols to export keyphasor and machinery health data to DCS, PLC or SCADA systems.
- 3300 XL Series Proximity Probes: Matches the input specification of 125800-01 to provide stable raw shaft pulse signals for long-term operation.
125800-01
Installation and Maintenance Guidelines
- Installation: Mount the module in any available slot on the 3500 rack, confirm the backplane connector is fully seated, and tighten the front panel screws to 0.6-0.9 Nm torque. Complete channel configuration via the official 3500 Rack Configuration Software before powering on the system.
- Wiring: Use shielded twisted pair cables for transducer connections, keep signal cables at least 30 cm away from high-voltage power cables to avoid electromagnetic interference, and connect the shield layer to the designated system grounding point at one end only.
- Routine Maintenance: Perform a signal integrity check every 6 months, verify the keyphasor trigger pulse width and amplitude meet the system threshold, and clean the module ventilation slots to prevent dust accumulation.
- Troubleshooting: If no keyphasor signal is detected, first inspect the transducer and field wiring, then swap the module with a spare unit to confirm whether the fault comes from the I/O hardware.
