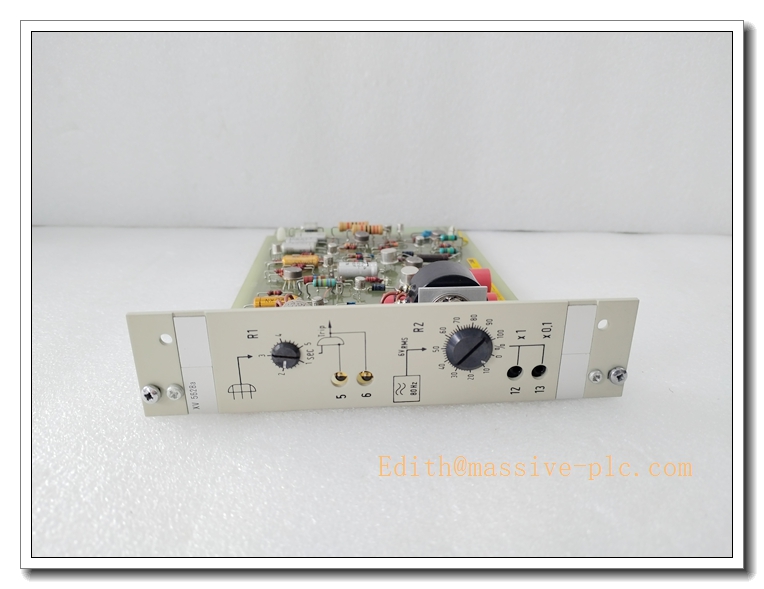

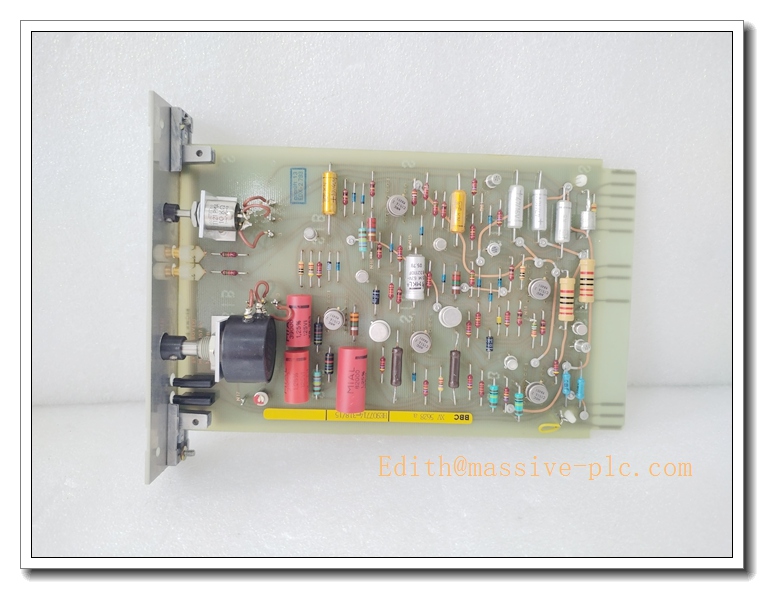

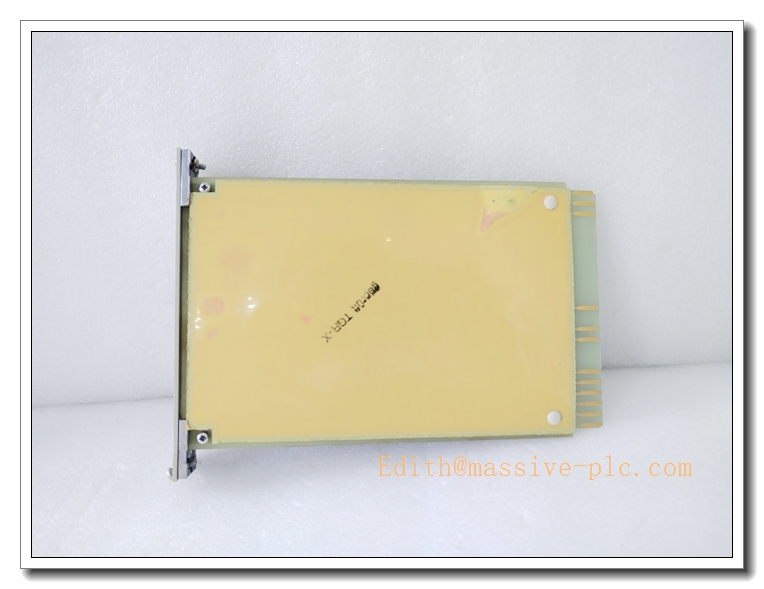

ABB XV5628A HEIA404919R0001 Vibration Main Unit Module, Procontrol P13 Decontic Vibration Monitoring Card, Power Plant Turbine Condition Monitoring Spare Part



Product Application

XV5628A (alternate part number HEIA404919R0001) is a vibration main unit module for ABB Procontrol P13 Decontic system. It collects multi-channel vibration signals from turbine, generator and rotating machinery proximity probes and velocity sensors, performs signal conditioning, filtering and calculation, then transmits vibration amplitude, frequency and fault characteristic data to the DCS monitoring system.

  • Thermal power plant steam turbine vibration online monitoring
  • Hydropower station generator rotating machinery condition monitoring
  • Combined cycle power unit gas turbine vibration measurement
  • Petrochemical large compressor and pump vibration protection
  • Power plant Procontrol P13 legacy system spare replacement
  • Rotor imbalance, misalignment and bearing fault early warning
  • Cooperates with Decontic series signal acquisition boards to complete machinery protection

XV5628A

Specifications

  • Part Number: XV5628A, HEIA404919R0001
  • Brand: ABB
  • Product Type: Vibration Main Unit Monitoring Module
  • Compatible System: ABB Procontrol P13 Decontic System
  • Mounting: Eurocard rack mounting inside turbine control cabinet
  • Dimension: 370 × 140 × 40 mm
  • Weight: Approx. 0.95 kg
  • Power supply: 24VDC system auxiliary power
  • Input: Multi-channel vibration / proximity sensor signal input
  • Protection Class: IP20 (cabinet installation only)
  • Condition: Original new / refurbished spare available
  • Compliance: CE, IEC vibration monitoring and machinery protection standard



Parameters

  • Signal Processing: Vibration amplitude, peak-to-peak value, frequency spectrum calculation
  • Communication: Internal Decontic backplane bus for data exchange with system controller
  • Built-in Function: Vibration threshold comparison, alarm and trip logic output
  • Operating Temperature: -25°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Relative Humidity: 5%~95% RH, non-condensing
  • Shock & Vibration: Comply with IEC 60068 power plant cabinet vibration standard
  • Status Indicator: On-board LED indicators for power, run, signal and alarm status
  • Diagnostic: Sensor cable break, signal overload, module hardware self-test fault detection



Key Features

  1. Dedicated vibration main unit module for ABB Procontrol P13 Decontic turbine monitoring system
  2. Multi-channel vibration signal acquisition and processing, supports proximity and velocity type sensors
  3. Real-time vibration value calculation and threshold judgment, provides alarm and trip signals for rotating equipment
  4. Internal backplane bus communication, upload vibration data and fault events to upper control system
  5. Standard Eurocard pull-out rack design, convenient on-site maintenance and module replacement
  6. Industrial robust PCB design, stable operation under high EMI power plant cabinet environment
  7. Built-in continuous hardware and sensor line fault diagnosis, improves reliability of machinery protection
  8. Discontinued legacy ABB power plant monitoring spare, critical replacement card for existing turbine protection systems

XV5628A

ABB Same Series Related Models (≥6)

  1. XV5628A HEIA404919R0001
  2. XV77135 HESG223040R1
  3. XT480 GNT7081395R1
  4. XV5611A
  5. XV5622A
  6. XV5633A
  7. XV5644A



Maintenance

  • Routine inspection: Check PCB dust accumulation, backplane connector and LED status every 6–12 months
  • Clean module surface with dry compressed air; liquid solvent cleaning is strictly prohibited
  • ESD protection must be adopted during disassembly, anti-static wristband required
  • If vibration reading loss or false alarm occurs, power off and check sensor wiring and backplane contact
  • Do not energize the module if PCB corrosion, burn marks or condensation are found
  • We support function testing, refurbishment and spare replacement service for this XV5628A vibration main unit module



Installation

  1. Cut off 24VDC auxiliary power supply and sensor signal power before replacement, implement lockout-tagout procedure.
  2. Wear anti-static wristband to prevent electrostatic damage to signal processing circuit.
  3. Open turbine control cabinet door, release the locking mechanism of old XV5628A module.
  4. Pull out the Eurocard board gently, avoid scratching backplane pins.
  5. Insert new board along cabinet guide rail and lock firmly.
  6. Confirm backplane bus and sensor signal connectors are fully seated.
  7. Restore auxiliary power supply, perform module self-test and backplane communication verification.
  8. Calibrate vibration channels, set alarm and trip thresholds, verify signal acquisition and alarm function before commissioning.
