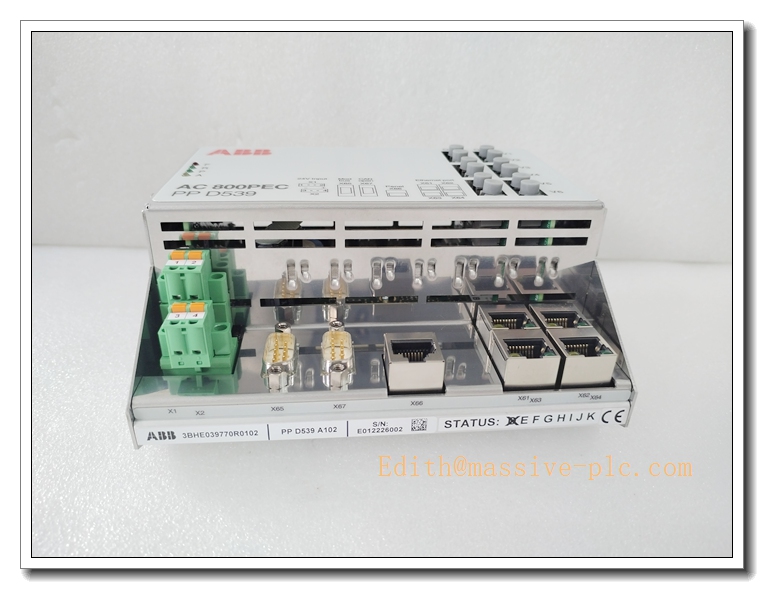

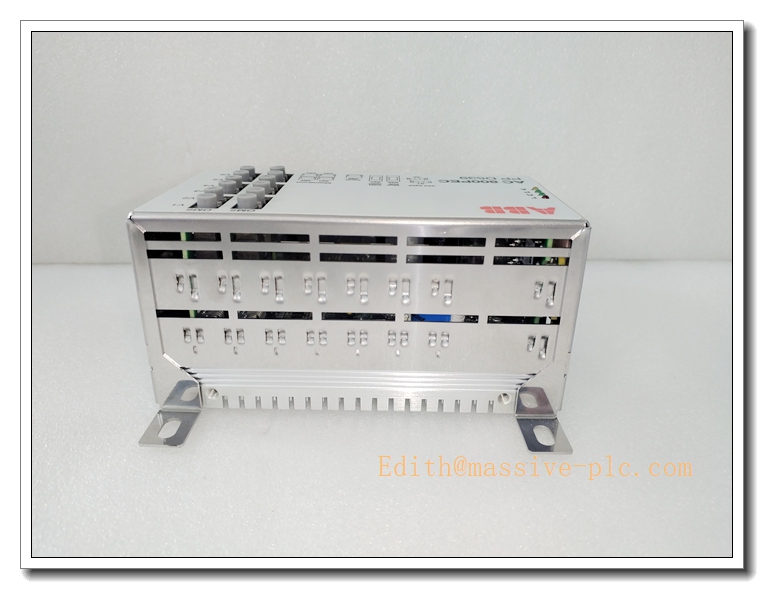

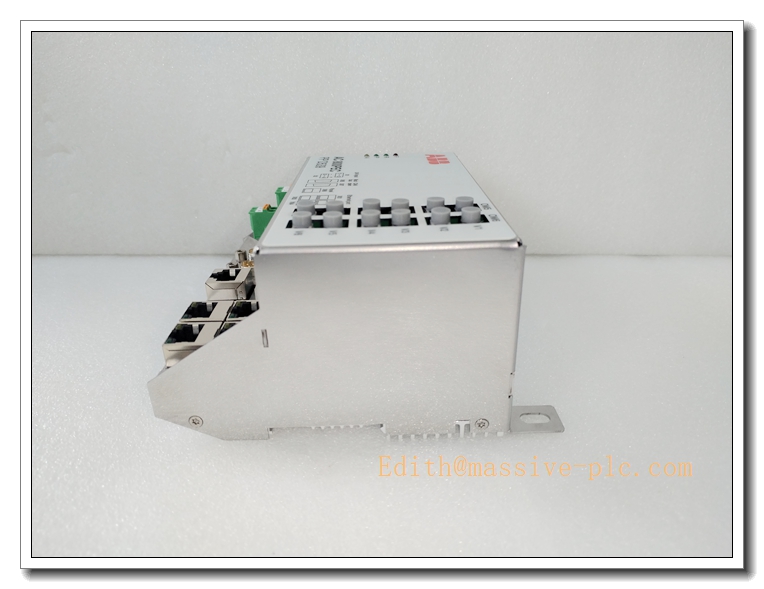

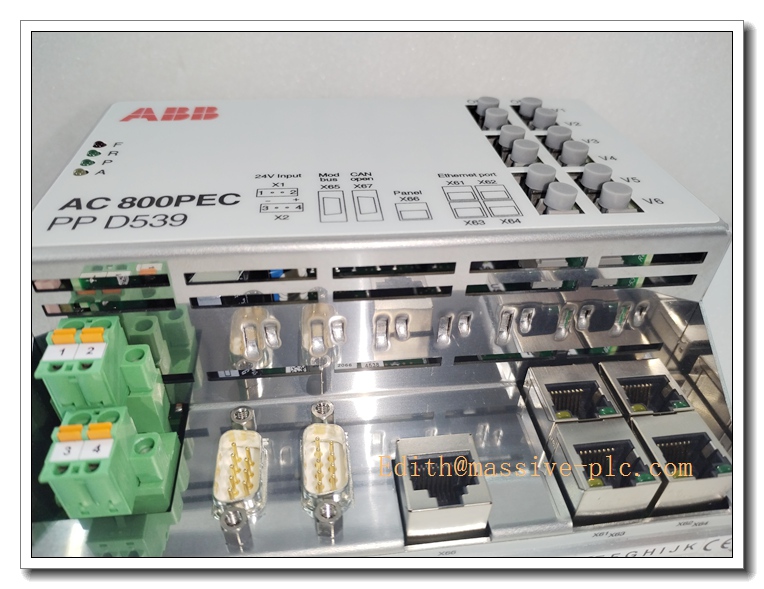

ABB PPD539A102 3BHE039770R0102 PEC3-MINI High-Speed Power Control Module, AC800PEC UNITROL 6000 Excitation Controller, Power Generation Automation Spare Part

Description

ABB PPD539A102 3BHE039770R0102 PEC3-MINI High-Speed Power Control Module, AC800PEC UNITROL 6000 Excitation Controller, Power Generation Automation Spare Part

Product Application

PPD539A102 (PEC3-MINI) is a high-speed power electronic control module built on ABB AC800PEC platform, designed for UNITROL 6000 generator excitation systems. It executes ultra-fast closed-loop control algorithms, handles pulse generation, signal processing and system communication for synchronous generator voltage regulation and grid stability control.

• Thermal power plant UNITROL6000 generator excitation cabinet core control
• Hydropower station synchronous generator voltage and reactive power regulation
• Combined cycle power unit excitation system dynamic control
• Large industrial synchronous motor excitation control
• Power plant excitation system retrofit and spare replacement
• Grid transient stability control for generator sets
• Cooperates with PPC907BE and PCD235A101 to complete full excitation control architecture

PPD539A102 3BHE039770R0102

Specifications

• Part Number: PPD539A102, 3BHE039770R0102
• Brand: ABB
• Product Type: High-speed Power Control Module (PEC3-MINI)
• Compatible System: ABB AC800PEC, UNITROL 6000 Excitation System
• Mounting: Eurocard rack mounting inside excitation cabinet
• Dimension: 373 × 142 × 38 mm
• Weight: Approx. 1.0 kg
• Power supply: Auxiliary DC power supplied via backplane
• PCB coating: Conformal coating for anti-corrosion and dust resistance
• Protection Class: IP20, cabinet installation only
• Condition: Original new / refurbished spare available
• Compliance: CE, IEC power control EMC standard

Parameters

• Control Cycle: Minimum 100 microseconds for fast power control loop
• Communication: High-speed internal backplane bus, optical interface for inter-module synchronization
• Redundancy: Support redundant dual module hot standby architecture
• Operating Temperature: -25°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%~95% RH, non-condensing
• Shock & Vibration: Comply with IEC 60068 industrial vibration standard
• Status Indicator: On-board LED indicators for power, running, communication and fault status
• Diagnostic: Continuous hardware self-check, channel fault detection and safe trip logic

Key Features

1. PEC3-MINI high-speed controller for UNITROL6000 excitation system, ultra-short control cycle for fast grid disturbance response
2. Works together with PPC907BE processor board and PCD235A101 I/O board to realize complete excitation regulation
3. Supports redundant hot standby configuration, bumpless switchover for high reliability power plant application
4. Optical synchronization link ensures high noise immunity in heavy electromagnetic interference environment
5. Conformal coated PCB, reliable performance in dusty, humid power station cabinet environment
6. Standard Eurocard pull-out rack design, convenient for on-site maintenance and module replacement
7. Built-in comprehensive hardware self-diagnosis, quickly locate control loop and communication faults
8. Strict factory burn-in and performance testing, critical spare for large generator excitation system

ABB Same Series Related Models (≥6)

1. PPD539A102 3BHE039770R0102
2. PPC907BE 3BHE024577R0101
3. PCD235A101 3BHE032025R01
4. PCD231B 3BHE025541R01
5. PCD232A 3BHE024575R01
6. DATX110 3ASC25H209
7. PPC905

PPD539A102 3BHE039770R0102

Maintenance

• Routine inspection: Check PCB dust accumulation, backplane connector, optical fiber link and LED status every 6–12 months
• Clean board surface with dry compressed air; liquid solvent cleaning is strictly prohibited
• ESD protection must be adopted during disassembly, anti-static wristband required
• If excitation control abnormality or communication fault alarm occurs, power off and check backplane and optical sync cable connection
• Do not energize the module if PCB corrosion, burn marks or condensation are found
• We support function testing, refurbishment and spare replacement service for this PPD539A102 high-speed control module

Installation

1. Cut off all high voltage and auxiliary power supply of excitation cabinet, confirm zero voltage before operation.
2. Wear anti-static wristband to prevent electrostatic damage to high-speed processor and optical components.
3. Open excitation cabinet door, release the locking mechanism of old PPD539A102 board.
4. Pull out the Eurocard module gently, avoid scratching backplane pins and optical connectors.
5. Insert new board along cabinet guide rail and lock firmly.
6. Reconnect backplane bus and optical synchronization cables, ensure all connectors fully seated.
7. Restore power supply, perform excitation system self-test and inter-module communication verification.
8. Download excitation parameters, carry out no-load excitation test, verify AVR regulation performance and protection interlock before commissioning.
