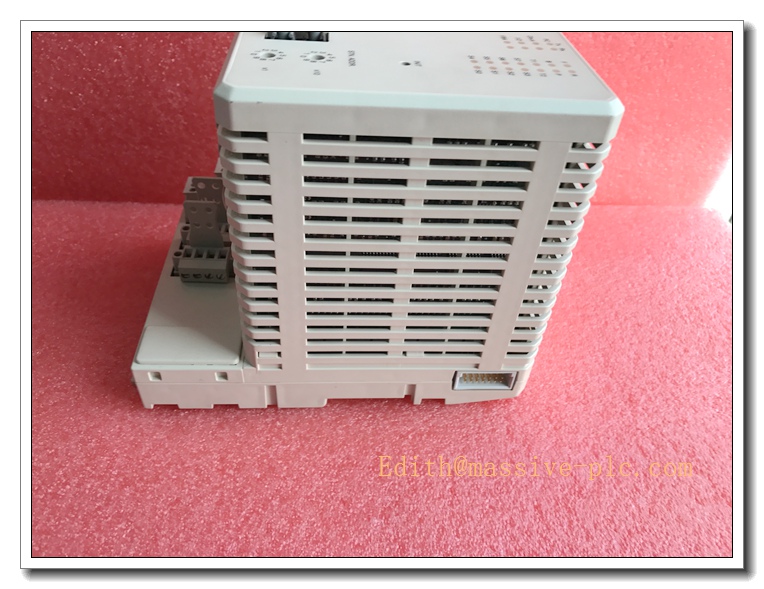

ABB PM825 3BSE010796R1 S800 Processor Module, AC800M DCS Main CPU Controller, Industrial Process Automation Spare Part
ABB PM825 3BSE010796R1 S800 Processor Module, AC800M DCS Main CPU Controller, Industrial Process Automation Spare Part - Image 2
ABB PM825 3BSE010796R1 S800 Processor Module, AC800M DCS Main CPU Controller, Industrial Process Automation Spare Part - Image 3
ABB PM825 3BSE010796R1 S800 Processor Module, AC800M DCS Main CPU Controller, Industrial Process Automation Spare Part - Image 4

ABB PM825 3BSE010796R1 S800 Processor Module, AC800M DCS Main CPU Controller, Industrial Process Automation Spare Part

  1. PM825 3BSE010796R1
  2. PM826 3BSE010797R1
  3. PM851 3BSE018104R1
  4. PM856 3BSE018105R1
  5. PM860 3BSE018100R1
  6. PM861 3BSE018101R1
  7. PM864 3BSE031154R1
Request Quote
Category: Brand:

Description

ABB PM825 3BSE010796R1 S800 Processor Module, AC800M DCS Main CPU Controller, Industrial Process Automation Spare Part



Product Application

PM825 is the core processor unit for ABB AC800M / S800 control system. It executes real-time control logic, PID calculation, data acquisition and communication management for process automation. It supports redundant architecture to enhance system availability.

  • Power plant auxiliary process control system
  • Petrochemical continuous process monitoring and control
  • Metallurgy furnace and rolling mill automation
  • Cement plant kiln and material handling line control
  • Water & wastewater treatment distributed control system
  • Food & pharmaceutical batch process automation
  • Spare replacement and retrofit for legacy ABB AC800M systems

PM825 3BSE010796R1

Specifications

  • Part Number: PM825, 3BSE010796R1
  • Brand: ABB
  • Product Type: S800 Processor / Main CPU Module
  • Compatible System: ABB AC800M, S800 I/O system
  • Mounting: Rack slot mounting on CEX bus backplane
  • Protection Class: IP20 (cabinet installation only)
  • Dimension: 174 × 100 × 132 mm
  • Weight: Approx. 0.9~1.0 kg
  • Power supply: 24VDC via backplane
  • Built-in lithium battery: For RAM data retention
  • Condition: Original new / refurbished spare available
  • Compliance: CE, IEC EMC standard, ISA 71.04 G3 environment coating



Parameters

  • Processor: 32-bit industrial processor
  • Memory: 8MB ECC RAM, PCMCIA flash card slot for program storage
  • Communication: Built-in Ethernet port, CEX bus for I/O and communication modules
  • Redundancy: Support redundant CPU configuration
  • Hot Swap: Supported
  • Operating Temperature: 0°C ~ +55°C
  • Storage Temperature: -40°C ~ +70°C
  • Relative Humidity: 5%~95% RH, non-condensing
  • Status Indicator: Front panel LED indicators for power, run, error and network status
  • Battery: Replaceable lithium battery to preserve memory data during power loss



Key Features

  1. Main CPU for ABB S800 / AC800M system, performs real-time control and data processing
  2. Supports redundant dual CPU configuration to realize automatic failover for high availability
  3. PCMCIA flash card slot for program backup, firmware upgrade and data logging
  4. Built-in Ethernet interface for HMI and upper system communication
  5. CEX bus expansion to connect multiple I/O and communication modules
  6. Replaceable lithium battery to protect RAM data against power failure
  7. G3 conformal coating, stable operation in dusty and corrosive industrial environments
  8. Front LED diagnostic indicators for fast system status check and fault troubleshooting

PM825 3BSE010796R1

ABB Same Series Related Models (≥6)

  1. PM825 3BSE010796R1
  2. PM826 3BSE010797R1
  3. PM851 3BSE018104R1
  4. PM856 3BSE018105R1
  5. PM860 3BSE018100R1
  6. PM861 3BSE018101R1
  7. PM864 3BSE031154R1



Maintenance

  • Routine inspection: Check module LED status, backplane connector and lithium battery condition every 6–12 months
  • Clean module surface with dry compressed air; liquid solvent cleaning is strictly prohibited
  • ESD protection must be adopted during disassembly, anti-static wristband required
  • If controller fault occurs, check battery health, program integrity and CEX bus connection
  • Replace lithium battery periodically to avoid data loss after power down
  • Do not energize the module if PCB corrosion, burn marks or condensation are found
  • We support function testing, refurbishment and spare replacement service for this PM825 processor module



Installation

  1. Hot-swap replacement can be performed following system safety procedure or cut off cabinet power supply.
  2. Wear anti-static wristband to prevent electrostatic damage to PCB components.
  3. Insert PM825 module into the designated CEX bus slot of AC800M rack, lock the fastening latch.
  4. Insert PCMCIA flash card and install lithium battery if required.
  5. Connect Ethernet cable for network communication.
  6. Configure controller parameters, download control program via engineering software.
  7. Restore power supply, verify RUN status and CEX bus communication with I/O modules.
  8. Perform loop test and commissioning; validate control logic and redundant switch function if configured.
