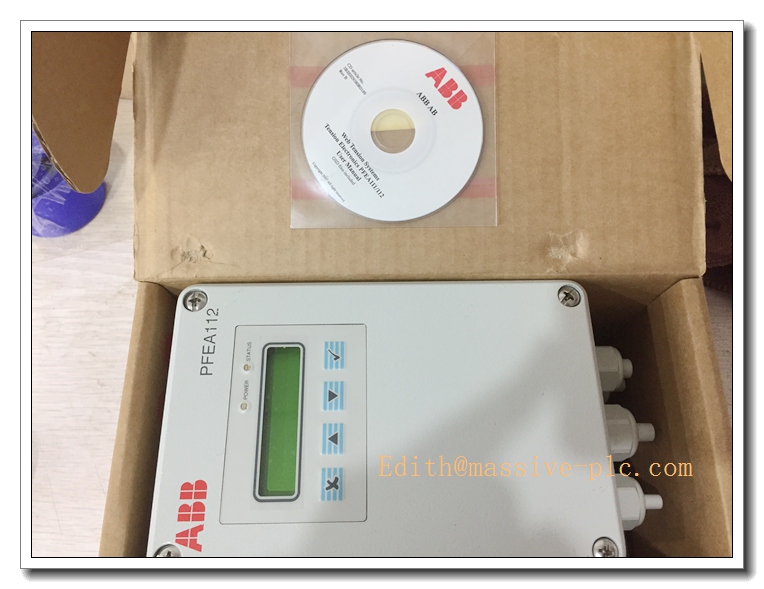

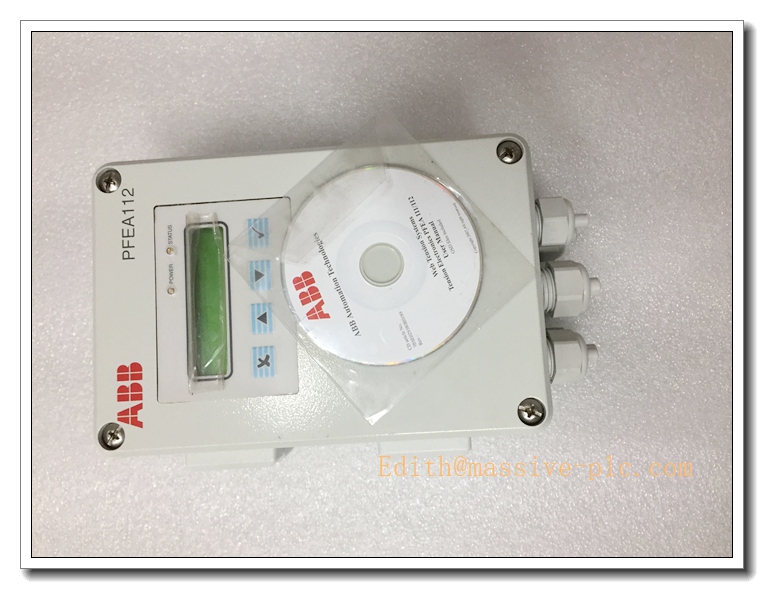

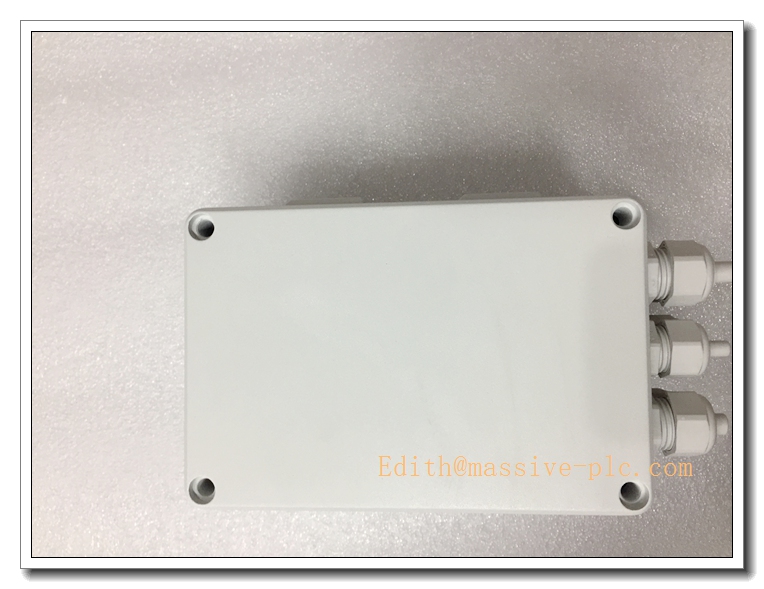

ABB PFEA112-65 3BSE050091R65 IP65 Tension Electronics Unit, Pressductor Web Tension Measurement Amplifier, PROFIBUS DP Tension Controller, Web Handling Automation Spare Part
Product Application
PFEA112-65 is an IP65 enclosed tension electronics unit of ABB PFEA112 series, used together with Pressductor load cells for continuous web tension measurement and signal processing. It converts tension sensor signals into analog outputs and PROFIBUS DP digital data, feeding tension values to drives, PLC and DCS for closed-loop tension control.
- Paper machine web tension monitoring and control
- Plastic film, foil and coating production line tension regulation
- Textile and nonwoven fabric continuous web processing
- Metal strip / slitting line tension measurement
- Printing & packaging machine web handling control
- Retrofit and spare replacement for ABB Pressductor tension systems
- Harsh factory floor direct mounting without cabinet protection
PFEA112-65 3BSE050091R65
Specifications
- Part Number: PFEA112-65, 3BSE050091R65
- Brand: ABB
- Product Type: IP65 Tension Electronics / Tension Amplifier
- Compatible Sensor: ABB Pressductor load cells (max 2 load cells)
- Mounting: Direct machine mounting (IP65 housing)
- Protection Class: IP65 / NEMA4
- Dimension: 180 × 120 × 70 mm
- Weight: Approx. 1.2 kg
- Power supply: 24VDC (18~36VDC) or 100~240VAC, 45–65Hz
- Power consumption: 7.5W
- Load cell excitation: 330Hz, 0.5A rms
- Condition: Original new / refurbished spare available
- Compliance: CE, IEC industrial measurement standard
Parameters
- Signal Processing: Calculates sum, difference and individual load cell tension values
- Communication: PROFIBUS DP fieldbus interface
- Analog Output: Sum tension analog signal for drive control
- Display: 2 × 16 character LCD + membrane operation keys for setup & calibration
- Built-in Function: Load memory, max load recording, interactive commissioning menu
- Operating Temperature: -20°C ~ +60°C
- Storage Temperature: -40°C ~ +70°C
- Relative Humidity: 5%~95% RH, non-condensing
- Shock & Vibration: Comply with IEC 60068 industrial vibration standard
- Diagnostic: Continuous self-diagnosis, sensor cable break and fault alarm
Key Features
- IP65 rugged enclosure version of PFEA112, can be mounted directly on machine frame without control cabinet
- Supports 2 pcs Pressductor load cells, measures web tension and outputs sum/difference signals
- Integrated PROFIBUS DP interface for digital tension data transmission to PLC and drive systems
- Front LCD display and operation keys for on-site calibration, parameter setting and fault checking
- Built-in load memory function to record peak load for equipment health inspection
- High precision tension signal conversion, stable closed-loop tension control for web processing
- Interactive step-by-step commissioning menu to reduce setup error and startup time
- Continuous hardware and sensor fault diagnosis, quickly alarms sensor break or wiring failure
PFEA112-65 3BSE050091R65
ABB Same Series Related Models (≥6)
- PFEA112-65 3BSE050091R65
- PFEA112-20 3BSE050091R20 (DIN rail IP20 version)
- PFEA111-20
- PFEA113-20
- PFEA122-20
- PFTL101A
- PFTL101B
Maintenance
- Routine inspection: Check housing seal, LCD display, sensor cable and PROFIBUS connection every 6–12 months
- Clean front cover with soft cloth; avoid strong solvent which may damage the membrane keypad and seal
- ESD protection must be adopted during disassembly, anti-static wristband required
- If tension reading abnormal or fieldbus communication loss occurs, power off and inspect load cell wiring and cable shielding
- Do not energize the unit if seal damage, water ingress or housing corrosion is found
- We support function testing, refurbishment and spare replacement service for this -65 tension electronics unit
Installation
- Cut off 24VDC / AC auxiliary power supply before installation or replacement.
- Wear anti-static wristband to prevent electrostatic damage to internal measurement circuit.
- Mount -65 firmly on machine frame, keep the housing seal intact.
- Connect two Pressductor load cell cables to sensor terminals, connect power cable and PROFIBUS DP bus cable, properly ground cable shielding.
- Power on, enter setup menu, perform load cell calibration, set unit, range and PROFIBUS address.
- Check all wiring and confirm no loose connections.
- Verify tension reading on LCD display.
- Test analog output and PROFIBUS data transmission, validate closed-loop tension control performance and complete commissioning.
