Description

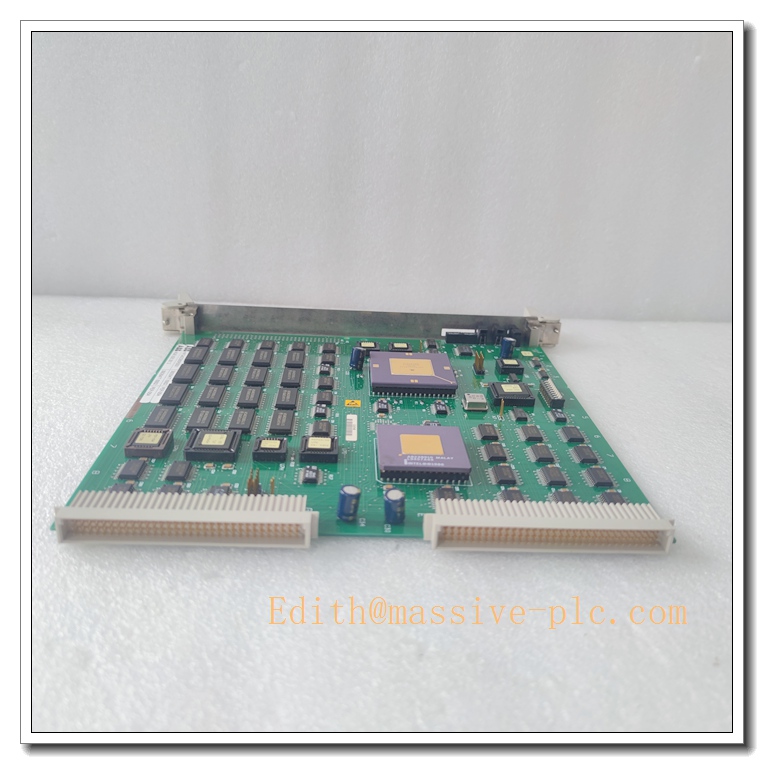

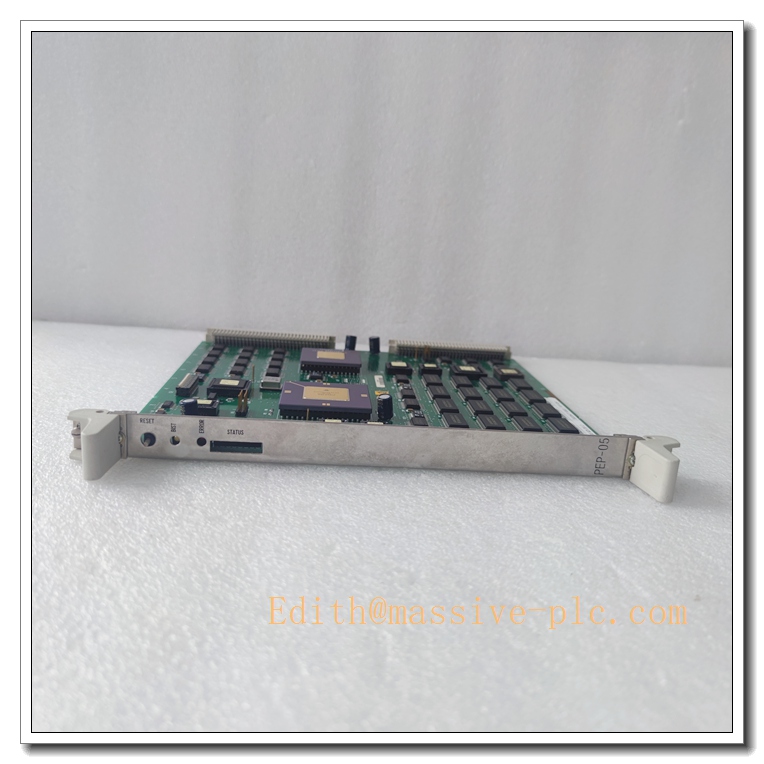

ABB HIFG423365R0001 AGIE High-Frequency Generator Module, EDM Spark Power Control Board, AGIE 625 Electrical Discharge Machine Spare Part
Product Application
HIFG423365R0001 is a high-frequency generator power control module for ABB AGIE series EDM (Electrical Discharge Machine). It generates and regulates high-frequency spark pulses to achieve precise electro-erosion material removal between electrode and workpiece. It controls spark discharge energy, pulse on/off time and peak current, directly affecting machining accuracy and surface finish.
- AGIE 625 sinker EDM machine core power control
- AGIE 351, AGIE 2 PEP.05A precision die-sinking EDM equipment
- Mold manufacturing precision spark erosion processing
- Aerospace and medical precision component EDM machining
- Retrofit and spare replacement for legacy AGIE EDM machine tools
- Fine finish and rough machining parameter adjustment for conductive workpieces
HIFG423365R0001 AGIE 625.351.2 PEP.05A
Specifications
- Part Number: HIFG423365R0001
- Brand: ABB / AGIE
- Product Type: High-Frequency Generator Control Module (HFG)
- Compatible Equipment: AGIE 625, AGIE 351, AGIE 2 PEP.05A EDM
- Mounting: Eurocard rack mounting inside EDM power cabinet
- Dimension: Approx. 370 × 140 × 40 mm
- Weight: Approx. 1.36 kg
- Input Power: 400VAC auxiliary power supply
- Output Pulse Frequency: 25 kHz
- Peak Discharge Current: 300A
- Rated Output Power: 25kW
- Duty Cycle: 100% continuous operation
- Protection Class: IP20, cabinet installation only
- Condition: Original new / refurbished spare available
- Compliance: CE, industrial machine safety standard
Parameters
- Pulse Control: Adjustable pulse on-time, pulse off-time and discharge energy
- Operation Mode: Roughing, semi-finishing and finishing machining modes
- Built-in Logic: Spark gap monitoring, arc discharge detection and anti-arc protection
- Communication: Internal parallel bus for data exchange with EDM host controller
- Operating Temperature: 5°C ~ +40°C
- Storage Temperature: -25°C ~ +60°C
- Relative Humidity: 5%~95% RH, non-condensing
- Shock & Vibration: Comply with IEC 60068 machine tool vibration standard
- Status Indicator: On-board LED indicators for power, running, spark and fault status
- Diagnostic: Arc detection, over-current, over-temperature and hardware fault alarm
Key Features
- Dedicated high-frequency spark generator board for AGIE EDM machine, controls electro-discharge pulse energy
- Supports up to 25kHz pulse frequency and 300A peak current, suitable for roughing to ultra-fine finishing
- Real-time spark gap monitoring and anti-arc protection, prevents workpiece and electrode burning damage
- 100% continuous duty cycle, stable long-running operation for mold workshop mass production
- Standard Eurocard pull-out design, convenient on-site maintenance and module replacement
- Conformal coated PCB, anti-dust and anti-moisture for machine tool cabinet environment
- Multiple machining energy modes, flexible parameter configuration for different material and precision requirements
- Discontinued original AGIE spare, critical replacement board for maintaining old EDM equipment production
HIFG423365R0001 AGIE 625.351.2 PEP.05A
ABB Same Series Related Models (≥6)
- HIFG423365R0001
- HIFG423364R0001
- HIFG423366R0001
- AGIE 625 Main CPU Board
- AGIE 351 Servo Control Board
- HIFG423367R0001
- HIFG423363R0001
Maintenance
- Routine inspection: Check PCB dust accumulation, backplane connector and LED status every 6–12 months
- Clean board surface with dry compressed air; liquid solvent cleaning is strictly prohibited
- ESD protection must be adopted during disassembly, anti-static wristband required
- If unstable spark or arc alarm occurs, power off and check backplane contact and power cable connection
- Do not energize the module if PCB corrosion, burn marks or condensation are found
- We support function testing, refurbishment and spare replacement service for this HIFG423365R0001 high-frequency generator module
Installation
- Cut off main 400VAC power supply of EDM machine, confirm zero voltage and implement lockout-tagout procedure.
- Wear anti-static wristband to prevent electrostatic damage to high-speed power chips.
- Open EDM power cabinet door, release the locking mechanism of old HIFG423365R0001 module.
- Pull out the Eurocard board gently, avoid scratching backplane pins.
- Insert new board along cabinet guide rail and lock firmly.
- Confirm backplane bus and power connectors are fully seated.
- Restore auxiliary power supply, perform module self-test and communication verification with EDM controller.
- Set machining parameters, carry out trial spark test, verify discharge stability and anti-arc protection function before formal workpiece processing.
