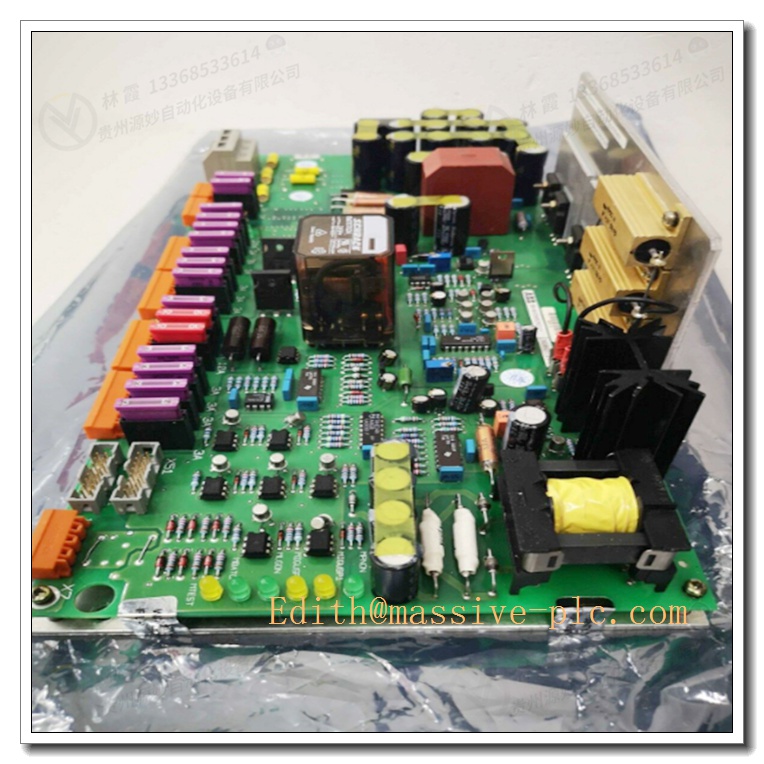

ABB 3BHB045828R0001 UPG1000MAINBRD1 Main Control Board, ACS1000 Medium Voltage Drive Motherboard, Industrial Automation Spare Part
Product Application
This main board is designed for ABB ACS1000 medium voltage variable frequency drives, widely deployed in heavy-duty industrial fields for large motor speed regulation and power conversion.
- Power plant auxiliary motor control
- Oil & gas, petrochemical compressor & pump drive
- Mining conveyor, large fan and blower systems
- Cement, metallurgy heavy industry medium voltage motor control
- Water treatment large pump variable speed control
- Industrial power conversion & energy saving renovation projects
3BHB045828R0001
Specifications
- Part Number: 3BHB045828R0001 (Alias: UPG1000MAINBRD1)
- Brand: ABB
- Product Type: Main Control Board / Motherboard for ACS1000 MV Drive
- Supply Voltage: DC 24V ±10%
- Environment Temperature: -25°C ~ +70°C
- Humidity: 5%~95% RH, non-condensing
- Mounting: Cabinet rack mounting
- Compatibility: ABB ACS1000 medium voltage drive series
- Condition: Original new / refurbished spare available
- Application Equipment: Medium voltage inverter, high power motor drive unit
Parameters
- Power supply: 24VDC industrial power
- Signal processing: High-speed real-time drive control algorithm
- Communication interface: Internal drive bus interface
- Protection monitoring: Overvoltage, overcurrent, over-temperature fault detection
- Shock & Vibration: Compliant with IEC 60068 industrial standard
- MTBF: High mean time between failures under rated operating condition
- Function: Drive logic control, signal acquisition, fault diagnosis, pulse signal distribution
Key Features
- Original ABB industrial grade mainboard, stable performance for continuous heavy load operation
- High-speed signal processing to realize precise medium voltage drive control
- Built-in comprehensive fault diagnosis function, convenient for system troubleshooting
- Strong anti-interference capability, suitable for harsh industrial electromagnetic environment
- Compact rack-mounted structure, good compatibility with ACS1000 inverter cabinet
- Long service life, reliable spare part for maintenance and retrofit of old medium voltage drives
- Strict factory testing before delivery, stable matching with original drive system
ABB Same Series Related Models (≥6)
- 3BHB027204R0001
- 3BHB029573R0003
- 3BHB030833R0001
- 3BHB045827R0001
- 3BHB045829R0001
- 3BHB045830R0001
- 3BHE048062R0101
Maintenance
- Regular inspection: Check board surface dust, connector looseness, corrosion every 6~12 months
- Do not power on when moisture or dust accumulation is serious; clean with dry compressed air
- Fault handling: When drive reports communication / control board error, power off fully then re-seat connectors; replace board if chip or circuit trace damage occurs
- Maintenance reminder: Static protection (ESD) must be adopted during disassembly. Wear anti-static wristband.
- Prohibited: Do not clean PCB with liquid solvent; avoid impact on board components
- Repair service: We support testing, refurbishment and replacement service for this mainboard.
Installation
- Cut off all power supply of the medium voltage drive and confirm zero voltage before operation.
- Wear anti-static wristband to avoid electrostatic damage to PCB components.
- Remove cabinet front cover, extract the old control board from the rack slot.
- Align the new 3BHB045828R0001 board with the guide rail, insert smoothly into the rack.
- Reconnect all internal bus cables and terminal connectors, confirm all plugs are fully locked.
- Check no loose wiring or foreign objects inside cabinet, close cabinet cover.
- Power on step by step, perform drive self-test, verify communication and fault status.
- Complete no-load test run before putting into full load operation.
