3500/64M Speed/Accelerometer Monitor Module (140734-05)

Description

3500/64M Speed/Accelerometer Monitor Module (140734-05)

350064M 140734-05

6.1 Product Overview & Application Information

The 3500/64M (140734-05) is a high-performance four-channel speed and accelerometer monitoring module developed for the Bently Nevada 3500 machinery protection system. As a dedicated dynamic mechanical condition monitoring unit, it is designed to monitor shaft rotational speed, zero-speed state, rotor acceleration/deceleration and casing vibration acceleration parameters of rotating machinery. The 140734-05 is the latest optimized firmware/part number version of the 3500/64M series, featuring enhanced signal anti-interference capability, wider frequency response range and more stable long-term operating performance compared with early versions.

Different from vibration displacement and velocity monitoring modules, this module focuses on rotational speed dynamic monitoring and acceleration condition diagnosis. It accepts passive magnetic pickup speed probe signals and industrial accelerometer sensor signals, supports real-time speed tracking, overspeed protection, acceleration/deceleration rate judgment and mechanical impact vibration monitoring. It cooperates with other 3500 series vibration and temperature modules to realize full-dimensional state perception and safety protection for rotating equipment, widely used in high-speed rotating unit safety interlock and predictive maintenance scenarios.

6.2 Core Technical Parameters

6.2.1 Basic Performance Parameters

• Channel Configuration: 4 independent configurable channels, dual-function support for speed signal and accelerometer signal acquisition
• Speed Signal Input: Passive magnetic pickup signal, input frequency range 0.1 Hz ~ 15 kHz, adaptable to various gear tooth speed measurement scenarios
• Acceleration Signal Input: Standard industrial accelerometer analog signal, supporting high-frequency casing vibration acceleration monitoring
• Measurement Accuracy: Speed measurement error ≤ ±0.05% full scale; acceleration sampling error ≤ ±0.2% full scale at room temperature
• Power Consumption: Nominal 8W, low-power circuit design, reducing rack system heat load and ensuring long-term stable operation
• System Isolation: 500 Vdc system-level isolation, effectively isolating on-site surge voltage and electromagnetic interference
• Signal Processing: Built-in adaptive digital filtering algorithm, adjustable filtering parameters via software, effectively suppressing high-frequency noise and signal clutter
• Operation Mode: Supports independent single-channel monitoring and TMR triple modular redundant voting mode, meeting high-safety system protection requirements
• Response Speed: Microsecond-level signal response, real-time capture of instantaneous overspeed and abnormal acceleration changes of equipment

6.2.2 Environmental & Mechanical Parameters

• Operating Temperature: -30℃ ~ +70℃, wide temperature adaptive range for industrial harsh environments
• Storage Temperature: -50℃ ~ +100℃
• Dimension: 241.3mm × 24.4mm × 99.1mm, standard 3500 rack card size, fully plug-and-play compatible

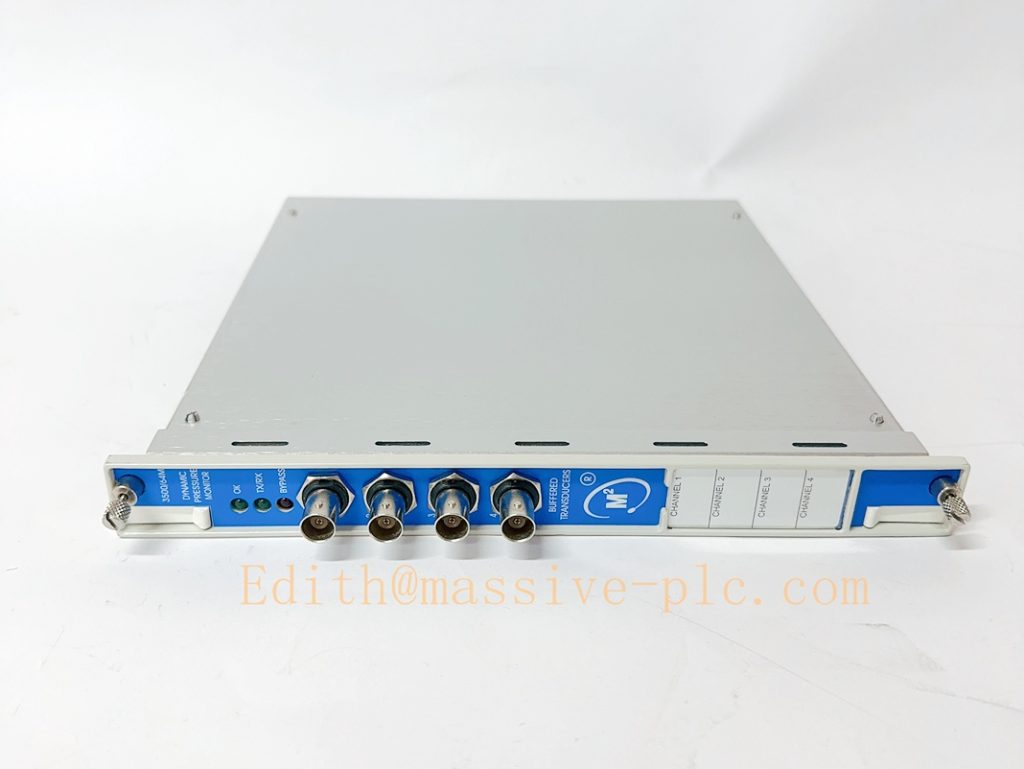

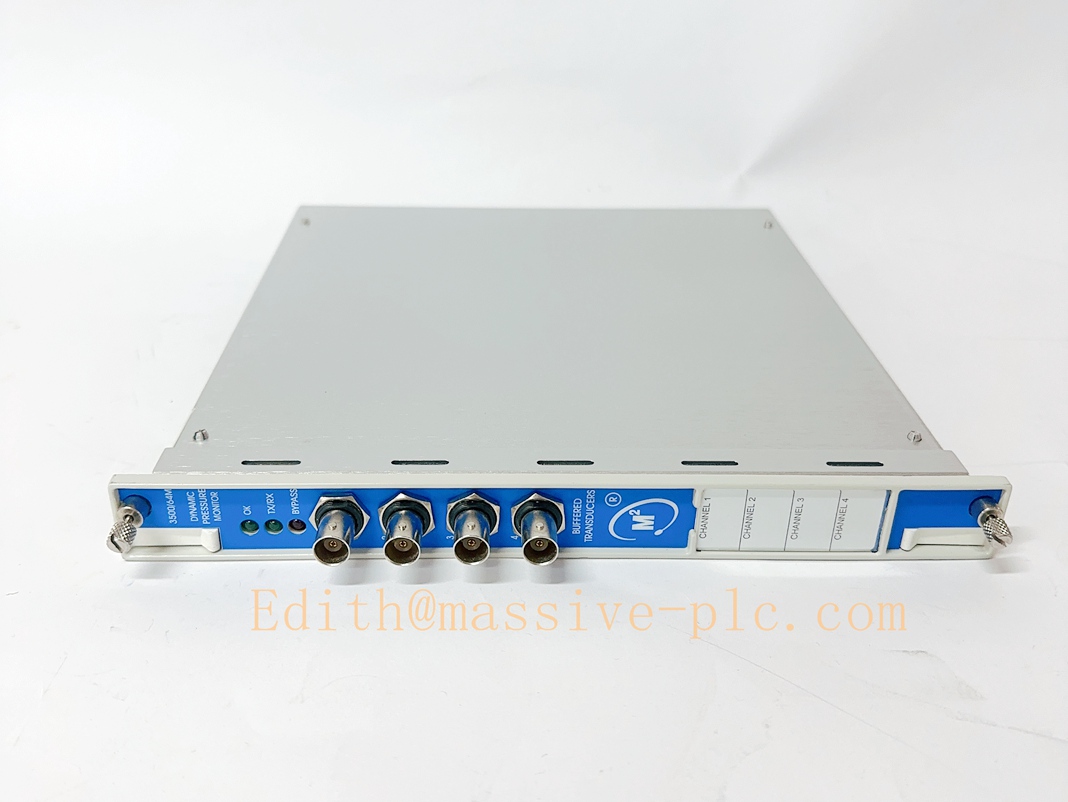

• Status Indicators: OK (module health), TX/RX (communication status), Bypass (maintenance bypass status)
• Anti-Vibration Grade: Industrial enhanced vibration resistance design, adapting to long-term vibration working conditions of rotating equipment bases

350064M 140734-05

6.3 Main Product Features

• Dual-Function Integrated Monitoring: Integrates rotational speed and acceleration monitoring functions in one module, realizing synchronous monitoring of equipment operating speed state and casing vibration impact, reducing system module configuration quantity and integration cost
• High-Precision Speed Protection: Supports ultra-low speed zero-speed detection, steady-state speed monitoring and transient overspeed trip judgment, effectively preventing equipment overspeed runaway faults, suitable for critical high-speed rotating units
• Dynamic Acceleration Diagnosis: Captures high-frequency vibration acceleration signals of equipment casing, identifies mechanical impact, loose parts and abnormal friction faults that cannot be detected by conventional vibration velocity monitoring
• Optimized Anti-Interference Performance: Upgraded circuit isolation and digital filtering algorithm of 140734-05 version, stronger suppression capability for on-site frequency conversion interference and power clutter, improving signal stability in complex electromagnetic environments
• Flexible Software Configuration: All channel functions, speed ratio parameters, alarm/trip thresholds and filtering parameters are configurable via 3500 configuration software, no on-site manual calibration required, convenient for commissioning and parameter adjustment
• Professional Safety Protection Logic: Configurable speed latching, delay protection and hysteresis parameters, avoiding false trips caused by instantaneous signal jitter, ensuring reliable operation of unit protection logic
• TMR Redundant Safety Adaptation: Perfectly compatible with TMR triple redundant system configuration, providing high-reliability speed and acceleration protection signals for ESD emergency shutdown systems, meeting SIL-level safety standard requirements
• Hazardous Area Certification Compliance: Compliant with CSA/NRTL/C, ATEX/IECEx industrial certification standards, applicable to Class 1 Div 2 and Zone 2 explosive hazardous industrial sites

6.4 Typical Application Scenarios

The 3500/64M 140734-05 module is mainly used for speed safety protection and high-frequency vibration diagnosis of key high-speed rotating equipment, covering core industrial scenarios with strict speed control and mechanical fault monitoring requirements:

• Power Generation Industry Core Units: Overspeed protection and zero-speed monitoring of steam turbines, gas turbines and generator sets; high-frequency acceleration vibration monitoring of unit casings and bearing pedestals to detect mechanical impact faults
• Petrochemical Turbo Equipment: Speed safety interlock and dynamic condition monitoring of centrifugal compressors, turbo-expanders and high-speed pump sets in hazardous explosion-proof areas
• Heavy Industry Rotating Machinery: Rotational speed stabilization monitoring and abnormal vibration impact diagnosis of large fans, blowers and rotary kiln transmission equipment
• High-Speed Equipment Safety Systems: Dedicated speed protection signal acquisition for unit ESD emergency shutdown systems, preventing equipment damage and safety accidents caused by overspeed failure
• Advanced Predictive Maintenance: Long-term tracking of equipment acceleration vibration trends and speed fluctuation data, realizing early warning of mechanical looseness, bearing failure and transmission component abrasion faults

6.5 Supporting Components & Accessories

6.5.1 Core Matching Accessories

• 140734-05 Dedicated Termination Block: Special external termination terminal for 3500/64M module, dedicated to speed probe and accelerometer signal wiring, ensuring stable transmission of weak frequency and analog signals
• Magnetic Pickup Speed Probes: Passive speed sensors matched for gear tooth speed measurement, supporting full-frequency speed signal acquisition
• Industrial Accelerometers: High-sensitivity vibration acceleration sensors, adapted to module sampling range, for equipment casing vibration monitoring

6.5.2 General Supporting Accessories

• Special Shielded Signal Cables: Low-noise shielded cables for frequency and acceleration signals, reducing signal attenuation and external interference in long-distance transmission
• Intrinsic Safety Barriers: Explosion-proof isolation barriers for hazardous area deployment, ensuring intrinsic safety of field sensor loops
• 3500 Series Standard Mounting Parts: Universal fixed brackets and wiring accessories for standardized cabinet layout and installation

6.6 Model Version Differentiation & Comparison

6.6.1 3500/64M Version Iteration Differences

• 3500/64M 140734-05 (Latest Optimized Version): Upgraded filtering algorithm, enhanced anti-interference capability, wider temperature adaptation range, higher measurement stability, suitable for harsh working conditions and high-reliability safety systems
• Early 3500/64M Versions: Conventional filtering performance, ordinary environmental adaptability, suitable for conventional low-interference industrial monitoring scenarios

6.6.2 Comparison with Other 3500 Series Modules

• 3500/61: Dedicated temperature monitoring module for RTD/TC sensors, focusing on equipment temperature protection
• 3500/62 Series: Process variable monitoring module for 4–20mA/±10V analog signals, focusing on pressure, flow and liquid level process parameter monitoring
• 3500/64M 140734-05: Dedicated speed and acceleration monitoring module, focusing on rotating equipment overspeed safety protection and high-frequency mechanical vibration fault diagnosis, forming a full-condition monitoring system with temperature and process modules

6.7 System Compatibility Requirements

The 3500/64M 140734-05 module is fully backward compatible with all standard Bently Nevada 3500 rack systems. It matches 3500/20 rack interface module and above firmware versions, and supports mainstream 3500 system configuration software. The module can be mixed installed with 3500/61 temperature modules, 3500/62 process modules and various vibration monitoring modules, realizing integrated monitoring of equipment speed, acceleration vibration, temperature and process variables.

• 3500/62 136483-01 Full Isolated Module: Core matching host module, forming a complete isolated signal acquisition and wiring system
• Double-Shielded Analog Signal Cables: Supporting dedicated shielded cables to cooperate with terminal isolation performance and further suppress external electromagnetic interference
• Intrinsic Safety Isolation Barriers: Matched for hazardous area deployment to achieve double safety isolation of field loops and system terminals
• 3500 Series Standard Mounting Accessories: Universal fixed brackets and wiring accessories for unified cabinet standardized layout

5.6 Model Differentiation & Version Comparison

5.6.1 Differences Between Isolated Termination Blocks

• 136294-01: Dedicated isolated terminal block for 3500/62 full-channel isolated module (136483-01), with full channel physical isolation and 250Vdc isolation specification, exclusive for high-precision anti-interference scenarios
• Ordinary Non-Isolated Terminal Blocks: No channel isolation function, only suitable for standard non-isolated 3500/62 (163179-03 / 190085-03M) modules, unable to support high-interference and mixed-signal working conditions

5.6.2 Matching Relationship with 3500 Series Modules

• 3500/61 Module: Matched with 133900-01 / 133843-02 terminals, not applicable to 136294-01
• 3500/62 Standard/Enhanced Version (Non-Isolated): Adopts ordinary general-purpose terminals, no need for 136294-01 isolated terminals
• 3500/62 136483-01 (Full Isolated): Must be matched with 136294-01 dedicated isolated terminals to exert full isolation performance

5.7 System Compatibility

The 136294-01 termination block is fully compatible with all standard Bently Nevada 3500 rack systems. It perfectly matches the 3500/62 136483-01 full-isolated module, supports mixed installation with other 3500 series functional modules, and complies with the wiring specifications of 3500 system configuration software, ensuring stable and consistent operation of isolated monitoring loops.
