Name: 3500/45 139554-01 Differential Expansion/Axial Position Monitor - MASSIVE
Brand: Bently Nevada

Description

3500/45 Part No:139554‑01

Product Introduction

The Bently Nevada 3500/45 position monitor module is a key component of the 3500 machinery protection system, designed to monitor axial position, differential expansion, case expansion, valve position and other displacement‑related parameters for rotating machinery such as steam turbines, gas turbines and large compressors. Part number 139554‑01 represents the complete module assembly including hardware, front panel and connection accessories.

This module accepts input from proximity probes and LVDT sensors, converts raw sensor signals into engineering‑unit values, provides real‑time machinery condition monitoring, alarm and trip logic functions. It complies with industry machinery protection standards and can work cooperatively with other 3500 series monitoring modules to build a complete machinery safety protection system for heavy‑duty rotating equipment.

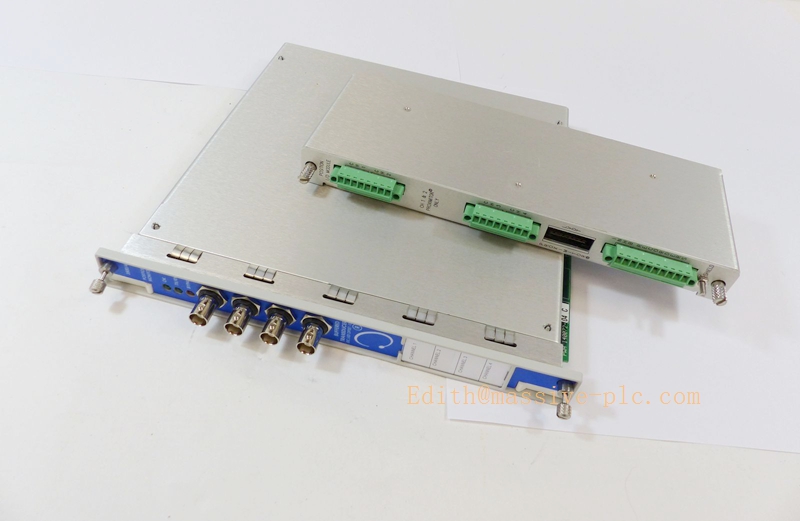

350045 140072-04

Technical Specification

Sensor Input

Supports eddy‑current proximity transducer system and LVDT position sensors
Multiple channel configuration for position measurement
Input signal conditioning for gap/position raw signals

Measurement Range

Configurable displacement measuring ranges for axial position, case expansion and differential expansion; measurement scale is software configurable via 3500 configuration software.

Signal Output & Interface

Relay alarm and trip outputs for machine protection interlock
Analog 4‑20 mA proportional output for DCS/PLC host system connection
Internal system communication bus for 3500 rack data exchange

Power Requirement

Environment

Operating temperature: 0 °C ~ +60 °C
Storage temperature:‑40 °C ~ +85 °C
Designed for industrial cabinet installation, suitable for petrochemical, power plant heavy‑duty field environment.

Safety Certification

Meets machinery protection system requirements, applicable for critical rotating equipment safety monitoring.

Adaptive Quality Assurance & Test Protocol

Adaptive Quality Assurance

The 3500/45 (139554‑01) adopts adaptive quality assurance mechanism, which dynamically adjusts self‑checking intensity according to running status:

Power‑on Self‑Test (POST) Full hardware initialization test at power‑up, covering channel circuit, memory, communication bus, relay drive circuit and front‑panel indicator circuit. Any hardware fault will be flagged on module LED and system status.
Background Adaptive Runtime Test During normal operation, the module executes non‑intrusive background diagnostics. Test frequency adapts to operating condition: higher diagnostic coverage under abnormal signal fluctuation; reduced test overhead under stable working condition to avoid disturbance to real‑time measurement and protection logic.
Channel Health Supervision Continuously monitor sensor cable break, short‑circuit, transducer fault. Fault condition triggers alarm status without unnecessary trip mis‑operation.

Test Protocol

Static Calibration Test Inject standard simulated position signal to each input channel, verify reading accuracy, check 4‑20 mA analog output scaling consistency.
Alarm & Trip Threshold Test Set configurable alarm / trip setpoints, inject corresponding simulated signal levels, confirm correct relay actuation and status reporting to rack host.
Communication Interface Test Verify data transmission between module and 3500 rack backplane, confirm configuration download, real‑time data upload and fault reporting function.
Stress Environmental Test (Factory Production) Temperature cycling, power fluctuation test performed at factory production phase to validate long‑term robustness.

Note: Adaptive test will not interfere protection output; critical trip logic retains high‑priority execution regardless of background diagnostic activities.

350045 135145-01

Field Engineer Technical Instruction

Installation

Insert the 3500/45 module into designated slot of 3500 rack, ensure firm backplane connection; lock module latch after insertion.
Wire sensor input, analog output and relay output according to drawing. Separate sensor low‑level signal wiring from high‑power power cable to reduce electromagnetic interference.
Confirm transducer system parameters (probe type, cable length) match actual field hardware before configuration download.

Configuration

Use 3500 configuration software to select measurement type: axial position, differential expansion, case expansion or valve position.
Set measurement range, alarm setpoint, trip setpoint, time delay parameters.
Download configuration to rack; perform channel static simulation test after download to validate measurement response.

Commissioning

Perform transducer gap calibration on site; verify live engineering‑unit reading matches mechanical reference position.
Manually trigger alarm and trip simulation to test downstream interlock logic of plant control system.
Check front‑panel LED status: green for normal; yellow for alarm; red for trip / hardware fault.

Troubleshooting

Sensor fault indication: Check probe, extension cable and junction box for short‑circuit or open‑circuit.
Reading drift: Verify transducer calibration, check ground loop interference, inspect cable routing.
Module fault LED lit: Execute power‑cycle reset; if fault persists replace module 139554‑01 and reload configuration.

Maintenance

No on‑board component repair allowed; defective module must be replaced as a complete unit.
Periodically verify measurement accuracy by signal injection during unit shutdown window.
