3500/40M (176449-01) Bently Nevada Proximitor Monitor

Description

3500/40M (176449-01) Bently Nevada Proximitor Monitor Full Specification

Product Description

The Bently Nevada 3500/40M with part number 176449-01 is a high-reliability four-channel Proximitor monitor module designed for the Bently Nevada 3500 machinery protection and condition monitoring system. It serves as a dedicated signal conditioning and high-precision measurement unit for eddy-current proximity transducer systems, converting raw probe analog signals into accurate, stable displacement and vibration data for critical rotating machinery.

This 176449-01 variant features optimized circuit tuning and enhanced signal stability for long-term industrial continuous operation. Each of the four independent channels supports flexible configuration for radial shaft vibration, thrust position, shaft eccentricity and differential expansion monitoring. Integrated with professional signal filtering, programmable dual-level alarm/trip thresholds, and comprehensive transducer fault diagnosis functions, the module fully complies with API 670 industry standards. It provides reliable 24/7 online monitoring and safety protection for turbines, compressors, generators and other high-value core rotating equipment in power, petrochemical and heavy industrial fields.

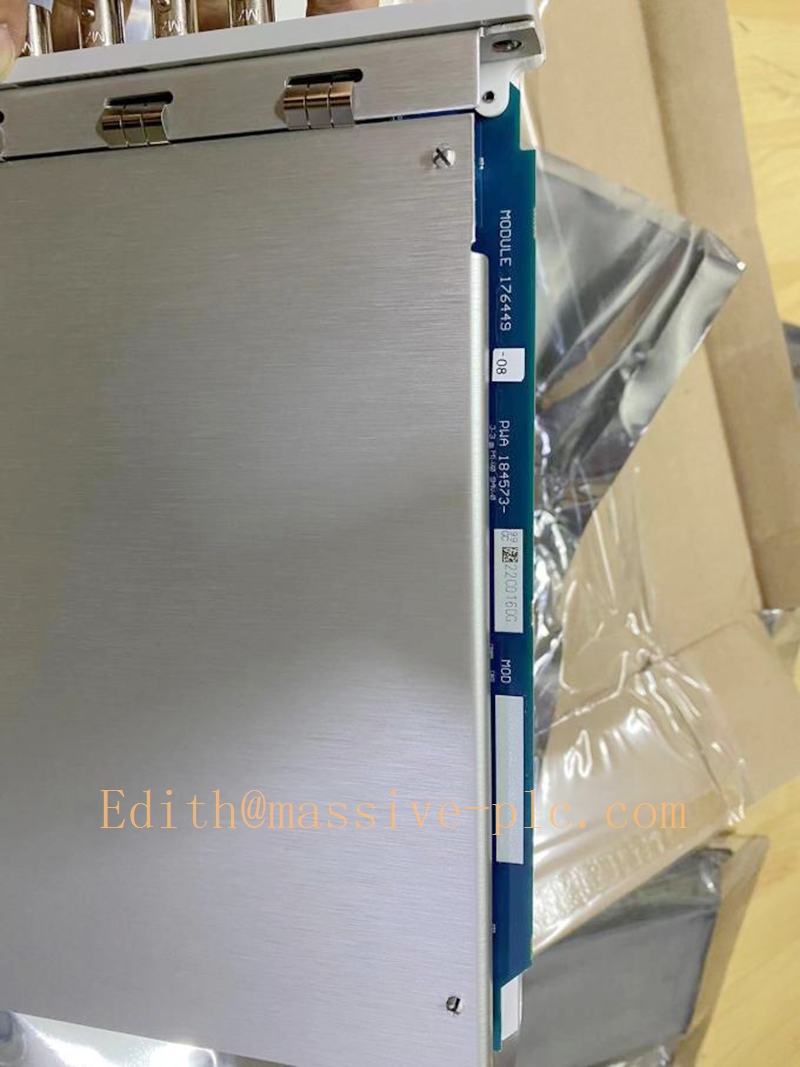

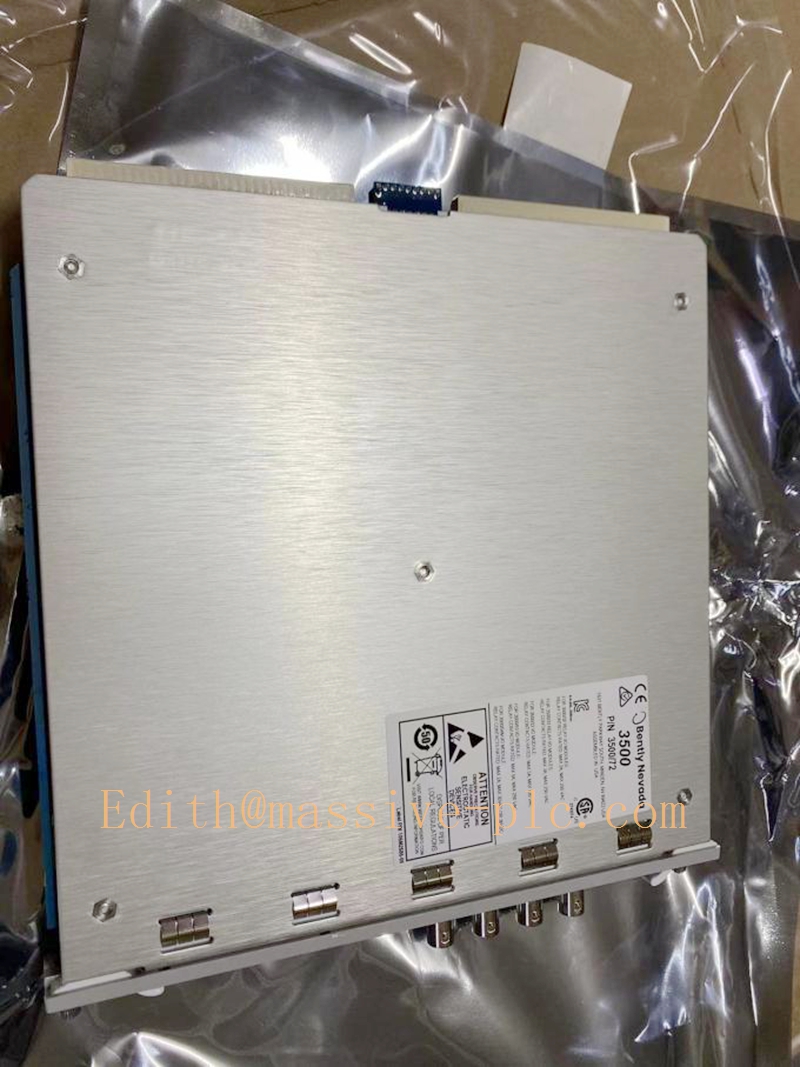

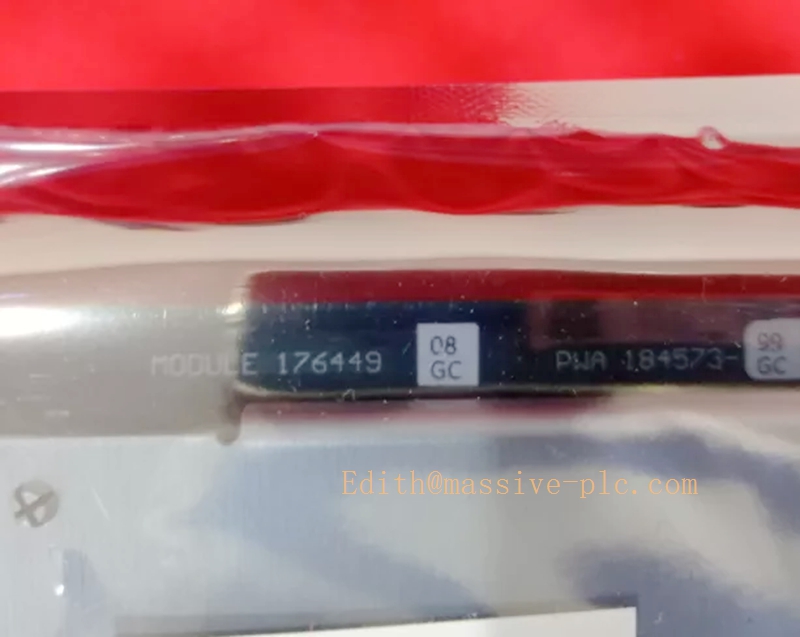

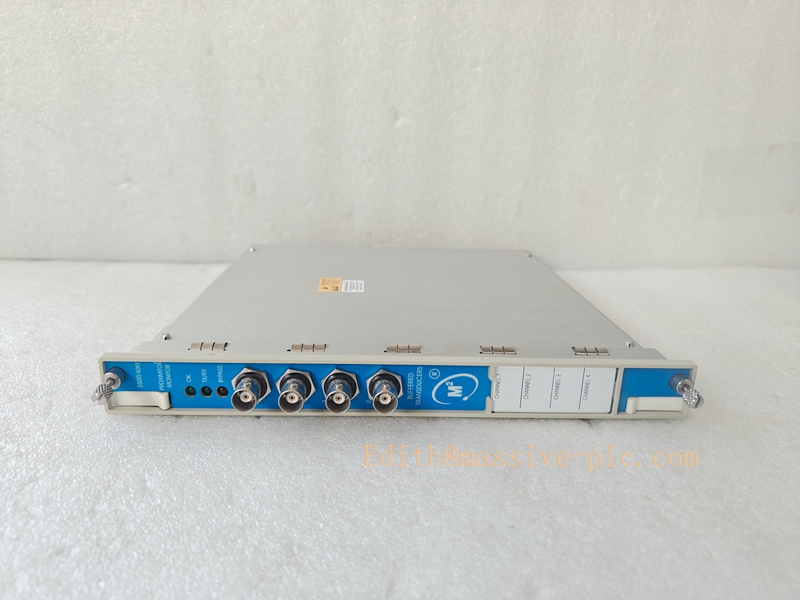

3500/40-01-00 176449-01

Core Technical Specifications

Key Features & Competitive Advantages

3.1 Core Features

• Four Isolated Independent Measurement Channels: Adopts full-channel electrical isolation design, each channel can be independently configured for different monitoring parameters, realizing multi-parameter synchronous acquisition of rotating equipment and maximizing rack space utilization efficiency.
• Optimized Eddy-Current Signal Conditioning: The 176449-01 version upgrades internal signal tuning circuit, with stronger noise suppression and baseline stabilization capabilities, effectively filtering on-site high-frequency interference and ensuring ultra-stable signal output.
• Full-Coverage Mechanical Condition Monitoring: Supports four core monitoring modes including shaft vibration, thrust displacement, eccentricity and differential expansion, covering all key operating state indicators of medium and high-speed rotating machinery.
• Graded Dual-Level Safety Protection: Equipped with independent warning and trip threshold logic with configurable delay parameters, which can effectively filter transient signal jitter, avoid false alarms, and realize accurate graded equipment protection.
• Complete Transducer Self-Diagnosis: Real-time monitoring of probe disconnection, short circuit, signal overload and circuit faults, automatically generating fault codes and alarm prompts to prevent invalid monitoring data and missing protection actions.
• Extreme Environment Adaptive Design: Industrial-grade wide-temperature hardware design ensures stable and accurate operation in low-temperature cold zones and high-temperature heat radiation industrial environments without performance attenuation.

3.2 Product Advantages

• Ultra-High Long-Term Operational Stability: Upgraded circuit optimization and component screening process greatly reduce long-term signal drift, ensuring consistent measurement accuracy during years of uninterrupted continuous operation.
• Strong On-Site Anti-Interference Ability: Enhanced EMC electromagnetic compatibility design, suitable for complex industrial environments with strong electromagnetic noise, effectively solving signal fluctuation and data jitter problems.
• Flexible and Efficient Configuration: All channel parameters, monitoring modes and protection logic can be remotely modified through official software, supporting rapid debugging and function switching without hardware replacement.
• Perfect System Versatility: Plug-and-play compatible with all standard 3500 rack accessories, applicable for new system construction, old equipment renovation and emergency spare part replacement.
• Integrated High Cost-Performance: Four-channel integrated design reduces the number of modules and on-site wiring workload, lowering overall system construction and daily operation and maintenance costs.

Typical Application Fields

The 3500/40M 176449-01 high-stability proximity monitor module is widely used in high-precision and high-reliability safety monitoring scenarios of core industrial rotating equipment:

• Thermal & Gas Power Generation Industry: Precision monitoring of shaft vibration, thrust position and eccentricity for steam turbines, gas turbines and generator sets, providing core data for unit safety interlock and trip protection.
• Petrochemical & Refinery Industry: Online condition monitoring for large centrifugal compressors, process pumps and high-speed rotating process equipment, preventing shaft abrasion, bearing failure and sudden shutdown accidents.
• Oil & Gas Onshore/Offshore Facilities: Adaptable to extreme temperature and high-interference field environments, serving as a key monitoring unit for offshore platform machinery protection systems.
• Metallurgy & Heavy Manufacturing: Real-time state monitoring for large rolling mills, high-power industrial fans and transmission rotating equipment to ensure stable production operation.
• High-Safety Industrial Projects: Suitable for unattended long-term operation scenarios requiring high measurement accuracy, low false-alarm rate and high system stability.
• 3500 System Upgrade & Spare Replacement: Standard universal upgraded spare module for aging 3500/40M monitor modules, improving overall system operation stability.

Technical Pitfalls to Avoid

• Wrong Channel Function Matching: Randomly configuring vibration, displacement and expansion functions without combining field equipment parameters will cause mismatched filtering parameters and full-scale measurement errors.
• Non-Standard Probe & Cable Matching: Inconsistent probe model and total cable length will lead to inaccurate internal signal tuning, baseline offset and distorted measurement data.
• Unreasonable Protection Threshold Setting: Excessively sensitive thresholds cause frequent nuisance alarms, while loose thresholds fail to capture early mechanical faults, reducing system protection effectiveness.
• Irregular Wiring & Grounding: Mixed arrangement of signal cables and high-voltage power cables and non-standard shielding grounding will introduce severe EMI interference and cause signal jitter.
• Omitted Probe Gap Calibration: Uncalibrated probe installation gap deviates from the linear measurement range, resulting in long-term continuous monitoring inaccuracy.
• Over-Limit Temperature Operation: Long-term operation beyond the -30 °C ~ +65 °C range will accelerate component aging and trigger module over-temperature protection shutdown.
• Mismatched System Firmware: Inconsistent firmware versions with rack interface modules and relay output modules will cause data synchronization failure and abnormal protection logic output.

Related Product Recommendations

• 3300 Series Proximity Probes & Extension Cables: Matched eddy-current transducer accessories, providing standard vibration and displacement sensing signals for 3500/40M 176449-01 channels.
• Bently Nevada 3500/34 Relay Output Module: Supporting safety execution module, realizing alarm and trip output according to 3500/40M monitoring judgment results.
• Bently Nevada 3500/20 Rack Interface Module: System core communication and scheduling unit to ensure synchronous and stable data interaction of all rack modules.
• Bently Nevada 3500/15 Power Supply Module: Redundant power supply unit providing stable backplane power for long-term module operation.
• 81546-01 XDCR Terminal Board: Dedicated signal termination and relay output terminal board for standardized field wiring management.
• 3500 System Configuration Software: Professional debugging tool for channel function configuration, threshold setting, signal tuning, calibration and fault diagnosis.

Installation Guidelines

• Standard Rack Installation: Install the module in a fully grounded standard 3500 industrial rack, placed in a dust-proof, ventilated and dry electrical cabinet to avoid corrosive gas and strong mechanical vibration.
• Reliable Backplane Connection: Ensure tight and stable contact between the module card edge and the rack backplane to prevent communication interruption and data loss caused by loose insertion.
• Standardized Signal Wiring: Use dedicated shielded twisted-pair cables for transducer signals; strictly separate weak signal wires and strong power cables, and implement single-point shielding grounding to eliminate loop interference.
• Precise Probe Gap Calibration: Adjust and calibrate the probe installation gap strictly in accordance with official technical specifications before commissioning to ensure measurement linearity and accurate baseline signals.
• Pre-Operation Functional Verification: Complete channel parameter configuration, signal simulation test and alarm logic verification after installation to ensure all monitoring and protection functions are valid and accurate.

Daily Maintenance Guidelines

• Routine Status Inspection: Regularly check module operating status indicators, signal connection tightness and cabinet environment; clean module surface and terminal dust quarterly to ensure unobstructed heat dissipation.
• Periodic Accuracy Calibration: Conduct channel precision calibration and probe gap inspection every six months to eliminate signal drift and maintain long-term measurement stability.
• Fault Log Analysis & Sorting: Regularly export and analyze module operation logs and fault records, pre-judge sensor aging and mechanical equipment abnormal trends, and eliminate hidden risks in advance.
• Wiring & Accessory Maintenance: Regularly inspect signal cable shielding layer and connector aging status, replace damaged and aging accessories in time to avoid signal attenuation and interference.
• Spare Parts Management: Store standby 176449-01 modules in constant-temperature and dry environment; perform regular power-on aging tests to ensure emergency replacement availability.
