Name: 3500/40M (135489-04) Bently Nevada Proximitor Monitor - MASSIVE
Brand: Bently Nevada

Description

3500/40M (135489-04) Bently Nevada Proximitor Monitor Full Specification

Product Description

The Bently Nevada 3500/40M with part number 135489-04 is a latest-revision high-precision four-channel Proximitor monitor module engineered for the Bently Nevada 3500 machinery protection and condition monitoring system. As a premium upgraded version in the 3500/40M series, this module features optimized firmware algorithms, enhanced signal conditioning circuits, and improved long-term stability, specially designed for high-end industrial critical rotating machinery monitoring applications.

The 135489-04 revision integrates upgraded anti-noise processing and precision calibration technology, delivering ultra-stable eddy-current transducer signal acquisition and measurement output. It supports four fully configurable independent channels for radial shaft vibration, thrust position, shaft eccentricity and differential expansion monitoring. Equipped with upgraded dual-level alarm/trip logic, comprehensive transducer self-diagnosis and enhanced system data synchronization capabilities, the module strictly complies with API 670 latest industry standards. It provides 24/7 high-precision, low-drift online condition monitoring and safety protection for large turbines, compressors, generators and core rotating assets in power, petrochemical and offshore engineering fields.

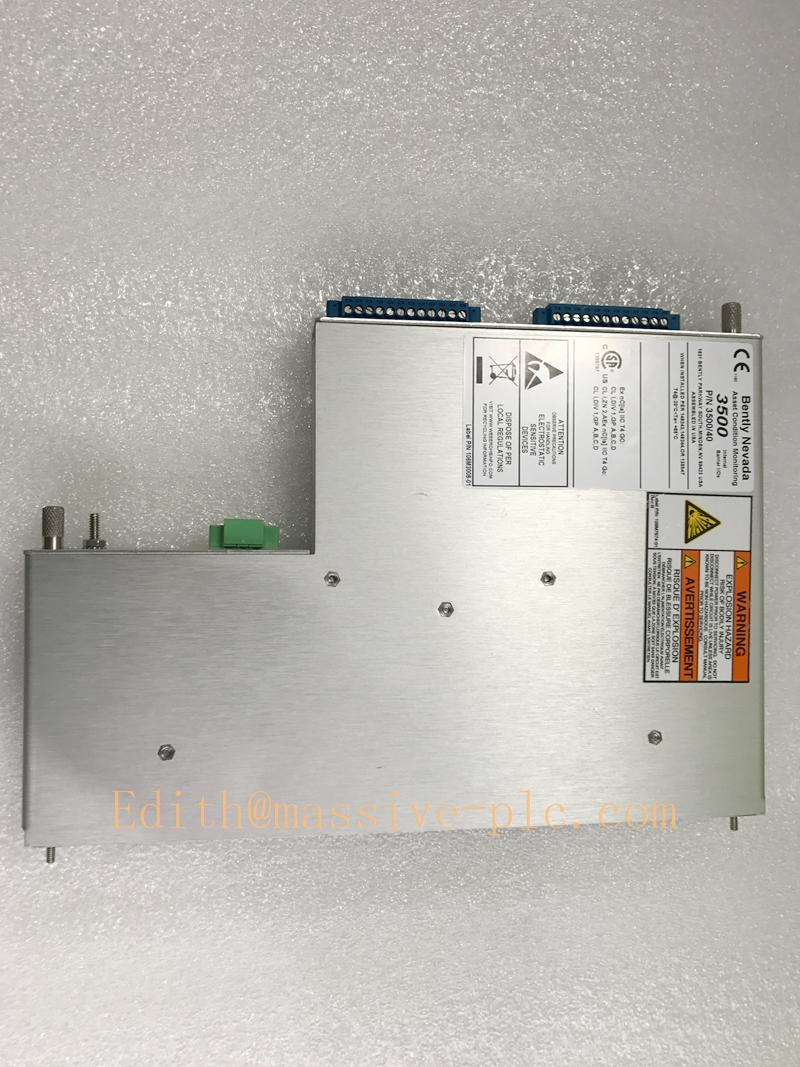

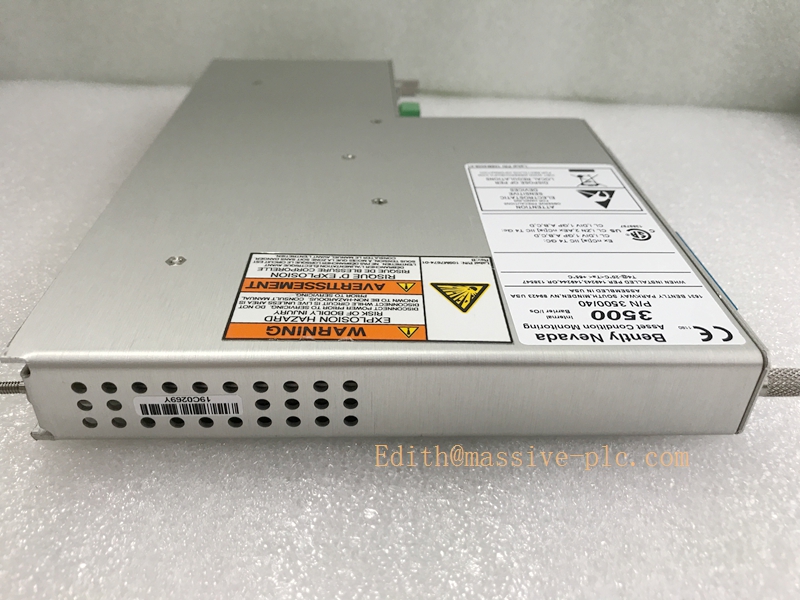

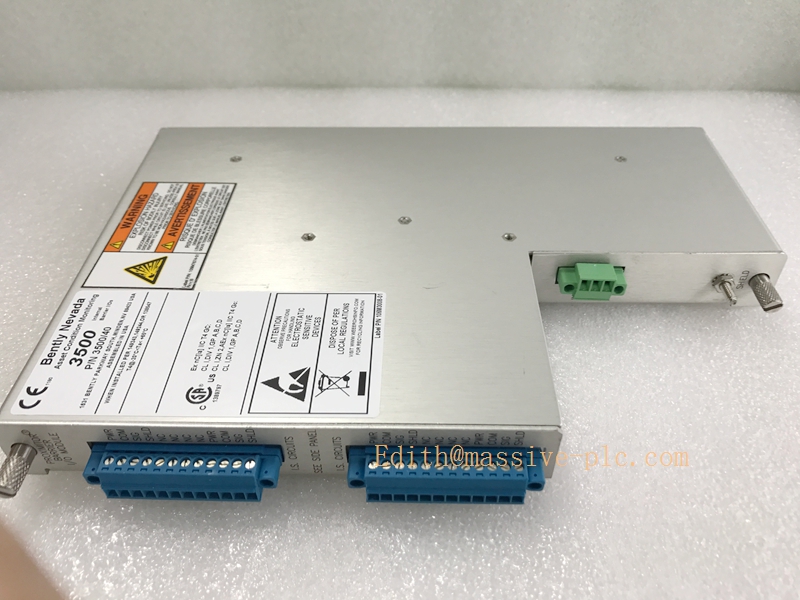

3500/40 135489-04

Core Technical Specifications

Model Number	3500/40M, Part No. 135489-04 (Latest Upgraded Revision)
Module Type	4-Channel High-Precision Enhanced Proximitor Monitor Module
Compatible Sensors	3300 series eddy-current proximity probes and matched extension cable assemblies (full series compatibility)
Measuring Channels	4 fully isolated, independently software-configurable high-precision measurement channels
Monitoring Parameters	Radial shaft vibration, thrust position, shaft eccentricity, differential expansion
Transducer Supply Voltage	-24 VDC high-precision regulated sensor excitation power
Frequency Response	Enhanced programmable bandwidth, supports up to 15.8X machine rotational speed high-accuracy sampling
Alarm Configuration	Independent Alert (warning) and Danger (trip) thresholds per channel, full-scale fine adjustment with precise delay logic
Power Consumption	7.5 W typical operating power, low-power optimized design
Output Impedance	550 Ω precision-calibrated standard signal output impedance
Operating Temperature	-30 °C to +65 °C industrial wide-temperature stable operating range
Storage Temperature	-40 °C to +85 °C
System Compatibility	Fully backward compatible with all standard 3500 rack systems and official configuration software
Compliance Standard	Latest API 670 standard, enhanced industrial EMC anti-interference and safety certification
Installation Type	Standard 3500 series rack-mounted modular installation

Key Features & Competitive Advantages

3.1 Core Features

Upgraded Four-Channel Isolated Precision Measurement: Adopts full-channel electrical isolation and upgraded signal sampling circuit, with higher measurement resolution and lower signal noise floor than conventional versions. Each channel supports independent parameter configuration, realizing synchronous high-precision multi-parameter monitoring of rotating machinery.
Optimized Eddy-Current Signal Conditioning Algorithm: The 135489-04 version integrates latest firmware tuning technology, with enhanced baseline self-stabilization and dynamic noise filtering capabilities. It effectively suppresses complex on-site high-frequency electromagnetic interference and mechanical jitter, ensuring ultra-low-drift long-term signal output.
Full-Coverage Professional Machinery Monitoring: Completely covers four core monitoring modes of high-speed rotating equipment including radial vibration, thrust displacement, shaft eccentricity and differential expansion, fully meeting the latest API 670 high-standard monitoring and protection requirements.
Precision Graded Dual-Level Protection Logic: Optimized Alert and Danger threshold fine-tuning function with millisecond-level configurable delay logic. It accurately filters transient abnormal signals, completely avoids false alarms, and ensures rapid and accurate response to real equipment faults.
Enhanced Transducer & Module Self-Diagnosis: Upgraded intelligent fault diagnosis system, which can accurately identify probe open circuit, short circuit, signal overload, cable mismatch and internal circuit subtle faults. It outputs detailed fault code information to support precise troubleshooting.
Industrial Extreme Environment Adaptive Optimization: Optimized component screening and temperature compensation design ensures consistent measurement accuracy and stable operation in wide temperature and strong electromagnetic interference industrial scenarios without performance attenuation.

3.2 Product Advantages

Industry-Leading Long-Term Stability: As the latest upgraded revision of 3500/40M series, 135489-04 solves the long-term signal drift problem of old versions, with ultra-high measurement repeatability and zero drift in long-term continuous operation.
Superior Complex Environment Adaptability: Enhanced EMC electromagnetic compatibility design adapts to high-interference, high-vibration and extreme temperature working conditions such as offshore platforms and heavy industrial workshops, with far stronger anti-interference performance than ordinary versions.
Intelligent & Efficient Configuration: Optimized software interaction logic, supporting one-click parameter import and export, batch channel configuration and fast calibration, greatly shortening system debugging and maintenance cycle.
Full Backward & Forward Compatibility: Plug-and-play compatible with all 3500 system hardware and firmware versions, suitable for new high-standard projects and old system upgrade and renovation scenarios.
High Reliability & Low O&M Cost: Upgraded circuit and firmware reduce module failure rate and sensor misjudgment rate, lower on-site troubleshooting frequency and daily maintenance cost, and improve overall system operation efficiency.

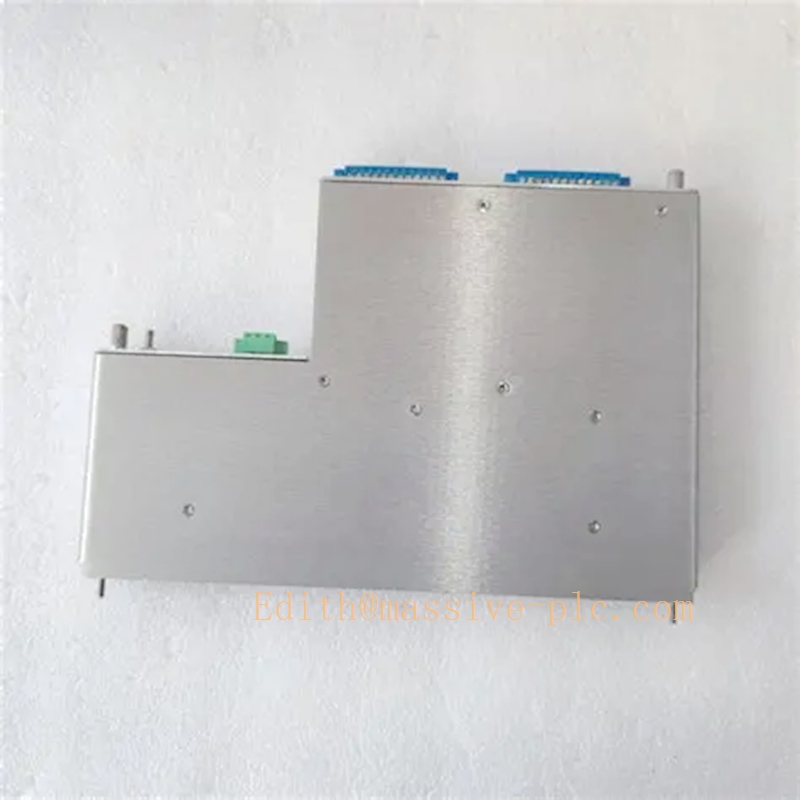

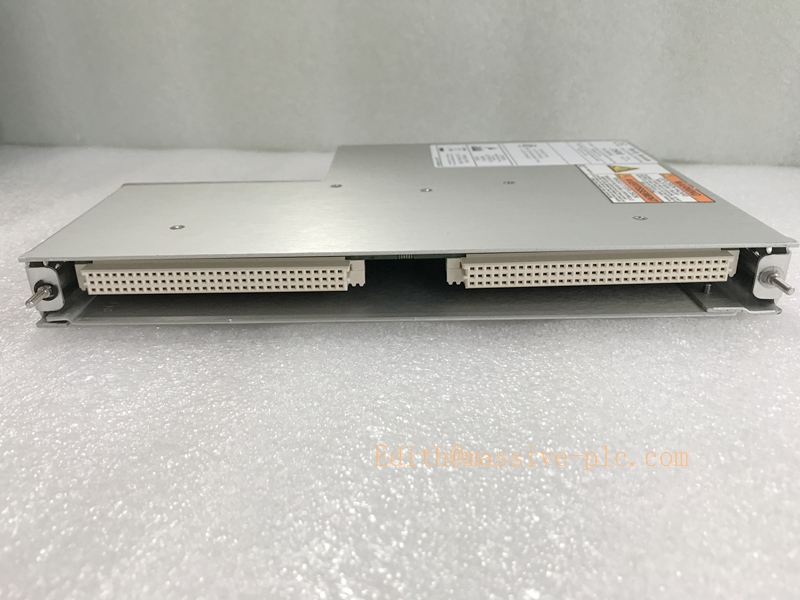

3500/40 135489-04

Typical Application Fields

The 3500/40M 135489-04 high-precision enhanced proximity monitor module is mainly used in high-standard, high-reliability and high-precision industrial machinery safety monitoring scenarios, especially suitable for key projects with strict anti-interference and low-drift requirements:

Large Thermal & Gas Power Generation: High-precision shaft vibration, thrust position and eccentricity monitoring for large-capacity steam turbines, gas turbines and generator sets, supporting unit fine protection and predictive maintenance.
Petrochemical Refinery Core Units: Precision condition monitoring and safety interlock protection for large centrifugal compressors, turbo pumps and high-speed rotating core equipment to avoid subtle mechanical faults causing unit shutdown.
Offshore Oil & Gas Platforms: Professional monitoring for offshore rotating machinery, adapting to marine high-humidity, high-salt-fog and strong electromagnetic interference harsh environments.
Heavy Industry & Large Manufacturing: High-precision state monitoring for large rolling mills, blower units and high-power transmission equipment, ensuring stable and high-precision production operation.
SIL High-Integrity Safety Projects: Suitable for safety-critical systems requiring ultra-low false-alarm rate, high measurement accuracy and long-term unattended stable operation.
3500 System High-Standard Upgrade & Renovation: Preferred upgraded replacement module for old 3500/40M modules, improving overall system monitoring accuracy and operational stability.

Technical Pitfalls to Avoid

Mismatched Channel Function Calibration: The upgraded version supports higher-precision parameter calibration; incorrect function matching and full-scale setting will lead to precision loss and monitoring data deviation.
Non-Standard Probe & Cable Matching: Mismatched probe models or non-standard total cable length will cause the upgraded tuning algorithm to fail, resulting in baseline offset and distorted high-precision data.
Overly Sensitive Threshold Parameter Setting: Due to higher measurement sensitivity, unreasonable threshold and delay settings may trigger unnecessary early warnings, affecting stable system operation.
Non-Standard Shielding & Grounding: Although the anti-interference capability is enhanced, irregular wiring and grounding will still introduce subtle signal interference and affect high-precision measurement results.
Omitted Precision Probe Gap Calibration: High-precision monitoring puts forward higher requirements for probe installation gap; uncalibrated gap will cause continuous micro-drift of monitoring data.
Long-Term Over-Temperature Operation: Continuous operation beyond the rated temperature range will affect the precision component stability and reduce measurement accuracy.
Low-Version Firmware Mismatch: Matching with excessively old rack firmware will limit the 135489-04 high-precision algorithm performance and cause incomplete function enablement.

Installation Guidelines

Standard Precision Rack Installation: Install the module in a fully grounded, shock-absorbing standard 3500 rack, placed in a constant-temperature, dust-proof and corrosion-proof high-standard electrical cabinet to avoid mechanical vibration and environmental interference.
Ultra-Stable Backplane Connection: Ensure fully inserted and locked module card edge to backplane contact, eliminate poor contact micro-interference, and guarantee high-speed stable data transmission.
Standardized Precision Signal Wiring: Use high-quality shielded twisted-pair cables, strictly separate strong and weak current wiring, and implement standard single-point shielding grounding to eliminate ground loop subtle interference.
High-Precision Probe Gap Calibration: Adopt professional calibration tools to finely adjust the probe installation gap, ensure it is in the optimal linear measurement range, and maximize module precision performance.
Full-Function Pre-Operation Verification: Complete channel precision calibration, signal simulation, threshold test and alarm logic verification after installation to ensure all upgraded functions are fully effective.

Daily Maintenance Guidelines

Precision Routine Inspection: Regularly check module operating status, signal connection tightness and cabinet constant-temperature environment; keep modules and terminals clean to avoid micro-interference caused by dust accumulation.
Regular Precision Recalibration: Conduct professional channel accuracy recalibration and probe gap inspection every six months to maintain long-term high-precision measurement stability.
Intelligent Fault Log Analysis: Regularly export upgraded module detailed fault logs, analyze subtle signal changes and equipment operation trends, and realize predictive fault early warning.
Regular Wiring Aging Inspection: Regularly check signal cable shielding integrity and connector stability, replace aging accessories in time to prevent signal attenuation and precision loss.
Professional Spare Parts Storage: Store standby 135489-04 modules in constant-temperature and dry anti-static environment, and conduct regular power-on precision tests to ensure emergency replacement availability.
