3500/33-01-00 (149986-01+149992-01) module

Description

Core Product Introduction

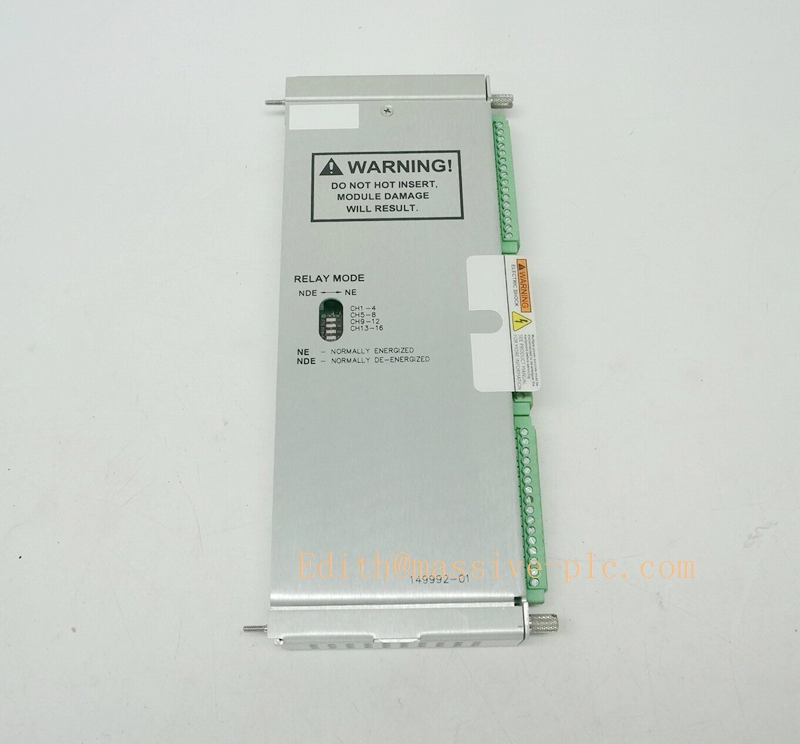

The Bently Nevada 3500/33-01-00, assembled with main logic board 149986-01 and integrated relay I/O sub-module 149992-01, is a high-performance 16-channel programmable relay module purpose-built for the 3500 Machinery Protection System. It delivers independent, hardwired alarm and shutdown signal outputs for critical industrial rotating assets, acting as the dedicated safety execution layer between the 3500 monitoring rack and plant ESD, DCS, PLC or local annunciator systems. This module supports flexible voting logic configuration, seamless integration with existing 3500 rack infrastructure, and meets global hazardous area certification standards to enhance overall system safety and reliability.

Main Technical Specifications

• ‌Relay Channel Count‌: 16 fully independent SPDT (Single Pole Double Throw) relay outputs
• ‌Contact Rating‌: 30 V DC, 5 A maximum resistive switched current
• ‌Typical Power Consumption‌: 5.8 W
• ‌Relay Contact Life‌: Over 100,000 operational cycles under rated load
• ‌Operating Temperature Range‌: -40 °C to +70 °C
• ‌Form Factor‌: Full-height 3500 series standard module
• ‌Dimensions (H × W × D)‌: 241 mm × 24.4 mm × 241.3 mm
• ‌Weight‌: 0.7 kg nominal
• ‌Certifications‌: ATEX, IECEx, CSA, FM, CE, fully compliant with API 670 industrial machinery protection standards
• ‌Sealing‌: Epoxy-sealed construction for durability in harsh industrial environments

Related Series Model Recommendations

1. ‌3500/33-02-00 (149986-02 + 149992-01)‌: Upgraded 16-channel relay variant with enhanced voting logic capabilities, designed for critical turbine protection loops that require 2-out-of-4 or 3-out-of-5 condition verification before triggering a shutdown.
2. ‌3500/33-03-00 (149986-03 + 149992-02)‌: Explosion-proof certified intrinsically safe relay module, suitable for direct installation in Zone 1 hazardous areas on offshore oil platforms and refinery process units.
3. ‌3500/32 133819-01‌: 4-channel high-density relay module with built-in adjustable time delay function, ideal for anti-jitter protection scenarios that avoid false shutdowns caused by transient vibration spikes.
4. ‌3500/25-02-03-00‌: 8-channel half-height relay module, perfect for compact 3500 racks with limited slot space that do not require 16 full relay outputs.

Professional Quality Control Test Standard Operating Procedure

1. ‌Identity & Visual Verification‌: Inspect module housing, front panel status LEDs and backplane connectors for physical damage, cross-validate serial numbers of 149986-01 and 149992-01 against Bently Nevada official part registry to confirm full authenticity.
2. ‌Power-on Initial Test‌: Insert the module into a certified 3500 test rack, apply rated system power, verify all power, communication and diagnostic LEDs illuminate in the factory-defined startup sequence without fault alerts.
3. ‌Full 16-Channel Functional Test‌: Send simulated alarm trigger signals from the rack configuration system to every relay channel, use a high-precision multimeter to confirm each SPDT contact switches state correctly with no delay or bounce.
4. ‌Rated Load Endurance Test‌: Connect a 5 A resistive load to each relay output, run 1000 consecutive on-off cycles to validate contact reliability and confirm no overheating or contact arcing occurs under full rated load.
5. ‌Dielectric Withstand Test‌: Apply 2000 V AC isolation voltage between relay output terminals and the module backplane logic circuit for 60 seconds, confirm no breakdown and leakage current stays below 1 mA.
6. ‌72-hour Continuous Burn-in Test‌: Operate the module under 60 °C ambient temperature with all 16 relays loaded, record system status logs every 2 hours to ensure zero unplanned trip, communication dropout or channel fault.
7. ‌Final Calibration & Release‌: Generate a complete test report, attach a unique calibration label, and release the unit with a 12-month formal quality warranty certificate.

New Module Installation Guide

1. ‌Pre-installation Preparation‌: Confirm the target 3500 rack slot is located to the right of the TDI module as required by system architecture, wear an anti-static wrist strap, and verify the new module part numbers 149986-01 and 149992-01 match the site BOM specification.
2. ‌Rack Slot Insertion‌: Align the full-height module with the 3500 rack guide rails, push it smoothly inward until the backplane connector is fully seated, then tighten the two front panel mounting screws to the specified torque to ensure stable electrical connection.
3. ‌Field Wiring Termination‌: Connect each relay output cable to the corresponding terminal on 149992-01 strictly following the site wiring diagram, separate high-voltage load cables from low-velocity sensor signal cables by at least 20 cm to eliminate electromagnetic interference.
4. ‌System Configuration Upload‌: Launch the 3500 Rack Configuration Software, assign each of the 16 relay channels to the corresponding vibration, displacement, speed or temperature monitoring parameter, configure custom voting logic, alarm latching mode and action conditions as required by site protection specifications.
5. ‌Post-installation Validation‌: Manually trigger each assigned alarm condition from the software, confirm the local annunciator, DCS and ESD system receive the correct relay signal, then lock the configuration and save a full backup file to the site engineering archive.

Application Scenarios & Key Features

• ‌Primary Application Scenarios‌: Large steam turbine supervision systems in thermal power plants, centrifugal compressor safety interlock in petrochemical refineries, critical pump and fan protection in large-scale process facilities, and gas turbine condition monitoring in LNG terminals.
• ‌Core Features‌:
  1. Each of the 16 relays can be independently programmed for specific alarm conditions, delivering maximum configuration flexibility for complex machinery protection logic.
  2. Built-in advanced voting logic support significantly enhances system reliability, requiring multiple verified abnormal conditions before triggering a shutdown action.
  3. It can be seamlessly integrated into existing 3500 rack systems without additional hardware modification, minimizing site upgrade downtime.
  4. Epoxy-sealed robust construction ensures consistent long-term performance even in extremely harsh industrial environments with high dust, humidity and temperature fluctuations.

Frequently Asked Questions

• ‌Q1‌: Can this module be installed in any slot of the existing 3500 rack?
  • A: No, it must be installed in any slot located to the right of the TDI (Transient Data Interface) module to comply with the 3500 system architecture requirements.
• ‌Q2‌: What is the maximum operational life of the relay contacts?
  • A: The module is designed for long operational life with over 100,000 relay operations under full rated 5 A resistive load.
• ‌Q3‌: Does this module support custom voting logic configuration?
  • A: Yes, it offers enhanced voting logic capabilities, allowing users to define multi-condition verification rules to avoid false shutdowns caused by single-point signal anomalies.
• ‌Q4‌: Can I hot-swap this module while the 3500 rack is running?
  • A: Yes, it supports hot-swap operation, but you must confirm the corresponding protection logic is temporarily bypassed via the system software before replacement to avoid unexpected safety actions.
