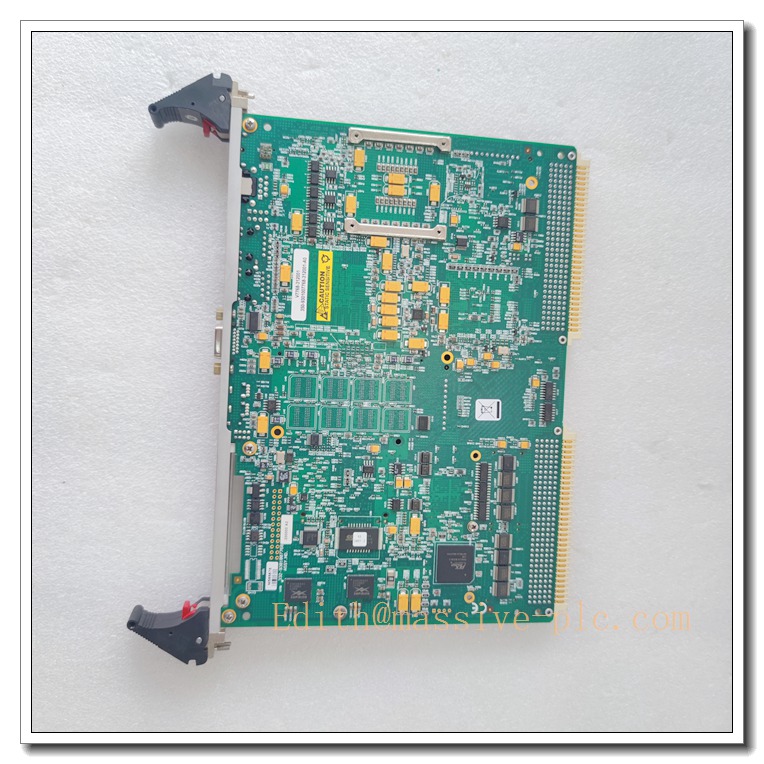

Name: V7768-322001 6U VME64x Single Board Computer (Core2 Duo) - MASSIVE
Brand: General Electric

Description

V7768-322001 6U VME64x Single Board Computer (Core2 Duo)

Product Application

V7768-322001 is a ruggedized VME single-board computer for mission-critical embedded control systems, widely used in legacy steam/gas turbine control, power generation test systems, aerospace and industrial real-time data acquisition. It acts as the VME rack host controller, executes control algorithms, reads/writes VME I/O boards over VMEbus, communicates with HMI and upper DCS via dual Gigabit Ethernet. Supports VxWorks, Linux real-time operating systems.

Note: V7768-322001 is upgraded version compared with V7768-320001 A2, different processor and memory configuration, not fully pin-to-pin compatible in some firmware revisions.

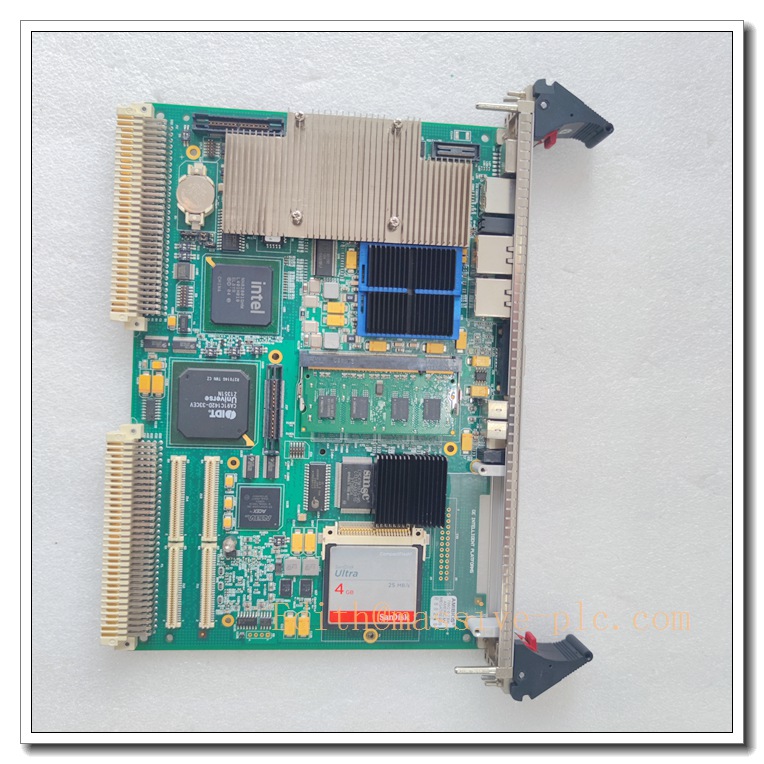

V7768-322001

Product Specifications

Part Number: V7768-322001
Manufacturer: GE Fanuc / Abaco Systems
Form Factor: 6U single slot VME64x Eurocard
Processor: Intel Core 2 Duo @2.16GHz, 4MB L2 Cache, 667MHz FSB
Chipset: Intel 945GME + ICH7-M
Memory: Up to 2GB DDR2 SDRAM (SODIMM socket)
Storage: CompactFlash (IDE interface, bootable) + 2 × SATA ports
VME Bridge: Tundra Universe II, supports A32/A24/D32, MBLT64, BLT32
Front Panel Interfaces:
- 2 × Gigabit Ethernet (10/100/1000BASE-T, RJ45)
- 2 × RS232 serial ports
- 2 × USB2.0
- SVGA video, PS/2 keyboard & mouse
PMC Slot: 1 × PCI-X PMC expansion site
Power Input: +5V, ±12VDC from VME backplane
Power Consumption: Typical 22W
Watchdog: Hardware programmable watchdog timer
RTC: Battery-backed real-time clock
Operating Temperature: 0 ~ +55°C standard; extended temp option -40 ~ +85°C
Humidity: 5% ~95% RH non-condensing
Shock / Vibration: 15g shock, 5g RMS vibration
Certification: CE, FCC, RoHS
Product Status: EOL, only surplus/refurbished spare parts
Approx. Weight: 0.85 kg

Core Technical Parameters

Dual Gigabit Ethernet for redundant network or separate control & HMI network
Universe II VME bridge supports VME master/slave mode, hardware byte swap for big/little endian conversion
PMC expansion slot for custom I/O, reflective memory or high-speed communication card
Hardware watchdog timer for automatic system reset upon OS/software crash
PXE network boot, CompactFlash boot option for diskless embedded deployment
Front panel I/O accessible without removing board from chassis
Compatible with full VMIVME I/O family: analog output VMIVME-4150, analog input VMIVME-3122, reflective memory VMIVME-5565

Recommended Matching Spare Parts & Accessories (8 Items)

6U VME64x chassis & backplane
VME chassis power supply (+5V, ±12VDC)
VMIVME series I/O modules (VMIVME-4150, VMIVME-3122)
CAT6 shielded Ethernet cables
CompactFlash industrial storage card
VxWorks / Linux BSP & system diagnostic software
PMC expansion modules (if required)
Spare RTC battery

Product Features

✅ Dual Core High Performance Intel Core2 Duo high speed processor, suitable for complex turbine control algorithm and high speed signal acquisition.

✅ Dual Gigabit Ethernet Ports Two independent GbE ports for network segregation or redundant network communication with DCS/HMI.

✅ VME64x Universe II Bridge Full VME master/slave capability, high-speed block transfer MBLT64, hardware byte swap for cross-platform data exchange.

✅ PMC PCI-X Expansion Site Add custom high-speed I/O or special communication card without occupying extra VME slot.

✅ Rich Front Panel I/O Ethernet, serial, USB, VGA and keyboard/mouse for local commissioning, debug and maintenance.

✅ Hardware Watchdog & Battery RTC Watchdog auto-reset on system failure; RTC provides time stamp for alarms and event sequence.

✅ Rugged industrial construction Designed for vibration and shock environment of power plant turbine control rack.

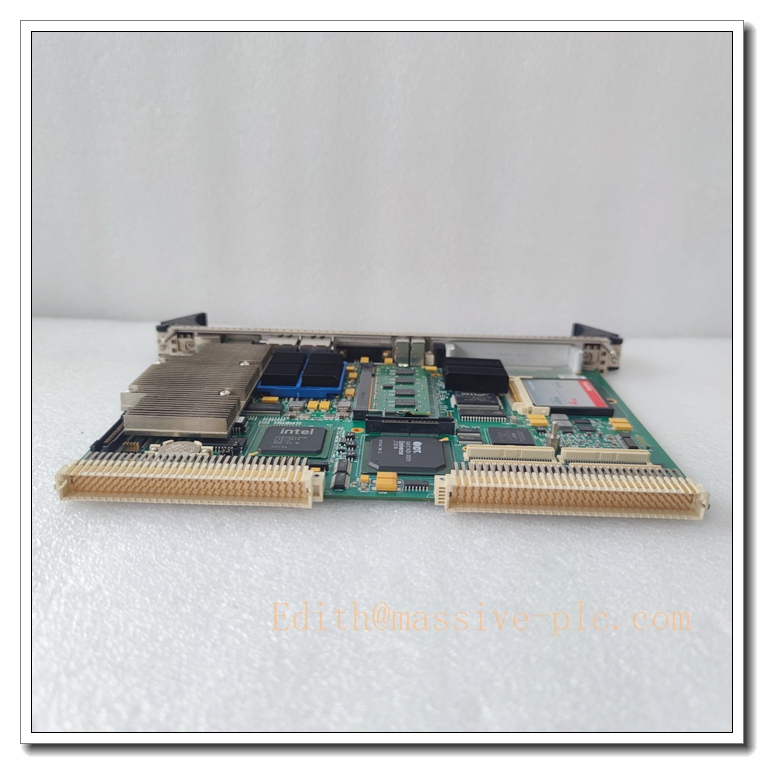

V7768-322001

Installation Guidelines

Power off VME chassis, insert V7768-322001 into designated 6U VME slot and secure front panel latches.
Install CompactFlash with real-time OS and application firmware.
Connect front panel Ethernet, serial or VGA cables as required.
Power on chassis, enter BIOS to set boot device and system parameters.
Boot real-time OS, load VME driver and scan all VMIVME I/O boards on backplane.
Configure network IP for dual Ethernet ports, test communication with HMI/DCS.
Perform VME bus read/write test with VMIVME I/O modules.
Validate hardware watchdog function before online commissioning.

Maintenance Instructions

Daily Maintenance Check board power and status LED; monitor system health and network status on HMI.

Periodic Maintenance (Every 6–12 months) Clean chassis filter and PCB dust. Check RTC battery status, replace battery when low. Backup OS image and application project. Inspect backplane connector pins.

Fault Maintenance

Cannot boot: Check CompactFlash integrity, VME power supply and BIOS configuration.
VME bus communication failure: Inspect backplane, VME address mapping and driver.
Network port failure: Check cable, link negotiation, or test second GbE port.
Do not modify BIOS or real-time control application without turbine control engineer approval.

Long-Term Operation Tips Keep chassis temperature within 0~55°C. Store spare V7768-322001 in dry environment. Keep full OS & application backup image.
