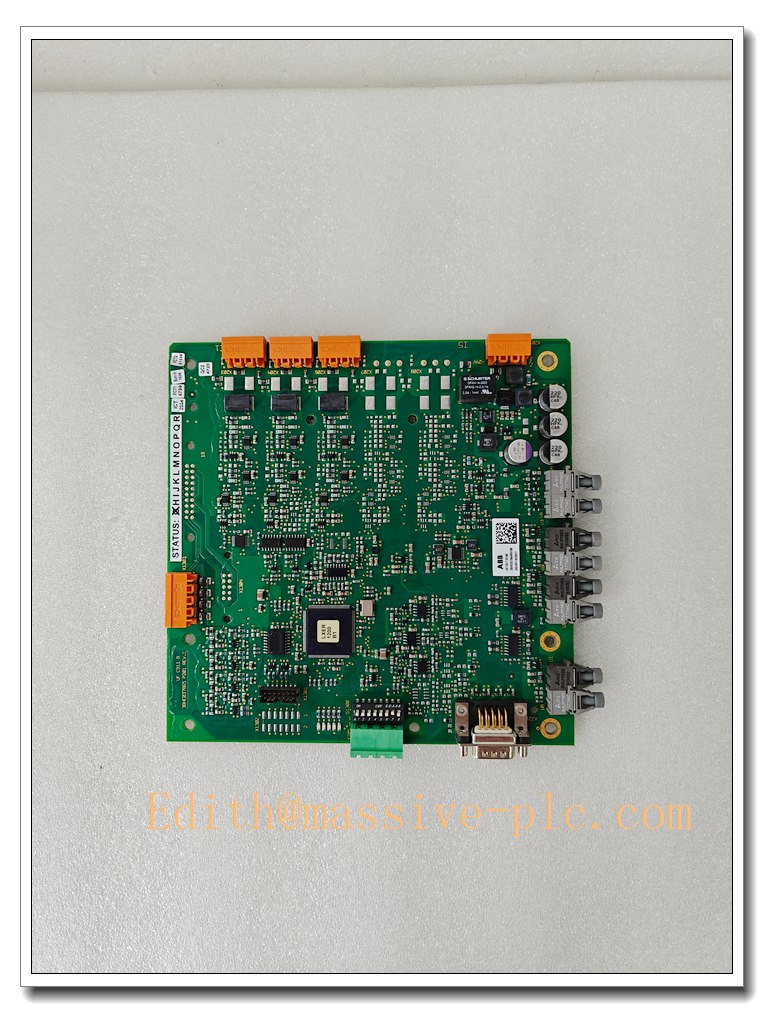

UFC911B104, part number 3BHE037864R0104, is an ABB high-speed measurement and interface unit

Description

UFC911B104 3BHE037864R0104 Product Technical Manual

Product Core Introduction

The UFC911B104, part number 3BHE037864R0104, is an ABB high-speed measurement and interface unit belonging to the UNITROL 6000 generator excitation control family under the AC 800PEC platform. This module acquires multi-channel AC voltage, AC current and PT/CT analog signals from generator and grid side, performs high-speed sampling, signal conditioning and pre-calculation, then transmits processed measured data to the main excitation controller via high-speed optical bus. It provides fundamental electrical values for voltage regulation, reactive power control, protection monitoring and synchronizing logic. Widely used in hydro, thermal and gas turbine generator UNITROL6000 static excitation cabinets, it serves as critical spare part for power plant excitation system maintenance and retrofit.

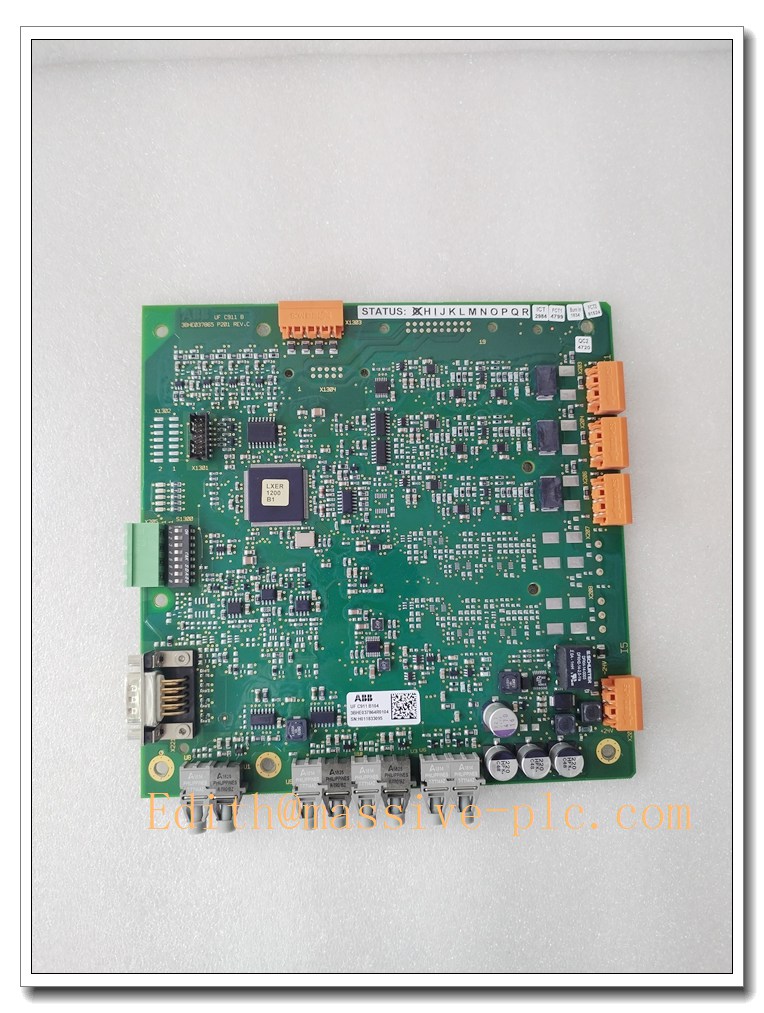

UFC911B104 3BHE037864R0104

Main Technical Specifications

• Model: UFC911B104, Order Code: 3BHE037864R0104
• Power Supply: 24VDC, operating range 18–30VDC
• Power Consumption: Max 16W
• Sampling Channels: 6 × AC voltage inputs, 6 × AC current inputs (PT/CT secondary signals)
• Sampling Rate: 20kHz synchronous high-speed sampling
• Measurement Accuracy: Voltage & current ±0.1%, frequency ±0.005Hz
• Communication Interface: Fiber optic high-speed bus to AC800PEC main controller
• Signal Isolation: Galvanic isolation between field CT/PT circuits and control electronics
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5%–95% RH, non-condensing
• Protection Class: IP20 (rack slot mounted)
• MTBF: ≥102,000 hours
• Mounting: Standard ABB rack plug-in module
• Dimension: 245 mm × 195 mm × 35 mm
• Net Weight: 1.45 kg
• Status Indicators: Power, Run, Fiber Link, Fault LED indicators

Recommended Homologous Series Models

• UFC911B103: Previous hardware revision, form-fit-function compatible replacement for older UNITROL6000 racks.
• UFC921B101: Enhanced multi-channel high-speed measurement board for large-capacity generator excitation systems.
• UFC092AE01: Compact signal interface module for small UNITROL5000 excitation systems.
• GFD563A101: Matching AC800PEC main processor unit working together with UFC911B104.

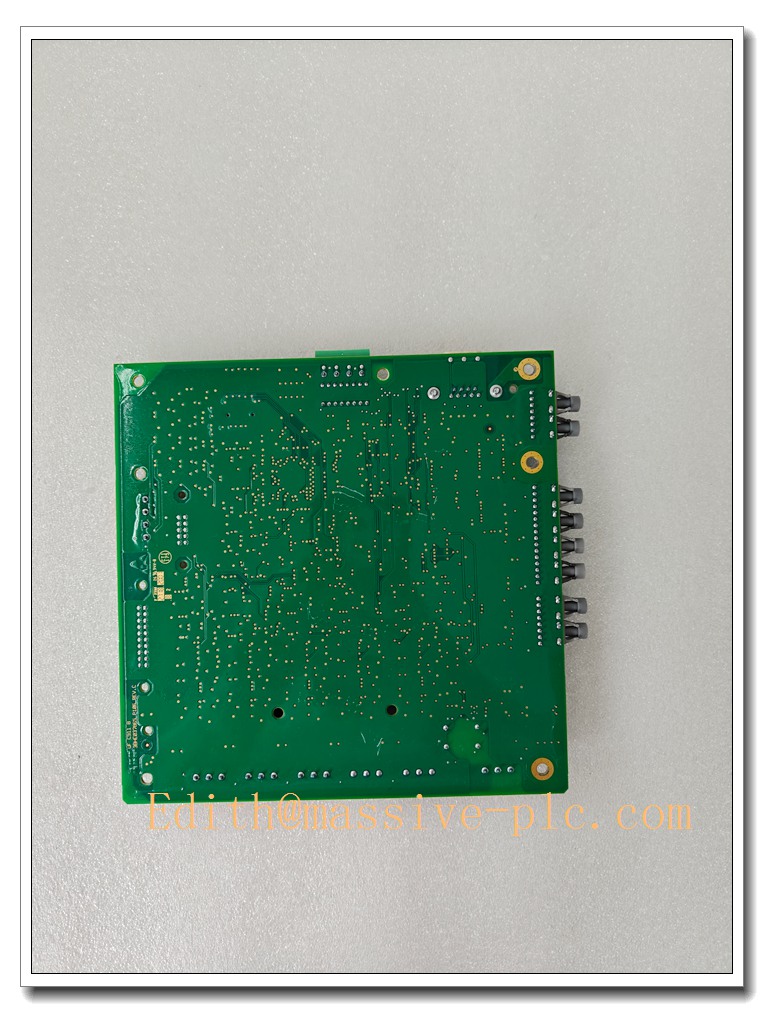

UFC911B104 3BHE037864R0104

Professional Quality Control & Test Standard Operating Procedures (SOP)

4.1 General Test Standard

All UFC911B104 modules are inspected complying with ISO9001, IEC61131 and IEC61000 EMC standards. Each unit carries unique serial number for full lifecycle traceability.

4.2 Core Test SOP

1. Visual & Mechanical Inspection: Inspect front panel, PCB, backplane edge connector, fiber port and analog terminal block for scratches, cracks, solder defects and bent pins; verify rack slot mechanical fit.
2. Power-On Basic Function Test: Apply minimum, rated and maximum 24VDC supply; validate power, run and fault LED behaviour; check no overcurrent, short-circuit or boot failure.
3. Analog Channel Calibration Test: Inject precision AC voltage and current signals to all PT/CT input terminals; verify sampling accuracy, amplitude and phase error for each channel.
4. Fiber Communication Test: Connect fiber link to AC800PEC controller; verify real-time measured data transmission, check frame loss and communication timeout.
5. EMC Immunity Test: ESD, EFT, surge and radiated interference test following IEC61000; ensure no measurement drift, data corruption or false fault alarms.
6. Temperature Cycling Test: 0°C ↔ +60°C thermal cycling for 40 cycles, 2 hours per cycle; validate sampling precision and fiber link stability.
7. Vibration & Shock Test: 10–150Hz sinusoidal vibration and mechanical shock test to verify solder joint and connector robustness for power plant cabinet vibration environment.
8. Continuous Burn-In Aging: 160 hours burn-in at 55°C with continuous analog signal input; monitor channel measurement stability to screen intermittent hidden faults.
9. Final Inspection & Packaging: Reset factory parameters, re-calibrate analog channels, record serial number, anti-static sealing with inspection certificate attached.

New Module Installation Guidelines

5.1 Pre-installation Preparation

Cut off rack backplane power and PT/CT secondary circuit power; confirm model and part number match purchase order; inspect anti-static packaging, terminals and fiber connector integrity. Wear anti-static wristband before touching PCB. Prepare screwdriver, torque screwdriver, shielded CT/PT cables and fiber patch cord.

Safety reminder: CT secondary circuit must never be open-circuited.

5.2 Installation Steps

1. Open target rack slot cover; align UFC911B104 with rack guide rails.
2. Slide module fully into slot until backplane connector is securely engaged.
3. Tighten front panel retaining screws to specified torque to prevent loosening under cabinet vibration.
4. Wire PT voltage and CT current secondary signals to analog terminals strictly following polarity mark.
5. Connect fiber optic cable between and GFD563A101 main controller, maintain minimum fiber bending radius.
6. Wire 24VDC power terminals, confirm polarity correct and no bare copper exposure. Separate PT/CT signal cables from high-power thyristor cables.

5.3 Post-installation Commissioning

Restore rack 24VDC control power, keep PT/CT in test state; energize module and observe LED indicators to confirm normal power and boot status. Connect engineering workstation to AC800PEC, read raw sampled values from . Perform static signal injection test to calibrate all voltage/current channels. Check fiber link synchronization between measurement module and main CPU. Run continuous 60-minute stability test; verify no channel drift or communication dropout before connecting live PT/CT circuits and putting online.

Application Scenarios & Product Features

6.1 Core Application Scenarios

• Thermal / hydro / gas turbine generator UNITROL6000 static excitation control system
• Generator voltage, current, power and reactive power high-speed measurement for excitation regulation
• Grid synchronizing signal acquisition for SYNCHROTACT synchronizing function
• Excitation system protection monitoring and disturbance recording signal collection
• Legacy UNITROL6000 excitation cabinet spare replacement and retrofit

6.2 Core Product Features

• High-speed multi-channel PT/CT signal measurement module for ABB UNITROL6000 excitation system
• Synchronous 20kHz sampling for high-precision AC electrical parameter capture
• Galvanic isolation for CT/PT secondary inputs, protecting control electronics from field surge
• Fiber-optic link to AC800PEC main controller, excellent noise immunity against cabinet EMI
• Built-in per-channel self-diagnosis, detect signal loss, over-range and circuit fault
• Rack plug-in hot-swap capable (within redundant configuration) for convenient maintenance
• High-grade EMC protection, stable measurement under strong electromagnetic interference in excitation cabinet

Frequently Asked Questions (FAQ)

Q1: Power LED remains off after rack installation A1: Verify rack 24VDC supply voltage and polarity; inspect loose backplane contact or damaged wiring; measure terminal voltage. If input voltage normal while LED stays off, replace the module.

Q2: Individual channel measurement reading is offset or drifting A2: Check PT/CT wiring polarity and terminal tightness; inspect secondary circuit grounding; re-run channel
