Name: TRICONEX DI2301 Digital Input Module - MASSIVE
Brand: Triconex

Description

TRICONEX DI2301 Digital Input Module Product Introduction

The TRICONEX DI2301 is a high-reliability TMR (Triple Modular Redundancy) digital input module designed for Triconex Tricon safety instrumented systems (SIS). As a core 16-channel discrete signal acquisition unit, it is engineered for safe, accurate and jitter-free monitoring of on-site digital status signals in high-risk industrial environments. Adopting triple redundant sampling architecture, full-channel diagnostics and industrial-grade anti-interference design, the DI2301 meets strict IEC 61508 SIL 3 safety requirements, delivering consistent and fail-safe digital input detection for ESD, F&G and process interlock safety loops.

Product Applications

The TRICONEX DI2301 is widely used in oil & gas, petrochemical, chemical processing, thermal power generation and other process industries that require high-integrity safety signal monitoring. It is commonly deployed in critical safety control systems for the following scenarios:

Emergency Shutdown (ESD) Loop Monitoring: Collects emergency stop button signals, valve position feedback, trip contact status and equipment shutdown conditions to provide reliable trigger sources for ESD safety logic judgment.
Fire & Gas (F&G) System Signal Acquisition: Receives flame detector, smoke detector and gas detector switch status signals, supporting hazard confirmation, alarm triggering and safety linkage responses.
Process Interlock Condition Detection: Monitors pump running status, fan operation feedback, valve open/close state and various interlock switch signals to ensure stable sequential control and process safety protection.
Plant Equipment Fault Monitoring: Captures discrete fault signals and abnormal status feedback of field electrical and mechanical equipment, realizing real-time equipment health monitoring and early fault alarming.
Medium-Scale SIS I/O Configuration: With 16-channel moderate density, it is ideal for compact safety cabinet layouts and small-to-medium scale safety systems requiring stable and low-jitter signal acquisition.

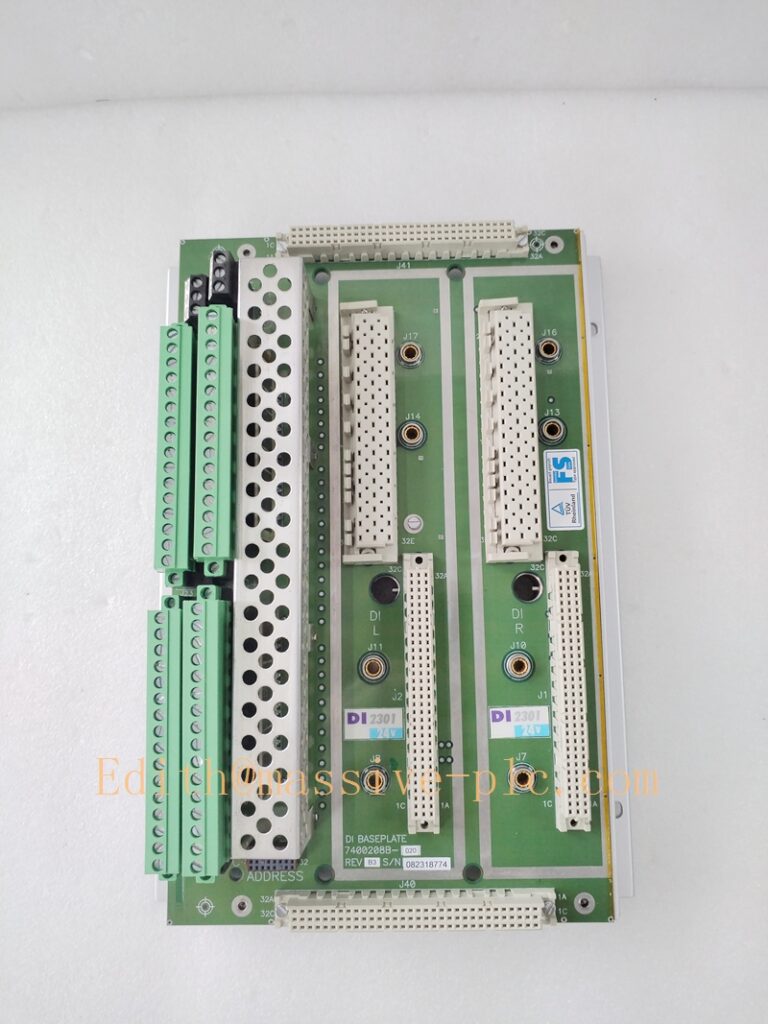

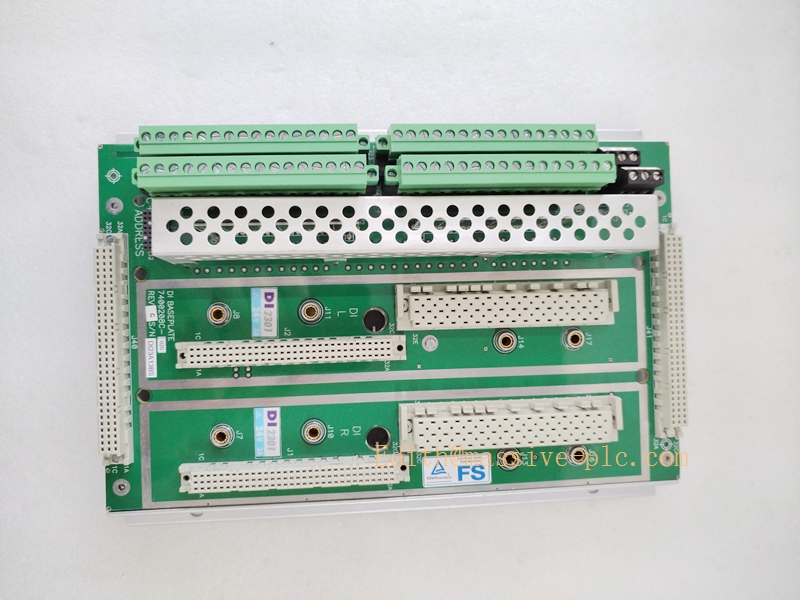

TRICONEX 2301

Technical Specifications & Parameters

The TRICONEX DI2301 features industrial-standard TMR triple redundant sampling, reliable voltage-level recognition and comprehensive on-loop diagnostics. It maintains outstanding signal stability and environmental adaptability to fully satisfy SIL 3 safety loop monitoring standards. Detailed parameters are shown below:

2.1 Electrical & Acquisition Parameters

Module Type: TMR triple redundant digital input module (DI)
Channel Density: 16 independent isolated digital input channels
Input Signal Type: 24VDC wet contact / dry contact discrete signals
Rated Input Voltage: 24VDC nominal industrial safety voltage
Logic High Level Range: 16VDC ~ 32VDC
Logic Low Level Range: 0VDC ~ 5VDC
Sampling Mechanism: Triple-channel synchronous sampling + 2-out-of-3 hardware voting
Signal Filtering: Built-in hardware anti-jitter filter to eliminate transient interference and false triggering
Channel Isolation: Independent channel-to-backplane galvanic isolation
Diagnostic Functions: Open circuit detection, abnormal voltage detection and voting fault diagnosis

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Environmental Compliance: Compliant with industrial EMC, vibration and shock resistance standards
Working Characteristics: Dust-proof, moisture-proof and anti-aging design for long-term continuous field operation

2.3 Mechanical & Certification Parameters

Installation Method: Standard Triconex TMR chassis slot mounting
Hot-Swap Support: Supports online module replacement without SIS system shutdown
System Compatibility: Fully compatible with Triconex TMR controllers, chassis and TriStation software
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

Core Product Features

3.1 TMR Triple Modular Redundancy Fault-Tolerant Architecture

The DI2301 adopts three fully independent signal acquisition channels with synchronous sampling and hardware 2-out-of-3 voting logic. In case of single-channel circuit failure, sampling deviation or transient electromagnetic interference, the faulty channel is automatically isolated and suppressed. The module outputs consistent and correct signal status based on valid channel consensus, completely eliminating single-point failure risks and ensuring zero misjudgment in safety loop monitoring.

3.2 Optimized 16-Channel Moderate Density Design

Equipped with 16 high-stability digital input channels, the provides balanced I/O density for medium-sized safety systems. Compared with high-density 32-channel modules, it features stronger single-channel stability, lower crosstalk interference and simpler fault location. It is highly suitable for key safety loops that prioritize stability over quantity, effectively optimizing cabinet space and wiring complexity.

3.3 Anti-Jitter & High-Stability Signal Recognition

Built-in hardware filtering and software debouncing mechanisms effectively suppress field pulse noise, voltage fluctuation and instantaneous interference. The module ensures stable and reliable identification of switch status, avoiding frequent signal flipping and logic misjudgment caused by complex on-site electromagnetic environments, and greatly improving the robustness of safety interlock logic.

3.4 Full-Channel Intelligent Self-Diagnosis

The supports per-channel real-time fault diagnosis, accurately detecting field line open circuit, abnormal input voltage, channel circuit failure and voting mismatch faults. All fault codes and channel status data are uploaded to the upper monitoring system in real time, enabling proactive fault early warning, precise positioning and rapid maintenance, significantly improving system operability and maintainability.

3.5 Strict Industrial Fail-Safe Mechanism

Following universal SIS fail-safe design criteria, the automatically enters a predefined safe state and outputs safe logic values upon module failure, communication interruption or voting inconsistency. This mechanism effectively prevents safety system misoperation caused by abnormal signal acquisition and guarantees maximum safety integrity of industrial process loops.

3.6 Zero-Downtime Hot-Swap Maintenance

The module supports online hot-swap replacement during system operation without shutting down the SIS system or affecting the normal monitoring of other safety loops. It realizes zero-downtime maintenance, reduces on-site operation risks and maintenance costs, and fully adapts to long-term uninterrupted operation requirements of process industry plants.

Similar Series Models

Triconex 2000/3000 series digital input modules cover various channel densities and performance versions for different SIS configuration demands. The mainstream matching and alternative models of TRICONEX are listed below:

TRICONEX DI3301S2 / 3301: 32-channel high-density digital input modules, used for large-scale I/O intensive safety systems.
TRICONEX 3625A: 32-channel digital output module, forming complete input-output safety loops with .
TRICONEX 3723X: High-precision analog input module, cooperating with for mixed signal safety monitoring.
TRICONEX 3009X / MP6004 / 3101: TMR main processor modules, processing discrete input data for safety logic judgment.
TRICONEX 4355X: Multi-protocol communication module, uploading channel status and fault information remotely.
TRICONEX PM6301A: Industrial power supply module, providing stable purified power for continuous operation.

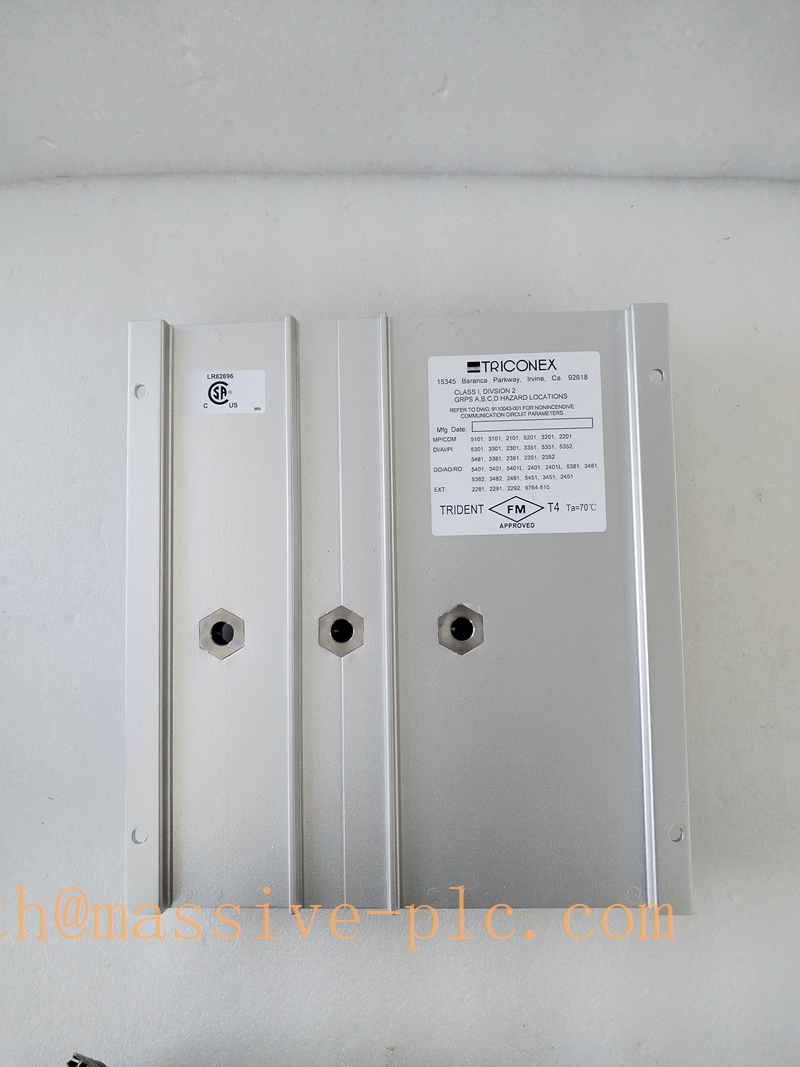

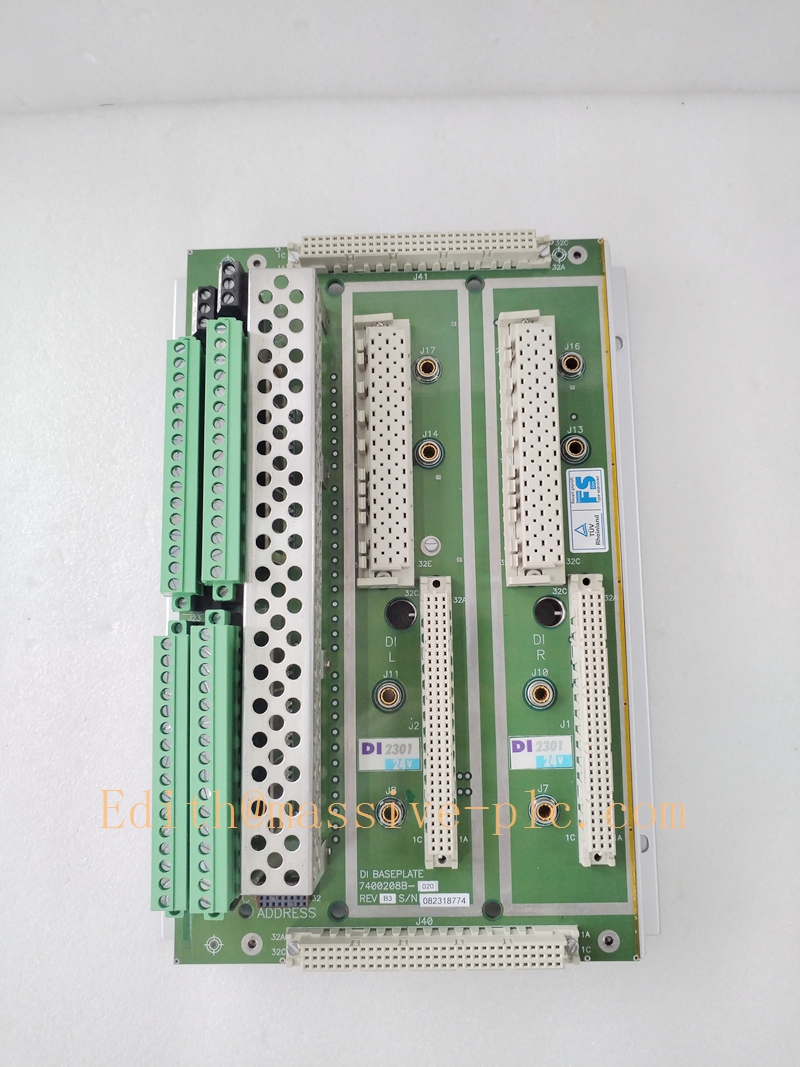

TRICONEX 2301

Product Summary

The TRICONEX is a SIL 3-grade TMR digital input module with 16-channel moderate density and ultra-high stability. Featuring triple modular redundant fault-tolerant architecture, anti-jitter signal acquisition, full-channel diagnosis and fail-safe protection, it provides highly reliable discrete signal monitoring solutions for ESD, F&G and process interlock safety loops. With outstanding operational stability and convenient maintenance performance, the is widely applied in medium and key safety control units of global high-risk process industries.
