TRICONEX ACM4609 Advanced Communication Module (4609)

The TRICONEX ACM4609 (Model 4609) is a high-reliability dedicated Advanced Communication Module (ACM) designed exclusively for Triconex Tricon and 9000 series Safety Instrumented Systems (SIS). Serving as a professional Foxboro I/A Series Nodebus gateway interface, this module enables seamless, high-speed data interconnection between Tricon SIS safety systems and Foxboro I/A DCS distributed control platforms. Adopting industrial-grade isolated serial communication design, complete protocol adaptation and hot-standby redundancy support, the ACM4609 fully complies with IEC 61508 SIL 3 functional safety standards. It provides stable, real-time and bidirectional data interaction, alarm propagation and system synchronous transmission services for integrated safety and control system architectures in high-risk industrial environments.

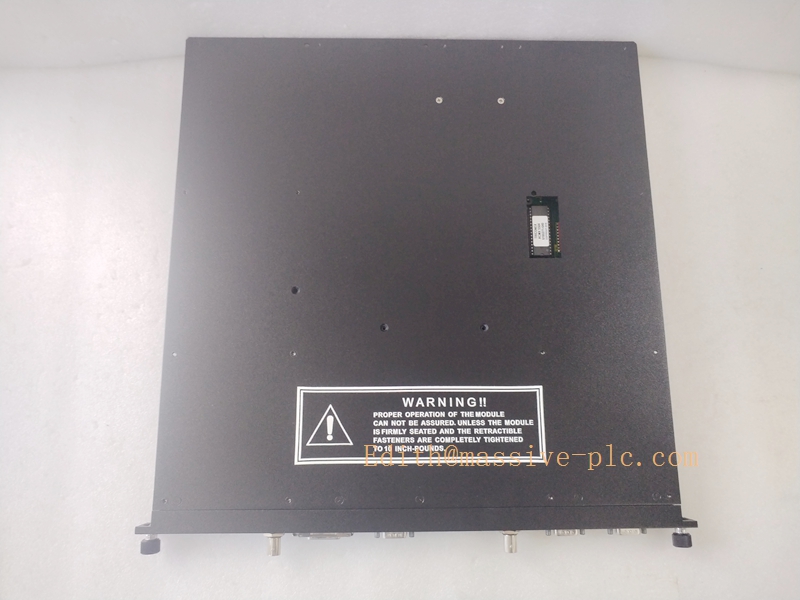

TRICONEX 4609

Product Applications

The TRICONEX ACM4609 is specially deployed in industrial projects adopting Foxboro I/A Series DCS + Tricon SIS integrated control architecture, widely covering oil & gas, offshore platforms, large-scale petrochemical, coal chemical, thermal power and energy process industries. As the exclusive core communication bridge for Foxboro system docking, its typical application scenarios are as follows:

SIS & Foxboro DCS Integrated Networking: Acts as a dedicated Nodebus interface node for Foxboro I/A systems, enabling Tricon SIS to be identified as a standard safety node on the I/A network, realizing seamless integration of safety system and main control system data.
Real-Time Safety Data Uploading: Transmits SIS system interlock status, ESD trip records, F&G alarm information, equipment fault signals and system operating variables to Foxboro operator workstations in real time, supporting unified monitoring and centralized management.
Bidirectional Data Interaction & Remote Control: Supports read-write transmission of SIS alias data, remote reset commands and parameter interaction, realizing coordinated logic judgment and linkage control between DCS main control and SIS safety protection.
Cross-System Alarm Synchronization & Propagation: Automatically synchronizes SIS safety alarms, fault diagnosis information and event logs to the Foxboro I/A alarm database, ensuring consistent alarm display, unified event tracing and standardized accident analysis.
System Time Synchronization & Data Consistency: Supports I/A Series system clock synchronization function, unifying the time stamp of SIS safety data and DCS control data, eliminating time deviation errors and ensuring the authenticity and traceability of whole-process operating data.
Redundant Hot-Standby Communication Scenarios: Adapts to high-availability system operation requirements, supports communication link hot-standby switching, ensuring zero interruption of cross-system data transmission during single-module or single-link failure.

Technical Specifications & Parameters

The TRICONEX ACM4609 adopts professional Foxboro Nodebus dedicated communication architecture, industrial serial signal processing circuit and full-link fault monitoring mechanism. Featuring exclusive protocol adaptation, wide baud rate adaptability, low power consumption and high anti-interference performance, it fully meets SIL 3 high-standard cross-system safety communication requirements. Detailed specifications are listed below:

2.1 Electrical & Communication Parameters

Module Type: Advanced Communication Module (ACM), Dedicated Foxboro I/A Nodebus Interface
Compatible System: Tricon Classic Series / Triconex 9000 Series SIS Platforms
Docking Object: Foxboro I/A Series DCS Control System
Hardware Interface: Dual RS-232 serial communication ports
Baud Rate Options: Configurable 1200 / 2400 / 9600 / 19200 bps
Max Data Transfer Rate: 19.2 kbps high-speed stable transmission
Error Detection Mechanism: Built-in CRC-16 cyclic redundancy check for error-free data transmission
Power Consumption: Ultra-low power consumption ≤ 2W, low heat generation for long-term operation
Core Functions: Nodebus protocol adaptation, data aliasing transmission, alarm propagation, time synchronization, hot standby redundancy
Data Processing: Supports SIS system variable upload, DCS remote command download and diagnostic data readback
Diagnostic Items: Communication timeout, data frame error, link interruption, protocol mismatch and port abnormality detection
Backplane Bus: High-speed dedicated TriBus safety bus for low-delay system data interaction

2.2 Environmental Parameters

Operating Temperature: -40°C to +70°C industrial wide temperature range
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Anti-Interference Performance: Compliant with IEC industrial EMC electromagnetic immunity, vibration and mechanical shock resistance standards
Working Adaptability: Industrial dust-proof, moisture-proof and anti-aging reinforced design, suitable for long-term uninterrupted communication operation in harsh chemical and offshore environments

2.3 Mechanical & Certification Parameters

Installation Method: Standard slot mounting for Tricon series chassis with anti-misplug mechanical key
Hot-Swap Support: Supports online module replacement without SIS system shutdown or communication interruption
System Compatibility: Fully compatible with Tricon main processors, 9000 series platforms and TriStation configuration software
Safety Certification: IEC 61508 SIL 3 certified, TÜV, CE, UL, ATEX compliant
Design Service Life: More than 10 years under standard industrial operating conditions

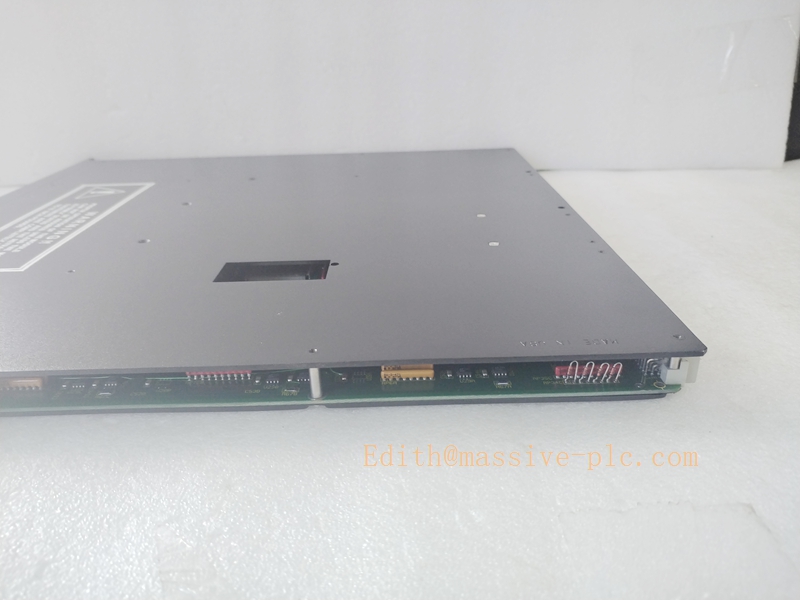

TRICONEX 4609

Core Product Features

3.1 Exclusive Foxboro I/A Nodebus Protocol Adaptation

The ACM4609 is a dedicated gateway module tailored for Foxboro I/A Series DCS systems. It can simulate standard I/A safety nodes to access Nodebus network, realizing zero-barrier docking between Tricon SIS and Foxboro main control system. The built-in exclusive protocol parsing algorithm automatically adapts I/A data format, realizing seamless conversion and transparent transmission of SIS safety data, solving the problem of incompatible communication protocols between different brand control systems.

3.2 Full-Function Bidirectional Data Interaction

The module supports comprehensive data interaction functions including SIS alias variable upload, real-time alarm propagation, system diagnostic data readback, DCS remote command download and cross-system time synchronization. It covers all business demands of daily monitoring, safety interlock linkage, fault query and system maintenance, realizing unified data management and collaborative control of DCS and SIS, and improving the overall automation and safety management level of the plant.

3.3 Hot-Standby Redundant Communication Reliability

Supporting communication link hot-standby switching mechanism, the can automatically complete redundant switching in case of single-port failure, cable damage or data transmission abnormality. The whole switching process is non-intrusive without data loss or communication interruption, ensuring 7×24h ultra-high availability of cross-system communication links, fully adapting to long-term uninterrupted production requirements of high-risk process industries.

3.4 CRC-16 Error Correction & Stable Transmission

Equipped with professional CRC-16 data error detection and correction mechanism, the module performs real-time verification of each frame of transmission data. It automatically identifies and discards error data, retransmits abnormal frames, and effectively avoids data distortion, packet loss and signal disorder caused by on-site electromagnetic interference. The multi-level data protection mechanism ensures the accuracy and consistency of safety data transmission.

3.5 Intelligent Communication Fault Diagnosis

The supports full-state intelligent diagnosis of communication links, accurately locating common faults such as port failure, baud rate mismatch, protocol abnormality, transmission timeout and network disconnection. All fault information is uploaded to the upper monitoring system in real time, realizing proactive early warning and rapid troubleshooting, effectively avoiding hidden safety risks caused by abnormal cross-system communication.

3.6 Zero-Downtime Hot-Swap Maintenance

Supports online hot-swap replacement during normal SIS system operation without shutting down the safety system or interrupting cross-system data communication. The mechanical anti-misplug structure prevents installation errors, realizing zero-downtime maintenance, reducing on-site construction risks and system operation and maintenance costs, and ensuring continuous and stable operation of integrated control and safety systems.

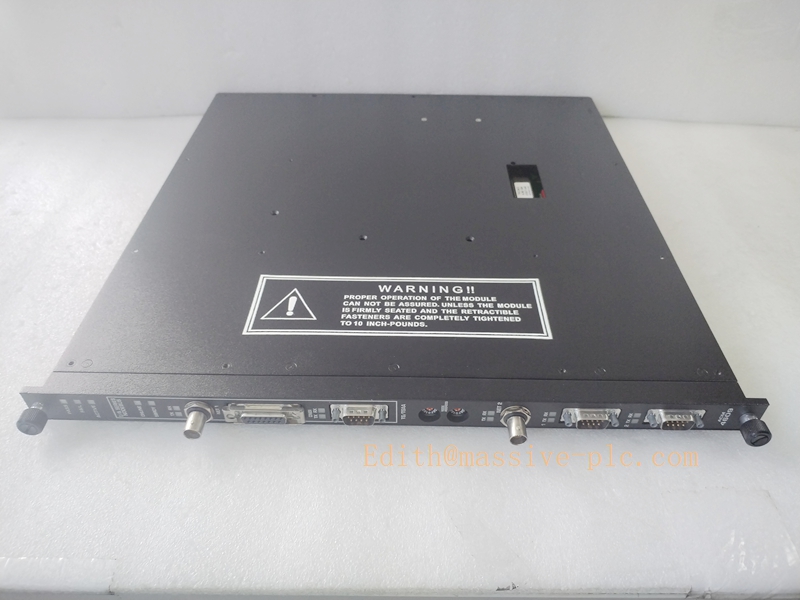

TRICONEX 4609

Similar Series Models & Matching Modules

Triconex dedicated communication module series provides targeted docking solutions for different brand DCS systems. The mainstream matching and alternative models of are as follows:

TRICONEX 4509 HIM: Honeywell dedicated Hiway interface module, for docking with Honeywell DCS systems.
TRICONEX 5351: Enhanced universal serial communication module, for conventional Modbus protocol data interaction.
TRICONEX 4355X: Ethernet communication module, for high-speed network remote data transmission scenarios.
TRICONEX 3503C1 / 3703E: Analog input modules, providing process safety data for cross-system uploading.
TRICONEX 3601E / 3625A: Digital output modules, executing DCS remote linkage commands via transmission.
TRICONEX 3009X / MP6004: TMR main processors, coordinating with to realize cross-system safety data operation and transmission.

Product Summary

The TRICONEX (4609) is a SIL 3-grade dedicated advanced communication module for Tricon SIS and Foxboro I/A DCS system integration. Featuring exclusive Nodebus protocol adaptation, full-function bidirectional data interaction, hot-standby redundant transmission, CRC-16 error correction and intelligent link diagnosis, it solves the core pain point of difficult interconnection between Tricon safety system and Foxboro main control system. As the only professional communication gateway for Foxboro I/A series system docking, it provides ultra-reliable cross-system data transmission and linkage guarantee for large petrochemical and power integrated control projects, and is widely applied in global high-risk industrial integrated safety control scenarios.
