TRICONEX 8310 Power Module: Full Technical Introduction
The TRICONEX 8310 is a high-reliability 120 VAC/VDC redundant power module, purpose-built for Schneider Electric’s TRICONEX Tricon Safety Instrumented Systems (SIS). As the core power supply unit for Tricon safety controllers, it converts incoming line power to stable DC power for all system modules, delivering uninterrupted power delivery for safety-critical operations in high-risk industrial environments.

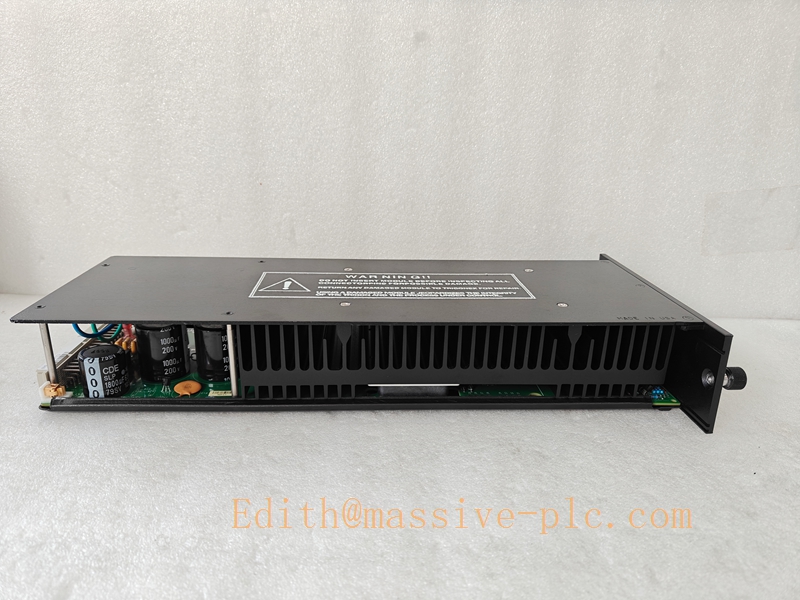

TRICONEX 8310
Core Product Specifications
| Specification Item | Technical Details |
|---|---|
| Manufacturer | TRICONEX (Schneider Electric, formerly Invensys) |
| Product Category | Redundant SIS Power Supply Module |
| Compatible Chassis Types | Main Chassis, Expansion Chassis, RXM Chassis |
| Nominal Input Voltage | 120 VAC / 120 VDC |
| Input Voltage Operating Range | 85–140 VAC / 95–180 VDC |
| Rated Output Power | 175 W (at 60°C ambient temperature) |
| Minimum Required Incoming Power Rating | 240 W per individual module |
| Output Voltage | 6.5 VDC, with ±1% full-load accuracy |
| Maximum Output Current | 27 A (at 60°C ambient temperature) |
| Fuse Rating & Type | 5 A time-delay fuse |
| Output Hold-Up Time | Minimum 20 ms |
| Isolation Rating | >1000 VAC or 1500 VDC between input and output |
| Over-Temperature Trip Threshold | 83°C (typically triggered at 60°C ambient) |
| Operating Frequency | 50/60 Hz |
| Net Weight | Approximately 2.0–5.1 kg |
| Functional Safety Rating | SIL3 compliant for safety-critical loop deployment |
| Warranty Period | 12-month manufacturer warranty |
Key Design Features
- Dual Redundancy Architecture: Each Tricon chassis is factory-configured with two 8310 power modules. A single module can independently support the full rated load of the entire system, ensuring zero downtime power delivery even if one unit fails completely.
- Multi-Layer Safety Protection: The input terminals are fitted with a safety protective cover, and the module integrates built-in over-temperature sensors and hardwired alarm contacts to immediately alert operators to power anomalies.
- Full-Status Diagnostic Indication: Four dedicated front-panel LEDs (PASS, FAULT, ALARM, TEMP) provide at-a-glance visibility into module health, enabling operators to identify issues without accessing the system engineering software.
- Hot-Swap Capability: The module supports online replacement without shutting down the entire safety system, drastically reducing planned maintenance downtime for continuous-process industrial facilities.
- Industrial-Grade EMI Resistance: Reinforced galvanic isolation design protects against complex electromagnetic interference in harsh field environments, ensuring stable operation even in high-noise industrial sites.
Typical Industrial Applications
The 8310 power module serves as the dedicated power backbone for safety-critical control systems, with widespread deployment across global high-risk industries:
- Oil & Gas Refineries: Powers Emergency Shutdown (ESD) systems, Burner Management Systems (BMS) and Fire & Gas (F&G) detection and suppression loops
- Power Generation Facilities: Delivers reliable power for boiler safety protection, turbine interlock control and substation safety protection systems
- Offshore Oil & Gas Platforms: Supports continuous operation of safety instrumented systems in corrosive, high-vibration offshore environments
- Chemical & Petrochemical Plants: Provides uninterrupted power for hazardous chemical production safety control and reactor overpressure protection systems
- Critical Infrastructure: Compatible with all TRICONEX Tricon v9, v10 and v11 series safety controllers as a certified power supply unit
Installation Guidelines
- Slot Placement: Mount the 8310 module in the dedicated left-side power slot of the Tricon chassis. The system grounding terminals, incoming power terminals and hardwired alarm terminals are all located in the lower-left corner of the backplane.
- Wiring Specifications: The input terminals accept 12-gauge industrial-grade cables. After wiring is completed, the safety protective cover must be fully secured to eliminate accidental electric shock risks.
- Grounding Requirements: Ensure the system chassis is connected to a dedicated safety grounding grid with resistance below 4 ohms, to prevent ground loop interference that may disrupt power stability.
- Pre-Commissioning Check: Verify that the incoming power meets the 85–140 VAC / 95–180 VDC operating range before powering on the system, and confirm both redundant modules are energized and show a steady “PASS” LED status.
TRICONEX 8310
Maintenance & Troubleshooting
- Routine Inspection: Conduct quarterly checks to verify front-panel LED status, terminal screw tightness and chassis ventilation conditions, to prevent long-term operation at ambient temperatures exceeding 60°C.
- Alarm Response: The hardwired alarm contacts will trigger automatically under the following conditions: missing module, hardware configuration mismatch, internal module fault, main power loss or over-temperature pre-alarm. Operators can quickly locate the root cause via the corresponding front-panel LED.
- Fault Replacement: When a module fault is confirmed, perform hot-swap replacement following the site’s Lockout/Tagout (LOTO) safety procedures. No system shutdown is required if the redundant module is operating normally.
- Repair Notes: Field disassembly of the 8310 module will void its SIL3 functional safety certification. All faulty units must be returned to TRICONEX authorized service centers for component-level certified maintenance.
Related Tricon Series Power Modules
The 8310 belongs to TRICONEX’s 175W high-reliability power supply family, with peer models tailored for different industrial power supply scenarios:
- TRICONEX 8311: 24 VDC input 175 W power module, designed for low-voltage DC industrial power supply environments
- TRICONEX 8312: 230 VAC input 175 W power module, optimized for high-voltage AC power supply conditions commonly found in large-scale process plants
