TRICONEX 5211S2 (CIM3211S2+2211) Communication Terminal Assembly

Description

TRICONEX 5211S2 (CIM3211S2+2211) Communication Terminal Assembly Product Introduction

Product Overview

The TRICONEX 5211S2 is a complete integrated safety-grade communication terminal assembly consisting of two core components: the CIM3211S2 Communication Integration Module and the supporting 2211 Terminal Base Unit. Tailored exclusively for Tricon and Trident Triple Modular Redundancy (TMR) Safety Instrumented Systems (SIS), this assembled unit serves as a dedicated high-speed, secure external communication gateway and terminal conversion interface. It realizes bidirectional deterministic data exchange between Tricon SIS core controllers and external DCS, HMI, SCADA and third-party industrial control systems, providing isolated, stable and safety-compliant protocol docking and signal terminal conversion.

Adopting Tricon standard TMR-compatible safety communication architecture and industrial-grade isolation circuit design, the 5211S2 assembly integrates core protocol processing, data encryption transmission and field terminal wiring functions in one package. The CIM3211S2 core module undertakes high-speed communication data processing and protocol conversion, while the matched 2211 terminal base provides standardized signal termination, circuit isolation and physical wiring expansion. Fully compliant with IEC 61508 SIL 3 functional safety standards and TÜV safety certification, it supports online hot-swap maintenance, G3 harsh environment operation and 24/7 uninterrupted safe communication transmission. Widely deployed in petrochemical, natural gas, thermal power and coal chemical industries, it is a mainstream integrated communication terminal solution for standard SIS system external data interaction.

Same-Series Model Classification & Peer Models

The TRICONEX 5211S2 belongs to the Tricon Integrated Communication Terminal Assembly Series, positioned as a complete plug-and-play communication solution combining core communication module and terminal base, forming clear functional differentiation with single communication modules and ordinary terminal units:

2.1 Product Positioning: Integrated SIL3-grade safety communication terminal assembly, integrating communication processing and terminal wiring functions. It is specially designed for standard SIS system cross-system data docking scenarios, eliminating the matching trouble of separate module and base selection, and providing one-stop stable communication and terminal conversion services for industrial safety systems.

2.2 Same-Series Typical Peer & Matching Models

2700 TCM Communication Module: Independent multi-port extended communication module; the 5211S2 is an integrated assembly with dedicated terminal base, featuring higher integration and simpler on-site wiring.

3006 Core Bus Communication Module: Internal system bus data synchronization module; the 5211S2 is dedicated to external cross-system protocol communication and terminal signal conversion.

CIM3211S2 Single Module: Independent communication core processing unit without terminal base; the 5211S2 complete assembly supports direct field wiring and rapid deployment.

3003/3008 Main Processor Modules: System core control units; the 5211S2 receives processor data and forwards it to external industrial systems safely and stably.

2058 System Power Supply Module: Provides stable isolated power for communication data processing and terminal circuit operation of the 5211S2 assembly.

8110/8111/8112 Chassis Series: Standard Tricon rack chassis; the 5211S2 supports standard slot installation and unified cabinet wiring layout.

2.3 System Compatibility: Fully compatible with classic Tricon TMR racks and Trident SIS safety systems. It supports communication protocol configuration, data address mapping, link debugging and real-time status monitoring via TriStation 1131 software. Suitable for new project integrated communication deployment and old system communication terminal renovation, realizing plug-and-play rapid installation and stable long-term communication operation.

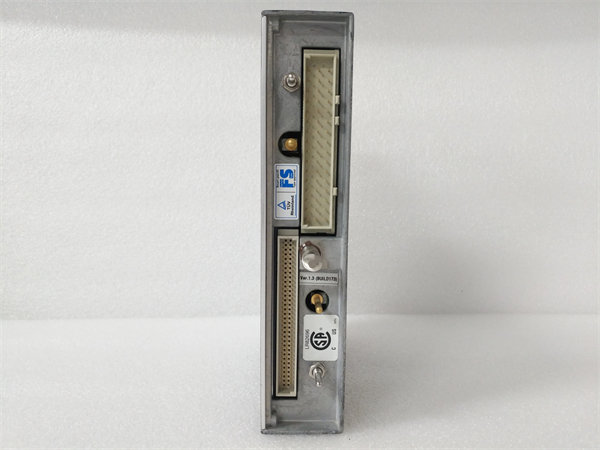

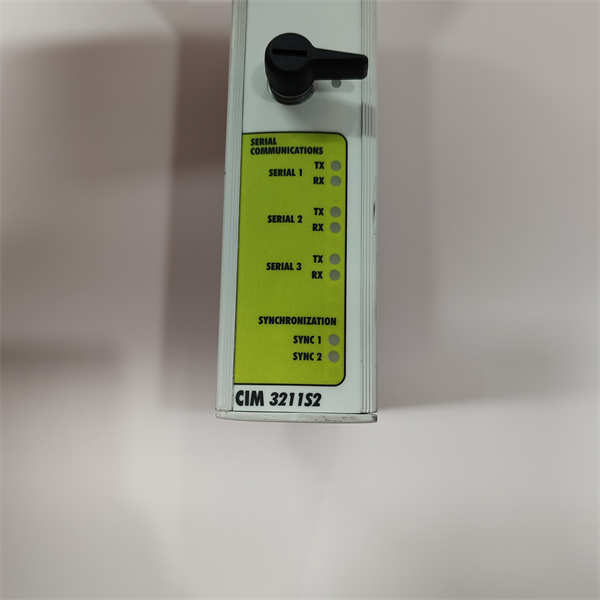

TRICONEX 3211

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 Multi-Protocol Industrial Communication Conversion

The integrated 5211S2 assembly relies on the high-performance processing core of CIM3211S2 to support mainstream industrial communication protocols including Modbus TCP, Modbus RTU and Ethernet/IP. It realizes intelligent protocol conversion and transparent data transmission between Tricon SIS safety systems and external DCS, HMI and SCADA platforms. It can adapt to different brand control system docking standards, solve cross-platform communication compatibility problems, and ensure standardized and unified data interaction of safety system operation parameters, alarm information and interlock status data.

4.2 Safety-Isolated Bidirectional Data Transmission

Cooperated by the processing module and 2211 terminal base isolation circuit, the 5211S2 achieves complete physical isolation between the SIS internal safety bus and external non-safety industrial network. It supports bidirectional stable data transmission: uploading real-time safety loop status, process monitoring data and fault logs to upper monitoring systems, and receiving remote parameter query and inspection instructions from external platforms. The isolation design effectively blocks external network interference, virus penetration and signal clutter, ensuring zero impact on internal TMR safety logic.

4.3 High-Speed Data Processing & Synchronization

Equipped with a 333MHz high-speed PowerPC processor and large-capacity flash memory, the 5211S2 features efficient data computing and caching capabilities. It realizes low-delay real-time synchronization of massive safety data, ensures consistent refreshing of on-site process parameters and safety status information, and avoids data lag, packet loss and synchronization errors. It meets the high real-time monitoring requirements of industrial centralized control platforms and provides accurate data support for remote safety management and production scheduling.

4.4 Full-Link Communication Fault Self-Diagnosis & Alarm

The assembly supports full-coverage self-diagnosis of communication links, protocol matching status, port operating conditions and terminal circuit health. It can accurately identify common faults such as communication timeout, protocol mismatch, link disconnection, data verification error and terminal circuit abnormality. It automatically generates standard fault codes and operation logs, synchronizes alarm information to the main processor and upper computer, helps maintenance personnel quickly locate communication faults, and reduces the risk of system data interruption.

4.5 Integrated Terminal Wiring & On-Site Rapid Deployment

Different from single communication modules that require separate terminal accessories, the 5211S2 integrated assembly adopts a matched + 2211 base integrated structure. The terminal base provides standardized signal termination, circuit shunting and wiring expansion functions, which simplifies on-site cabinet wiring layout, reduces wiring errors, and improves system integration efficiency. It supports one-step installation and rapid commissioning, greatly shortening project deployment cycle.

4.6 Zero-Downtime Online Maintenance

Consistent with Tricon series unified industrial design standards, the 5211S2 supports full online hot-swap function. Module replacement, protocol parameter modification, communication link debugging and terminal circuit maintenance can be completed during normal system and production operation. The maintenance process will not interrupt system safety logic operation and data transmission, realizing 24/7 uninterrupted stable communication of SIS systems.

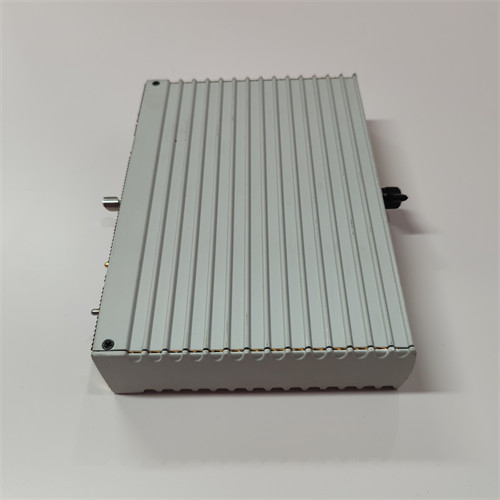

TRICONEX 3211

Core Product Features

5.1 Integrated Assembly Design & High Integration

The 5211S2 integrates core communication processing module and dedicated terminal base into one complete assembly, avoiding the problem of mismatched accessories and troublesome selection of separate modules. The highly integrated structure optimizes cabinet space occupation, simplifies system wiring and debugging procedures, and significantly improves on-site construction and operation and maintenance efficiency compared with discrete communication modules.

5.2 Multi-Protocol Adaptive Compatibility

Supporting multiple mainstream industrial Ethernet and serial communication protocols, the 5211S2 has strong cross-system docking adaptability. It can flexibly adapt to different brand DCS and monitoring platform communication standards, no need for additional protocol conversion accessories, realizing one-stop communication docking for SIS systems, and has wide applicability in new construction and renovation projects.

5.3 Safety Isolation & High System Security

With dual isolation protection of internal chip circuit and 2211 terminal base physical circuit, the 5211S2 strictly isolates safety-level internal bus and non-safety external network. It completely prevents external network abnormalities, electromagnetic interference and invalid data from affecting SIS core safety logic and voting results, ensuring the absolute independence and safety of the safety instrumented system.

5.4 High-Speed Low-Delay Data Transmission

Relying on high-frequency industrial processor and optimized communication scheduling algorithm, the 5211S2 realizes high-speed and low-delay bidirectional data transmission. The 100Mbps Ethernet and adaptive serial communication rate ensure real-time and accurate uploading of safety alarm data, process parameters and equipment status, meeting the high real-time requirements of industrial remote monitoring and centralized scheduling.

5.5 Comprehensive Fault Diagnosis & High Maintainability

Full-link and full-function self-diagnosis capability covers communication processing, protocol operation, port status and terminal circuit links. It can pre-judge potential hidden faults in advance, realize precise fault location through standard fault codes, greatly shorten troubleshooting time, reduce daily maintenance pressure, and improve the intelligent operation and maintenance level of SIS system communication links.

5.6 G3 Harsh Environment Adaptability & High Stability

Adopting industrial-grade anti-aging, vibration-resistant and wide-temperature resistant components, the 5211S2 assembly passes strict G3-level harsh environment tests. It operates stably in -40℃~+70℃ ultra-wide temperature range and high-humidity non-condensing environment, adapting to long-term uninterrupted communication operation of chemical workshops, power plant sites and outdoor industrial control cabinets.

Industrial Application Scenarios

The TRICONEX 5211S2 integrated communication terminal assembly is widely used in SIL3-level high-risk industrial Safety Instrumented Systems (SIS), focusing on cross-system communication docking, safety data uploading and remote monitoring scenarios, covering petrochemical refining, natural gas gathering and transportation, thermal power generation and coal chemical industries.

Typical application scenarios include: bidirectional data communication and remote monitoring docking between petrochemical plant ESD safety systems and central control DCS systems; real-time data uploading and protocol conversion for natural gas compressor station and pipeline SIS safety systems; safety system network isolation and stable data transmission for thermal power unit boiler and turbine protection systems; multi-platform communication expansion and intelligent monitoring data interaction for FGS fire and gas safety systems; communication function upgrading and integrated wiring optimization for old industrial SIS renovation projects. It provides high-integration, high-safety and high-stability one-stop communication guarantee for industrial high-risk safety instrumented systems.
