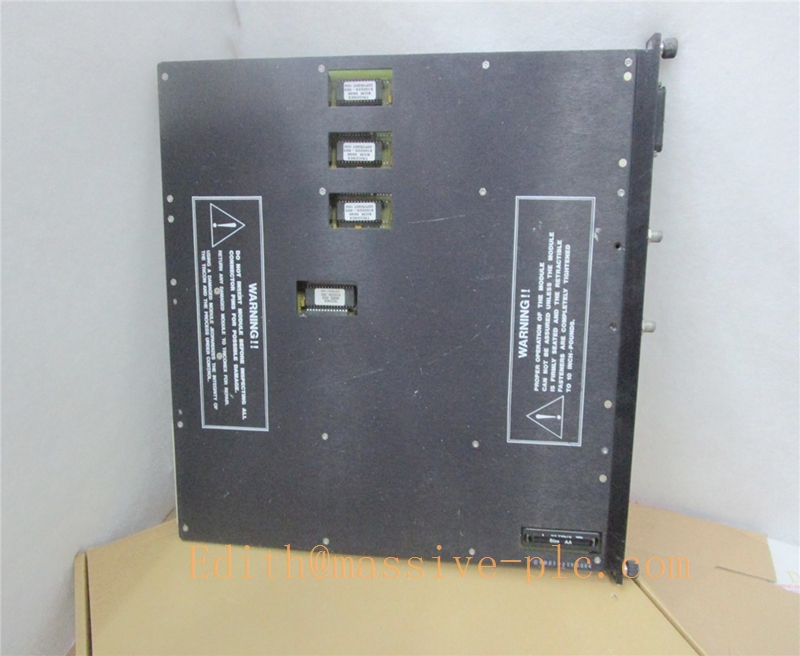

TRICONEX 4400
- Application: High-speed counter module for pulse signal acquisition in motion control scenarios, used in turbine speed measurement, flow meter pulse counting and encoder position tracking.
- Specifications: 4 independent high-speed counter channels, maximum input frequency up to 1MHz, supports quadrature encoder signal input.

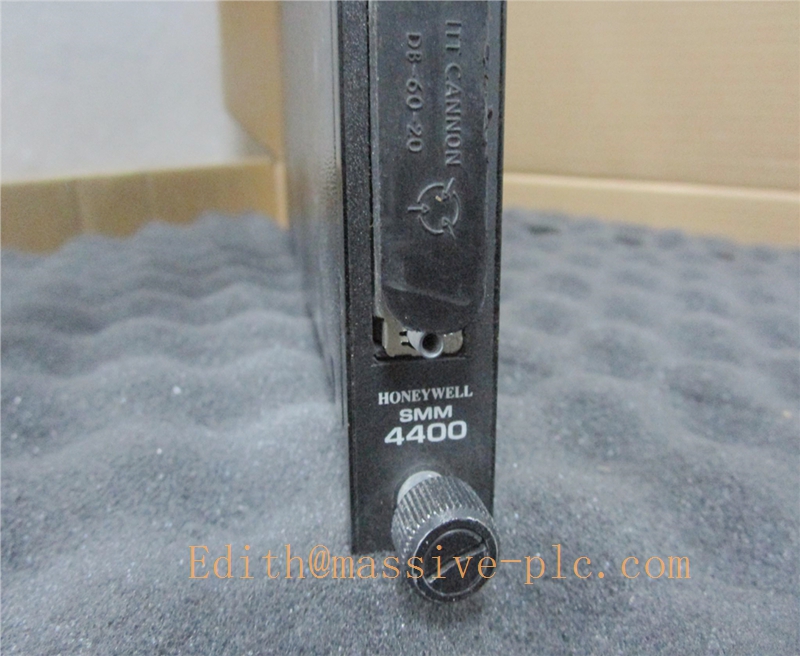

TRICONEX 4400
- Parameters: Counting resolution of 1 pulse, pulse input amplitude from 5V to 24V, position update latency less than 1ms.
- Features: Hardware-based counting without CPU occupation, built-in pulse signal filtering, supports preset count trigger output function.
- Maintenance: Verify counting accuracy with signal generator every 6 months, check encoder cable shielding integrity quarterly, reset counter overflow during scheduled maintenance.
- Installation: Connect pulse input signals with shielded twisted pair cables, separate from power cables by at least 20cm, configure counting parameters via the system engineering software before operation.
- Related Series Models: 4400-8 8-channel counter version, 4400-S safety-certified variant, 4400-H high-frequency 5MHz model.
