TRICONEX 4210 Fiber Optic Remote Extender Module Product Introduction

Product Overview

The TRICONEX 4210 is a high-reliability Primary Fiber Optic Remote Extender Module (RXM) designed exclusively for Tricon and Trident TMR Safety Instrumented Systems (SIS). As the core optical fiber communication expansion unit for long-distance safety I/O bus extension, it acts as the bridge between the main control chassis and remote expansion chassis. The module extends the system’s internal fault-tolerant I/O bus to distributed field racks via single-mode fiber optics, breaking the distance limitation of traditional backplane parallel bus transmission and realizing long-span distributed deployment of safety control systems.

Adopting triple modular redundancy compatible communication architecture and industrial-grade optical signal transmission technology, the 4210 fully matches the 2oo3 fault-tolerant logic of Tricon SIS systems. It supports ultra-long-distance stable signal transmission, redundant optical link switching and full-link real-time diagnosis. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, it features strong anti-electromagnetic interference capability, zero signal attenuation distortion and 24/7 uninterrupted operation. Widely applied in large chemical parks, long-distance pipelines and offshore platforms, it is the core communication guarantee for large-scale distributed SIS safety systems.

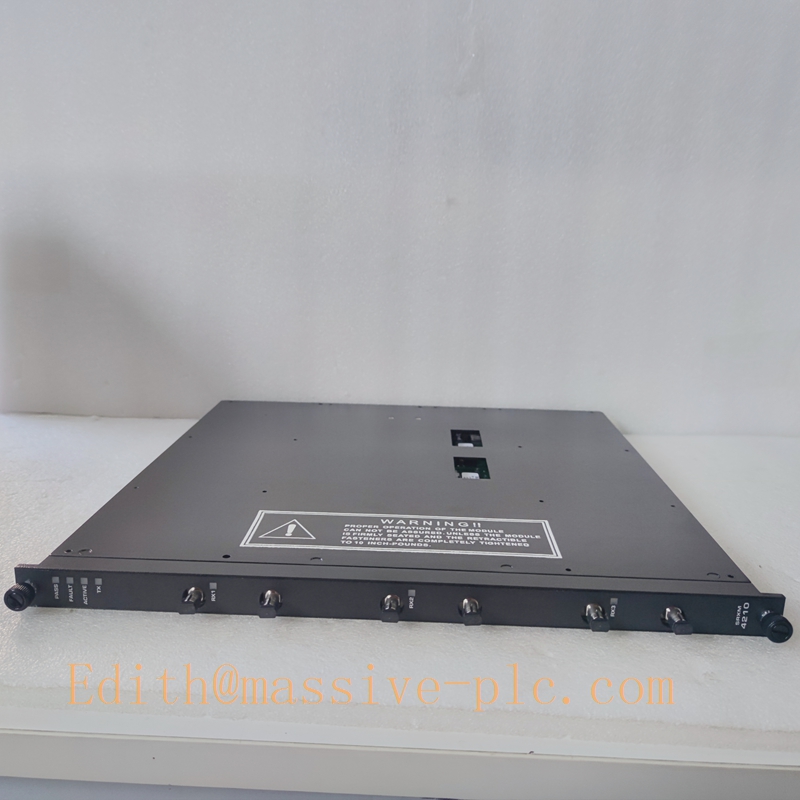

TRICONEX 4210

Same-Series Model Classification & Peer Models

The TRICONEX 4210 belongs to the Tricon 42xx Optical Communication Expansion Series, positioned as a primary long-distance fiber optic remote extender module, forming a complete remote expansion communication system with chassis and auxiliary optical modules, with distinct market differentiation advantages:

2.1 Product Positioning: Primary remote bus extender module based on single-mode fiber transmission, dedicated for long-distance interconnection between main chassis and remote expansion chassis. It undertakes full-link fault-tolerant data transmission of remote I/O signals, supporting ultra-long-distance distributed system layout for large-scale industrial sites.

2.2 Same-Series Typical Peer & Matching Models

4200 Optical Module: Short-distance multi-mode optical communication module, limited transmission distance, only suitable for adjacent chassis interconnection, unable to adapt to long-span site expansion.

8112 Remote Expansion Chassis: Matching remote carrier chassis; the 4210 provides optical fiber bus extension communication support for 8112 remote chassis to realize remote I/O data interaction.

8110 Main Chassis: System main control chassis, paired with 4210 to complete local bus conversion and long-distance optical signal transmission.

3008 Main Processor: Core control unit; the 4210 ensures real-time and reliable transmission of remote I/O data to the main processor for safety logic judgment.

2.3 System Compatibility: Fully compatible with classic Tricon TMR racks and Trident safety systems, perfectly matched with all series of I/O modules, expansion chassis and redundant power modules. It supports full-version TriStation 1131 configuration, optical link debugging, real-time communication monitoring and fault diagnosis, realizing plug-and-play long-distance system expansion and distributed layout upgrade.

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 Ultra-Long-Distance I/O Bus Extension

The 4210 module serves as the core bridge for remote extension of Tricon SIS system I/O bus. It converts electrical bus signals of the main chassis into optical signals for long-distance transmission, and realizes optical-electrical signal conversion with remote expansion chassis. It breaks the distance limitation of traditional parallel electrical bus, supporting a maximum transmission distance of 12km, which fully meets the remote signal transmission demands of large-span industrial sites such as chemical parks and long-distance pipelines.

4.2 Fault-Tolerant Optical Fiber Data Transmission

Completely compatible with TMR 2oo3 fault-tolerant mechanism, the 4210 performs real-time voting and verification on remote transmission data. It ensures that all collected DI/AI signals and control DO/AO commands maintain complete consistency between local and remote ends. There is no data distortion, delay or loss during long-distance transmission, effectively guaranteeing the integrity and accuracy of safety interlock logic and avoiding safety misjudgment caused by remote signal abnormalities.

4.3 Redundant Optical Link Seamless Switching

The module supports dual redundant optical link hot backup operation. When a single optical fiber link fails, attenuates abnormally or is disturbed, the system will automatically complete seamless switching of the backup link within microseconds. The switching process does not affect the normal operation of the SIS system and remote safety loops, realizing zero-interruption long-distance communication and ensuring 24/7 stable operation of distributed safety systems.

4.4 Full-Link Intelligent Fault Diagnosis

The 4210 integrates comprehensive optical link diagnosis functions, which can real-time monitor optical power value, link connection status, signal transmission quality and module operating temperature. It can accurately identify common faults such as fiber breakage, excessive signal attenuation, link mismatch and module operation abnormality, and automatically generate standard fault codes and alarm logs. It supports upper computer remote monitoring and local indicator alarm, helping maintenance personnel quickly locate and eliminate link faults.

4.5 Zero-Downtime Online Maintenance

Adopting standard hot-swap design, the 4210 supports online plugging and replacement during normal system and production operation. Module maintenance or replacement will not interrupt long-distance optical fiber communication links, nor affect the operation of remote I/O modules and safety interlock loops. It realizes non-stop maintenance of system remote expansion links, greatly improving system operation and maintenance efficiency and equipment availability.

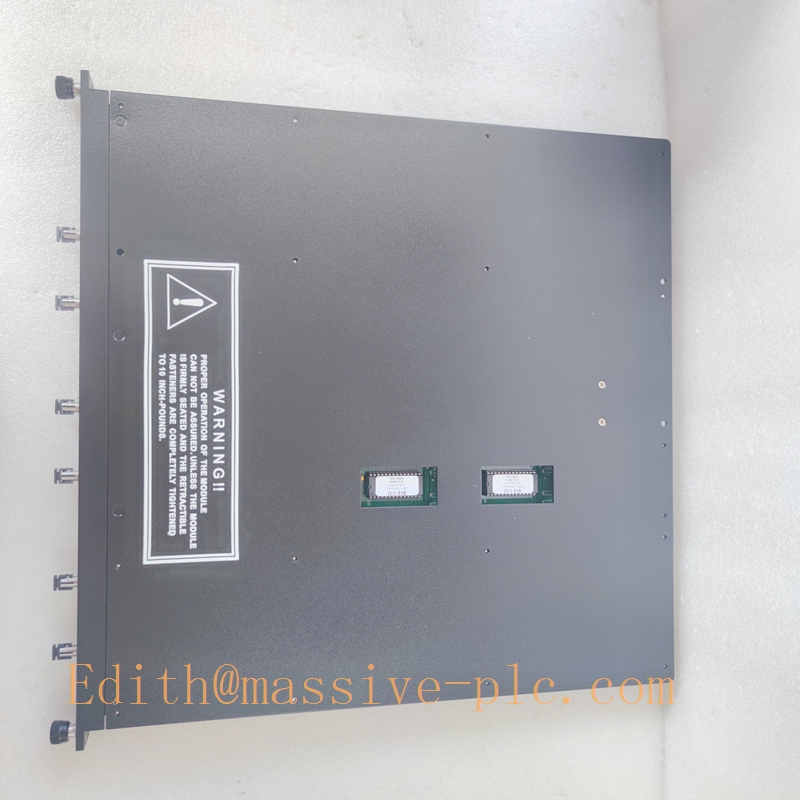

TRICONEX 4210

Core Product Features

5.1 SIL3 High-Level Safety & TMR Full Compatibility

The 4210 strictly follows Tricon TMR safety design specifications and has passed authoritative SIL3 functional safety certification. It fully matches the 2oo3 fault-tolerant voting logic of the main system, enabling remote extended safety loops to achieve the same high safety integrity level as local loops. It completely eliminates communication single-point failure risks and meets the highest safety standard requirements of high-risk industrial safety instrumented systems.

5.2 12km Ultra-Long-Distance Stable Transmission

Based on industrial single-mode optical fiber transmission technology, the 4210 achieves ultra-long-distance stable communication up to 12km, far exceeding the transmission limit of traditional electrical bus. It effectively solves the problems of signal attenuation, interference and distortion in long-distance electrical transmission, and is specially optimized for large-scale, scattered and long-span industrial production sites.

5.3 Complete Anti-Electromagnetic Interference Capability

Optical fiber signal transmission realizes complete physical isolation of electrical signals, completely immune to on-site strong electromagnetic radiation, power grid surge, mechanical vibration and line crosstalk interference. Compared with traditional electrical bus extension, the 4210 fundamentally avoids signal jitter and data errors caused by industrial interference, ensuring long-term stable and reliable transmission of core safety signals.

5.4 Redundant Link Hot Backup & Seamless Switching

Supporting dual optical link redundant hot backup architecture, the 4210 realizes real-time synchronization of dual-link data. When the active link fails, the backup link takes over all transmission tasks instantly without delay or packet loss. The redundant design greatly improves the reliability of long-distance communication links and avoids system safety loop paralysis caused by single link failure.

5.5 Harsh Environment Strong Adaptability

Adopting industrial-grade anti-aging, vibration-resistant and high-temperature resistant components, the 4210 passes strict G3-level harsh environment tests and EMC electromagnetic compatibility certification. It operates stably in -40℃~+70℃ ultra-wide temperature range and high-humidity non-condensing environment, adapting to long-term uninterrupted operation in harsh scenarios such as offshore platforms, outdoor pipeline stations and chemical device areas.

5.6 Flexible & Scalable Distributed Layout

The 4210 breaks the layout limitation of centralized SIS racks, supporting flexible distributed deployment of multiple remote expansion chassis. It can freely expand remote I/O points according to project scale, optimize on-site cabinet layout, reduce on-site wiring difficulty and engineering cost, and provide flexible and scalable solutions for large-scale safety system upgrading and expansion.

Industrial Application Scenarios

The TRICONEX 4210 high-speed fiber optic remote extender module is widely used inSIL3-level high-risk industrial safety instrumented systems, focusing on long-distance distributed signal transmission and large-span system expansion scenarios, covering petrochemical, natural gas gathering and transportation, long-distance pipeline, offshore oil platform, thermal power generation and coal chemical industries.

Specific application scenarios include: long-distance I/O expansion and distributed signal transmission of large chemical park ESD emergency shutdown systems; remote safety signal communication and linkage control of natural gas long-distance transmission pipelines and compressor stations; distributed safety monitoring communication of offshore oil and gas platform SIS systems; long-span signal extension of thermal power plant auxiliary workshop safety control systems; communication link guarantee for old factory SIS system remote upgrading and capacity expansion projects. It provides high-reliability optical fiber communication support for distributed and large-scale industrial safety control systems.
