Description
Product Overview
The TRICONEX 3625An is a high-performance Digital Output (DO) Module designed for the Tricon Safety System. As a critical component in Safety Instrumented Systems (SIS), it is engineered to drive field devices such as solenoid valves, relays, and alarm indicators. The module operates within a Triple Modular Redundant (TMR) architecture, ensuring maximum availability and safety for critical process control applications.
Technical Specifications & Parameters
| Parameter | Specification |
|---|---|
| Module Type | 24VDC Digital Output Module |
| Safety Integrity | IEC 61508 SIL3 Compliant |
| Signal Type | Discrete 24VDC Output (Sinking/Sourcing) |
| Power Supply | Backplane Powered (24VDC Nominal) |
| Operating Temp | -40°C to +70°C (Derate above 55°C) |
| Dimensions | 88mm H × 25mm W × 130mm D |
| Mounting | Standard DIN Rail (Requires 7.5mm clearance) |
| Certifications | CE (EN 61010-1), UL 61010-1, RoHS |
Key Features
- TMR Architecture: Utilizes three independent channels with hardware voting logic. A single point of failure will not compromise system safety or cause an unintended trip.
- Vibration-Tolerant Design: Features spring-cage terminals that maintain secure connections in high-vibration environments (e.g., compressor skids), typically withstanding up to 5G shock.
- Hot-Swappable: Supports online maintenance. Modules can be replaced without powering down the rack or shutting down the process, significantly reducing downtime.
- Advanced Diagnostics: Continuously monitors loop integrity, detecting open circuits, short circuits, and field wiring faults to facilitate rapid troubleshooting.
- Legacy Compatibility: Seamlessly integrates with existing Tricon racks and TriStation 1131 software, making it ideal for brownfield projects and system upgrades.

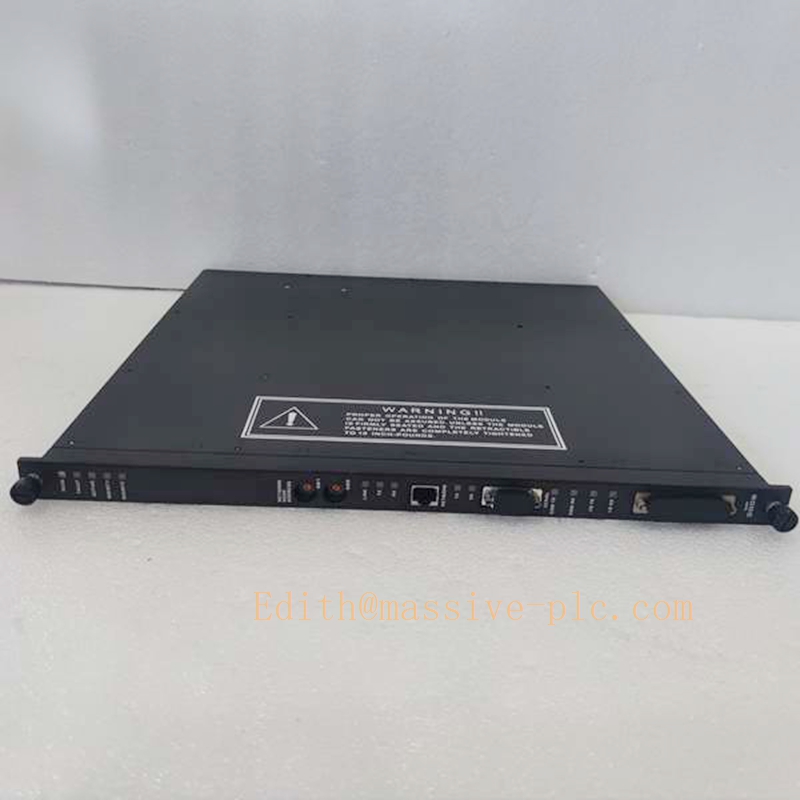

TRICONEX 3625A
Installation Guidelines
- Mounting: Install on a standard DIN rail, ensuring at least 7.5mm of clearance on both sides for adequate heat dissipation.
- Wiring: When using spring-cage terminals, apply firm pressure to ensure a solid connection. Loose wiring is a common cause of field faults.
- Maintenance: Perform quarterly dust removal using compressed air (<30 PSI) and conduct annual terminal torque/contact checks to ensure long-term reliability.
Related Series Models
The 3625An belongs to the broader Tricon digital I/O family. Common related models include:
- 3625 / 3625A: Standard digital output modules.
- 3625C1: Variant with specific field wiring or diagnostic configurations.
- 3721 / 3805E: Analog I/O modules often paired with the 3625An in mixed I/O racks.
- 3503E: Digital input modules compatible with the same chassis.
