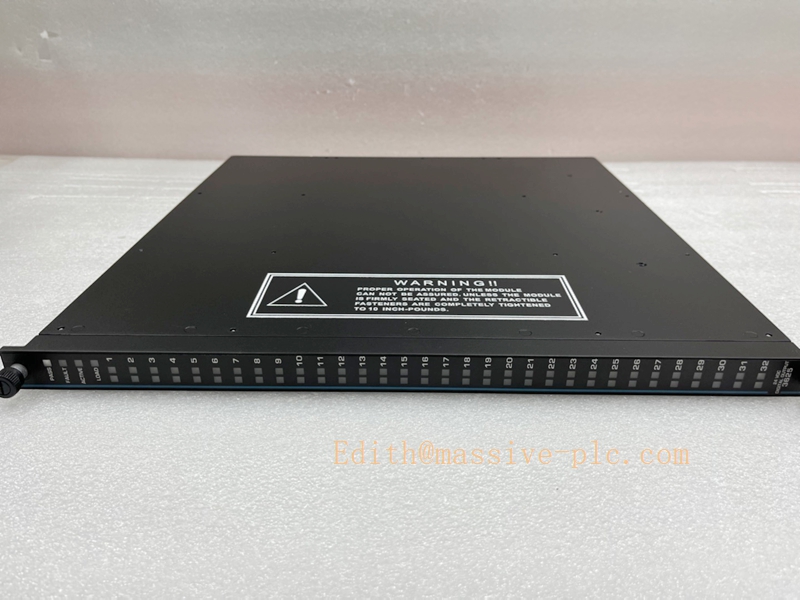

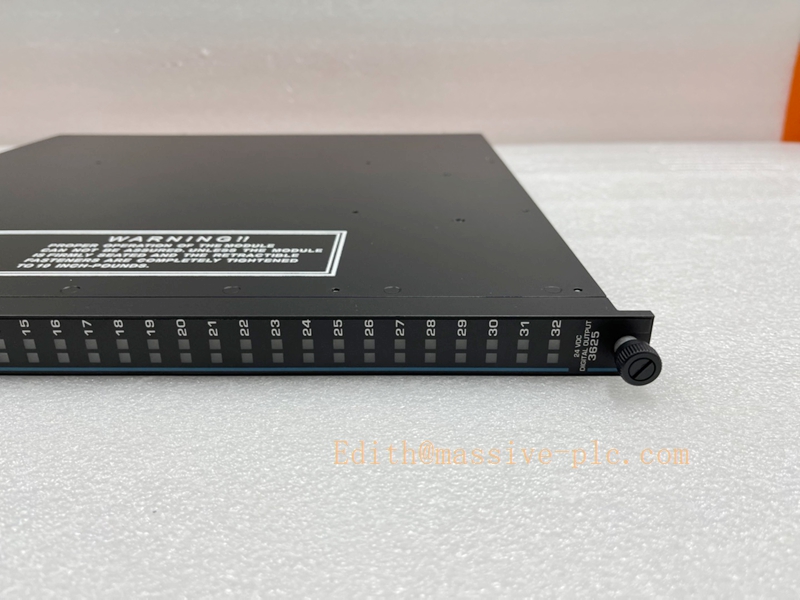

TRICONEX 3625 TMR Digital Output Module

Description

TRICONEX 3625 TMR Digital Output Module Product Introduction



Product Overview

The TRICONEX 3625 is a high-density, safety-certified TMR (Triple Modular Redundancy) Digital Output Module designed for Tricon and Trident Safety Instrumented Systems (SIS). As a core on-site execution control unit in safety loops, the module converts SIS internal safety logic commands into standard 24VDC digital switching signals to drive field solenoid valves, relays, contactors and safety actuators.

Adopting a full triple-modular redundant hardware architecture and 2oo3 fault-tolerant voting mechanism, the 3625 completely eliminates single-point output failure risks. It supports full-loop load supervision, wiring fault diagnosis and online hot-swap operation. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, the module provides high-reliability on/off control for ESD emergency shutdown, FGS fire and gas linkage, and process interlock protection, ensuring zero misoperation and zero failure of critical safety control loops.



Same-Series Model Classification & Peer Models

The TRICONEX 3625 belongs to the Tricon 36xx TMR Digital I/O Series, positioned as a high-density supervised digital output module for safety-level switching control, with clear version iterations and differentiated peer models:

2.1 Product Positioning: 32-channel high-density TMR digital output module with full load supervision, dedicated for SIL3 safety loop on-site actuator control, supporting fault diagnosis of open circuit, short circuit and load loss.

2.2 Same-Series Typical Peer Models

3625C1: Optimized upgraded version of 3625, with enhanced anti-interference and load driving capability, more stable long-term operation, fully backward compatible.

3604E: Standard-density digital output module with basic diagnosis function, suitable for conventional low-point safety switching control scenarios.

3511: Relay-type digital output module, supporting high-power load driving, different from 3625 transistor-type high-density output.

3703E: Digital input module, used for on-site switching signal collection, forming a complete safety logic control loop with 3625 output module.

2.3 System Compatibility: Fully compatible with classic Tricon racks, Trident systems, CX/EX series safety systems, perfectly matched with 3008 main processor module, supporting full-version TriStation 1131 configuration, programming and online debugging.

Core Technical Specifications & Product Specifications

Parameter Item	Technical Specifications
Product Model	3625 TMR Digital Output Module
Safety Architecture	Full Triple Modular Redundancy (TMR), 2oo3 fault-tolerant voting logic
Output Channel	32 independent high-density digital output channels (common terminal design)
Output Voltage Range	16VDC ~ 32VDC (standard 24VDC industrial power supply)
Single Channel Load Current	Maximum 1.7A per channel, stable low-distortion driving
Response Speed	Microsecond-level fast response, ultra-fast switching action
Diagnostic Function	Full-channel open circuit, short circuit, load loss, overcurrent fault supervision
Safety Certification	IEC 61508 SIL 3, TÜV Functional Safety Certified
Hot-Swap Function	Support online hot-swap replacement, zero downtime maintenance
Isolation Mode	Channel-to-bus electrical isolation, anti-surge and anti-crosstalk interference
Working Voltage	10.5VDC ~ 30VDC industrial wide voltage power supply
Operating Temperature	-40℃ ~ +70℃ ultra-wide industrial temperature range
Working Humidity	5%~95% RH, non-condensing
Industrial Grade	G3 harsh environment grade, enhanced EMC anti-interference design



Core Product Features

4.1 TMR Triple Redundant Fault-Tolerant Safety Control

The 3625 adopts three fully independent synchronous output processing channels, executing real-time 2oo3 voting logic for all switching control commands. When a single channel has circuit failure, signal distortion or transient interference, the system automatically isolates the faulty channel and outputs accurate and consistent switching signals. This fundamental fault-tolerant design completely avoids safety accidents such as actuator refusal to move, misoperation and control loop failure caused by single-point faults, fully meeting SIL3 high-level industrial safety standards.

4.2 32-Channel Ultra-High Density Output

Equipped with 32 high-density independent digital output channels, the module greatly saves SIS rack slot resources and system integration costs, and is suitable for large-scale centralized safety actuator control scenarios. The common terminal unified design simplifies on-site wiring, reduces wiring complexity and fault points, and improves the standardization and stability of on-site safety control loops.

4.3 Full-Loop Intelligent Load Supervision & Diagnosis

Different from ordinary non-supervised digital output modules, the 3625 supports full-loop real-time supervision of on-site load status. It can accurately identify common on-site faults such as channel open circuit, short circuit, load loss and overcurrent overload, automatically generate standard fault codes and detailed event logs, support local indicator alarm and upper computer remote query, helping operation and maintenance personnel quickly locate wiring faults and actuator hidden dangers.

4.4 Strong Load Driving & Ultra-Fast Response

With a single-channel maximum 1.7A load driving capacity and microsecond-level ultra-fast switching response speed, the module can stably drive various on-site low-power safety actuators such as solenoid valves and safety relays. It ensures rapid response and accurate execution of emergency shutdown and interlock protection commands, effectively shortening the safety response time of high-risk industrial devices.

4.5 Zero-Downtime Online Hot-Swap Maintenance

Supporting complete online hot-swap function, the 3625 module can be inspected, maintained and replaced during normal SIS system operation without rack shutdown, production suspension or interruption of safety control loops. Combined with TMR redundant fault-tolerant architecture, the system maintains complete safety control capability during maintenance, realizing 24/7 uninterrupted stable operation of industrial safety systems.

4.6 Excellent Harsh Environment Adaptability

Adopting industrial-grade anti-aging components and enhanced EMC electromagnetic compatibility design, the module has strong resistance to electromagnetic interference, mechanical vibration, high temperature and humidity erosion. It can operate stably for a long time in -40℃ to +70℃ ultra-wide temperature range and high-humidity non-condensing environment, adapting to harsh working conditions such as petrochemical, thermal power, natural gas and coal chemical industry.

4.7 High Compatibility & Low Operation and Maintenance Cost

The 3625 has perfect hardware and software compatibility with all Tricon/Trident series racks, main processors and supporting I/O modules. It supports plug-and-play installation and one-click configuration debugging, suitable for new SIS system construction and old equipment renovation and replacement. The high-density integration design reduces equipment investment cost, and the intelligent self-diagnosis function greatly improves maintenance efficiency and reduces long-term operation and maintenance costs.

Industrial Application Scenarios

The TRICONEX 3625 high-density TMR digital output module is widely used in SIL3-level high-risk process industrial safety instrumented systems, covering petrochemical, natural gas gathering and transportation, coal chemical, thermal power generation, metallurgy, pharmaceutical and other heavy industrial fields. It is the core switching execution output component of ESD emergency shutdown system, FGS fire and gas linkage system and process safety interlock system.

Specific application scenarios include: driving on-site safety solenoid valves, interlock relays and alarm indicator lights; executing process parameter over-limit interlock shutdown commands; realizing fire and gas detection linkage protection; completing graded safety shutdown and equipment reset control of high-risk devices. It is especially suitable for large industrial projects with numerous safety switching control points, realizing centralized, high-efficiency and high-reliability safety loop execution control.



Standard Installation Guidelines

6.1 Pre-Installation Preparation

Before installation, verify that the 3625 module model matches the system configuration, check the module circuit board for damage, pin oxidation and accessory integrity. Completely cut off the rack auxiliary power supply, ensure the installation environment is dust-free, dry and vibration-isolated, and use professional anti-static tools to avoid static damage to precision circuits. Prepare standard industrial shielded cables for switching signal wiring to ensure stable signal execution.

6.2 Rack Installation Steps

Adopt standard Tricon/Trident rack plug-in installation. Align the module with the rack slot guide rail, push it horizontally and smoothly into the slot until it is closely fitted with the backplane bus, and tighten the fixing screws on both sides of the module to prevent poor contact caused by equipment vibration. Ensure the module is fully inserted in place without offset or virtual connection to guarantee stable bus data interaction and normal redundant channel operation.

6.3 On-Site Wiring Specification

Use dedicated industrial shielded cables for digital output signal wiring, strictly separate signal lines from power lines to avoid electromagnetic crosstalk interference. Standardize common terminal wiring and single-channel signal wiring, ensure firm terminals without bare wire exposure or virtual connection. Classify and mark each channel independently, and complete insulation test and channel continuity test after wiring to eliminate hidden dangers such as short circuit and open circuit.

6.4 Post-Installation Debugging

After installation and wiring, power on the rack slowly, observe the module indicator status, and connect TriStation 1131 software for online debugging. Test the switching output function of each channel, verify the effectiveness of load supervision and fault diagnosis functions, simulate open circuit and short circuit faults to check alarm response, and confirm that the module can accurately execute safety logic commands and stably drive on-site actuators.



Daily Maintenance & Fault Maintenance Guidelines

7.1 Daily Routine Maintenance

Regularly check the module operating status, indicator lights and rack temperature and humidity to ensure operation within the standard environmental range. Regularly clean the module surface and rack internal dust to avoid dust accumulation affecting heat dissipation and circuit stability. Regularly check wiring firmness and shielding grounding status to prevent signal interference and control failure. Regularly back up system configuration parameters and fault logs to ensure data traceability.

7.2 Common Fault Diagnosis & Maintenance

Load Loss Alarm: Caused by on-site actuator damage, wiring open circuit or loose terminals. Check on-site load equipment and line integrity, eliminate open circuit faults, and reset the module alarm status.

Channel Short Circuit & Overcurrent Alarm: Triggered by on-site line short circuit or load overload. Immediately cut off the output power, troubleshoot short circuit and overload faults, check line insulation, and restart the module to restore normal output.

No Output Execution: Check module bus communication status, channel configuration enable status and logic program settings, eliminate configuration errors and communication faults, and recalibrate channel output parameters.

Module Fault Alarm: Query fault codes through upper computer software, locate internal circuit failure or bus abnormality, clean slot pins, restart and reset the module; replace the module if hardware failure occurs.

7.3 Hot-Swap Replacement Maintenance

For faulty modules that cannot be repaired, adopt online hot-swap replacement without system shutdown. Loosen the fixing screws, pull out the faulty 3625 module smoothly, insert the new module in place and lock it tightly. The system will automatically complete configuration matching and signal synchronization. After replacement, test full-channel switching output and fault diagnosis functions to ensure the safety control loop operates normally.

7.4 Spare Module Storage & Aging Maintenance

Spare 3625 modules need to be stored in a constant-temperature, dry, dust-free and anti-static environment to avoid moisture, static electricity and mechanical collision. For long-term operating modules, regularly check circuit aging, switching sensitivity and fault diagnosis functions, and replace aging modules in advance to prevent sudden failure of safety control loops.



Common FAQs

8.1 What is the core advantage of TRICONEX 3625 compared with ordinary DO modules?

The 3625 adopts TMR triple redundant safety architecture and supports full-loop load supervision diagnosis. Ordinary common digital output modules have no fault detection function and single-point failure risk, while 3625 can actively identify open circuit, short circuit and load loss faults, with zero single-point failure risk, fully meeting SIL3 safety loop mandatory requirements.

8.2 What is the difference between 3625 and 3625C1?

3625C1 is the enhanced upgraded version of the standard 3625 module. It optimizes the internal driving circuit and anti-interference shielding structure, improves load driving stability and high-temperature resistance, and has lower failure rate in long-term harsh environment operation. It is fully backward compatible with the standard 3625 and supports direct plug-and-play replacement.

8.3 Can the 3625 module be hot-swapped online?

Yes. The 3625 supports standard online hot-swap function. Module replacement will not cause system shutdown, safety loop interruption or control failure. The TMR redundant architecture ensures that the safety interlock and shutdown functions remain intact during maintenance, realizing zero-downtime equipment maintenance.

8.4 What loads are suitable for 3625 driving?

The module is suitable for driving 24VDC low-power safety loads, including safety solenoid valves, interlock relays, alarm lights, small contactors and other on-site safety actuators. The single-channel maximum 1.7A current ensures stable driving of conventional safety loads without overload and heat generation.

8.5 Why does the 3625 frequently trigger load loss alarms?

The main reasons include loose on-site wiring terminals, aging and open circuit of actuator internal lines, load power supply abnormality, or excessive load resistance. It is necessary to re-tighten wiring, check actuator integrity and power supply stability, and eliminate line faults to solve the alarm problem.

8.6 Is 3625 suitable for large-scale safety control projects?

Absolutely yes. With 32 high-density output channels, the 3625 has outstanding slot cost performance, which can greatly save rack space and system integration costs for large and medium-sized petrochemical, thermal power and gas chemical SIS projects with numerous safety switching points. It is the preferred high-density safety digital output module for SIL3-level safety systems.
