TRICONEX 3503EN 24VDC Self-Testing Digital Input Module

Description

TRICONEX 3503EN 24VDC Self-Testing Digital Input Module Product Introduction

Product Overview

The TRICONEX 3503EN is a high-integrity, safety-grade TMR Self-Testing Digital Input Module designed for Tricon and Trident Triple Modular Redundancy (TMR) Safety Instrumented Systems (SIS). Differentiated from standard DI modules, the 3503EN features built-in automatic loop self-test capability, specially developed for critical 24VDC safety discrete loops that require 100% fault detection coverage and periodic health verification. It acquires field 24VDC dry/wet contact switch status while actively performing continuous loop diagnostics and automatic line testing, ensuring hidden faults in safety input circuits can be detected in real time before causing safety loop failure.

Adopting full TMR 2oo3 triple redundant fault-tolerant architecture, the 3503EN eliminates single-point signal acquisition errors and improves safety loop availability. Its unique self-test function solves the blind-spot problem of conventional DI modules that cannot detect latent circuit faults. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, the module supports online hot-swap operation, G3 harsh environment adaptability and zero-downtime maintenance. It is widely deployed in petrochemical, natural gas, thermal power and high-risk process industries, providing full-testable high-reliability discrete signal acquisition for key ESD and FGS safety loops.

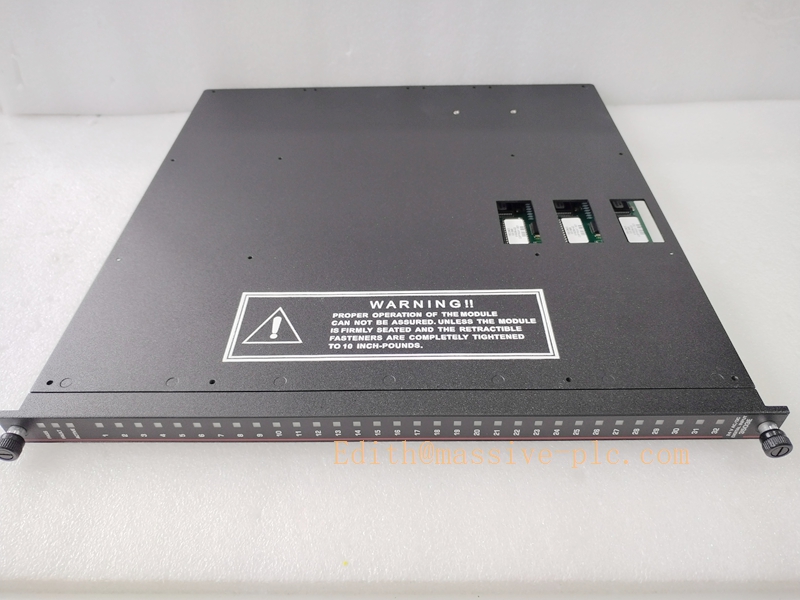

TRICONEX 3503E

Same-Series Model Classification & Peer Models

The TRICONEX 3503EN belongs to the Tricon 35xx High-Reliability Discrete I/O Series, positioned as a premium self-testing safety digital input module, forming a clear functional differentiation with standard and high-voltage DI modules:

2.1 Product Positioning: High-safety 24VDC self-test TMR digital input module, focusing on critical safety loops requiring mandatory periodic loop testing and full fault coverage. It is the preferred module for high-demand SIS projects where hidden line faults must be actively detected, which standard 3201 and ordinary DI modules cannot achieve.

2.2 Same-Series Typical Peer & Matching Models

3201 Standard 24VDC DI Module: General-purpose digital input module without automatic loop self-test function, only for ordinary switch signal acquisition, unable to detect latent line faults.

3501E 115VAC/VDC DI Module: High-voltage isolated input module for 115V field signals, no self-test mechanism, applied for high-voltage discrete scenarios.

3502E 48VAC/VDC DI Module: Medium-voltage discrete input module for 48V signal collection, standard diagnosis without active self-test function.

3611E High-Density DI Module: High-channel-density low-voltage input module for mass signal expansion, lacking high-coverage self-test diagnosis capability.

3504E / 3505E Safety I/O Modules: Extended safety discrete modules for special loop control, matched with 3503EN to build full-testable safety loop systems.

3008 Main Processor & 8110 Series Chassis: Core system hardware; the 3503EN is fully compatible for plug-and-play deployment and safety logic interaction.

2.3 System Compatibility: Fully compatible with classic Tricon TMR racks and Trident SIS systems. It supports full parameter configuration, self-test cycle setting, signal debugging and real-time status monitoring via TriStation 1131 software. It can seamlessly replace standard 24VDC DI modules to upgrade ordinary loops into full self-testable high-integrity safety loops.

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 Standard 24VDC Discrete Signal Acquisition

The 3503EN accurately collects industrial 24VDC dry and wet contact discrete signals, including emergency stop buttons, safety valve feedback, fire & gas detector contacts, safety barrier status and key equipment fault signals. It converts field binary switch status into standard digital data and uploads valid status values to the main processor, providing reliable signal sources for SIS safety interlock, emergency shutdown and fault alarm logic judgment.

4.2 Unique Automatic Loop Self-Testing Function

As the core upgraded function of the 3503EN, the built-in intelligent self-test circuit actively and periodically verifies the integrity of the entire field loop. Different from conventional modules that only detect obvious faults, it can identify latent hidden faults such as line aging, insulation degradation, partial short circuit and loop resistance abnormality. The self-test mechanism runs automatically in the background without affecting normal signal acquisition, ensuring 100% safety loop health monitoring at all times.

4.3 TMR 2oo3 Fault-Tolerant Voting Verification

Adopting standard Tricon triple modular redundant architecture, the 3503EN performs simultaneous signal sampling and 2oo3 majority voting through three independent internal channels. When single-channel transient interference, sampling deviation or circuit abnormality occurs, the module automatically eliminates faulty data and outputs accurate status results. It completely avoids safety misjudgment, false alarms and failed interlock caused by single-point faults, ensuring ultra-high integrity of critical safety loops.

4.4 Full-Coverage Intelligent Fault Diagnosis & Alarm

The module integrates comprehensive full-link diagnosis functions, covering open circuit, short circuit, signal loss, abnormal voltage and loop performance degradation. It can actively capture potential faults that cannot be identified by ordinary DI modules, generate standard fault codes and detailed operation logs, and synchronize alarm information to the upper monitoring host. It supports on-site indicator status prompts, helping maintenance personnel quickly locate hidden dangers and eliminate loop failures in advance.

4.5 Zero-Downtime Online Maintenance & Stable Operation

Consistent with Tricon series unified industrial design standards, the 3503EN supports full online hot-swap function. Module replacement, self-test parameter adjustment, software debugging and daily maintenance can be completed during normal system and production operation. The maintenance process will not interrupt safety signal acquisition or affect safety logic operation, realizing 24/7 continuous and stable operation of high-integrity safety loops.

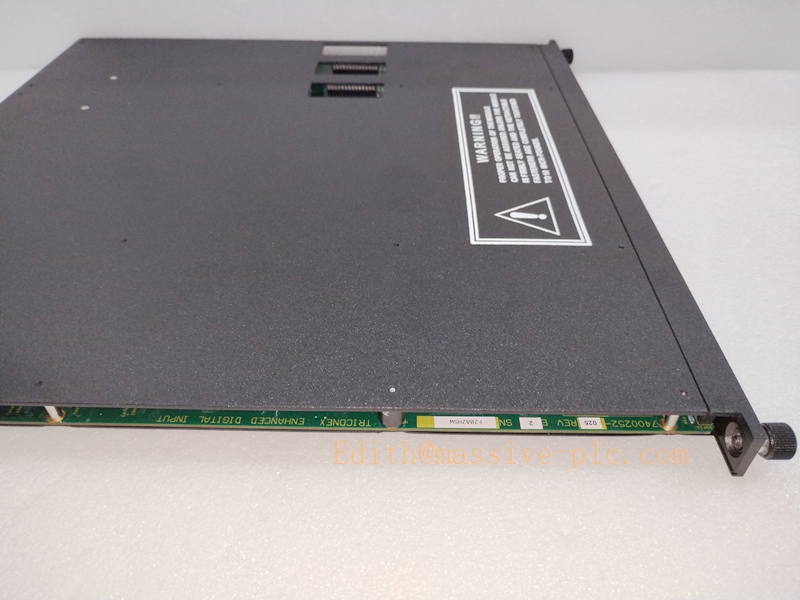

TRICONEX 3503E

Core Product Features

5.1 Industry-Leading Self-Test Capability & Zero Hidden Faults

The biggest advantage of the 3503EN over standard DI modules is its independent automatic loop self-test function. It realizes full-cycle active detection of safety loops, thoroughly solving the industry pain point that traditional discrete loops can only report obvious faults but cannot predict latent failures. This feature greatly improves the safety integrity of key ESD/FGS loops and meets the highest-level safety monitoring requirements of high-risk industrial projects.

5.2 SIL3 High Safety Integrity & TMR Fault Tolerance

The 3503EN has passed IEC 61508 SIL 3 and TÜV authoritative safety certification, fully complying with high-risk industrial safety instrument system standards. The triple redundant fault-tolerant architecture eliminates single-point failure risks in signal acquisition and detection links. Combined with full-coverage self-diagnosis, it achieves extremely high safety integrity and low failure probability, fully adapting to core safety loop application scenarios.

5.3 High Diagnostic Coverage & Improved Loop Availability

With 100% full-loop diagnostic coverage, the 3503EN can pre-judge and eliminate potential loop faults before safety logic failure occurs. It effectively reduces the probability of safety loop failure on demand, improves the overall availability and reliability of the SIS system, and helps enterprises meet safety audit and regular inspection standards of petrochemical and power industries.

5.4 Excellent Anti-Interference & Signal Stability

Adopting enhanced EMC electromagnetic compatibility design and hardware-software dual filtering mechanism, the 3503EN effectively suppresses on-site electromagnetic interference, power grid fluctuation and mechanical contact jitter. It maintains stable signal output and accurate self-test results in complex industrial environments, avoiding signal disorder and misdiagnosis caused by external interference.

5.5 Ultra-High Harsh Environment Adaptability

The module adopts industrial-grade anti-aging, vibration-resistant and temperature-resistant components, passing strict G3-level harsh environment tests. It operates stably in -40℃~+70℃ ultra-wide temperature range and 5%~95% non-condensing humidity environment, adapting to long-term uninterrupted operation of chemical workshops, power plant sites and outdoor industrial cabinets.

5.6 Flexible Configuration & Low Lifecycle Maintenance Cost

The 3503EN supports flexible configuration of self-test cycle, diagnosis threshold and signal filtering parameters via TriStation software. Visualized channel status and fault log recording simplify daily safety inspection and equipment management. The hot-swap design and active fault early warning function greatly reduce unplanned downtime and later maintenance costs, with excellent comprehensive cost performance.

Industrial Application Scenarios

The TRICONEX 3503EN self-testing TMR safety digital input module is widely used in SIL3-level high-risk industrial Safety Instrumented Systems (SIS), specially applicable to key safety loops that require full fault detection and zero hidden dangers, covering petrochemical refining, natural gas gathering and transportation, thermal power generation and coal chemical industries.

Typical application scenarios include: key loop signal acquisition and full health monitoring of petrochemical plant ESD emergency shutdown systems; fire alarm and gas detection safety loop self-test monitoring of FGS systems; emergency stop button and safety isolation valve feedback signal acquisition of thermal power unit safety systems; high-reliability discrete signal monitoring of natural gas compressor stations and long-distance pipeline safety interlock systems; safety loop upgrading and hidden danger elimination for old SIS system renovation projects requiring high diagnostic coverage. It provides full-testable, high-stability and ultra-high-safety discrete signal guarantee for core industrial safety protection systems.
