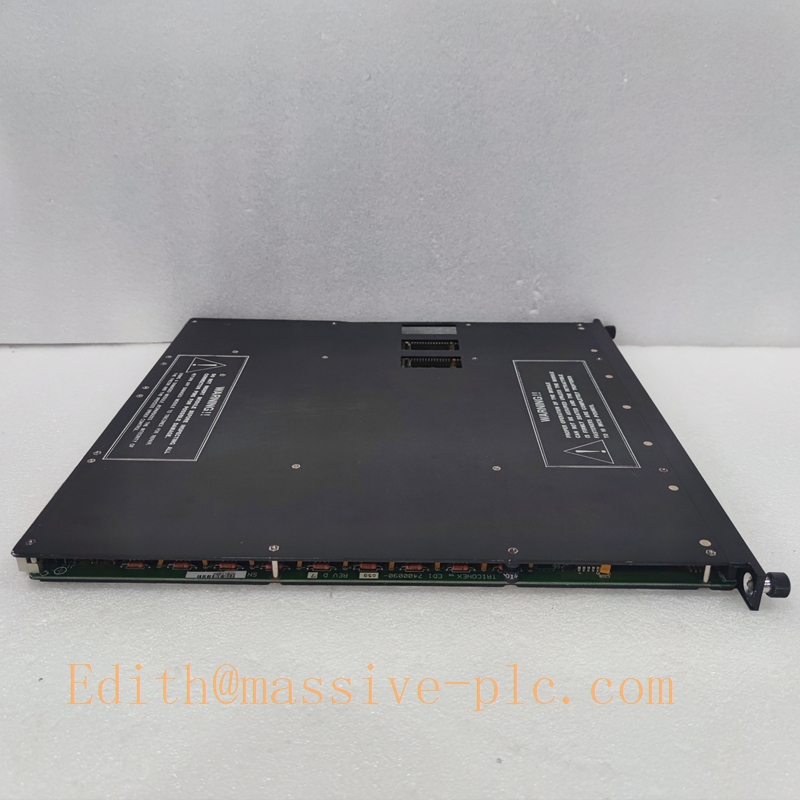

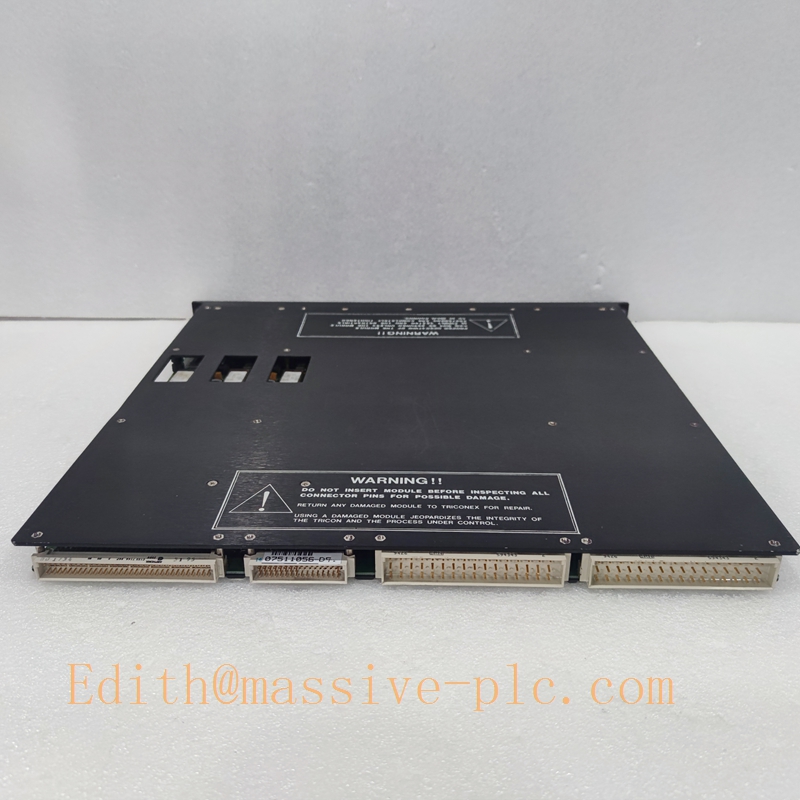

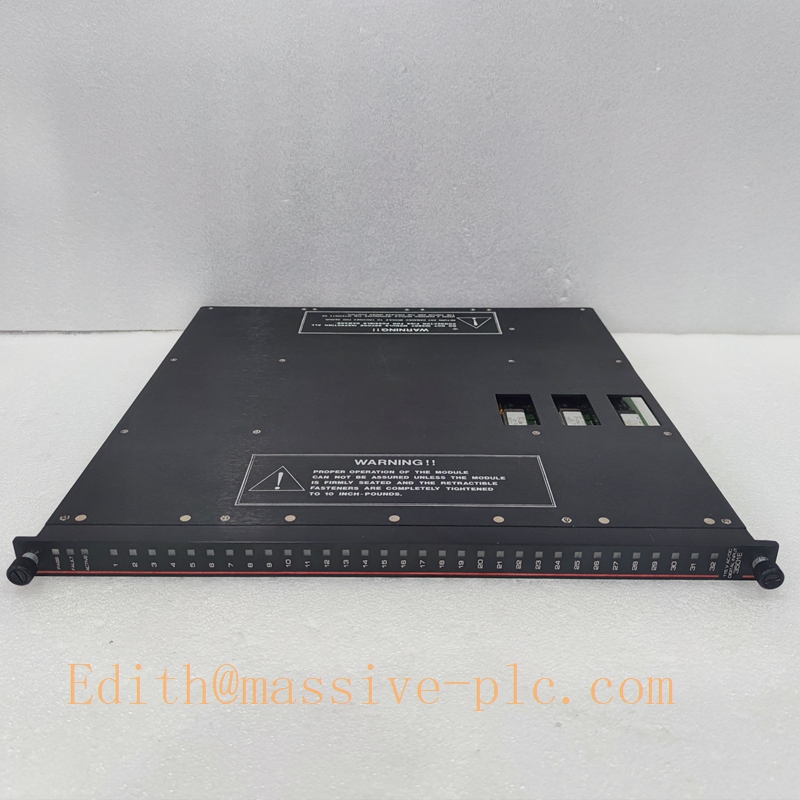

TRICONEX 3501E TMR 115VAC/VDC Digital Input Module

Description

TRICONEX 3501E TMR 115VAC/VDC Digital Input Module Product Introduction

Product Overview

The TRICONEX3501E is a high-reliability, safety-grade TMR Digital Input Module engineered for Tricon and Trident Triple Modular Redundancy (TMR) Safety Instrumented Systems (SIS). As a high-voltage discrete signal acquisition unit, it is specially designed for industrial 115 VAC/VDC field switch and contact signal collection, targeting high-voltage discrete monitoring scenarios that standard 24VDC DI modules cannot support. The module converts field high-voltage on/off status into standardized digital data and transmits high-integrity signal status to the main processor for safety interlock judgment, equipment fault monitoring and ESD/FGS system logic processing.

Adopting full TMR 2oo3 triple redundant fault-tolerant architecture, the 3501E features 32 fully isolated non-commoned input points, eliminating crosstalk between channels and single-point signal failure risks. It integrates comprehensive channel self-diagnosis, high-voltage surge suppression and strong electromagnetic anti-interference capability. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, the module supports online hot-swap maintenance and stable long-term operation under G3 harsh industrial environment standards. Widely applied in petrochemical, power generation and oil & gas industries, it provides reliable high-voltage discrete signal guarantee for high-risk safety loops.

TRICONEX 3501E

Same-Series Model Classification & Peer Models

The TRICONEX 3501E belongs to the Tricon 35xx High-Voltage Discrete I/O Series, positioned as a 115VAC/VDC high-voltage isolated digital input module, forming a clear voltage-level differentiated matching system with conventional low-voltage DI modules:

2.1 Product Positioning: High-voltage safety-grade TMR digital input module, dedicated to 115 VAC/VDC field discrete signal acquisition. With full-channel electrical isolation and non-commoned design, it is suitable for high-voltage equipment status feedback, remote switch signal monitoring and high-interference field discrete signal collection scenarios where 24VDC modules are inapplicable.

2.2 Same-Series Typical Peer & Matching Models

3201 Standard 24VDC DI Module: Conventional low-voltage digital input module for 24VDC signal acquisition; the 3501E upgrades to 115V high-voltage level with full isolation design for special field working conditions.

3502E 48VAC/VDC DI Module: Medium-voltage discrete input module, supporting 48V signal collection, serving as the middle voltage grade between 24V and 115V modules.

3503E 24V Self-Test DI Module: Low-voltage self-test type digital input module with built-in loop self-diagnosis function, applied for high-demand low-voltage safety loops.

3611E High-Density DI Module: High-channel-density low-voltage discrete acquisition module, focusing on multi-point low-voltage signal expansion without high-voltage isolation capability.

8110/8111/8112 Chassis Series: Tricon system standard chassis; the 3501E supports full slot compatibility for flexible high-voltage signal expansion.

3008 Main Processor: System core control unit; the 3501E uploads triple-vetted high-voltage discrete status data for safety logic calculation and interlock execution.

2.3 System Compatibility: Fully compatible with classic Tricon TMR racks and Trident SIS safety systems. It supports full parameter configuration, signal debugging and real-time status monitoring via TriStation 1131 software. The plug-and-play design enables rapid deployment for new high-voltage signal projects and seamless replacement for old system high-voltage loop renovation.

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 115V High-Voltage Discrete Signal Acquisition

The 3501E is dedicated to collecting industrial 115 VAC/VDC high-voltage discrete signals, including high-voltage equipment start-stop feedback, remote high-voltage switch status, high-power device fault contacts and special safety loop switch signals. It precisely captures high-voltage on-site binary status, converts high-voltage physical signals into standard digital data, and provides exclusive high-voltage signal source support for SIS system safety monitoring and interlock control, solving the limitation of conventional low-voltage DI modules in high-voltage working conditions.

4.2 TMR Triple Fault-Tolerant Voting Verification

Equipped with three independent synchronous high-voltage sampling circuits, the 3501E strictly implements TMR 2oo3 majority voting logic. All high-voltage field signals undergo three-channel simultaneous acquisition and data verification. In case of single-channel sampling deviation, transient high-voltage surge interference or circuit slight abnormality, the module automatically filters faulty data and outputs accurate and consistent status signals. It completely avoids safety misjudgment and false interlock risks caused by single-point high-voltage signal errors, ensuring ultra-high integrity of high-voltage safety discrete loops.

4.3 Full-Channel Independent Isolation & Anti-Crosstalk

Adopting 32-channel fully isolated non-commoned design, each input channel of the 3501E has independent electrical isolation circuit. It thoroughly eliminates signal crosstalk, voltage mutual interference and fault linkage between adjacent channels. Even if a single channel has short circuit or voltage abnormality, it will not affect the normal acquisition operation of other channels, effectively improving the overall stability and anti-risk capability of multi-point high-voltage signal monitoring systems.

4.4 High-Voltage Surge Suppression & Signal Stabilization

Built-in professional high-voltage surge suppression circuit and intelligent software debouncing algorithm, the 3501E effectively filters high-voltage transient surge, power grid fluctuation interference and mechanical contact bounce jitter in industrial high-voltage environments. It stabilizes high-voltage discrete signal output status, prevents frequent signal flipping and invalid safety alarms, and maintains long-term consistent and reliable operation of high-voltage safety monitoring loops.

4.5 Full-Coverage Fault Diagnosis & Online Maintenance

The module supports full-channel real-time self-diagnosis, which can accurately identify common high-voltage field faults such as line open circuit, short circuit, abnormal voltage loss and channel isolation failure. It automatically generates standard fault codes and operation logs, with local indicator prompt and upper computer remote alarm linkage. Supporting full online hot-swap function, module replacement and daily maintenance can be completed without system shutdown, realizing 24/7 uninterrupted operation of high-voltage safety signal acquisition systems.

TRICONEX 3501E

Core Product Features

5.1 SIL3 High Safety & Professional High-Voltage Design

The 3501E passes authoritative IEC 61508 SIL 3 and TÜV functional safety certification, fully complying with high-risk industrial high-voltage safety design specifications. The dedicated high-voltage resistance and isolation circuit design adapts to 115V industrial voltage working conditions, eliminating breakdown and leakage risks of ordinary low-voltage modules in high-voltage environments. The TMR fault-tolerant architecture ensures zero misjudgment of high-voltage safety signals, meeting the highest safety integrity requirements of core industrial high-voltage loops.

5.2 32-Channel High-Density Isolated Acquisition

Integrating 32 fully isolated non-commoned high-voltage input channels in a single module, the 3501E achieves high-density high-voltage signal expansion. Compared with scattered low-density high-voltage acquisition equipment, it greatly saves SIS rack slot resources and cabinet space, reduces on-site wiring complexity and project integration costs, and improves the compactness and integration of high-voltage safety monitoring systems.

5.3 Ultra-Strong Anti-Interference & Surge Resistance

Adopting enhanced high-voltage EMC electromagnetic compatibility design and professional surge suppression components, the 3501E strongly resists on-site high-voltage electromagnetic interference, power grid surge impact and industrial strong electric field crosstalk. It maintains stable and accurate signal acquisition in complex high-voltage industrial environments, avoiding signal disorder and system misoperation caused by harsh electrical interference.

5.4 Independent Channel Isolation & Fault Independence

The per-channel independent electrical isolation design realizes complete physical isolation of each high-voltage signal loop. Single-channel fault or abnormality will not spread or affect other channels, realizing independent operation and independent fault handling of each monitoring point. This feature greatly reduces the scope of system faults and improves the overall operational stability and maintainability of the system.

5.5 Excellent Harsh Environment Adaptability

The module adopts industrial-grade high-voltage resistant, anti-aging and vibration-resistant components, passing strict G3-level harsh environment tests. It operates stably in -40℃~+70℃ ultra-wide temperature range and high-humidity non-condensing environment, adapting to long-term uninterrupted operation of high-voltage workshops, power plant industrial sites and outdoor electrical cabinets, with strong environmental durability.

5.6 High Compatibility & Low Operation and Maintenance Cost

Fully compatible with all Tricon TMR series processors, chassis and safety modules, the 3501E supports plug-and-play rapid installation and replacement. Visualized channel status monitoring and complete fault log recording simplify daily operation and maintenance work. Combined with zero-downtime hot-swap maintenance design, it effectively reduces system downtime and later high-voltage loop maintenance costs.

Industrial Application Scenarios

The TRICONEX 3501E high-voltage TMR safety digital input module is widely used in SIL3-level high-risk industrial Safety Instrumented Systems (SIS), focusing on 115VAC/VDC high-voltage discrete signal acquisition and high-power equipment safety status monitoring scenarios, covering petrochemical refining, thermal power generation, natural gas gathering and transportation, coal chemical and heavy industrial automation fields.

Typical application scenarios include: high-voltage equipment status feedback and fault signal acquisition of large thermal power plant auxiliary machines and high-power electrical systems; 115V remote safety switch signal monitoring of petrochemical plant ESD emergency shutdown systems; high-voltage discrete loop signal collection and safety interlock monitoring of natural gas long-distance pipeline stations and compressor stations; high-voltage fire protection and emergency equipment status acquisition of FGS fire and gas safety systems; high-voltage signal upgrading and safety loop reconstruction of old industrial high-power equipment SIS systems. It provides high-isolation, high-stability and high-safety high-voltage discrete signal support for heavy industrial safety instrumented systems.
