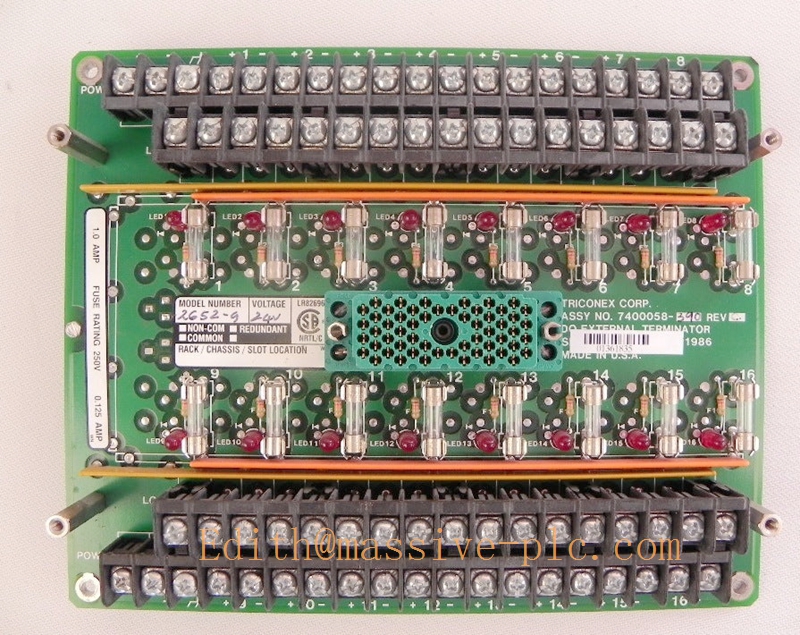

TRICONEX 2652 Product Full Dimensional Introduction
1、 Product application
TRICONEX 2652 is a digital output module for safety instrumented systems on the Schneider EcoStruxure Tricon platform, designed specifically for safety critical scenarios and widely used in industries with high reliability requirements such as oil and gas, chemical, and power generation. It is used for precise control of safety equipment such as solenoid valves, actuators, and valves, and supports core safety functions such as emergency shutdown (ESD), combustion management, and pressure protection.
2、 Core specification parameters
Product type: 16 channel digital output module
Architecture support: Compatible with Triple Redundancy (TMR) architecture
Safety level: meets the requirements of IEC 61508 SIL3 safety integrity level
Input voltage: 24V DC
Working temperature: -40 ℃~70 ℃
Communication protocol: Supports Modbus, Ethernet/IP
Storage capacity: 2MB
Size specifications: 120mm × 80mm × 45mm
Installation method: Standard DIN rail installation
Supporting terminal components: The external terminal component model is 7400166-390
Certification qualifications: CE, UL certification
Response speed: Typical response time is less than 1 millisecond
Mean time between failures: MTTF exceeds 100000 hours
TRICONEX 2652
3、 Core features of the product
High reliability: relying on TMR triple redundancy design, single channel failure does not interrupt system operation, with extremely strong fault tolerance capability
High speed response: Action response time less than 1 millisecond, fully adapted to the fast action requirements of safety scenarios
Wide temperature adaptation: With an ultra wide working temperature range of -40 ℃~70 ℃, it can operate stably in extremely harsh industrial environments
High availability: The average time between failures exceeds 100000 hours, significantly reducing the risk of unplanned downtime
Easy Integration: Compact modular design that can quickly integrate with existing Triconex safety control systems
Full channel diagnosis: Built in comprehensive self diagnostic function, which can monitor abnormal states such as channel short circuit and disconnection in real time
4、 Installation and Operation Guide
Before installation, confirm that the system rack is completely powered off and select the appropriate DIN rail mounting position to fix the module
Align the guide rail slot and insert the module into it, lock the fixed buckle, and ensure that the module is firmly connected to the system backplane
Complete on-site wiring according to the official pin definition, separate the power circuit and signal circuit wiring, and ensure proper shielding and grounding
After power on, hardware recognition and parameter configuration are completed through TriStation software, and the effectiveness of output actions is tested channel by channel
After the full channel function verification is normal, it will be officially connected to the safety circuit and put into operation
5、 Daily maintenance and repair
Regular inspection: Check the status indicator lights on the module panel every month to confirm that there are no fault alarms, and also verify the ventilation and operating temperature of the rack
Fault handling: The module supports hot swapping, and the faulty module can be directly replaced in online mode. The new module automatically synchronizes the system configuration without stopping the machine
Return to factory requirement: It is prohibited to disassemble modules on site, and faulty parts must be returned to the original factory or authorized service center for repair and calibration
Annual verification: Cooperate with SIS safety loop audit every year to complete full module functional verification, ensuring that SIL3 level requirements are always met
Spare parts management: It is recommended to reserve 1-2 spare parts of the same model to avoid affecting the on-site operation and maintenance progress due to long supply cycles
6、 Compatible models within the same series
The TriconeX 2652 belongs to the Triconex 3000 security system digital output module family, and compatible models in the same series include:
TRICONEX 2651: 8-channel digital output module, suitable for small point safety circuit scenarios
TRICONEX 2653: Digital quantity module with relay output, suitable for high-power load control scenarios
TRICONEX 3626X: High density 16 channel digital output module, new generation firmware version, stronger compatibility
TRICONEX 3664:32 Channel Digital Output Module, Suitable for Large Point Centralized Control Scenarios
