S74802-NANANA Kollmorgen Digital Servo Amplifier Full Product Specification
Product Title & Meta Description
Official Product Title: S74802-NANANA Kollmorgen Dual-Channel STO Digital Servo Amplifier
Product Brief Description: The S74802-NANANA is a high-performance industrial digital servo amplifier developed by Kollmorgen, engineered for high-precision, high-dynamic motion control applications. Integrated with dual-channel Safe Torque Off (STO) functional safety certification, this servo drive supports universal AC power input, multi-protocol communication interfaces, and multi-type feedback systems. It features robust anti-interference capability, compact modular design, and compliant global safety certifications, delivering stable and reliable servo drive performance for automated machinery, precision processing equipment, and industrial motion systems. Designed for integration as a core component of complete machine electrical systems, it meets SIL 2/PL d safety standards and supports flexible configuration for diverse industrial automation scenarios.

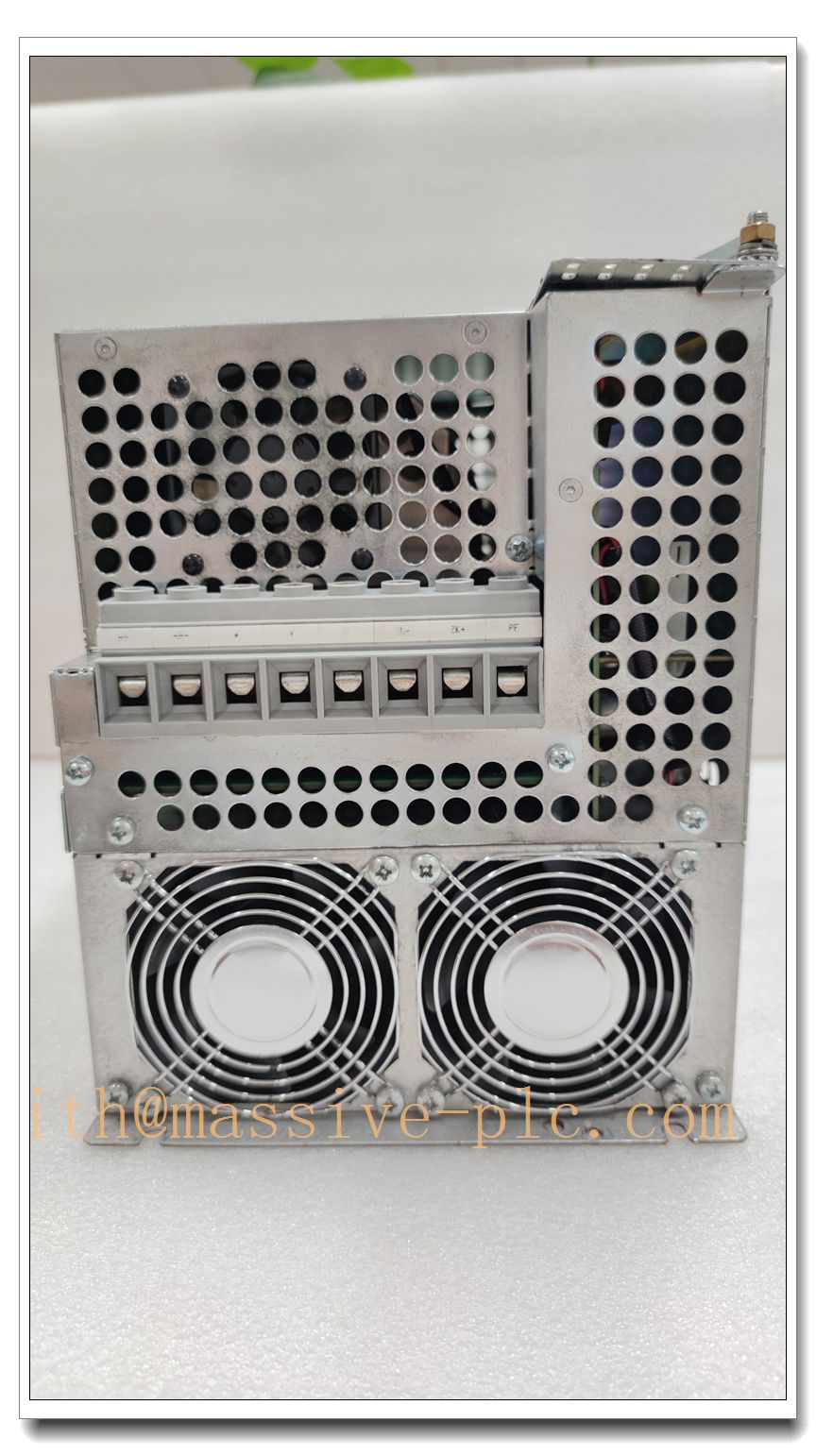

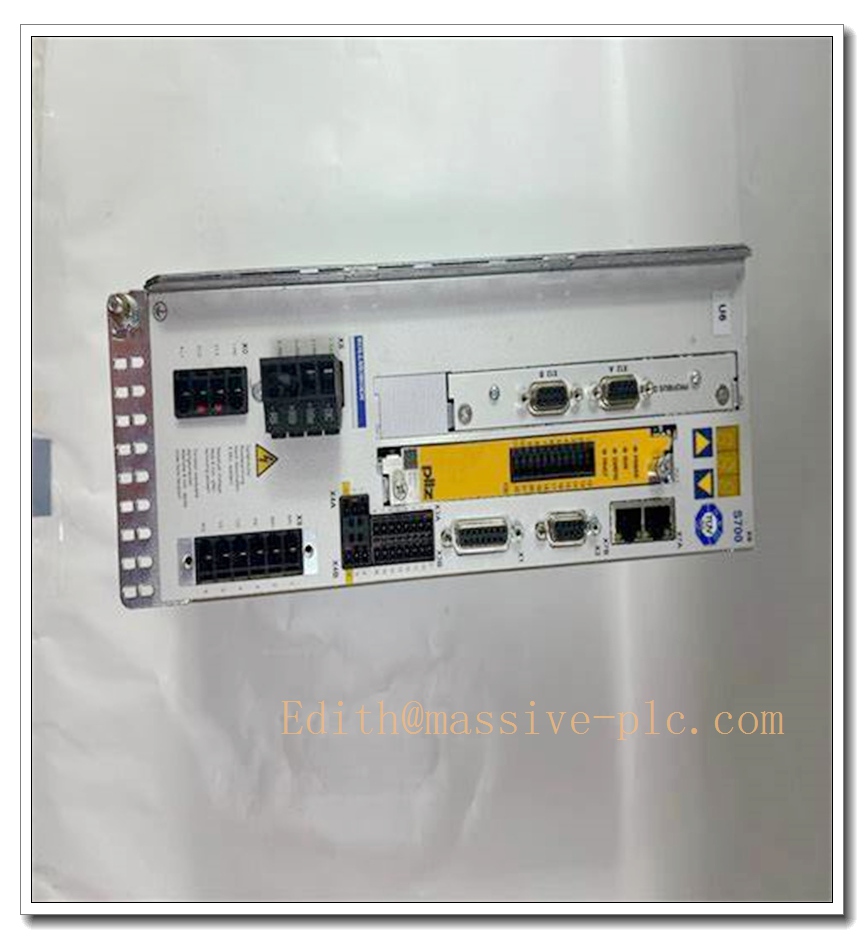

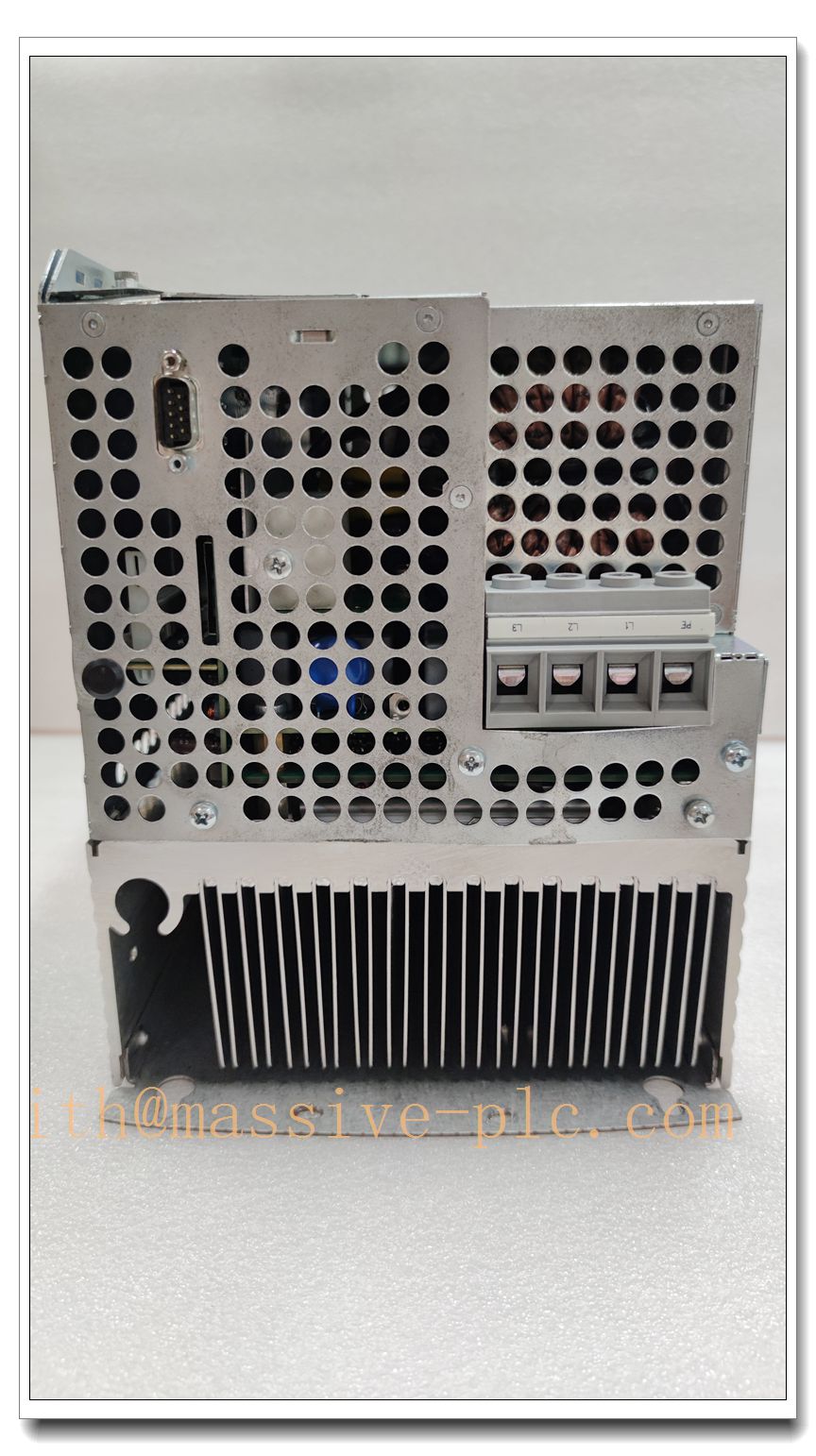

Kollmorgen S74802-NANANA
Detailed Product Information
The S74802-NANANA belongs to Kollmorgen S700 series high-end digital servo amplifiers, adopting advanced full-digital control architecture to achieve high-speed, high-accuracy position, speed, and torque closed-loop control. Equipped with a built-in dual-channel STO safety function, the product ensures safe torque cut-off under abnormal operating conditions, effectively avoiding equipment damage and personal safety risks, and fully complies with international machinery safety standards.
This drive supports single-phase and three-phase universal AC power supply, eliminating the need for complex power conversion modules and adapting to global industrial power supply environments. It integrates multiple mainstream industrial communication interfaces including Ethernet, CAN-Bus, and RS232, enabling seamless connection with PLC, industrial controllers, and upper computer systems. In terms of feedback adaptation, it is compatible with nearly all mainstream encoder types such as HIPERFACE DSL, BISS, ENDAT, SSI, and resolver signals, realizing one-cable high-efficiency connection and simplifying on-site wiring.
- Product Type: Digital Servo Amplifier / Servo Drive
- Brand & Series: Kollmorgen, S700 Series
- Safety Function: Dual-Channel STO (Safe Torque Off), SIL 2 / PL d / Cat.3 compliant
- Input Voltage: 110–480 VAC, 1-phase / 3-phase universal
- Input Frequency: 50 Hz / 60 Hz adaptive
- Continuous Output Current: Standard rated current for S74802 baseline model (customizable range: 1.5–72 A RMS per phase for full series)
- Control Mode: Position loop, speed loop, torque loop, master-slave electronic gearing
- Communication Interfaces: Ethernet (X7), CAN-Bus (X6), RS232 (X6), reserved expansion bus interface
- Supported Feedback Types: HIPERFACE DSL, BISS Digital/Analog, ENDAT 2.1/2.2, SSI, Resolver, Hall sensor, incremental encoder
- Digital I/O: Multi-channel configurable digital input/output, 24 V signal level
- Analog Input: High-precision analog signal acquisition interface for speed/torque analog command
- Cooling Mode: Heat sink / cold plate dual cooling optional
- Operating Ambient Temperature: 0℃ to +40℃ (forced ventilation required for full-load operation)
- Storage Temperature: -20℃ to +70℃
- Relative Humidity: 5%–95% non-condensing
- Certifications: CE, UL, TÜV, RoHS, REACH, EAC
- Installation Method: Cabinet backplane mounting, cold plate mounting
- Protection Class: Industrial standard cabinet protection (adapt to IP54 cabinet environment)
8 Recommended Related Models (S700 Series Matching Models)
All models belong to Kollmorgen S700 series, compatible with the same software system, communication protocol and installation specifications, covering different current levels and safety configurations for multi-scene replacement and expansion
- S74802-NANAF2: Upgraded safety configuration model of -NANANA, enhanced anti-interference, suitable for high-electromagnetic-interference industrial scenarios
-
S74802-NAF2NA: Standard industrial enhanced version, optimized heat dissipation structure, supporting long-term full-load continuous operation
- S7240P-NANANA: Medium-current high-precision model, compatible with all feedback protocols of -NANANA, for small and medium-power precision motion control
- S7030: Low-power compact model, consistent software configuration logic, suitable for lightweight automated equipment matching
- S7060: Medium-power universal model, universal power input, compatible with most peripheral components
- S7240: High-dynamic response model, optimized speed loop algorithm, for high-speed reciprocating motion scenarios
- S7120: High-stability low-noise model, suitable for precision processing and testing equipment with low-vibration requirements
- S77202-NANAF2: High-current high-power expansion model, multi-axis synchronous control support, for large automated production lines
Compatibility & Critical Installation Traps
5.1 System Compatibility
- Software Compatibility: Fully compatible with Kollmorgen official parameter configuration and debugging software, supporting one-click parameter migration with all S700 series drives
- Motor Compatibility: Adaptable to Kollmorgen AK series servo motors, and mainstream third-party servo motors with matching feedback signals
- Controller Compatibility: Compatible with mainstream industrial PLC, motion controllers, and upper computer systems supporting Ethernet/CAN-Bus/step-direction signals
- Expansion Module Compatibility: Support S700 series dedicated expansion cards (I/O expansion, PROFIBUS, SERCOS, SYNQNET, safety expansion modules)
- Cable Compatibility: Matches dedicated servo power cables, single-cable feedback cables, and shielded communication cables of series
5.2 Key Installation Traps & Avoidance Guidelines
- Trap 1: Unregulated Power Input: Direct access to unfiltered unstable mains power will cause drive overvoltage alarm and component burnout. Solution: Must match industrial power filter, strictly follow 110–480 VAC rated input range, avoid overvoltage/undervoltage operation.
- Trap 2: Non-standard Shielding Wiring: Incomplete shielding grounding or mixed wiring of power and signal cables leads to communication interference and position jitter. Solution: Separate power cables and signal cables, fully ground all shielding layers, fix shielding plates in place, avoid floating grounding.
- Trap 3: Insufficient Heat Dissipation Space: Crowded cabinet installation without reserved ventilation space causes over-temperature protection and performance attenuation. Solution: Reserve standard heat dissipation gap around the drive, ensure cabinet ventilation or external cooling equipment, ambient temperature strictly controlled below 40℃.
- Trap 4: Incorrect STO Safety Wiring: Single-channel STO wiring or wrong pin definition leads to safety function failure and non-compliant equipment. Solution: Strictly implement dual-channel wiring, verify pin assignment according to official manual, test STO on-off function after installation.
- Trap 5: Mismatched Feedback Signal Configuration: Inconsistent encoder type and software parameter settings cause motor runaway or position error.Solution: Confirm feedback type before power-on, match software protocol parameters, avoid mixed use of different specification encoders.
- Trap 6: Unregulated Tightening Torque: Excessive or insufficient terminal torque causes poor contact, heat generation and intermittent failure. Solution: Follow official recommended tightening torque for all power and signal terminals.
- Trap 7: Live Plugging and Unpowered Maintenance: Live plugging of connectors easily damages interface circuits; long-term unpowered storage causes internal capacitor aging. Solution: Cut off total power before plugging/unplugging connectors; regular power-on maintenance for long-term idle equipment.
Standard Operating Procedure (SOP)
6.1 Pre-installation Inspection
Verify product model integrity, check appearance for damage, confirm complete accessories; inspect on-site power supply, cabinet environment, heat dissipation conditions and grounding system compliance; confirm matching of motor, cable and expansion module specifications.
6.2 Mechanical Installation
Fix the drive on cabinet backplane or cold plate according to standard mounting size; reserve sufficient ventilation gap; install shielding plate firmly to ensure stable mechanical fixation and no vibration displacement.
6.3 Electrical Wiring
Wire power terminals, auxiliary power supply, DC bus, motor power and brake cables in sequence; complete feedback signal, communication and I/O wiring; implement standardized shielding and grounding; check all wiring for short circuit, open circuit and wrong connection; calibrate terminal tightening torque.
6.4 Software Configuration & Debugging
Connect PC via debugging interface, install official configuration software; complete basic parameter setting (power supply specification, motor model, feedback type); configure control mode, communication address and safety parameters; save parameters and restart the drive.
6.5 Functional Test
Perform jog test to verify forward/reverse operation stability; test position, speed and torque control accuracy; complete STO safety function on-off test; check for abnormal alarm, noise and heat generation; confirm communication data interaction normal.
6.6 Formal Operation & Daily Maintenance
Run equipment under no-load and load conditions step by step; record operating parameters; conduct regular daily inspection of temperature, wiring tightness and communication status; regularly clean dust and check aging of cables and accessories.
- Precision Processing Machinery: CNC machine tools, grinding machines, cutting equipment, meeting high-precision positioning and high-stability operation requirements
Application Scenarios
- Automated Production Lines: Assembly lines, sorting equipment, packaging machinery, supporting multi-axis synchronous linkage control
- Logistics Automation Equipment: Handling robots, conveying equipment, stacking machinery, adapting to high-frequency dynamic operation
- Electronic Precision Equipment: Semiconductor processing equipment, testing instruments, SMT equipment, low-noise and high-precision motion control
- Robot Motion Control: Joint robot drive system, linear robot axes, high-dynamic response and high-reliability operation
- Special Industrial Equipment: Medical automation equipment, aerospace precision testing equipment, meeting high safety and high stability standards
Supporting Components & Accessories
- Power Accessories: Industrial power filter, external brake resistor, DC bus capacitor module (KCM), isolation transformer
- Cable Accessories: series dedicated servo power cable, single-cable feedback cable, shielded communication cable, encoder signal cable
- Expansion Modules: I/O expansion card, PROFIBUS/SERCOS/SYNQNET communication expansion card, dual-channel safety expansion card, 2CAN bus module
- Installation Accessories: Standard mounting bracket, heat sink/cold plate assembly, shielding plate, terminal crimping terminals
- Debugging Accessories: Official debugging software, RS232/Ethernet debugging cable, parameter memory card
- Protective Accessories: Cabinet cooling fan, temperature monitoring module, surge protection module
