LAM 810-046015-010 Gas Box Mass Flow Controller Interface Board, Semiconductor Etch Gas Distribution PCB

Description

LAM 810-046015-010 Gas Box Mass Flow Controller Interface Board, Semiconductor Etch Gas Distribution PCB

Product Description

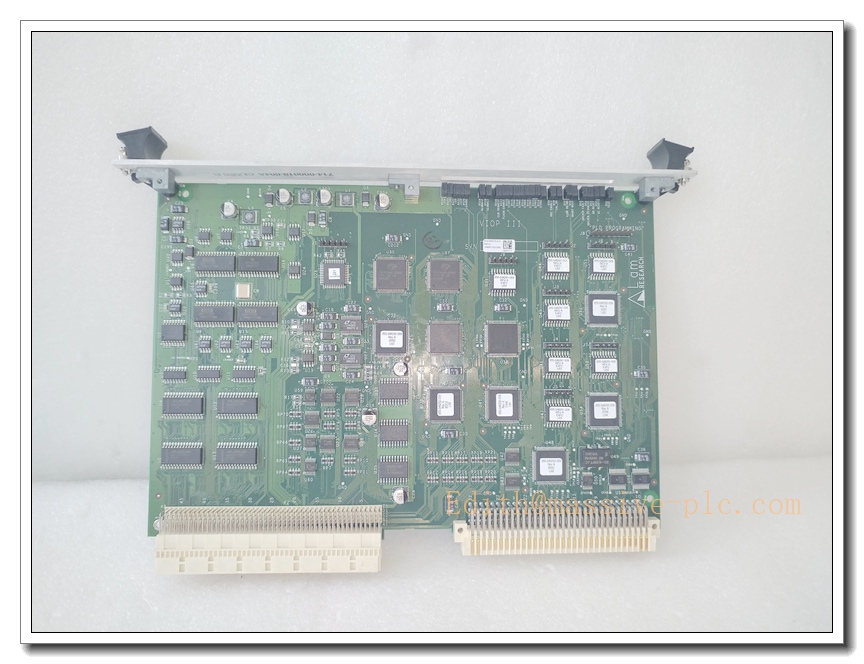

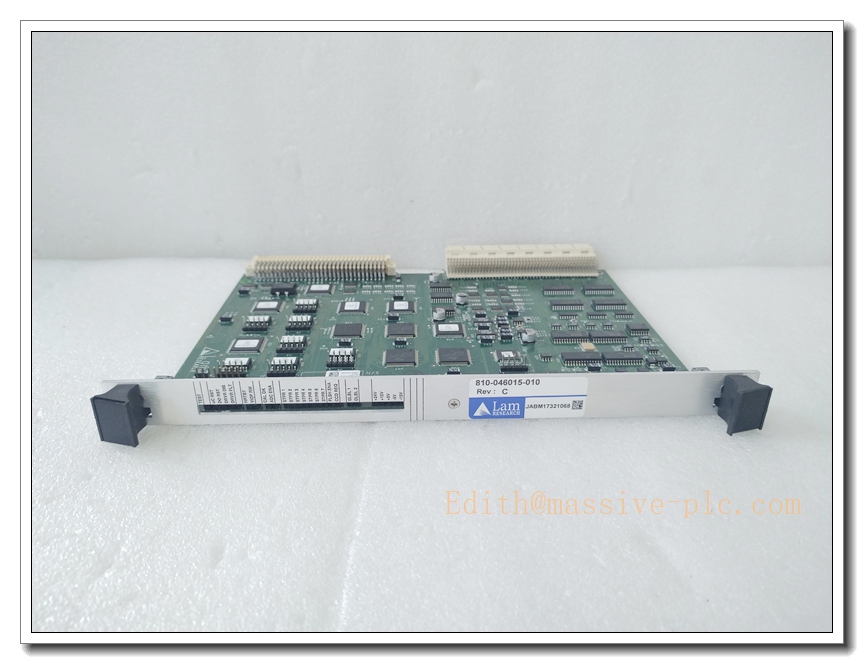

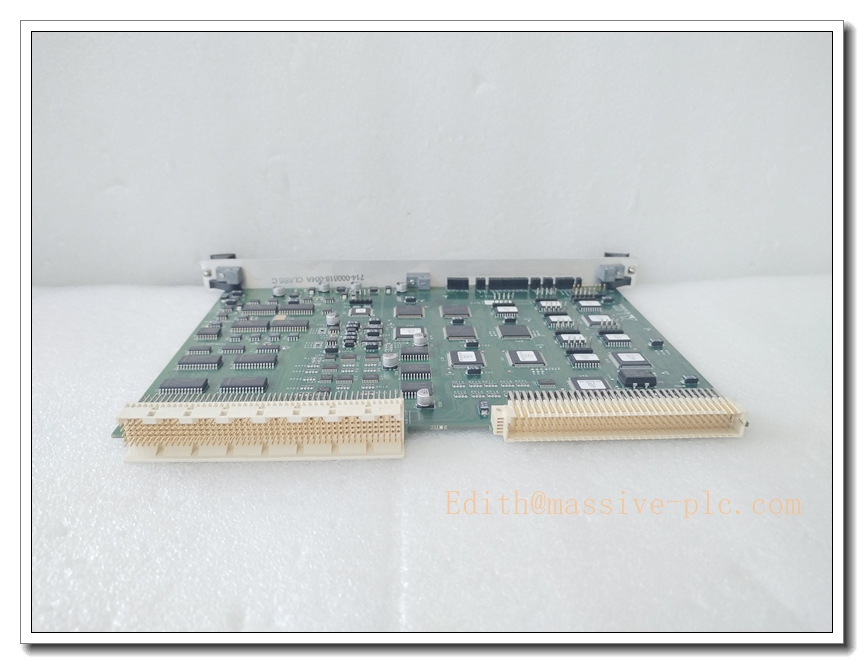

The 810-046015-010 is a dedicated gas box MFC (Mass Flow Controller) interface PCB for Lam Research semiconductor plasma etch platforms. It serves as the signal intermediary between the chamber main controller and multiple mass flow controllers inside the gas manifold cabinet. The board converts host bus commands into analog setpoint signals for gas flow regulation, collects flow rate readings, valve status and diagnostic feedback from each MFC, and transmits data back to the tool control software. Circuitry is conformal-coated to withstand cleanroom environments, including trace corrosive process gases, humidity and vibration. It enables precise gas recipe execution, gas mixture tuning, leak detection and MFC fault alarming, and is an essential spare for gas delivery subsystem maintenance on compatible Lam etch tools.

Technical Parameters

Recommended Related Models (8 units)

1. 810-046015-001: Earlier base revision of the MFC interface board
2. 810-102361-222: Rocker valve interface PCB for chamber vacuum control
3. 853-150806-001: OES optical emission spectrometer for plasma endpoint detection
4. 810-114278-001: RF match control board for ICP plasma source
5. 810-002876-001: Chamber main system controller motherboard
6. 853-045976-001: Rocker valve actuator assembly with Hall position sensor
7. Lam Gas Box MFC Assemblies: Mass flow controllers connected to this interface board
8. 61-428059-00: VECTOR EXTREME EIOC 1 chamber I/O & motion controller

LAM 810-046015-010

Compatibility & Installation Traps

Compatibility

• Primary host platforms: Lam Research VECTOR EXTREME / Kiyo / 2300 Flex plasma etch systems
• Control software: Lam fab host recipe execution and gas delivery monitoring framework
• Field devices: Analog-type mass flow controllers, gas manifold solenoid valves, pressure transducers inside the gas box
• Note: Uses Lam proprietary internal backplane bus; not compatible with standard Modbus or EtherCAT MFC networks.

Critical Installation Traps

1. Revision and Firmware Matching: Board revision must align with the tool’s host software version. Mismatched firmware causes incorrect flow setpoints, MFC communication dropouts or recipe hold.
2. Analog Signal Polarity: Reversed analog wiring between the board and MFC leads to negative flow readings, unstable gas control and process drift.
3. Conformal Coating Integrity: Avoid scratching the conformal coating during ESD handling. Damaged coating exposes copper traces to corrosive gas byproducts and causes intermittent analog drift.
4. High ESD Sensitivity: Precision analog reference components are vulnerable to electrostatic discharge. All handling must occur at an ESD-controlled cleanroom workstation.
5. Load Isolation Prior to Power-Up: A faulty, shorted MFC harness can damage the board’s analog output drivers. Disconnect MFC field wiring before energizing the replacement PCB.
6. Backplane Connector Pin Integrity: Bent pins on the edge connector lead to intermittent bus faults that may not present during static bench testing.
7. Cleanroom Handling Rules: Do not touch PCB traces or connector pins with bare hands. Skin oils degrade insulation and introduce measurement offset over thermal cycles.
8. Post-Install Gas Calibration Required: After board replacement, MFC zero and span calibration must be performed. Skipping calibration results in inaccurate gas flow and poor wafer process uniformity.

Standard Operating Procedure (SOP)

1. Pre-installation inspection: Check PCB, edge connector and conformal coating for scratches or corrosion. Verify part number and revision against the tool BOM.
2. Lockout and energy isolation: Set the tool to safe state, purge gas manifold lines, shut off gas supplies, de-energize gas box 24VDC auxiliary power and apply lockout/tagout.
3. Mechanical removal: Remove gas box cabinet panels, disconnect the backplane bus and MFC field harnesses. Extract the old PCB from its card slot.
4. Reassembly and cabling: Insert the replacement board into the designated slot and secure fasteners. Reconnect all MFC signal cables, confirm pinout and lock connectors.
5. Power-up and self-test: Restore 24VDC auxiliary power. Confirm power and bus LEDs are active. Run the tool’s built-in MFC channel diagnostic test.
6. MFC calibration and loop validation: Perform zero and span calibration for all connected mass flow controllers. Verify setpoint command and measured flow feedback match within tolerance.
7. Process qualification: Execute dry gas recipe cycles, monitor gas stability, pressure and flow alarm behavior. Release to production after passing gas delivery qualification.
8. Decommissioning: Isolate power before removal. Cap all connectors and pack the defective PCB inside an ESD shielding bag for failure analysis or disposal.

Application Scenarios

• Gas box MFC setpoint control and flow feedback acquisition for Lam plasma etch chambers
• Precision delivery of etch, purge and carrier process gases during wafer recipes
• MFC fault monitoring, deviation alarming and gas manifold diagnostics
• Cleanroom semiconductor wafer plasma etch production
• Preventive maintenance replacement of gas interface PCBs
• Troubleshooting of unstable gas flow, MFC communication loss and analog drift
• Gas delivery subsystem retrofit and spare inventory stocking
• Recipe gas mixture tuning and chamber process stability optimization

Supporting Components

• ESD wrist strap, ESD mat and anti-static shielding bags for cleanroom service
• Torque screwdriver set for PCB mounting fasteners
• Replacement edge connector contacts and gas box MFC wiring harness
• Lam tool service software and service login credentials
• Conformal coating touch-up repair kit
• MFC calibration standard and flow verification tool
• Filtered 24VDC cleanroom power supply with surge and short-circuit protection
• Spare analog mass flow controller assemblies for the gas manifold
