Honeywell CC-TUIO01, Universal IOTA Base for Series C FTA Termination

Description

Honeywell CC-TUIO01, Universal IOTA Base for Series C FTA Termination

Core Product Overview

CC-TUIO01 is a Honeywell Experion PKS Series C universal IOTA (Input Output Termination Assembly) base module. It serves as the physical termination carrier for many Series C I/O processor cards, providing backplane connection, field signal wiring terminals, 24VDC power distribution and signal conditioning paths. Different I/O processor modules can be plugged onto this IOTA base to realize digital input, digital output, analog input and analog output functions. It communicates with the C300 controller (such as CC-PCNT01) via the I/O Link bus. It is only the termination base, does not contain I/O logic processing circuit itself.

Main Technical Specifications

• Part Number: CC-TUIO01
• Manufacturer: Honeywell
• Device Type: Series C Universal IOTA Termination Base
• Compatible Processor Cards: CC-PDIL01, CC-PDOB01, CC-PAIH01, CC-PAOH01 and other matching Series C I/O modules
• Signal Interface: Field wiring screw terminals, I/O Link interface to C300 controller
• Power Supply: 24 VDC
• Form Factor: Series C rack single-slot IOTA base
• Operating Temperature: 0 ~ +60°C
• Humidity: 10%–90% non-condensing, non-condensing
• PCB Coating: Conformal coated for industrial cabinet environment
• Status: EOL, original production discontinued; spare stock available as new surplus or professionally refurbished bench-tested units

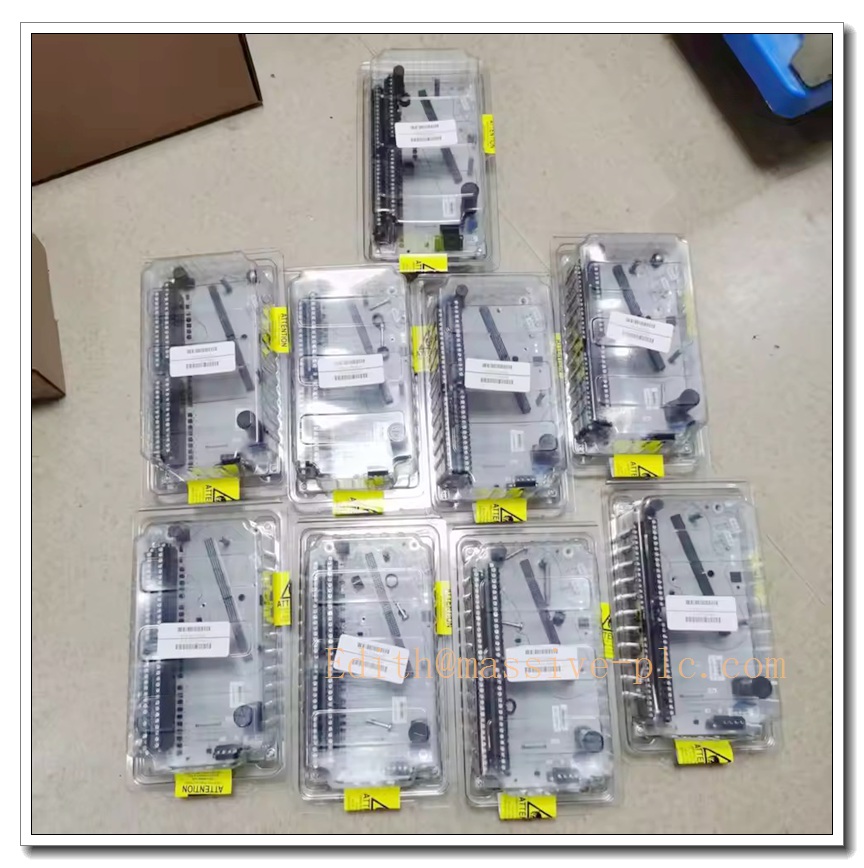

CC-TUIO01

Same-Series Model Recommendations (8 Models)

• CC-TUIO01: Universal I/O IOTA base (subject model)
• CC-PDIL01: Digital Input Processor Module
• CC-PDOB01: Digital Output Processor Module
• CC-PAIH01: Analog Input Processor Module
• CC-PAOH01: Analog Output Processor Module
• CC-PCNT01: 1st Gen C300 Controller
• CC-TCNT01: IOTA base for C300 controller
• CC-PCF901: CF9 FTE Control Firewall Module

Professional Quality Control & Testing Standard Operating Procedures

All surplus and refurbished Honeywell CC-TUIO01 modules follow this inspection workflow:

1. Visual Inspection: Inspect PCB, gold edge fingers, terminal blocks, traces and soldering; verify Honeywell part label and revision.
2. Backplane Power Bench Test: Install on Series C rack, apply 24VDC, confirm stable power rails, no overcurrent or short circuit.
3. Continuity Test: Check all field terminals and backplane pins for correct continuity, no open or short circuits.
4. I/O Link Communication Test: Mate with compatible I/O processor card, verify communication with C300 controller over I/O Link.
5. Signal Path Test: Verify analog and digital signal transmission paths are intact.
6. Insulation Test: Check isolation between field signals, power and backplane.
7. Thermal Soak Test: Run under rated temperature range to expose intermittent contact faults.
8. Final Cleaning & Packaging: Clean edge contacts, inspect terminals, ESD packaging with printed test certificate.

New / Refurbished Module Installation Guidelines

1. Pre-Installation Safety: Execute lockout-tagout; isolate rack 24V supply and all field instrument wiring to prevent unexpected output action.
2. Rack Check: Confirm Series C carrier rack, protective earth and cabinet cooling airflow.
3. Mechanical Mounting: Slide CC-TUIO01 into the rack slot and lock the latch.
4. Field Wiring: Connect field sensors, valves and instrument cables to the screw terminals following FTA drawings; separate high-power cables from low-level analog signals.
5. Processor Card Installation: Insert the corresponding I/O processor module onto the CC- base and lock.
6. Offline Functional Test: Power the rack offline, verify I/O Link communication and signal reading/writing via Experion PKS.
7. Commissioning & Acceptance: Perform loop check for each channel, confirm alarm and fault diagnostics, archive loop drawings and test records.

Application Scenarios & Product Features

Typical Application Scenarios

• Experion PKS Series C DCS I/O signal termination
• Petrochemical, refinery, gas and power plant control cabinets
• Analog and digital field instrument connection for C300 control systems
• Retrofit and spare replacement for legacy Series C I/O racks

Core Product Features

• Universal IOTA termination base for multiple Series C I/O processor cards
• Screw terminal block for convenient field instrument wiring
• Provides power distribution and signal path between field side and I/O processor
• Communicates to controller via I/O Link bus
• Conformal coated PCB for humid or mildly corrosive cabinet environments
• Supports hot-swap of the I/O processor card on the base (follow site bypass procedures)
• No independent control or signal processing capability; must be paired with an I/O processor card

Frequently Asked Questions (FAQ)

A1: No. CC- is only a termination base. It requires a matching I/O processor card (PDIL01, PDOB01, PAIH01, PAOH01 etc.) to collect or output signals.

A2: Only the compatible models listed above. Some special I/O types have dedicated IOTA bases and cannot use CC-.

Q3: Is it hot-swappable? A3: The IOTA base itself is generally not hot-swappable. The I/O processor card plugged onto it supports hot swap with proper loop bypass.

Q4: What is the difference between IOTA and FTA? A4: IOTA is the rack-mounted backplane base in the DCS cabinet. FTA (Field Terminal Assembly) refers to the overall field termination assembly including wiring drawings and terminal hardware.

Q5: What are common failure modes? A5: Terminal block loose contact, gold finger oxidation, trace corrosion, short circuit caused by wiring error, insulation degradation.
