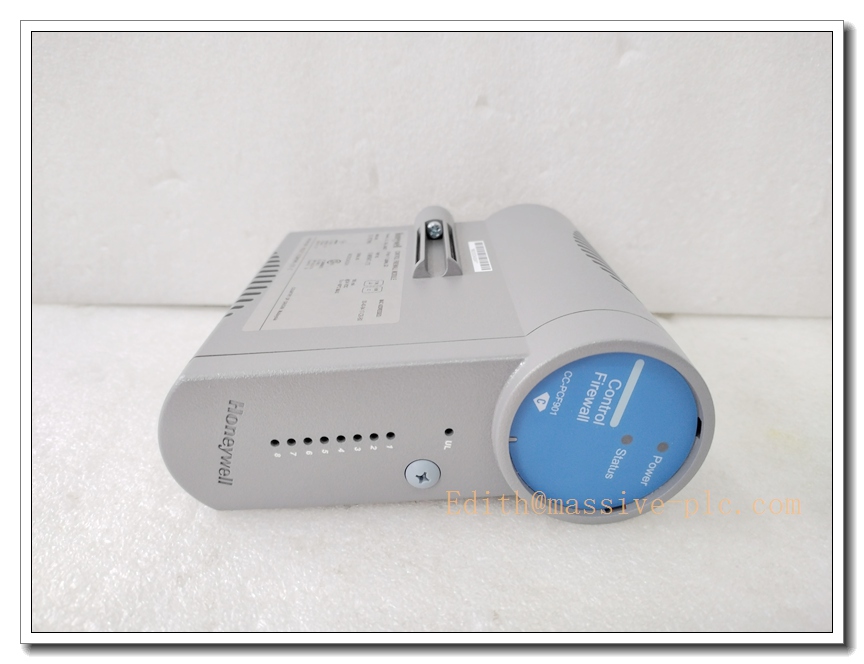

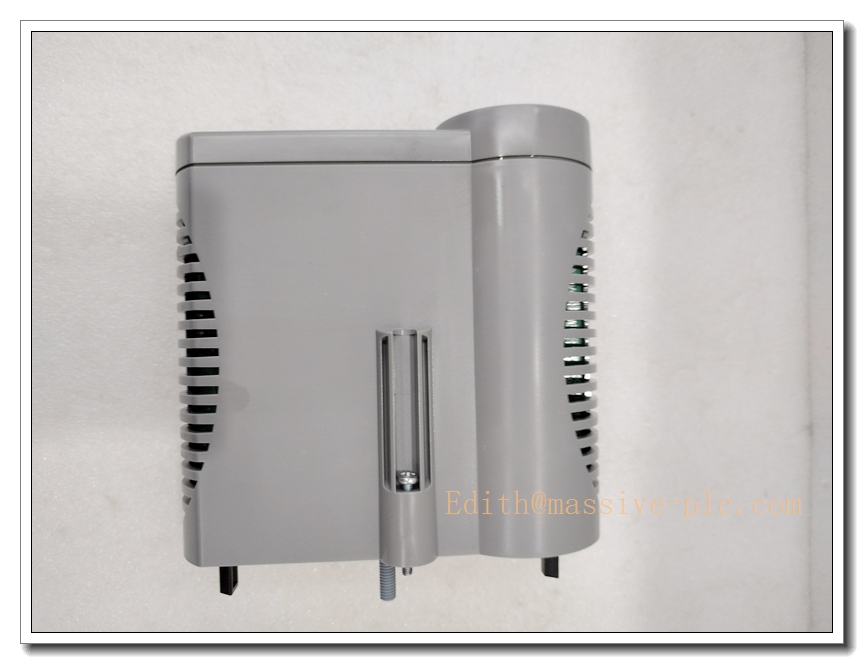

Honeywell CC-PCF901 CF9 Control Firewall Module for Experion PKS Series C

Description

Honeywell CC-PCF901 CF9 Control Firewall Module for Experion PKS Series C

Core Product Overview

CC-PCF901 is the CF9 Control Firewall (FTE network security module) of Honeywell Experion PKS Series C platform. It must be installed on the matching IOTA base CC-TCF901. It is not a controller CPU. It integrates FTE (Fault Tolerant Ethernet) switching + industrial firewall filtering, providing 8 downstream FTE ports for cabinet C300 controllers plus 1 uplink port to the supervisory FTE network. It filters non-control traffic, suppresses broadcast storms, isolates cabinet-level control network to protect deterministic C300 control execution, complies with IEC 62443 industrial cybersecurity requirements. Widely used in petrochemical, refinery, power plant Experion PKS control cabinets.

Main Technical Specifications

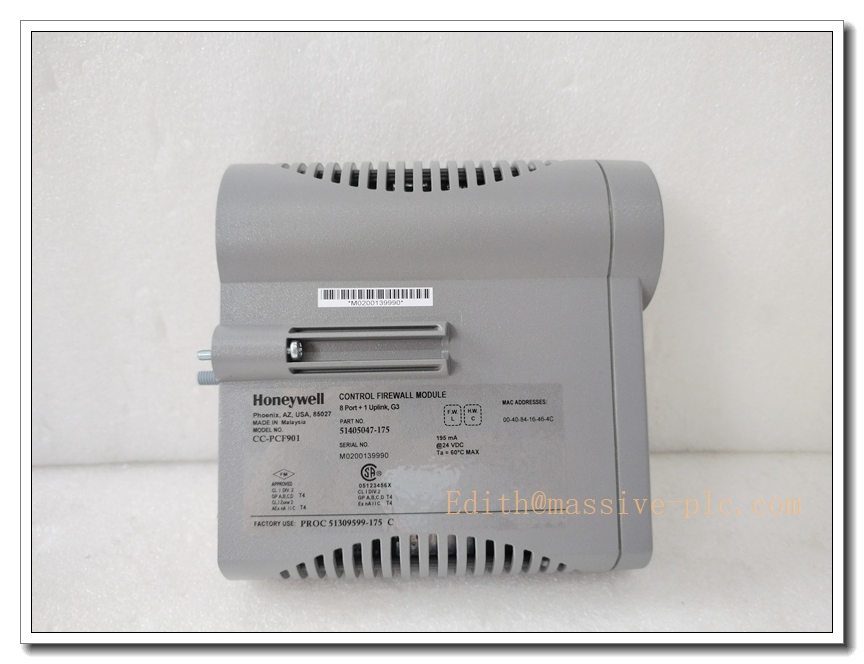

• Part Number: CC-PCF901, Honeywell spare PN: 51405047-175
• Manufacturer: Honeywell
• Device Type: CF9 FTE Control Firewall Module
• Compatible IOTA Base: CC-TCF901
• Port allocation: 8 × 10/100 Mbps FTE downstream ports; 1 × uplink port
• Function: FTE switching, L2 traffic filtering, broadcast/multicast storm suppression, access control
• Power: 24 VDC supplied by CC-TCF901 IOTA
• PCB Coating: Conformal coated (CC prefix) for harsh industrial environments
• Operating Temperature: 0 ~ +60°C
• Humidity: 10%–90% non-condensing
• Form Factor: Series C carrier rack plug-in module
• Status: EOL, original production discontinued; spare stock available as new surplus or professionally refurbished bench-tested units

Same-Series Model Recommendations (8 Models)

•

  CC-PCF901

Professional Quality Control & Testing Standard Operating Procedures

All surplus and refurbished Honeywell CC-PCF901 modules follow this inspection workflow:

1. Visual Inspection: Inspect PCB, gold edge fingers, front LED indicators, capacitors and soldering; verify Honeywell part label and revision.
2. IOTA Base Power Bench Test: Install on CC-TCF901, apply 24VDC, confirm stable power rails, no overcurrent or cycling.
3. Boot & Firmware Validation: Complete power-on self-test, read firmware revision, confirm no permanent hardware fault codes.
4. FTE Port Function Test: Test all 8 downstream ports and uplink port, verify link negotiation and traffic forwarding.
5. Firewall Filter Test: Verify non-control packet blocking and broadcast storm suppression.
6. Network Redundancy Test: Validate FTE fault tolerance and switchover when one FTE path fails.
7. Thermal Soak Test: Run module at upper ambient temperature to expose intermittent port or timing faults.
8. Final Cleaning & Packaging: Clean edge contacts, reset configuration, ESD packaging with printed test certificate.

New / Refurbished Module Installation Guidelines

1. Pre-Installation Safety: Execute lockout-tagout; isolate rack 24V supply and FTE network to avoid control network interruption.
2. Rack & IOTA Check: Confirm CC-TCF901 IOTA base is correctly mounted on Series C carrier, protective earth and cabinet ventilation.
3. Mechanical Insertion: Align CC- edge connector with CC-, insert smoothly and lock the module latch.
4. Network Wiring: Connect C300 FTE cables to downstream ports; connect uplink to supervisory FTE network; use Honeywell specified shielded FTE cables.
5. System Configuration: Configure firewall rules and FTE topology via Experion PKS engineering tools.
6. Offline Functional Test: Power rack offline; verify port link LEDs, firewall filtering and FTE redundancy switchover.
7. Commissioning & Acceptance: Monitor network load and controller communication, verify no unexpected broadcast flooding, archive network configuration.

Application Scenarios & Product Features

Typical Application Scenarios

• Experion PKS Series C control cabinet FTE network segmentation
• Petrochemical, refinery and power plant DCS control room cabinets
• Cybersecurity isolation between cabinet local C300 controllers and plant supervisory FTE network
• Retrofit and spare replacement of existing CF9 control firewall installations

Core Product Features

• Dedicated CF9 FTE control firewall for Experion PKS Series C
• 8 downstream FTE ports for controllers + 1 uplink port
• Layer 2 traffic filtering to protect deterministic control traffic
• Broadcast and multicast storm suppression to avoid controller scan disruption
• FTE fault-tolerant Ethernet support for redundant network paths
• Conformal coated PCB for corrosive or high-humidity cabinet environments
• Hot-swap capable; replacement requires network bypass and site work permit procedures
• Cannot be substituted by ordinary commercial IT switches

Frequently Asked Questions (FAQ)

A1: No. It is a network firewall/FTE switch module. The controller is CC-TDCU01.

A2: No, CC- is the mandatory IOTA termination base that provides power and physical FTE wiring terminals.

A3: No. Standard IT switches do not support Honeywell proprietary FTE protocol and control firewall filtering, which may break deterministic control.

Q4: Is it hot-swappable? A4: Hardware supports hot swap, but removal will interrupt FTE communication for all controllers connected to this CF9. Implement network bypass and work permit before replacement.

Q5: What are common failure modes? A5: Edge connector oxidation, RJ45 port ESD damage, ageing capacitors, firmware corruption induced by voltage transients, port link instability.
