Description

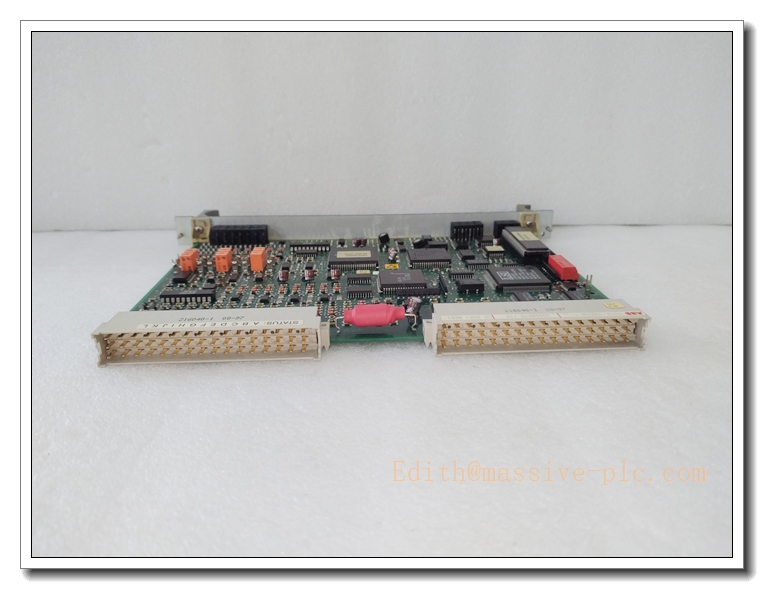

HIEE300766R0001 GDB021BE01 ABB Gate Drive Unit, Optical Fiber Isolated IGBT & IGCT Gate Driver with High‑Speed Hardware Protection for Medium Voltage Power Conversion System
Product Application
HIEE300766R0001 GDB021BE01 is a dedicated gate drive unit for ABB medium‑voltage variable frequency drives and high‑power DC transmission power units. It receives PWM control signals transmitted by optical fiber from the main control board, converts the signal into high‑current gate driving pulses to turn on and turn off IGBT or IGCT power semiconductor devices. It is widely used in large‑scale medium‑voltage frequency conversion systems of metallurgy, mining, oil & gas, water treatment and power plants, for high‑power fan, pump, conveyor and main drive motor speed regulation. Integrated ultra‑fast hardware protection function, it can quickly detect power tube faults such as VCE over‑saturation, short circuit and overcurrent, and implement microsecond‑level pulse blocking to protect the power semiconductor from damage. This gate drive board is a core component to ensure safe and reliable operation of medium‑voltage power units.

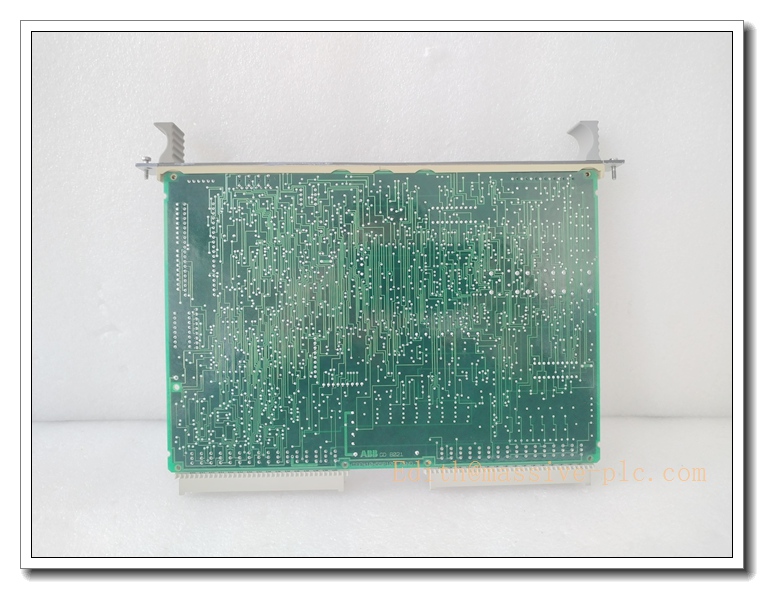

GDB021BE01 HIEE300766R0001
Product Specifications
- Part Number: HIEE300766R0001
- Short Name: GDB021BE01
- Product Type: IGBT / IGCT Gate Drive Unit
- Signal Input: Fiber optic PWM signal input, fully optically isolated
- Drive Output: +15V turn‑on / -8V turn‑off gate driving voltage
- Peak Output Current: ≥ 3A peak gate current
- Auxiliary Power: 24 VDC ±10% isolated auxiliary supply
- Dielectric Withstand Voltage: ≥ 2500 VAC isolation between control side and high‑voltage power side
- Installation: Plug‑in board, mounted inside medium voltage power unit cabinet
- Protection: VCE monitoring, short‑circuit protection, overcurrent lockout, under‑voltage protection
- Cooling: Natural air cooling inside sealed power unit cabinet
- Protection Grade: IP20 (for internal cabinet mounting)
- Origin: Switzerland
Core Technical Parameters
- Auxiliary Supply: 24 VDC ±10%
- Gate Drive Level: +15 V (ON), -8 V (OFF)
- Peak Drive Current: 3 A
- Electrical Isolation: 2500 VAC between fiber control port and power output stage
- Fault Response Speed: μs‑class fast hardware fault latch & gate blocking
- Operating Temperature: -20 ℃ ~ +60 ℃
- Storage Temperature: -40 ℃ ~ +85 ℃
- Relative Humidity: 5%–95%, non‑condensing
- Dimension (W × H × D): 206 × 37 × 276 mm
- Weight: Approx. 0.42 kg
- Communication Interface: Fiber optic signal transceiver port
- Compatible Power Device: Medium‑voltage IGBT and IGCT power modules
Recommended Matching Models (8 Models)
Commonly matched components for medium‑voltage power unit assembly:
- ABB Main Control PWM Board
- Medium Voltage IGCT Power Module
- High Voltage DC Bus Capacitor Bank
- Fiber Optic Cable Assembly for PWM Signal
- 24VDC Isolated Power Supply Module
- Snubber Circuit Board for Power Unit
- Temperature Monitoring Board for Power Semiconductor
- Power Unit Backplane

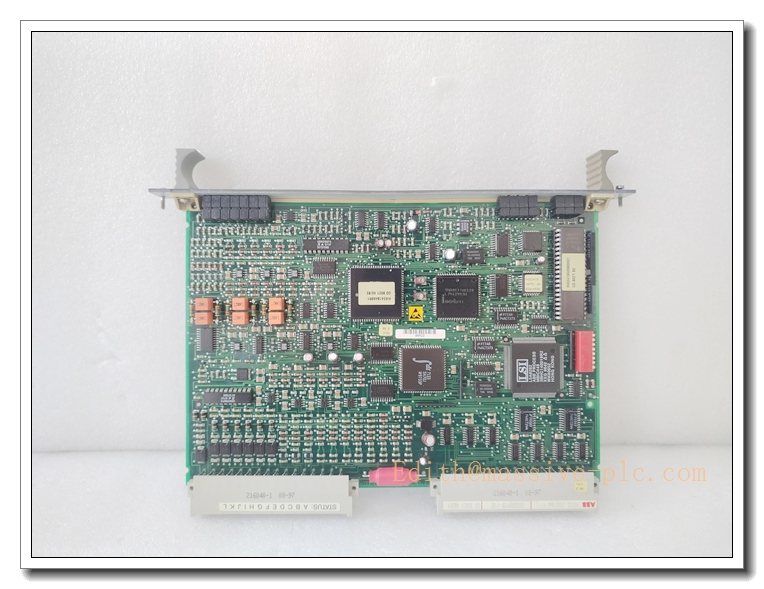

GDB021BE01 HIEE300766R0001
Product Features
✅ Fiber Optic Isolated Signal Transmission PWM control signal is transmitted by optical fiber, completely eliminating electromagnetic interference between low‑voltage control system and high‑voltage power circuit, greatly improving the anti‑interference capability of medium‑variable frequency drive system.
✅ Microsecond‑Level Hardware Protection Mechanism Built‑in VCE saturation detection, short‑circuit and overcurrent hardware protection circuit. Once the power device fails, the drive unit can immediately block the gate pulse within microseconds to avoid IGBT / IGCT burst damage.
✅ High‑Current Gate Driving Capability 3A peak gate drive current ensures fast and reliable switching of high‑power IGBT and IGCT modules, reduces switching loss and heat generation of power devices, and improves the overall efficiency of medium‑voltage drive.
✅ High Isolation Voltage Design 2500VAC reinforced isolation between control side and power side, fully meets the safety insulation requirements of medium‑voltage power electronic equipment.
✅ Compact Board‑Level Modular Structure Plug‑in circuit board design, compact layout inside the power unit cabinet, convenient for maintenance and replacement of faulty drive board.
✅ Stable Negative Gate Turn‑off Voltage -8V negative voltage output for gate turn‑off, effectively prevents the false turn‑on of power semiconductor caused by high dv/dt interference in high‑power circuits and improves system stability.
✅ Industrial Wide Temperature Adaptability Designed for long‑term continuous operation in closed medium‑voltage power unit cabinet, reliable performance under wide temperature range of industrial site.
Installation Guidelines
- Cut off all high‑voltage power supply and discharge the DC bus capacitor completely before installing or replacing HIEE300766R0001. Strictly follow medium‑voltage equipment lockout‑tagout safety procedure.
- Insert the gate drive board into the dedicated slot of power unit backplane, tighten fixing screws to ensure reliable connector contact.
- Connect the transmitting and receiving optical fiber cables between main control board and GDB021BE01, confirm fiber direction is correct and fiber end face is clean without scratches.
- Wire isolated 24VDC auxiliary power supply to the drive board terminal, use twisted pair cable for power wiring.
- Carefully connect gate signal wiring from drive board to IGBT / IGCT module gate terminal, keep gate wire short and shielded.
- Double‑check all wiring, confirm no short circuit between high‑voltage main circuit and gate drive circuit before power on.
- Complete low‑voltage 24V auxiliary power test first, check the status LED of drive board, verify normal fiber signal communication.
- Carry out pulse test without high‑voltage DC bus, check gate driving waveform, then perform high‑voltage power‑on commissioning step by step.
Maintenance Instructions
Daily Maintenance Check indicator LED status of each gate drive board during regular drive inspection. Check whether optical fiber connectors are loose, dusty or damaged. Monitor the internal temperature of medium‑voltage power cabinet.
Periodic Maintenance Every 6–12 months: Pull out and clean the dust on the surface of circuit board and optical fiber end face. Check the aging and bending of optical fiber. Inspect gate wiring terminals for loose and oxidation. Test 24V auxiliary power supply voltage. Back up medium‑voltage drive parameters.
Fault Maintenance
- Drive board fault alarm: First check fiber cable breakage, poor contact and 24V auxiliary power supply abnormality.
- Power tube short circuit protection triggered: Do not power on repeatedly. Inspect whether IGBT / IGCT module is damaged. Replace the faulty gate drive board together with damaged power semiconductor.
- Do not disassemble the gate drive board privately. It contains high‑precision high‑voltage components. Replace with spare board and test waveform after replacement.
- Static protection measures must be taken when handling the board to prevent electrostatic damage to sensitive chips.
Long‑Term Operation Tips Avoid excessive cabinet temperature rise, regularly check cooling fan of power unit. Prevent conductive dust and moisture from entering the power cabinet. Handle spare gate drive boards in anti‑static packaging.
Brand Same‑Series Models (6 Models)
ABB GDB series gate drive units for medium‑voltage power modules, different configurations and power grades:
- GDB021BE01 HIEE300766R0001 – Standard IGCT / IGBT Gate Drive Unit (Target Model)
- GDB021BE02 – Updated Revision Gate Drive Board
- GDB022BE01 – High‑Power Version Gate Drive Unit
- GDB031BE01 – Fiber Interface Expansion Gate Driver
- GDB011BE01 – Low Power IGBT Gate Drive Board
- GDB041BE01 – Gate Drive with Built‑in Temperature Detection
