Bently Nevada 990‑05‑70‑01‑00 — 990 Series Two‑Wire Loop‑Powered Vibration Transmitter

Description

Bently Nevada 990‑05‑70‑01‑00 — 990 Series Two‑Wire Loop‑Powered Vibration Transmitter

Product Overview

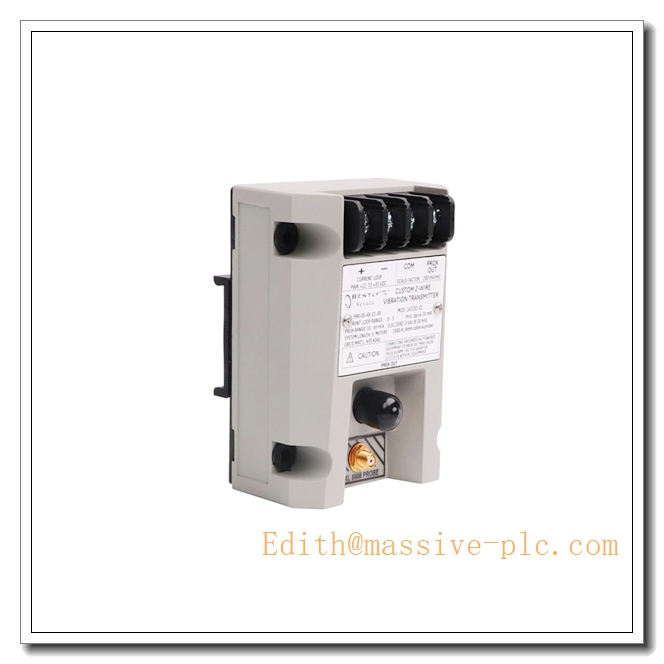

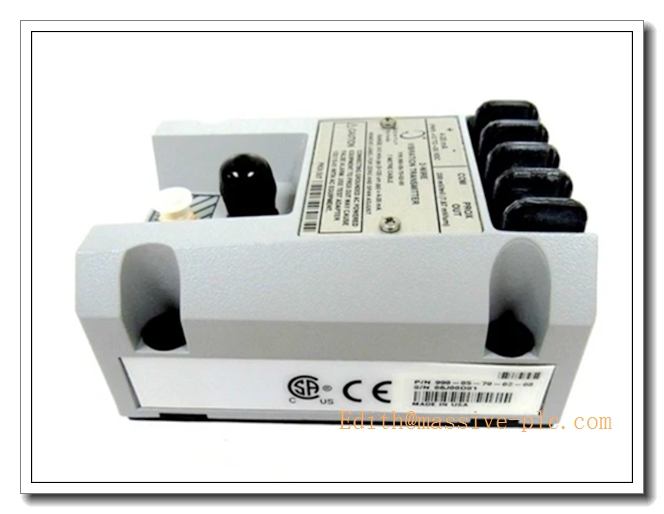

The 990‑05‑70‑01‑00 is a compact integrated two‑wire loop‑powered vibration transmitter from Bently Nevada 990 product family. It embeds proximitor function inside the transmitter housing, directly interfacing with 3300‑XL NSv 8 mm eddy‑current proximity transducer system. The unit converts raw shaft‑relative displacement signal into standard 4‑20 mA analog output for PLC, DCS or SCADA host systems. This transmitter is widely deployed for auxiliary rotating‑machinery condition‑monitoring where full‑size rack‑based monitoring hardware is not required. It implements Not‑OK fault detection for probe breakage, short‑circuit or cable failure conditions.

Critical Compatibility Warning

• Exclusively designed for 3300‑XL NSv 8 mm proximity probe system. Fixed total transducer cable length requirement: 7.0 m (probe pigtail + extension cable).
• Not compatible with standard 3300‑XL 8 mm non‑NSv probe series or 11 mm transducer family.
• 4‑20 mA output corresponds to peak‑to‑peak shaft vibration; cannot be directly connected to 3500 monitor rack back‑plane.
• Two‑wire loop power supply required. Deviation from exact 7 m total transducer cable length will generate scale‑factor error and inaccurate displacement readings.
• This is non‑intrinsically‑safe version; installation is limited to non‑hazardous safe‑area locations only.

Part Number Decoding

• 990：990 series two‑wire integrated vibration transmitter
• ‑05：Full‑scale measuring range: 0‑5 mils peak‑to‑peak (0‑125 μm peak‑to‑peak)
• ‑70：Mandatory total transducer system cable length =7.0 m
• ‑01：Mounting hardware: 35 mm DIN‑rail mounting clips
• ‑00：Non‑intrinsically‑safe standard version, no hazardous‑area agency approvals

990-05-70-01-00

Key Specifications

Main Features

• Integrated built‑in proximitor circuit: Eliminates separate external proximitor module, reduces component count and cabinet space occupation.
• Fixed 7 m NSv transducer matching: Optimized for 3300‑XL NSv proximity probes with exact total 7‑meter cable assembly.
• 0‑125 μm peak‑to‑peak full‑scale range: Suitable for medium‑size rotating equipment including centrifugal compressors, pumps, fans and blowers.
• Industry‑standard 4‑20 mA two‑wire loop output: Simple field wiring, compatible with universal PLC / DCS analog input modules.
• PROX‑OUT diagnostic terminal: Provides raw gap‑voltage and dynamic vibration signal for on‑site troubleshooting and loop commissioning verification.
• Zero & span potentiometer adjustment: Accessible under cover for field calibration fine‑tuning.
• Not‑OK fault defeat logic: Output drops to low current level upon probe open‑circuit, short‑circuit or cable damage, preventing false high‑vibration alarms.
• DIN‑rail clip mounting form factor: Fast installation inside control cabinets and local instrument junction boxes.
• Potted robust enclosure: Tolerates high humidity, condensation and general industrial cabinet environmental stress.
• Non‑intrinsically‑safe cost‑effective solution for safe‑area condition‑monitoring applications.

Typical Application Scenarios

• Shaft‑relative radial vibration monitoring for centrifugal air compressors, pumps, fans, blowers and small steam turbines without full 3500 rack monitoring system
• OEM machine‑builder standard monitoring point for rotating machinery packages
• Retrofit upgrade for existing 3300‑XL NSv proximity probe installations, delivering 4‑20 mA signal to plant DCS / PLC
• Auxiliary condition‑monitoring points for power‑plant auxiliary equipment, water‑treatment and general manufacturing industrial assets
• Predictive‑maintenance deployment where high‑density rack‑based monitor hardware is economically unnecessary
• Spare‑part replacement for existing 990‑series transmitters within non‑hazardous‑area industrial facilities

Related & Recommended Alternative Models

Compatible Components & Accessories

1. 3300‑XL NSv proximity probes: 330905 / 330907 series NSv‑type proximity probes with ClickLoc connector
2. NSv extension cables: 330930 series coaxial extension cables. Total system length = probe pigtail + extension cable = exact 7.0 m
3. Power source: 12‑35 VDC DC power supply for two‑wire loop circuit
4. Acquisition host: PLC / DCS / SCADA analog input module (4‑20 mA)
5. Mounting accessories: Standard 35 mm DIN‑rail, mounting hardware 330951‑01, cable glands and cable clamps
6. Calibration & test tools: 8 mm NSv static gap calibration rig; 122115‑01 990/991 test adapter for PROX‑OUT signal diagnostics

Installation and Configuration Guide

Warning: Installation must be performed by qualified instrumentation technicians. Always refer to original Bently Nevada 990‑series official manual as primary reference document. This non‑IS transmitter shall NOT be installed within explosive hazardous classified zones.

1. NSv Transducer Loop Assembly
   • Sum probe integral pigtail length plus extension‑cable length must strictly equal 7.0 meters. Any deviation will introduce measurement error.
   • Route NSv coaxial transducer cable separately from high‑power AC, contactor and VFD cables to minimize EMI interference; respect minimum coaxial bending radius.
   • Complete ClickLoc connector mating, apply manufacturer‑specified tightening torque; never force pin alignment during connector insertion.
2. DIN‑Rail Mounting & Loop Wiring
   • Snap transmitter onto standard 35 mm DIN‑rail inside non‑hazardous control cabinet.
   • Execute two‑wire series loop wiring: DC power supply, 990 transmitter and analog‑input module connected in series. Strictly follow terminal polarity marking.
   • Do not apply independent external voltage directly across transmitter signal terminals.
   • Use PROX‑OUT and COM terminals for auxiliary diagnostic measurement; this output is non‑isolated.
3. System Commissioning & Calibration
   • Adjust probe mechanical operating gap to recommended target gap (0.5‑1.75 mm for NSv probe).
   • Energize two‑wire power loop. Verify 4‑20 mA output behaviour.
   • Perform static gap calibration test with NSv calibration fixture to validate output current and scale‑factor performance.
   • Confirm Not‑OK fault condition is cleared after correct wiring and proper probe gap setup. Zero / span potentiometers can be adjusted under unit cover for fine calibration.
4. Maintenance & Troubleshooting
   • Inspect ClickLoc connectors for oil contamination, dirt and corrosion during machinery shutdown turnaround.
   • Check coaxial cable jacket for abrasion, oil swelling and mechanical crush damage.
   • Persistent low‑current Not‑OK state, signal drift or non‑linear readings usually indicate wrong total transducer cable length, damaged probe assembly or poor connector contact. Replace full probe‑cable assembly; field splicing or repair of NSv coaxial cable is prohibited.
5. Special Installation Restriction
   • Model 990‑05‑70‑01‑00 is non‑intrinsically‑safe variant. Only deploy within non‑hazardous safe‑area cabinet environments.

Supplementary Remark

990‑05‑70‑01‑00 is Bently Nevada 990‑series integrated two‑wire loop‑powered vibration transmitter for 3300‑XL NSv 8 mm proximity transducer system with fixed 7.0 m total cable length, measuring 0‑125 μm peak‑to‑peak shaft‑relative vibration and outputting standard 4‑20 mA analog signal. This non‑IS unit is intended exclusively for safe‑area installation. Before commissioning, strictly verify total transducer cable length equals exact 7 m, cross‑check part‑number configuration, full‑scale measuring range and non‑IS property against project BOM and technical drawings.
