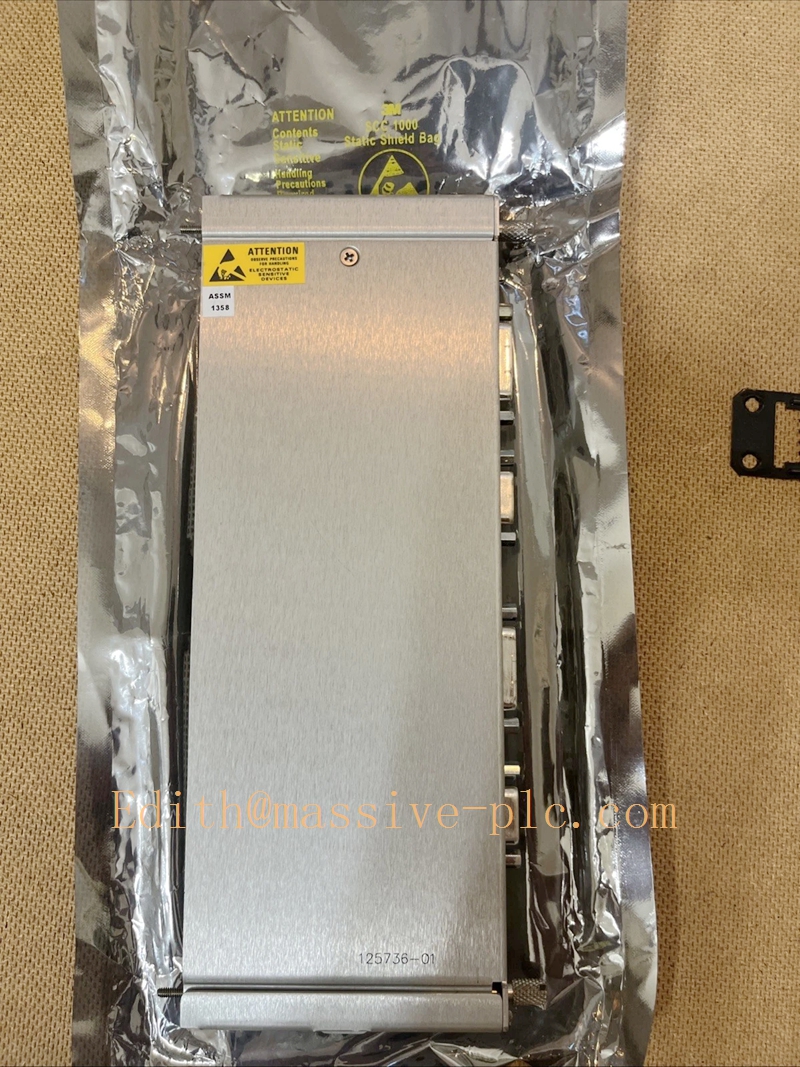

Bently Nevada 3500/92 (125736‑01) Early‑Version Multi‑Protocol Gateway Front Module

Description

Bently Nevada 3500/92 (125736‑01) Early‑Version Multi‑Protocol Gateway Front Module

125736-01

Model Introduction

Model: 3500/92 (Early hardware revision) Part Number: 125736‑01 Device Type: Multi‑Protocol Communication Gateway Front‑slot Main Module Manufacturer: Bently Nevada (Baker Hughes) System Compatibility: Belongs to 3500 series machinery protection rack. Must pair with dedicated rear I/O card 136188‑01 or 136188‑02. Cannot operate standalone. This is the early‑release hardware variant of 3500/92, later superseded by 136180‑01 front module. Rear‑cards 136188‑01 / 136188‑02 are mechanically and functionally compatible for both 125736‑01 and 136180‑01 front versions. Application Scenarios: TSI turbine supervisory instrumentation, thermal‑power steam turbines, oil‑gas centrifugal compressors, heavy‑duty rotating‑machinery protection racks. Realizes bidirectional data exchange between 3500 rack and external DCS, PLC, SCADA, plant historian via Ethernet and serial interfaces. Country of Origin: United States Lifecycle Status: Obsolete early revision, OEM manufacturing discontinued; only spare‑part support available in aftermarket. Recommended replacement part: 136180‑01 front module + 136188‑02 rear I/O card.

Note: Functional difference: 125736‑01 is the original 3500/92 hardware release; 136180‑01 is the updated successor version with optimized firmware hardware base. Both use identical rear‑I/O set 136188‑01 /136188‑02, same configuration software workflow, register mapping utility, protocol support. Direct swap between 125736‑01 and 136180‑01 is allowed with existing rear‑card without rack hardware modification.

Technical Introduction

Core Functions

‑ Collect real‑time rack data (vibration, displacement, speed, temperature, alarm status, system event logs) from 3500 proprietary backplane bus. ‑ Multi‑protocol conversion support: Modbus‑TCP over Ethernet; Modbus‑RTU RS232/RS422/RS485 serial channel; native Bently Nevada proprietary protocol for rack configuration software connection. ‑ Built‑in Configurable Modbus Register Utility, supports user‑customized register mapping for upper‑level system integration. ‑ Simultaneous multi‑host access over Ethernet and serial ports. Supports remote rack configuration download and real‑time data acquisition. ‑ On‑board self‑diagnosis, fault alarming and event‑logging mechanism.

Key Technical Specifications

Mechanical Feature

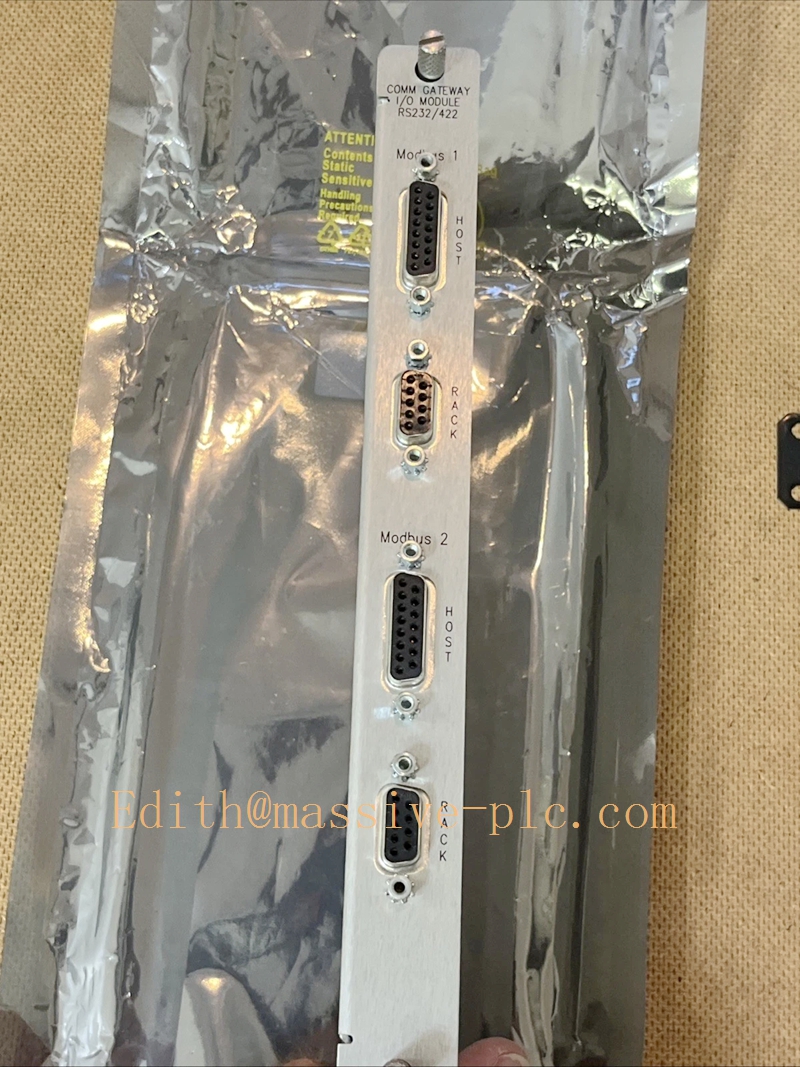

Front‑insert single‑slot gateway module for 3500 rack. All field‑wiring interfaces are located on the mating rear‑I/O card (136188‑01 / 136188‑02). Front main module completes bus data acquisition, protocol parsing and register mapping; rear‑card provides physical signal termination. Hot‑swap capable under rack powered‑on state, official maintenance procedure must be followed.

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Backplane bus continuity test: Verify signal integrity between front‑module connector and rack backplane, detect open‑circuit / short‑circuit defects.
2. Communication interface adaptive test: Pair with qualified rear‑I/O card; validate Ethernet auto‑negotiation, serial‑port RS232/422/485 mode‑switching and baud‑rate adaptability.
3. Multi‑protocol interoperability test: Modbus‑TCP register read‑write test; Modbus‑RTU master‑slave transaction test; connection validation with 3500 Rack Configuration Software under rack simulation environment.
4. Custom register mapping functional test: Load user‑defined Modbus register table, verify correct output of measurement and alarm data.
5. Communication stress cycle test: Repeated link‑up / link‑down for Ethernet and serial channels; verify automatic re‑connection without module crash.
6. Built‑in self‑diagnostic execution: Trigger module self‑test, check fault flag reporting and system event‑log generation.
7. Environmental screening: Temperature cycling test; communication‑port surge‑immunity test.
8. Serial‑number traceability, part‑number label verification, full functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check front‑module physical integrity, connector pin condition, no mechanical damage or oxidation.
2. Rack mating test: Install 125736‑01 front module with matched rear‑I/O card (136188‑01 / 136188‑02); power‑on rack, connect with 3500 Rack Configuration Software; confirm no hardware‑mismatch alarms.
3. Ethernet communication test: Assign static IP address; establish Modbus‑TCP connection; verify real‑time measurement and alarm‑register reading.
4. Serial‑port function test: Configure serial mode, baud‑rate, parity and stop‑bit; validate Modbus‑RTU read‑write transactions.
5. Register‑mapping cross‑check: Compare DCS/SCADA reading values against rack local display values.
6. Module self‑test execution: Launch self‑test from configuration software; confirm zero critical faults inside rack system event‑log.
7. Communication fail‑over simulation: Simulate cable disconnection and reconnection for Ethernet and serial ports, verify auto‑recovery without rack disturbance.
8. Test‑record filing: Log part‑number, hardware revision, firmware version, register‑map snapshot for site QA archive.

125736-01

Field Engineer Technical Notes

Installation Guidance

‑ Mandatory pairing rule: 125736‑01 front gateway module must work exclusively with rear‑I/O 136188‑01 or 136188‑02. It can be replaced by updated 136180‑01 front module with existing rear‑card without hardware modification. Mismatched rear‑card will trigger hardware‑mismatch alarm and communication failure. ‑ Insert front‑module firmly into rack slot, tighten locking screws to avoid intermittent poor‑contact faults. ‑ Ethernet wiring: Use industrial‑grade shielded CAT5e/CAT6 cable; implement single‑end shield grounding per plant drawing, avoid multi‑point ground‑loops. ‑ Serial wiring: RS422/RS485 adopt shielded twisted‑pair cable; terminate bus end‑resistor as required for multi‑drop bus topology. ‑ No external power connection to module; power is fully supplied from rack backplane.

Field note: Since 125736‑01 is an obsolete early revision, spare‑part supply is limited in original OEM channels. For new‑procurement projects, select successor set: 136180‑01 +136188‑02.

Commissioning Tips

‑ After hardware installation, download complete rack configuration; activate 3500/92 gateway function in slot‑configuration table. ‑ Assign static IP for Ethernet port; avoid IP conflict within plant LAN. ‑ Match serial‑port parameters (baud‑rate, parity, stop‑bit, slave ID) strictly with upper‑level DCS / PLC settings. ‑ Apply Configurable Modbus Register Utility to define required measurement points and alarm bits before downloading configuration. ‑ Cross‑validate data consistency between rack local readings and DCS receiving values.

Troubleshooting Common Issues

1. Module Mismatch Alarm: Confirm rear‑I/O is 136188‑01 / 136188‑02; cross‑check front‑rear part‑number matching.
2. Ethernet link‑down: Inspect RJ45 connector, cable integrity, switch‑port status and IP subnet matching.
3. Serial‑port communication unstable: Check wiring polarity, bus terminal‑resistor setting, verify serial‑parameter consistency at both sides.
4. Missing / abnormal Modbus register data: Recheck Modbus register mapping configuration; re‑download rack configuration.
5. Intermittent data dropout: Check cable shielding & grounding, eliminate ground‑loop interference; adjust network‑switch storm‑control parameters.

Diagnostic reference: Read rack system event‑log in 3500 configuration software for root‑cause analysis.

Maintenance & Spare‑part Recommendation

‑ No user‑serviceable components onboard; replace full front‑module plus matched rear‑I/O‑card set upon hardware failure. ‑ Spare‑part suggestion: For existing racks with 125736‑01, keep spare successor set 136180‑01 + 136188‑02 as drop‑in replacement. ‑ Preventive inspection during unit shutdown: Check slot‑locking condition, rear‑card terminal‑screw tightness, connector oxidation, cable aging and shielding integrity.
