Bently Nevada 3500/91M (190798‑01) Rear I/O Card

Description

Bently Nevada 3500/91M (190798‑01) Rear I/O Card

(English‑style technical document for overseas customer reference)

Model Introduction

Model: 3500/91M Part Number: 190798‑01 Device Type: Enhanced EGD Communication Gateway Rear I/O Card (back‑plane rear card) Manufacturer: Bently Nevada (Baker Hughes) System Compatibility: 3500 Series Machinery Protection System, strictly paired with front‑side 3500/91M enhanced gateway main module; cannot work independently, incompatible with standard 3500/91 front module (161216‑01 set). Application Scenarios: TSI turbine supervisory instrumentation, power plant steam turbines, oil‑gas centrifugal compressors, large rotating machinery condition monitoring. Delivers rear‑side physical termination for dual‑port Ethernet and multi‑channel serial communication interfaces, bridging 3500 rack backplane bus to external DCS, SCADA, PLC and host monitoring systems. Country of Origin: United States Lifecycle Status: Legacy mature spare‑part, not end‑of‑life; factory spare‑part support available.

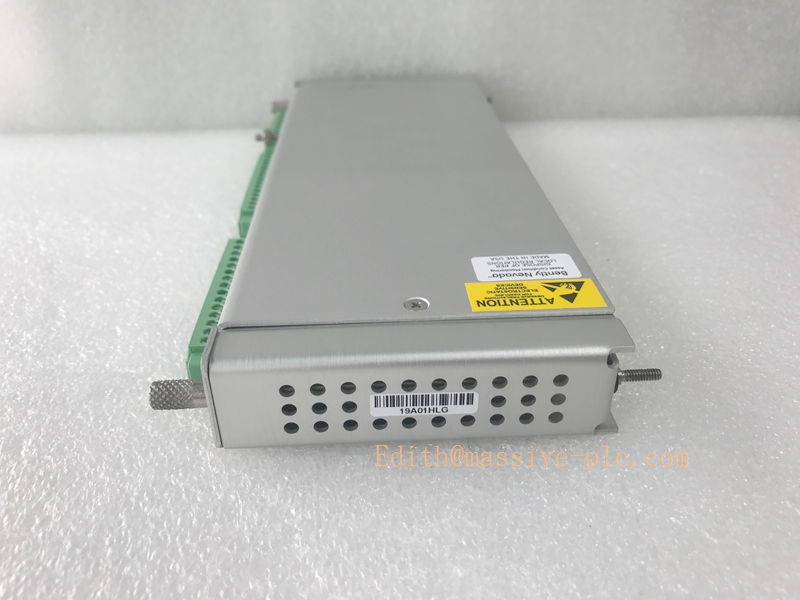

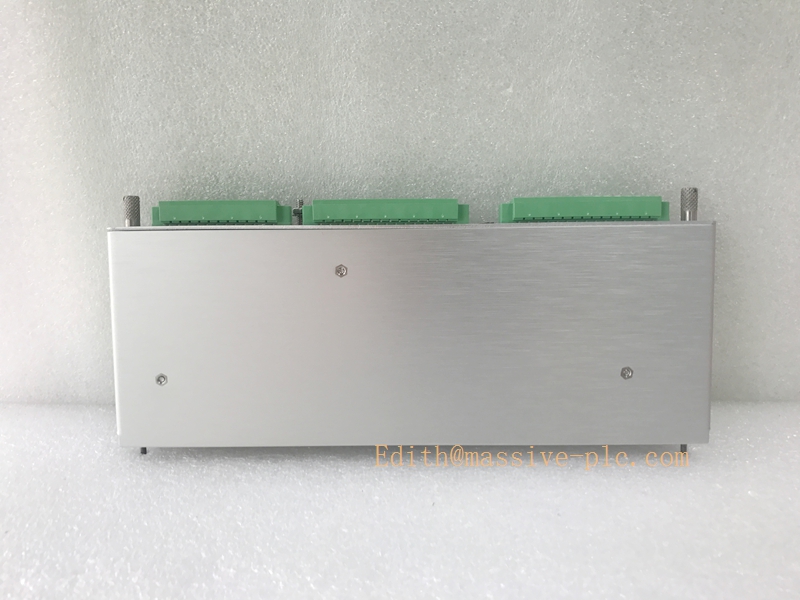

190798‑01

Technical Introduction

Core Functions

• Provides rear‑panel physical termination for dual‑port 10/100BASE‑TX Ethernet for enhanced EGD gateway communication; supports Modbus‑TCP, Modbus RTU, RS232/RS422/RS485 serial protocols and native Bently Nevada proprietary protocol data transmissionBaker Hugh….
• Routes rack backplane bus data to external industrial networks; transmits real‑time vibration, displacement, speed, alarm status, system event logs and waveform snapshot data.
• Auxiliary discrete signal terminals support rack remote reset, trip multiply, alarm inhibit remote dry‑contact activation.
• Built‑in port isolation and surge suppression, mitigates industrial ground‑loop interference for both Ethernet and serial channels.

Key Technical Specifications

Mechanical Feature

Rear‑mount I/O card installed on back side of 3500 rack backplane, one‑to‑one mated with front‑inserted 3500/91M main gateway module. All field wiring terminates on this rear card; front main module completes protocol processing and data calculation. Hot‑swap supported under rack powered‑on condition, must strictly follow official maintenance procedure.

Adaptive Quality Assurance & Test Protocol

3.1 Factory Adaptive QA Procedure

1. Backplane continuity test: Verify pin‑to‑pin connectivity between rear‑card connector and front‑module mating interface, detect open‑circuit / short‑circuit fault.
2. Dual‑port Ethernet physical‑layer adaptive test: Auto‑negotiation verification for 10 Mbps /100 Mbps full‑duplex & half‑duplex mode; link‑up / link‑down stress cycle test for both LAN ports.
3. Serial port adaptive validation: RS232/422/485 mode switching test, baud‑rate adaptive stress test.
4. Protocol adaptive validation: Enhanced EGD packet transmission, Modbus‑TCP register read‑write, Modbus‑RTU serial communication, event‑message forwarding test under 3500 rack simulation environment.
5. Auxiliary discrete‑channel test: Trigger remote reset, trip‑multiply, alarm‑inhibit dry‑contact signals to confirm correct logic response.
6. Environmental screening: Temperature cycling test; surge‑immunity test for Ethernet and serial communication ports.
7. Built‑in self‑diagnostic execution: Module internal self‑test; event‑log generation; fault‑flag reporting validation.
8. Final compliance check: Serial‑part‑number traceability, label verification, complete functional‑test report archived.

3.2 On‑site Acceptance Test Protocol

1. Visual inspection: Check physical condition, connector pin integrity, no mechanical damage or oxidation.
2. Rack insertion test: Install rear I/O card with matched 3500/91M front main module; power‑on, read module status via 3500 Rack Configuration Software, confirm no hardware mismatch alarms.
3. Dual‑port communication link test: Connect Ethernet cables for both ports, verify link LED status; establish Modbus‑TCP connection from host, read real‑time measurement and alarm registers.
4. Serial port function test: Connect serial host equipment, verify Modbus‑RTU read‑write function under different baud‑rate settings.
5. Auxiliary input function test: Inject dry‑contact signals to rear‑card auxiliary terminals, confirm corresponding system actions are triggered.
6. Self‑test run: Launch module self‑test from configuration software; confirm zero critical faults in system event list.
7. Fail‑over simulation: Simulate network cable disconnection and reconnection for both Ethernet ports; verify module auto‑recovery without rack system crash.
8. Test record filing: Log part number, firmware version, test‑result snapshot for site QA archive.

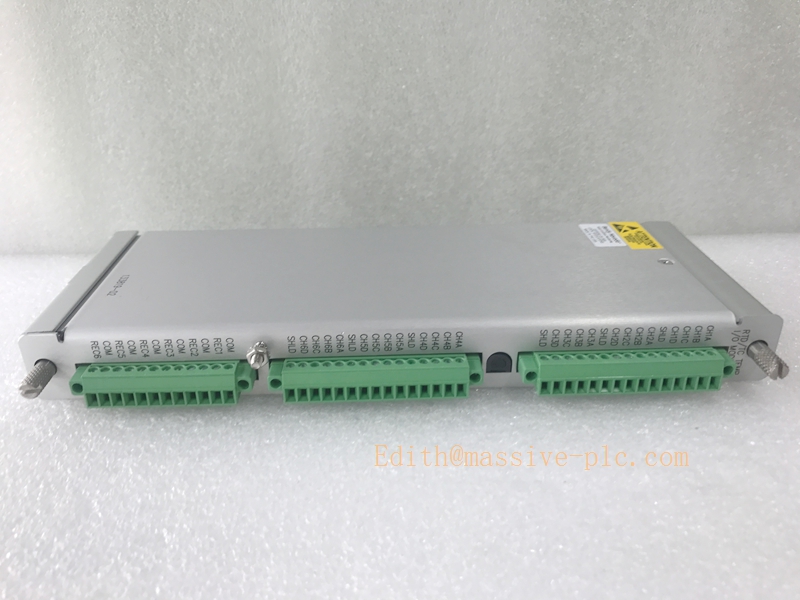

190798‑01

Field Engineer Technical Notes

Installation Guidance

• 190798‑01 rear I/O card must be paired exclusively with 3500/91M front main module. Mix‑matching with standard 3500/91 front module (161216‑01 set) triggers I/O‑mismatch fault and complete communication failure.
• Install on rack back‑side, align backplane connector firmly; tighten retaining screws to avoid loose‑contact intermittent faults.
• Ethernet cable: Use industrial‑grade shielded CAT5e/CAT6 cable; shield single‑end grounding following plant drawing, avoid multiple ground loops. Dual‑port can be configured for network redundancy.
• Serial signal wiring: Use shielded twisted‑pair cable for RS422/485; terminate bus end‑resistor as required.
• Auxiliary signal wiring: Use dry‑contact isolated relay outputs for remote‑control signals; do not feed external voltage directly into rear‑card discrete terminals.

Commissioning Tips

• Complete rack configuration download after hardware installation; confirm enhanced 91M gateway module is activated in slot configuration.
• Assign static IP addresses for dual Ethernet ports via Rack Configuration Software; avoid IP conflict within plant LAN.
• Select correct serial working mode (RS232 / RS422 / RS485), set baud‑rate, parity and stop‑bit matching upper‑level equipment.
• Map Modbus register table according to project document; verify vibration, position, alert/danger alarm bits read correctly at DCS/SCADA side.

Troubleshooting Common Issues

1. Module Mismatch Alarm: Rear‑card and front‑module part‑revision mismatch; confirm correct 3500/91M matched spare‑part set.
2. Ethernet link down: Inspect RJ45 connector, cable continuity, switch port status; check IP subnet matching. Dual‑port independent fault judgment.
3. Serial communication abnormal: Check wiring polarity, bus terminal resistor setting, baud‑rate/parity consistency.
4. Data loss / intermittent communication: Check grounding & shielding; eliminate ground‑loop interference; verify network switch anti‑storm‑control setting.
5. Auxiliary remote signal no response: Check terminal wiring continuity, dry‑contact integrity; confirm function is enabled in rack configuration.

Diagnostic reference: Read system event list inside 3500 software to locate hardware or configuration faults.

Maintenance & Spare‑part Recommendation

• No on‑board user‑repairable components; upon hardware failure replace complete rear‑card assembly.
• Recommended spare‑part stock: keep matched 3500/91M front‑main‑module plus 190798‑01 rear‑I/O‑card full set.
• Preventive check during turnaround: Inspect terminal screw tightness, connector oxidation, cable aging and shielding integrity.
